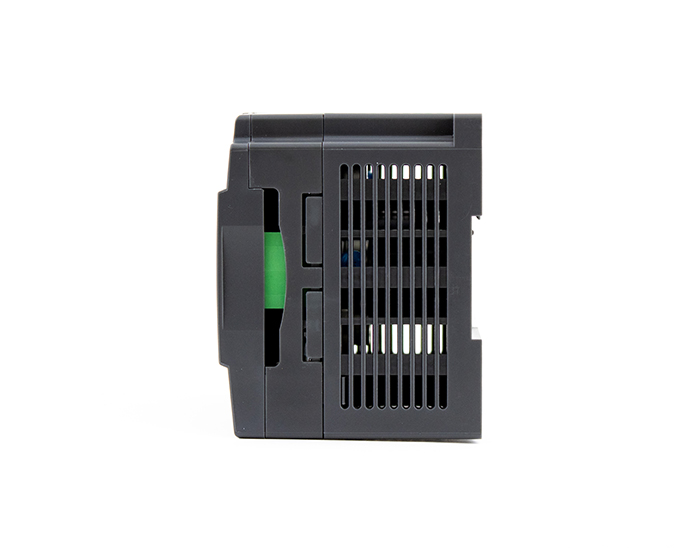

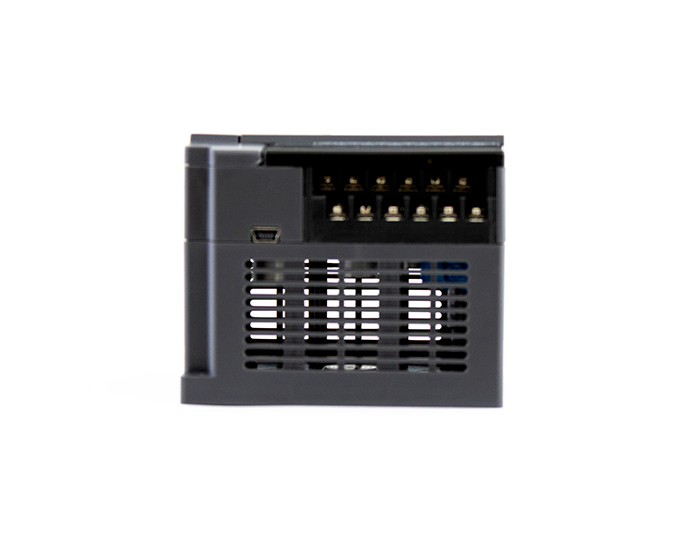

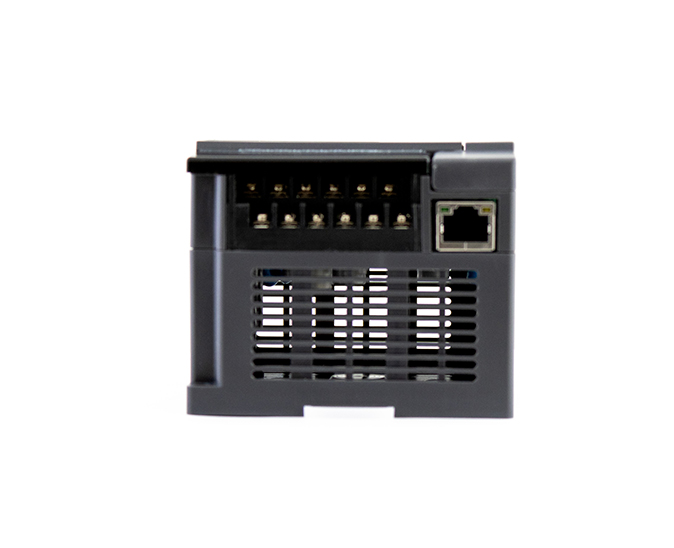

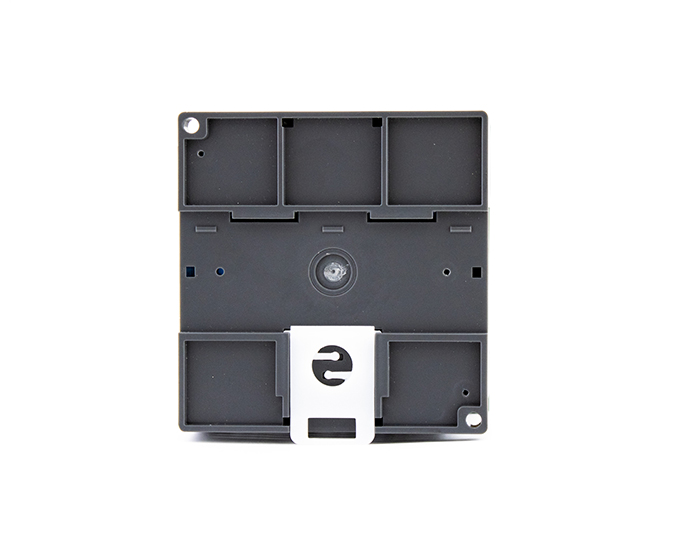

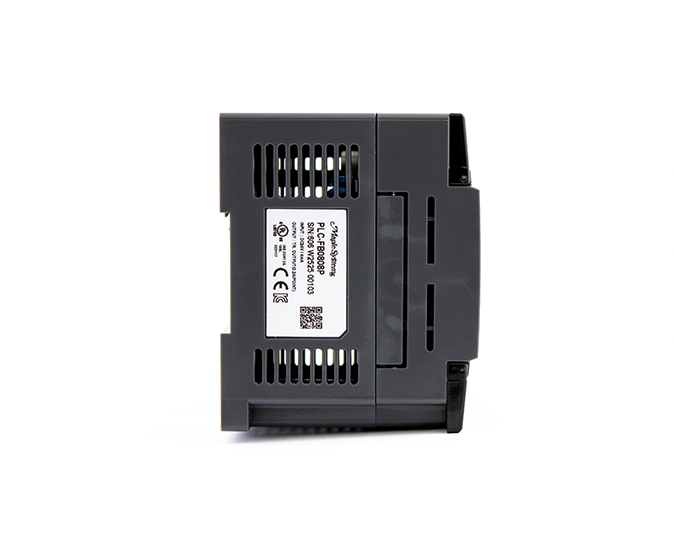

16-channel Micro PLC
$220.00
Compact and cost-effective “smart relay” programmable logic controller for small applications that require powerful performance and uncompromising reliability.
Contact [email protected] or click “Schedule a Call Now” to schedule a 30-min PLC kick-off call with one of our account managers!
Try Before You Buy: Follow along to learn how MapleLogic, our 100% free PLC control software, allows you to develop and simulate your PLC program entirely free of charge.
- Volume discounts available.
- US-based technical support.
Share the product:
PLC-FB0808P Highlights
- 8 Digital Inputs – Sink (NPN) or Sourcing (PNP)
- 8 Digital Outputs – Sourcing (PNP)
- Serial or Ethernet Communication
- Real Time Clock (RTC)
- 2 High Speed Counter (HSC) Inputs – up to 20kHz
- 2 Pulse Train Output (PTO) Channels – up to 100KHz
I/O Ports
| USB | USB 2.0 (Mini-B) x 1 |
| Ethernet/LAN | 10/100 Base-T x 1 |
| SD Card Slot | N/A |
| Serial | 1 x RS232, 1x RS422/RS485 |
Functional
| Program Languages | Ladder (LD), Instruction List (I/L), Function Block (FB), Sequential Function Chart (SFC) |
| Power Consumption | 2.88 W, 12/24 VDC, 0.12 A at 24 VDC |
| High-Speed Counter (HSC) | Yes |
| Positioning | Yes |
| Number of Channels | 16 Total: 8 Digital Inputs, 8 Digital Outputs |
| Program Memory | 10K STEP |
| Execution Speed | 300ns/STEP |
| Number of IO Points | 16 |
Digital I/O
| Digital Input Type | TR Sink/Source |
| Digital Output Type | TR Source |
| Rated Digital Input Voltage | 24 VDC (12 or 24 VDC is used for HSC) |
| Rated Digital Output Voltage | 12/24 VDC |
| Rated Digital Output Current | 1 point = 0.2 A, 1 COM = 1 A |
| Digital Output Insulation Method | Photocoupler |
| Digital Input Insulation Method | Photocoupler |
| Rated Digital Input Current | 4 mA |
Analog I/O
| Input Type | N/A |
| Output Type | N/A |
Mechanical
| Dimensions WxHxD | 93 x 90 x 76 mm (3.7 x 3.5 x 3.0 in) |
| Weight | 240g (0.53lb) |
| Shock | 15G |
| Vibration | 0.5G Continuous, 1G Discontinuous |
| Square Wave Impulse Noise | ±2 kV |
| ESD Immunity | ±4 kV – Contact Discharges, ±8 kV – Air Discharges |
| Radiated Electromagnetic Immunity | 80–1000 MHz, 10 V/m |
| Surge Transient Immunity | 2 kV – CPU & Power, 2 kV – Digital I/O (VAC), 1 kV – Digital I/O (VDC), 1 kV – Communication |
Environmental
| Operating Temperature | 10 – 55 °C (14 – 131 °F) |
| Storage Temperature | -25 – 80 °C (-13 – 176 °F) |
| Operating/Storage Relative Humidity | 5 – 95% Non-condensing |
Certification
| CE | Yes |
| UL | cULus Listed |
| RoHS | Yes |

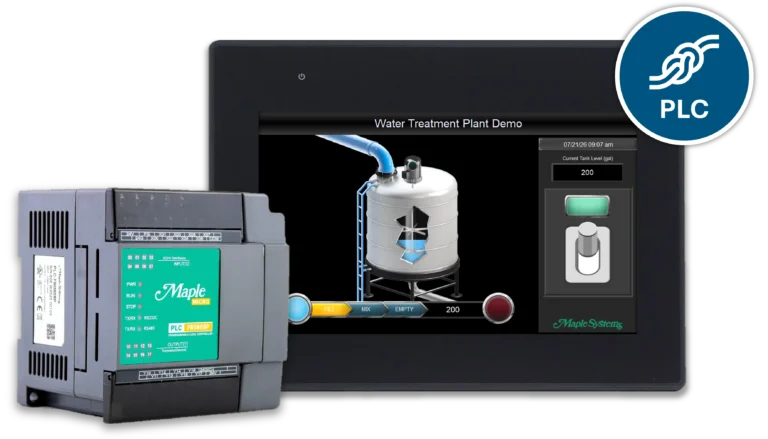

Connect a Maple Systems HMI to a Maple Systems PLC
Whether you are new to Maple Systems or know our HMIs well, pairing one of our powerful HMIs with a low-cost PLC is easy.
PLC-FB0808P Unboxing
We'll unbox, tour the hardware, highlight key features, wire it up, power it on, download a project
FREE User Friendly PLC Software
Download our free, powerful PLC configuration software. Using your preferred programming language—Ladder Diagram, Instruction List, Sequential Function Chart, or Function Block—you can create your project, your way, for a one-of-a-kind control solution.
Documents
Manuals
- Micro PLC User Manual
- MapleLogic PID User Manual
- MapleLogic Positioning User Manual
- MapleLogic User Manual
Certifications
CAD Files
When you order the PLC-FB0808P the following items are included in the box:
- PLC-FB0808P
- User Manual
