PC1319BPH

  • High Brightness -1000 nits
  • High-Resolution Capacitive Touch Screen
  • Intel® 7th Gen Core i3-7100U CPU
  • Multiple Memory and Storage Options Available
  • Windows® or Linux® Operating System
  • Optional Wi-Fi Upgrade
  • Integrate with Aveva Edge

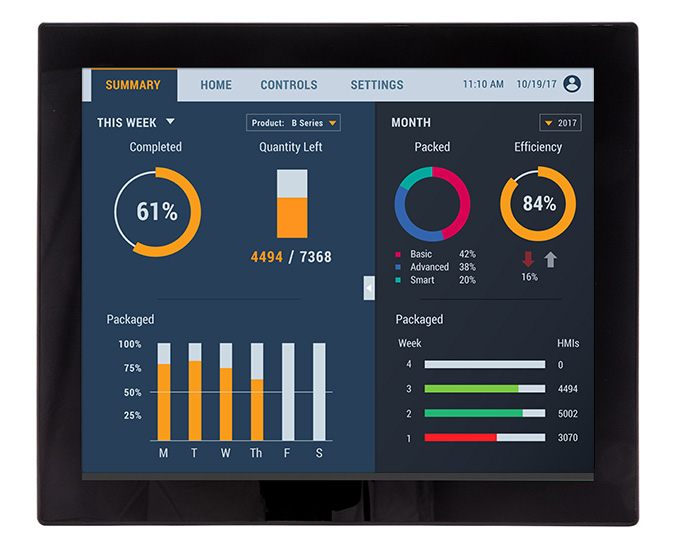

19.0" High Brightness, Intel® 7th Gen Core® Panel PC with Windows® or Linux OS®

PC1319BPH

$2,900

Configure your PC

The base options are selected by default. Select the options to get the desired configuration.

Reset Configuration
Current Configuration
Base Price
PC1319BPH
$2900.00
Display
Included
Processor
Included
System Memory
Included
Storage
Included
Operating System
Included
Expansion Kit
Included

Part Number:

Buy Now

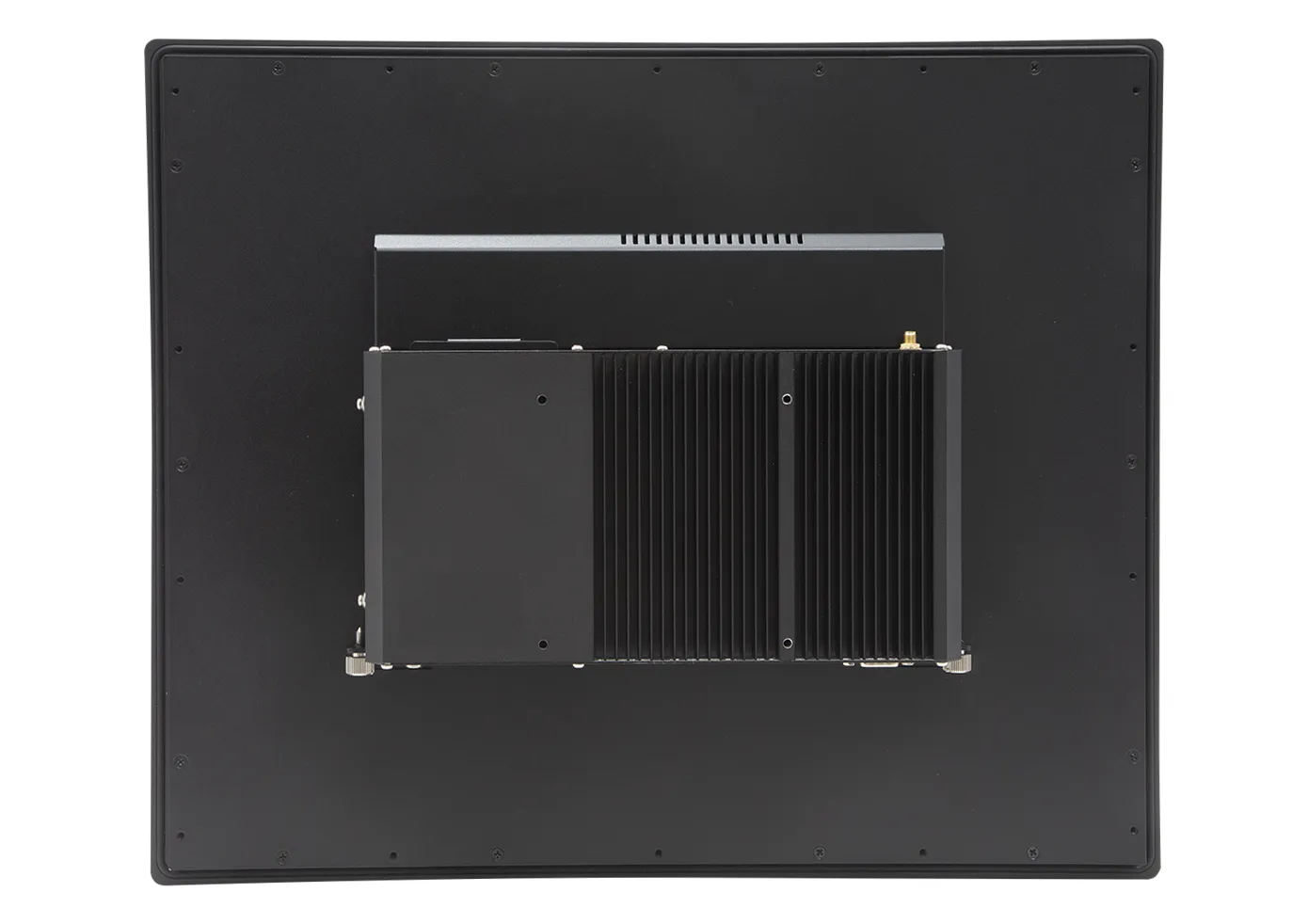

Our sunlight readable IPCs provide power, performance, and functionality in one package. The customizable, fanless PC1319BPH features a bright 19” capacitive touchscreen, steel chassis, aluminum heatsink, and the option of VESA or panel mount making it extremely rugged and versatile. And because this industrial computer runs any 3rd party software including FactoryTalk®, it is extremely flexible. Need SCADA software? Take a look all our Aveva Edge® software options.

Specifications

System

Memory (RAM)

2 x DDR4 260-pin SO-DIMM Non-ECC RAM (4, 8, 16, 32 GB)

System Chipset

SoC

Solid State Drive Type

1 x 2.5” SATA II, MLC

Solid State Drive Capacity

64, 128, 256, 512 GB, 1TB SSD

Input Current

1.98~5.28 A

Capacity (Screens)

500

I/O Ports

Serial Ports

4

Ethernet/LAN

2 x GbE RJ-45

Audio Output

1 x 3.5 mm Line-out, 1 x 3.5 mm Mic-in

HDMI Port

Yes

Remote Power Switch

1 x Momentary Pushbutton with Integrated LED

Display Output

1 x HDMI® 1.4a, 1 x DisplayPort 1.2

Display Port

Yes

Power

DC power input jack, thumbscrew secured.

USB 2.0 Type A

2

USB 3.0 Type A

4

Serial Options

1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 3 x RS-232 DE-9P, COM2/COM3/COM4

Expansion Option

Optional Wi-Fi kit (IEEE 802.11a/b/g/n/ac card and antenna)

Display

Display Size

19” TFT SXGA LCD

Resolution

1280 x 1024

Luminance (cd/m^2)

1000

Contrast Ratio

1000:1

Backlight Lifetime (hrs)

30000

Colors

16.2 M

View Angle (H° V°)

170/160

Touch Screen

Touch Interface

USB

Optical Bonding

No

Touch Screen Type

Projected Capacitive Touch

Electrical

Input Power

60 W

Input Voltage

9~24 VDC

Input Current

2.50~6.67 A

Mechanical

Enclosure Material

Black Steel Chassis, Aluminum Heatsink

Dimensions WxHxD

17.44 x 14.49 x 3.44” [443 x 368 x 87.4 mm]

Panel Cutout (inches) [mm]

16.69 x 13.82 [424 x 351 ]

Weight

~ 18.52 lbs [8.4 kg]

Mounting

Panel mounting, VESA 100 x 100 mm

Environmental

Storage Temperature

-22~175°F [-30~80°C]

Operating Temperature

32~140°F [0~60°C]

Relative Humidity

10 to 90% @ 40°C, non-condensing

Certification

NEMA Rating

NEMA 4 when panel mounted

IP Rating

IP65

CE

Yes

RoHS

Yes

FCC

Yes

Available Software

Documentation & Resources

Need Additional Support?

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

What's Included

When you order the PC1319BPH the following items are included in the box:

  • PC1315BPH Industrial Panel PC
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • Input Power Cable
  • Mounting Kit (Quantity determined by screen size)
  • 4 x VESA Mounting Screws
