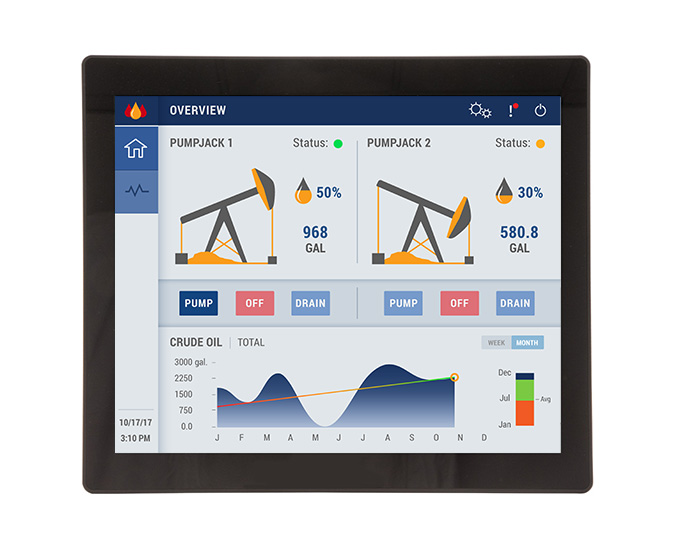

pc1317bph Front View

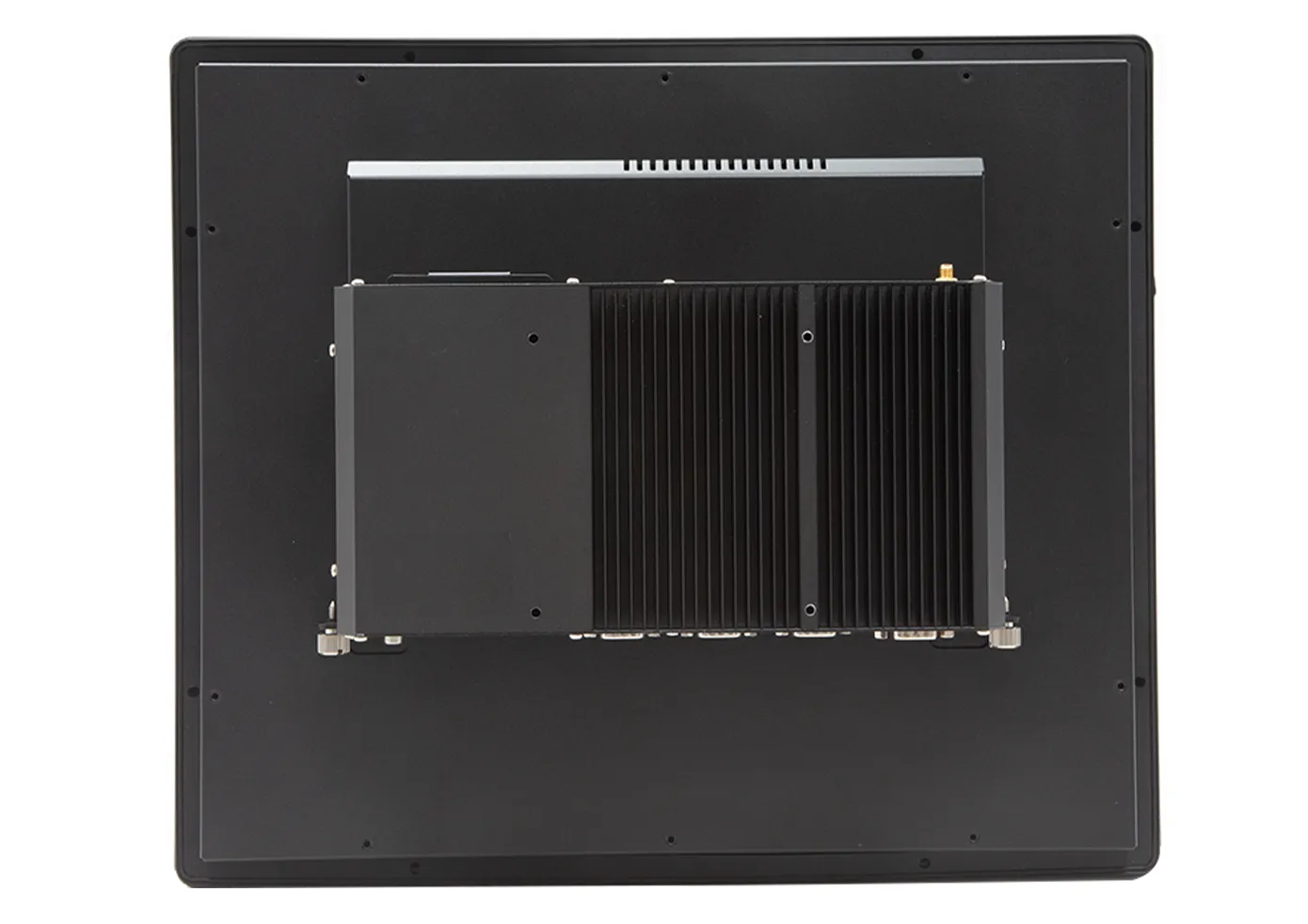

PC1317BPH Back View

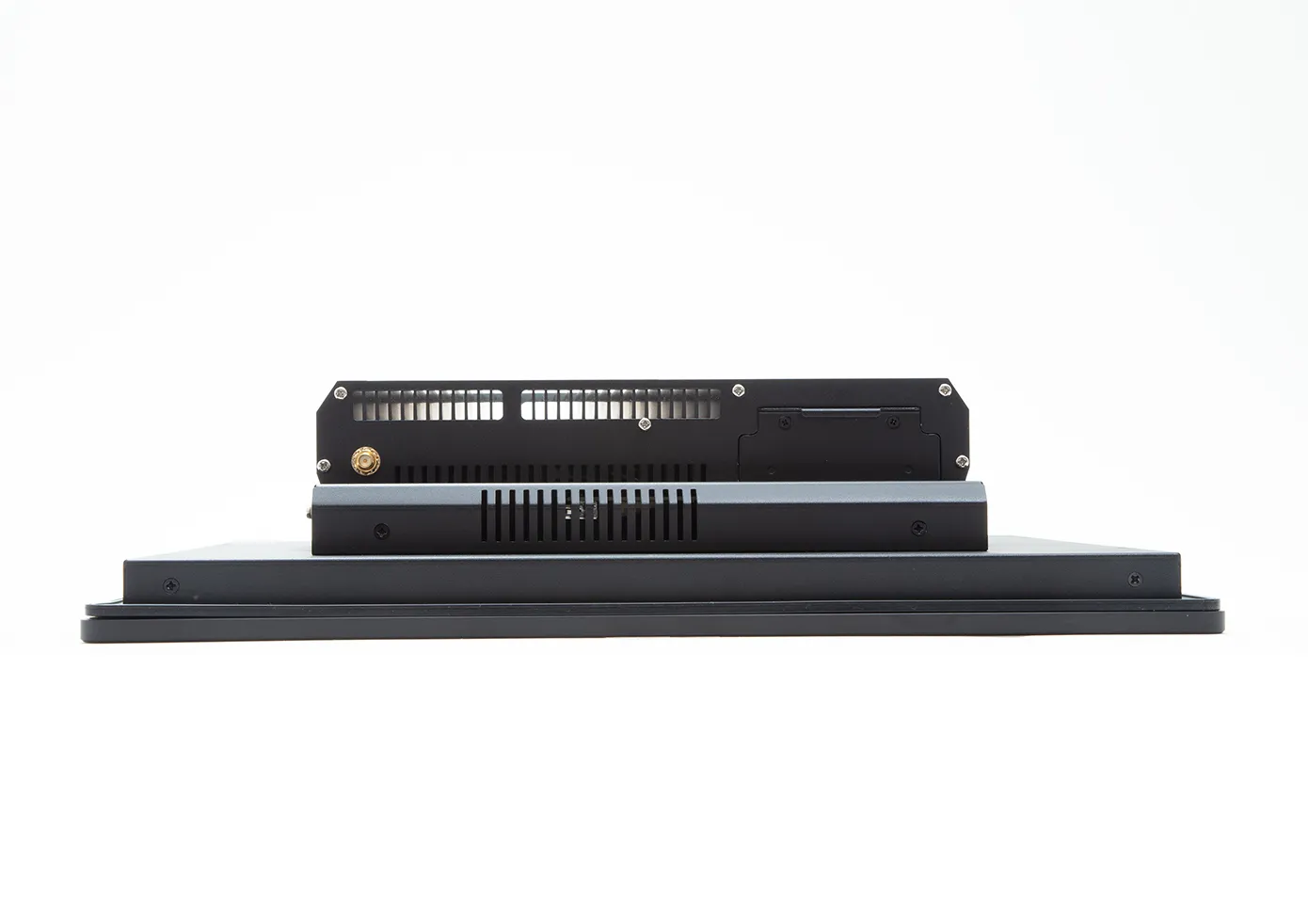

PC1317BPH Top View

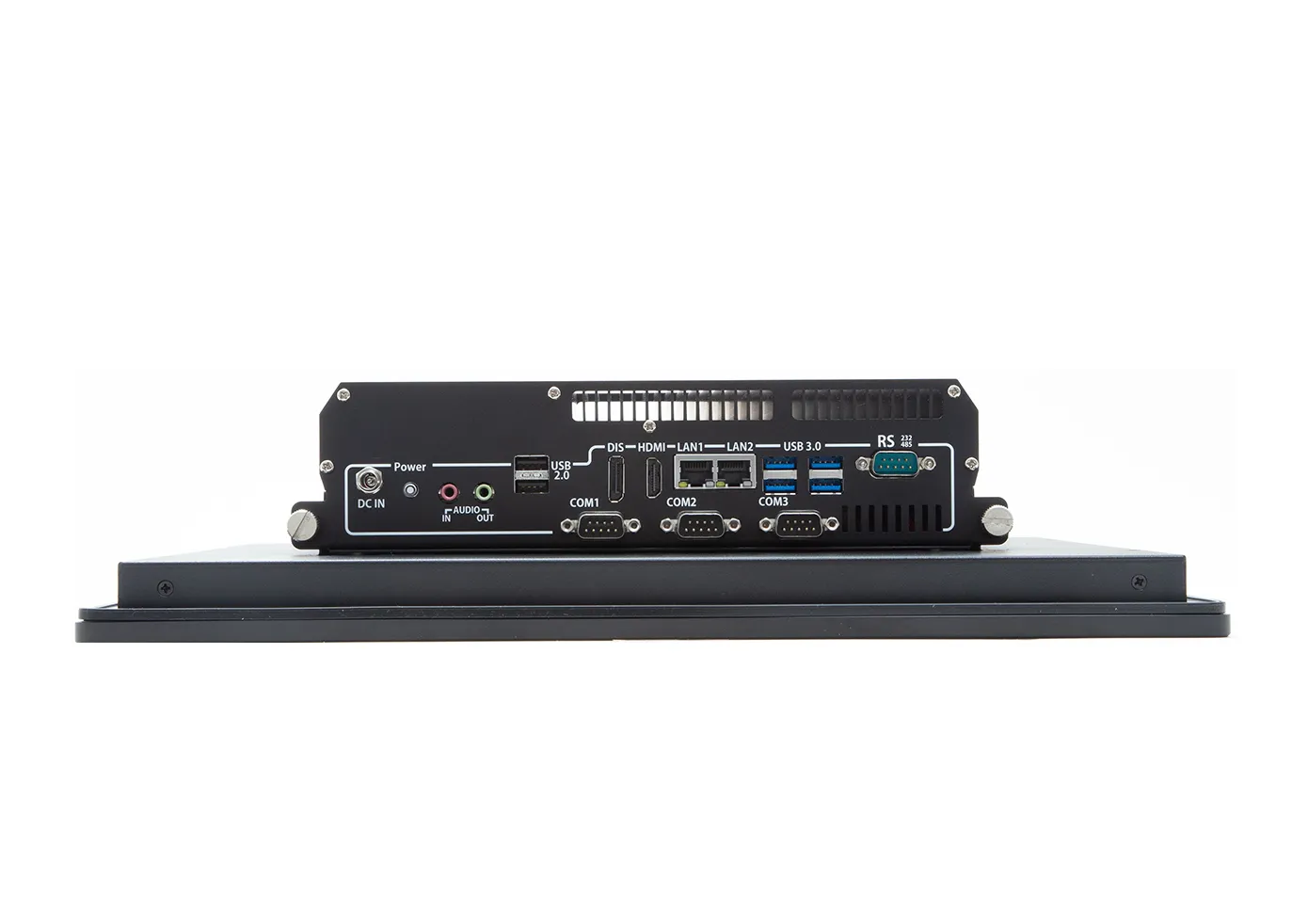

PC1317BPH Bottom View

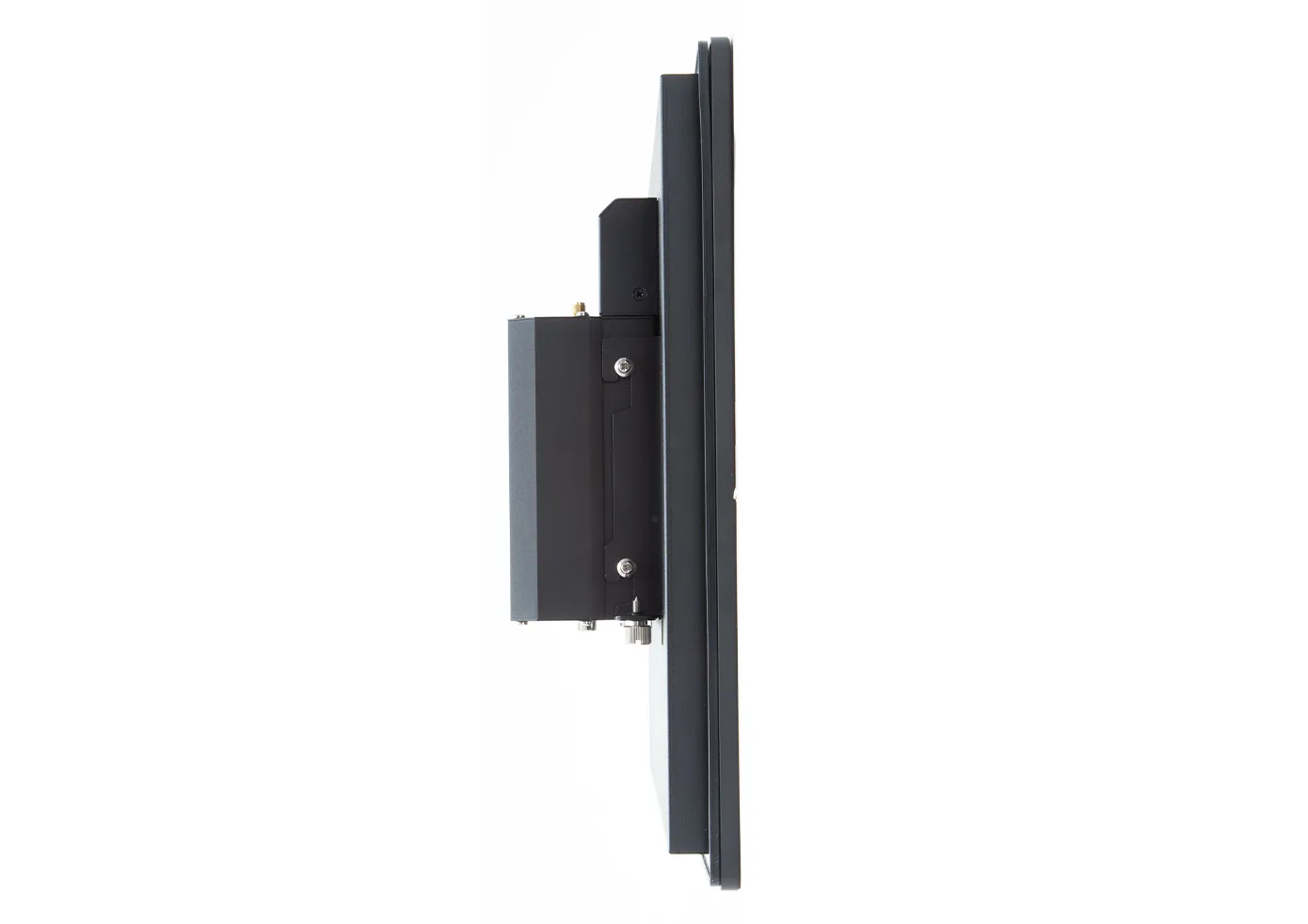

PC1317BPH Side1 View

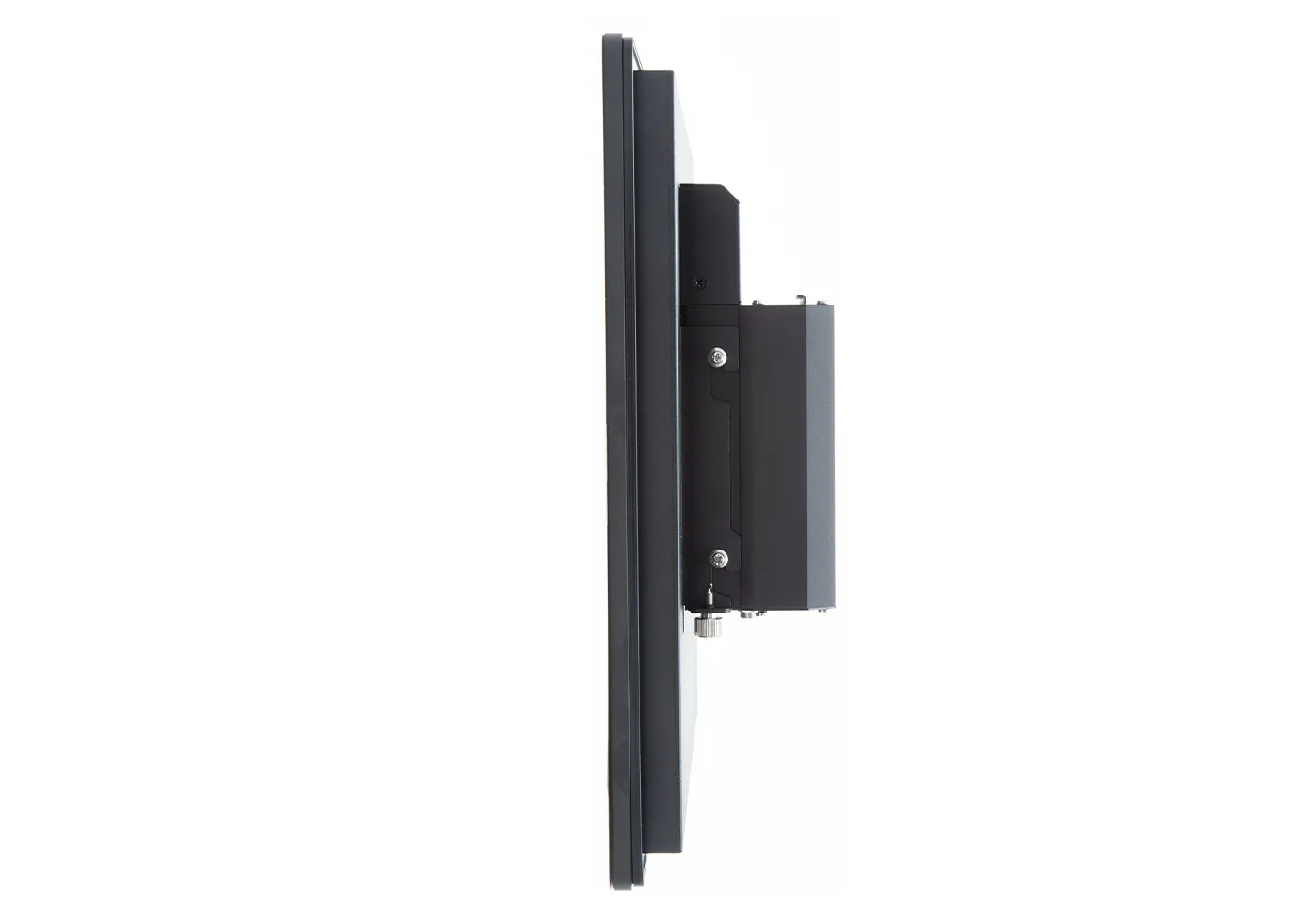

PC1317BPH Side2 View

PC1317BPH

  • High Brightness -1000 nits
  • High-Resolution Capacitive Touch Screen
  • Intel® 7th Gen Core i3-7100U CPU
  • Multiple Memory and Storage Options Available
  • Windows® or Linux® Operating System
  • Optional Wi-Fi Upgrade
  • Integrate with Aveva™ Edge
View Datasheet

17.0" High Brightness, Intel® 7th Gen Core® Panel PC with Windows® or Linux OS®

PC1317BPH

$2,900.00
Configure Your PC

This sunlight readable fanless industrial computer features a 17” capacitive touchscreen, steel chassis, aluminum heatsink, and the option of VESA or panel mount making it extremely rugged and versatile. Our customizable IPCs provide power, performance, and functionality in one package. And because the PC1317BPH runs any 3rd party software including FactoryTalk®, it is extremely flexible. Need SCADA software? Take a look all our Aveva Edge® software options.

Configure your PC

The base options are selected by default. Select the options to get the desired configuration.

Compare "Intel® Dual Core™ i3-7100U, 2.4 GHz" performance with other processors

Relative CPU performance scores provided by PassMark
+$320

Compare "Intel® Dual Core™ i5-7300U, 2.6 GHz" performance with other processors

Relative CPU performance scores provided by PassMark
+$690

Compare "Intel® Dual Core™ i7-7600U, 2.8 GHz" performance with other processors

Relative CPU performance scores provided by PassMark
+$60
+$95
+$275
+$45
+$155
+$300
+$650
-$50

Ubuntu® Linux® Desktop LTS

Supported Models: AEX-2410, IPC2330A, IPC2110A, IPC2210A, IPC2400A Series, IPC2550A, IPC2700A Series, OMI6800BPHEB Series, OMI6900BP Series, PC1200A Series, PC1300X Series, PCS6800A Series, and PCS6800APHEB Series.

This powerful Operating System delivers enterprise manageability and security across a wide range of industries. Additionally, most features and functionality that customers expect to find on their desktop PCs are available in this Open-Source Operating System. The Long-Term Support (LTS) version ensures long-term stability with five years of free security and maintenance updates.

Included Apps:

  • Libre Office Suite
  • Mozilla Firefox Web Browser
  • Gnome Desktop
  • Rythm Box Media Player
  • VIM

Microsoft® Windows® 10 IoT Enterprise Embedded (EPKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

EPKEA Extended Denotation, “Embedded Product Key Entry Activation.”

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft® Windows® 10 IoT Enterprise Embedded LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 10 IoT Enterprise (PKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

PKEA Extended Denotation, “Product Key Entry Activation.”

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Microsoft® Windows® 10 IoT Enterprise LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft® Edge Web Browser
  • Libre Office
  • Media Player

Microsoft Windows® 11 IoT Enterprise Embedded (EPKEA) GAC

Supported Models: IPC2200A Series, IPC2400A Series, IPC2550A, IPC2700A Series, PC1300X Series, and PC2300B Series.

EPKEA Extended Denotation, “Embedded Product Key Entry Activation.”

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft® Windows® 11 IoT Enterprise Embedded GAC is a full Professional version of Windows® 11. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The General Availability Channel (GAC) version ensures the stability of systems using a 36-month support schedule to update the operating system components. With the optional benefit of yearly enterprise build updates.

Included Apps:

  • Microsoft® Edge Web Browser
  • Copilot Windows® AI
  • Libre Office
  • Media Player

Microsoft® Windows® 11 IoT Enterprise (PKEA) GAC

Supported Models: IPC2200A Series, IPC2400A Series, IPC2550A, IPC2700A Series, PC1300X Series, and PC2300B Series.

PKEA Extended Denotation, “Product Key Entry Activation.”

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Microsoft® Windows® 11 IoT Enterprise GAC is a full Professional version of Windows® 11. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The General Availability Channel (GAC) version ensures the stability of systems using a 36-month build support schedule to update the operating system components. With the optional benefit of yearly enterprise build updates.

Included Apps:

  • Microsoft® Edge Web Browser
  • Copilot Windows® AI
  • Libre Office
  • Media Player
+$200

Microsoft® Windows® 11 Pro 64-bit

Supported Models: IPC2200A Series, IPC2400A Series, IPC2550A, IPC2700A Series, PC1300X Series, and PC2300B Series.

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Windows® 11 Pro is Microsoft’s current gold standard for PC computing. All the features and functionality that customers expect to find on their desktop PC are available in this version as well as the addition of Copilot, the Windows® AI companion for users. Windows® 11 Pro also features a new enhanced hardware security standard to help protect your PC.

Included Apps:

  • Microsoft® Edge Web Browser
  • Copilot Windows® AI
  • Libre Office
  • Media Player
+$85
Reset Configuration
Current Configuration
Base Price
PC1317BPH		 $2900
Display
 Included
Processor
 Included
System Memory
 Included
Storage
 Included
Operating System
 Included
Expansion Kit
 Included

Part Number:

Download 2D CAD file
Download 3D CAD file
Datasheet

System

Memory (RAM)

2 x DDR4 260-pin SO-DIMM Non-ECC RAM (4, 8, 16, 32 GB)

System Chipset

SoC

Solid State Drive Type

1 x 2.5” SATA II, MLC

Solid State Drive Capacity

64, 128, 256, 512 GB, 1TB SSD

Input Current

2.29~6.11 A

Capacity (Screens)

500

I/O Ports

Serial Ports

4

Ethernet/LAN

2 x GbE RJ-45

Audio Output

1 x 3.5 mm Line-out, 1 x 3.5 mm Mic-in

HDMI Port

Yes

Remote Power Switch

1 x Momentary Pushbutton with Integrated LED

Display Output

1 x HDMI® 1.4a, 1 x DisplayPort 1.2

Display Port

Yes

Power

DC power input jack, thumbscrew secured.

USB 2.0 Type A

2

USB 3.0 Type A

4

Serial Options

1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 3 x RS-232 DE-9P, COM2/COM3/COM4

Expansion Option

Optional Wi-Fi kit (IEEE 802.11a/b/g/n/ac card and antenna)

Display

Display Size

17” TFT SXGA LCD

Resolution

1280 x 1024

Luminance (cd/m^2)

1000

Contrast Ratio

1000:1

Backlight Lifetime (hrs)

50000

Colors

16.2 M

View Angle (H° V°)

160/160

Touch Screen

Touch Interface

USB

Optical Bonding

No

Touch Screen Type

Projected Capacitive Touch

Electrical

Input Power

55 W

Input Voltage

9~24 VDC

Input Current

2.29~6.11 A

Mechanical

Enclosure Material

Black Steel Chassis, Aluminum Heatsink

Dimensions WxHxD

15.23 x 13.09 x 3.62” [386.9 x 332.5 x 92 mm]

Panel Cutout (inches) [mm]

14.29 x 12.17 [363 x 309 ]

Weight

~ 13.67 lbs [6.2 kg]

Mounting

Panel mounting, VESA 100 x 100 mm

Environmental

Storage Temperature

-22~175°F [-30~80°C]

Operating Temperature

32~140°F [0~60°C]

Relative Humidity

10 to 90% @ 40°C, non-condensing

Certification

NEMA Rating

NEMA 4 when panel mounted

IP Rating

IP65

CE

Yes

RoHS

Yes

FCC

Yes
