OIT3185-A00

  • 4 x 20 Backlit LCD
  • 24 Programmable Keys
  • Class I, Division 2 Rated
  • Support for over 100 protocols
  • 2 Year Warranty
  • Extended Temperature Range

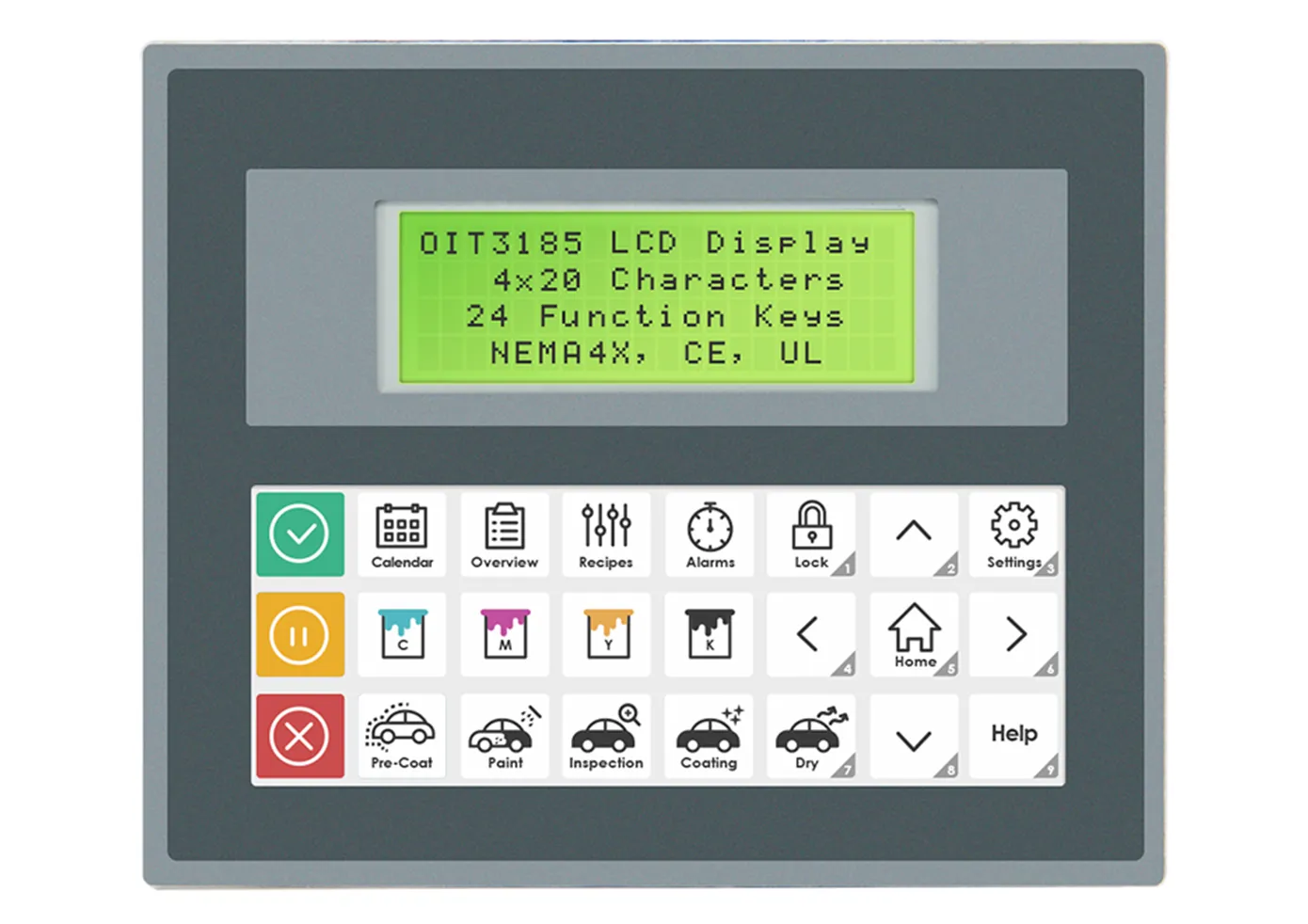

4 x 20 Backlit LCD Display, 24 Programmable Keys

OIT3185-A00

$495.00

Buy Now

Our Alphanumeric OITs are powerful, affordable operator interface terminals. With the ability to communicate with more than 100 brands of PLCs, motion controllers, temperature controllers, and embedded microcontrollers, you can easily create the perfect operator interface terminal for your application.

Specifications

System

Input Current

95 mA @ 24 VDC

Capacity (Screens)

500

Audio

Internal audio transducer

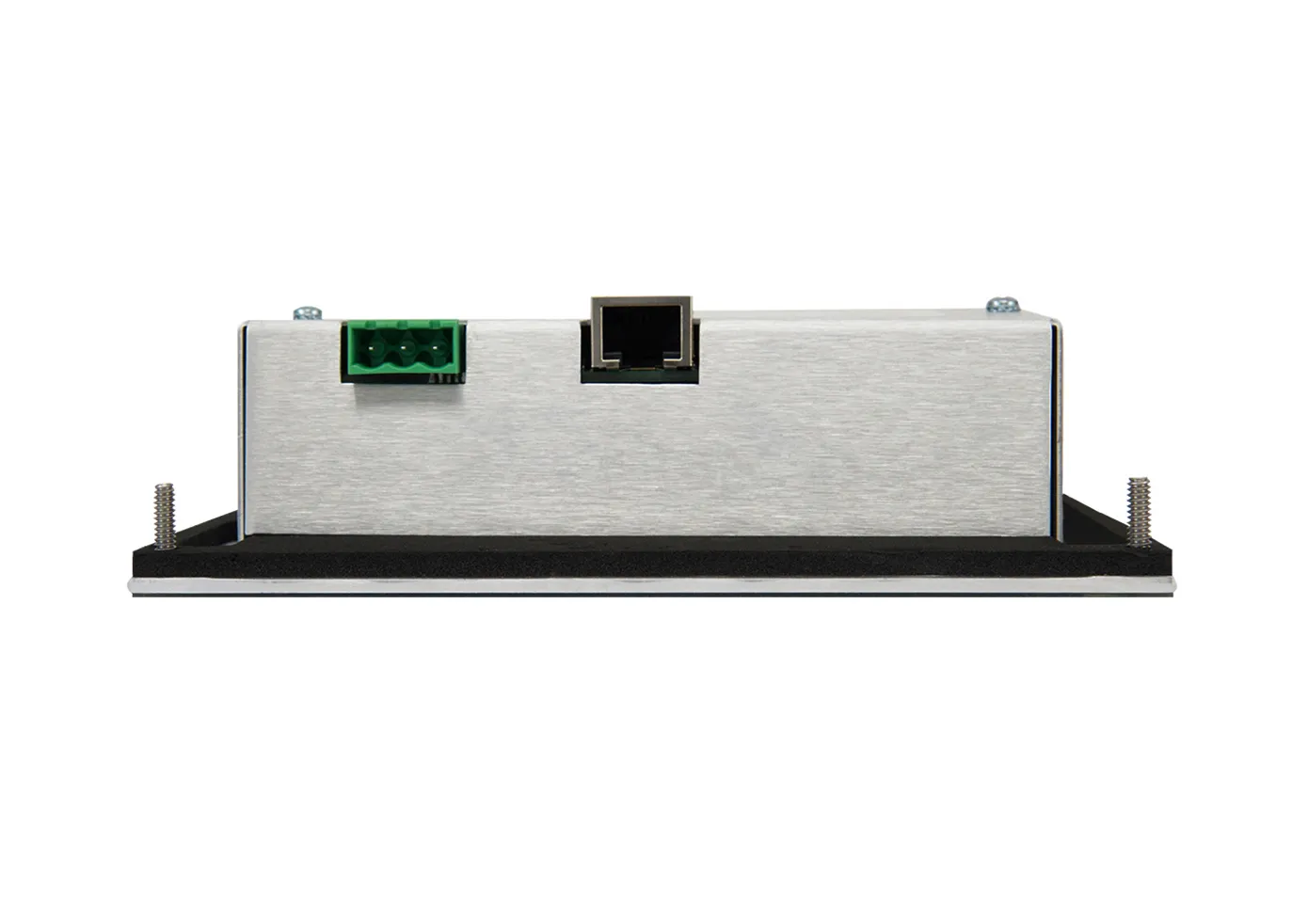

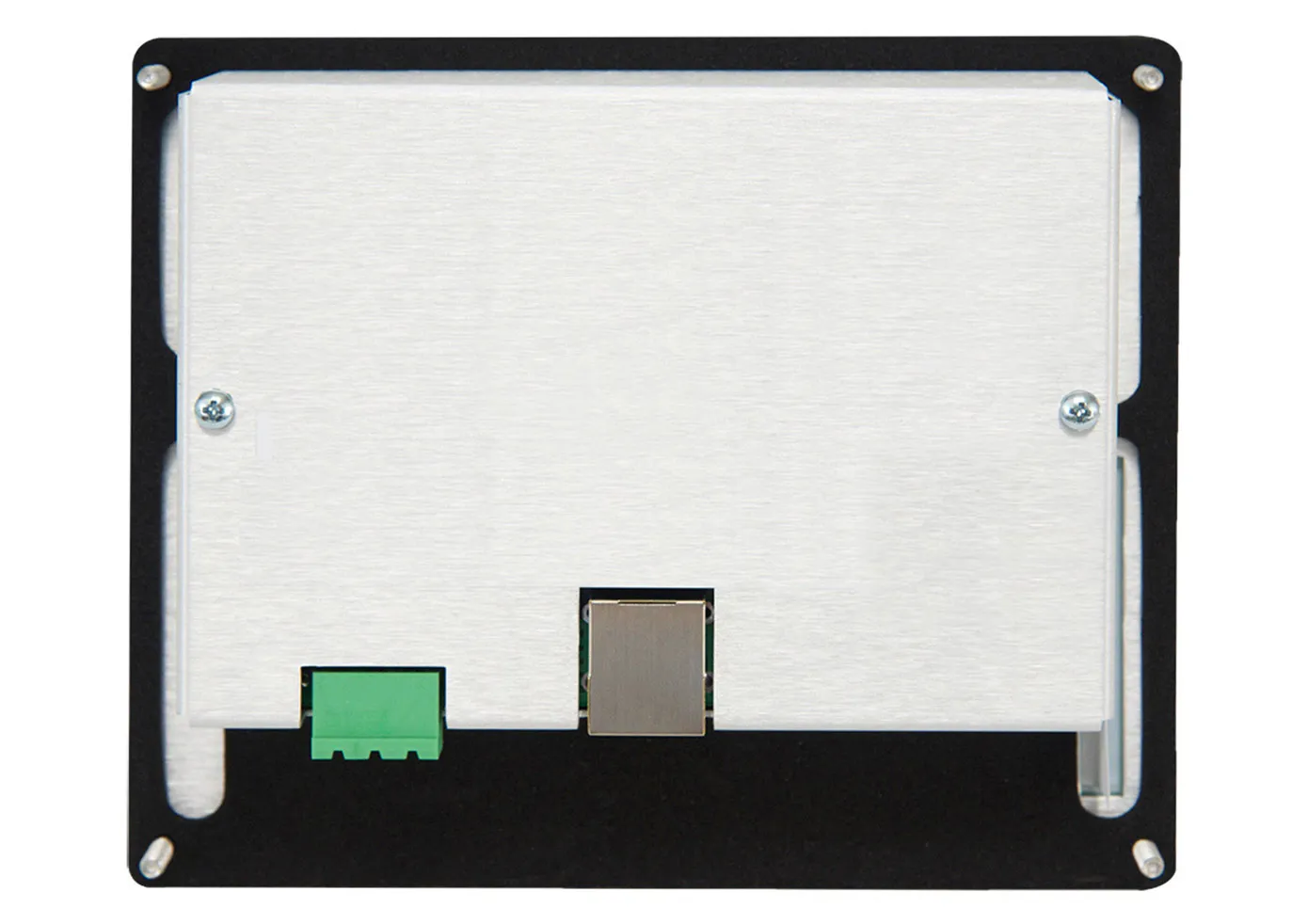

I/O Ports

Power

3 pins terminal block connector, DC power input

Serial

1 x RJ45 shielded RS-232/422/485

Display

Display Size

4 line by 20 characters

Backlight Lifetime (hrs)

50,000

View Angle (H° V°)

35/40/35/35 (T,B,L,R)

Type

STN yellow green LCD; 5 x 7 dot matrix

Backlight

LED Display

Keypad

Type

Flat panel membrane

Material

Polyester

Lifespan

3 million operations

Programmable Keys

24 (up to 8 screen-dependent)

Customizable Key Legend

Yes

Electrical

Input Power

2.28 W

Input Voltage

12 ~ 30 VDC

Mechanical

Enclosure Material

Aluminum

Dimensions WxHxD

6 x 4 x 1.77 inches [152.4 x 101.6 x 45 mm]

Weight

0.85 lbs [0.38 kg]

Mounting

Panel mounting

Environmental

Storage Temperature

-22 ~ 176°F (-30 ~ 80°C)

Operating Temperature

14 ~ 149°F (-10 ~ 65°C)

Relative Humidity

5% ~ 95% (non-condensing)

Certification

NEMA Rating

NEMA4X

IP Rating

IP65

CE

Yes

UL

Yes

Class 1 Div 2

Yes

Available Software

Documentation & Resources

Need Additional Support?

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

What's Included

When you order the OIT3185-A00 the following items are included in the box:

  • 1x OIT3185-A00
  • 1x Warranty Statement
  • 1x Installation Instruction
  • 1x Power Connector
  • 4x Locking Washer Nut
