IPC2410A

  • Intel® Quad-Core Atom® x6425RE 1.9GHz CPU
  • Windows 10®, Windows 11® and Linux Ubuntu OS Available
  • Extended Operating Temp (-40C~60C)

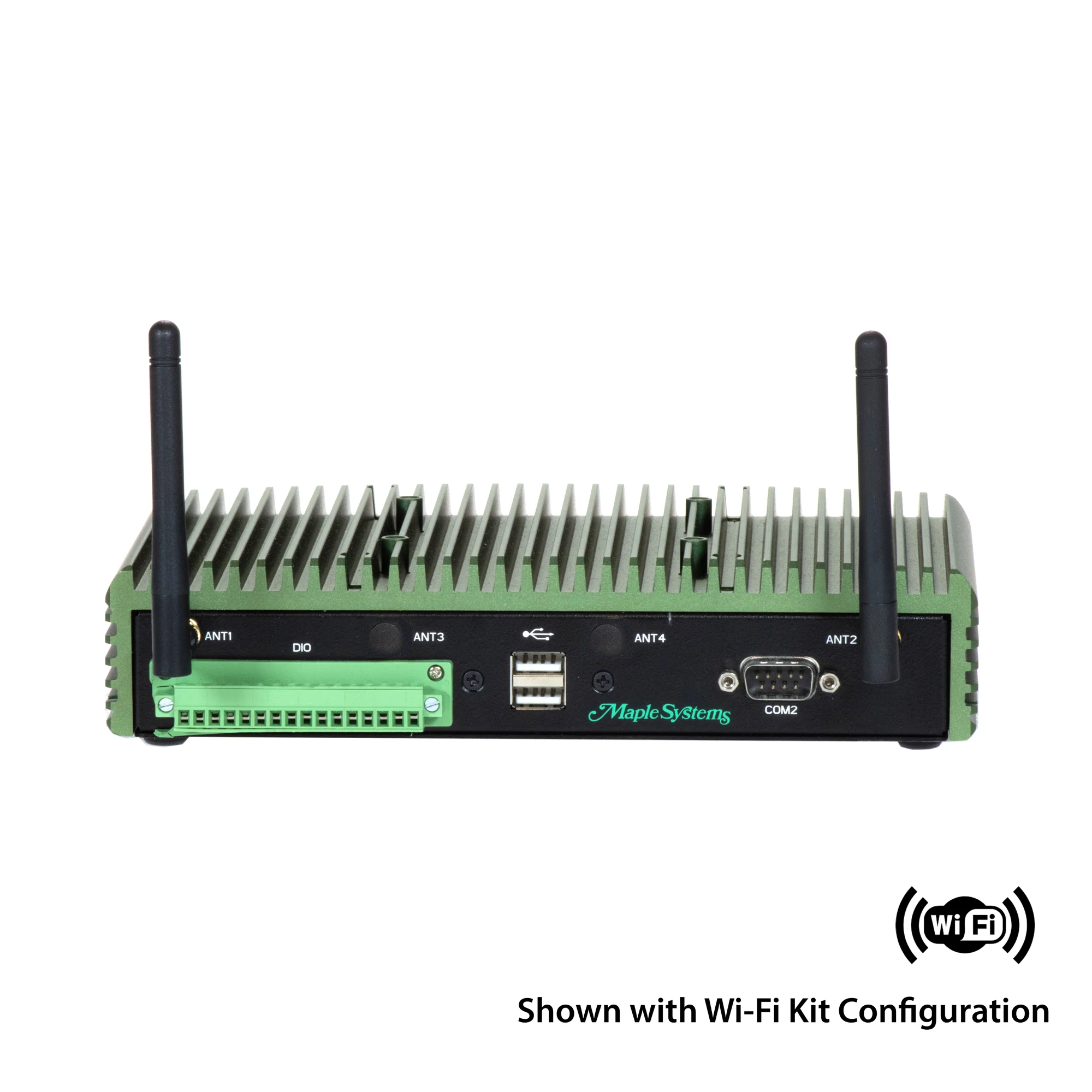

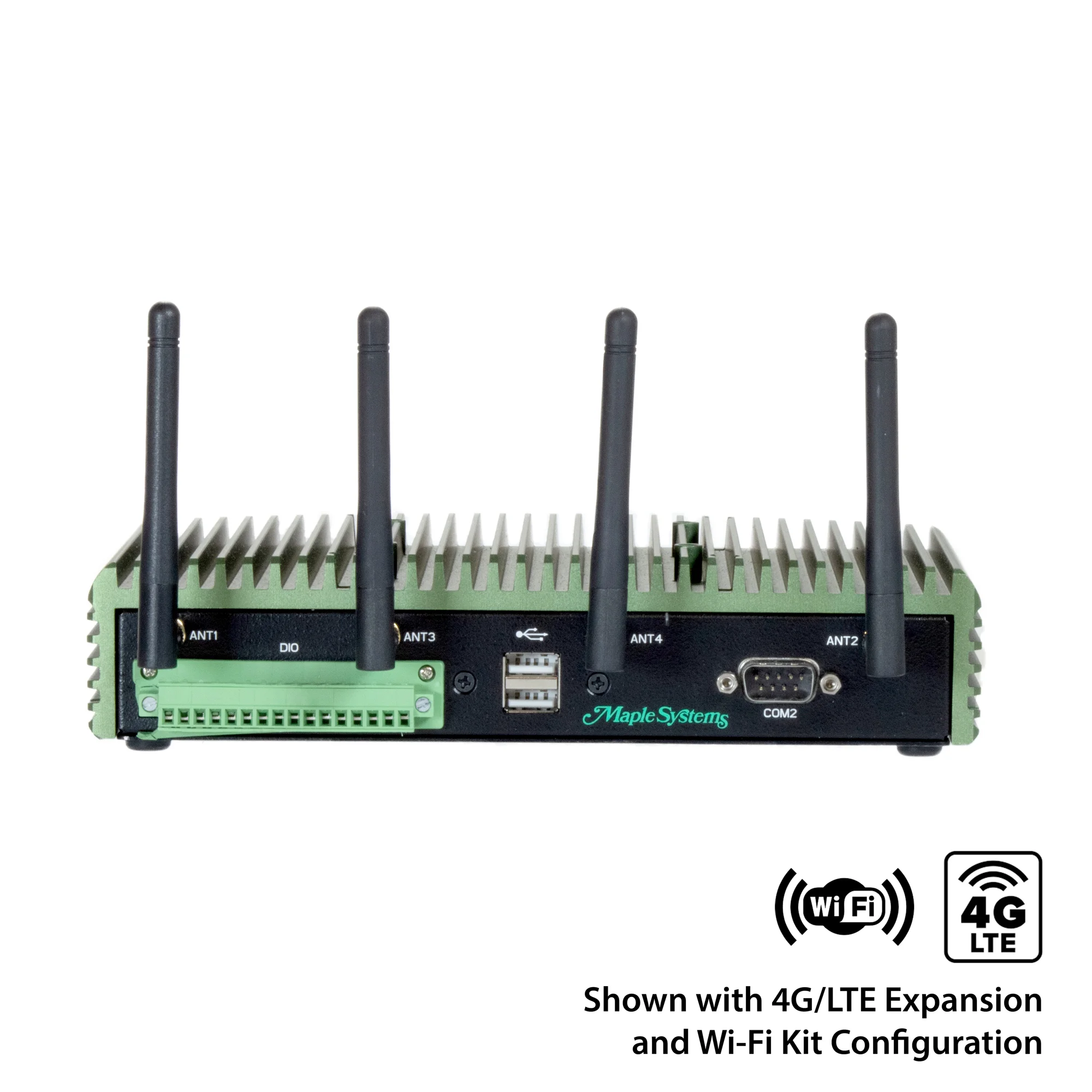

  • Wi-Fi upgrade available with Bluetooth

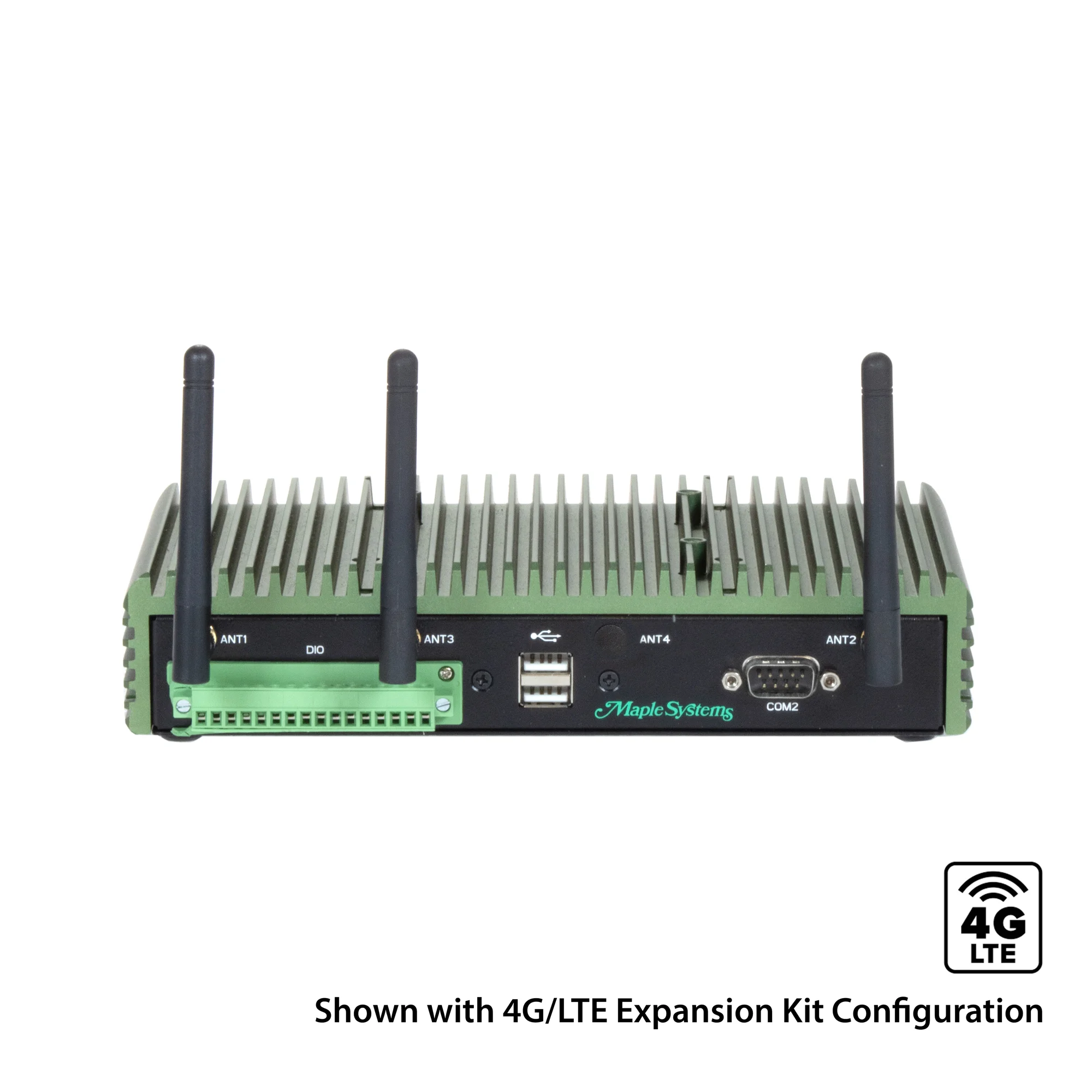

  • 4G Module upgrade available for 4G/LTE Data Network Usage
  • Integrates with AVEVA™ Edge®

Intel® Atom® Compact Fanless Industrial PC

IPC2410A

$1,175

Configure your PC

The base options are selected by default. Select the options to get the desired configuration.

Reset Configuration
Current Configuration
Base Price
IPC2410A
$1175.00
Display
Included
Processor
Included
System Memory
Included
Storage
Included
Operating System
Included
Expansion Kit
Included

Part Number:

Buy Now

This fanless, wide-operating temperature range IPC2410A is ruggedly built, making it ideal for outdoor applications. With Windows® or Linux® Operating System, this PC supports 3rd party and SCADA software like our Aveva® Edge or FactoryTalk®. Versatile mounting capabilities. Pair with one of our Industrial Monitors for greater flexibility.

Specifications

System

Memory (RAM)

1 x DDR4 260-pin SO-DIMM RAM (4, 8, 16, 32 GB)

System Chipset

SoC

Solid State Drive Capacity

64, 128, 256, 512 GB, 1TB SSD

CPU Graphics

Intel UHD Graphics

TPM Module

Yes

Front I/O

Audio Output

1 x 3.5 mm Line-out

Power

1 x VDC 3-Pin Terminal Block

USB 2.0 Type A

3

USB 3.0 Type A

2

Power Switch

1 x Momentary-Type Toggle Switch

Display Interface Options

1 x HDMI (max. 4096 x 2160 pixels @60Hz); 1 x DisplayPort (max. 4096 x 2304 pixels @60Hz)

Serial

1 x RS-232/422/485 DE-9P: COM1 (default RS-232)

SIM Card Slot

1x Micro-SIM Card slot (optional)

Rear I/O

SD Card Slot

N/A

USB 2.0 Type A

2

Serial

1 x RS-232/422/485 DE-9P: COM2 (default RS-232)

Digital I/O

1 x 16-pin Terminal Block connector (8-in, 8-out)

Electrical

Input Power

72 W max.

Input Voltage

12~24 VDC +/- 10%

Input Current

3A Max. @24VDC

Mechanical

Dimensions WxHxD

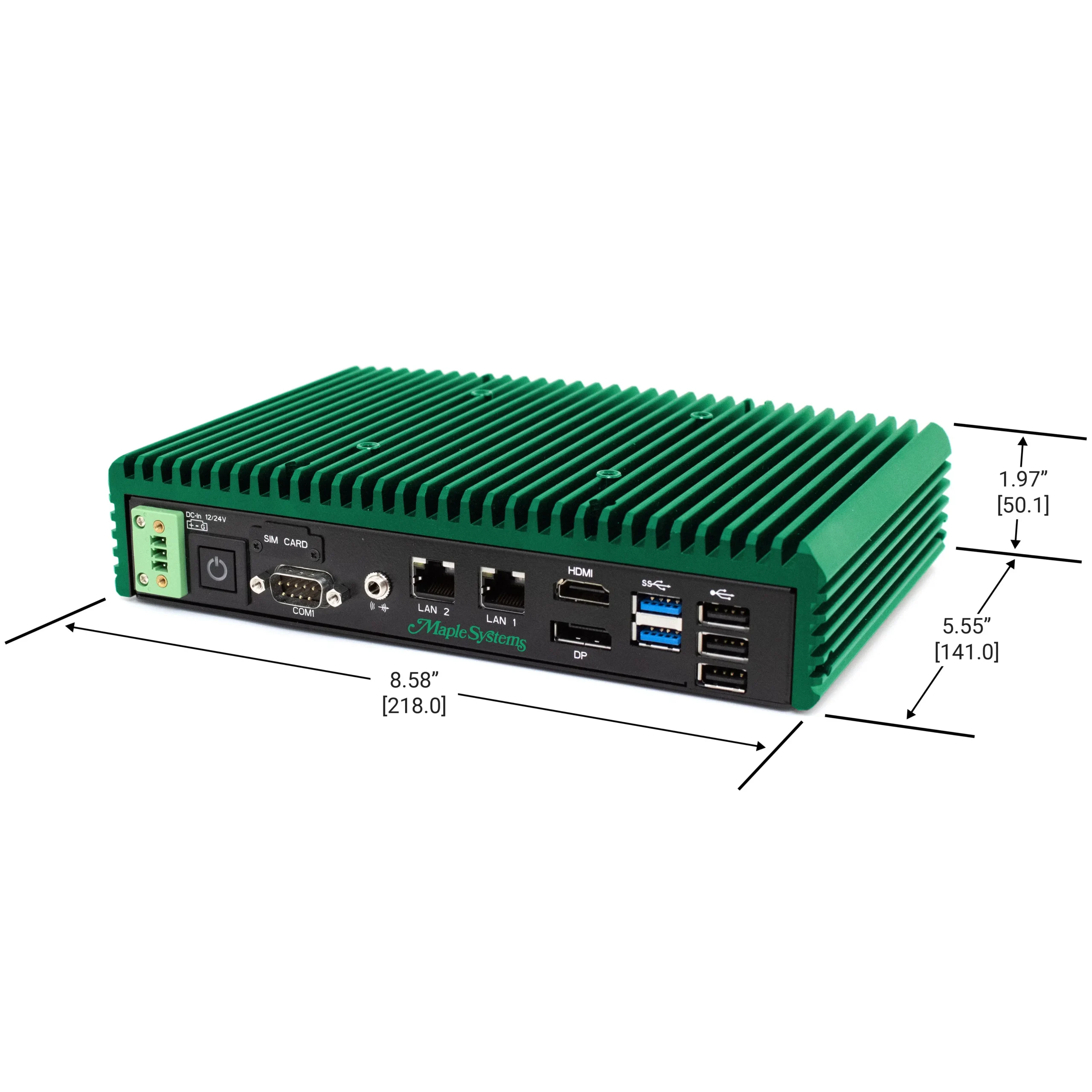

8.58 x 5.55 x 1.97 inches [218 x 141 x 50 mm]

Weight

Approx. 4.4 lbs. [2.0 kg]

Mounting

VESA 75 x 75 mm; Wall Mounting Kit Included

Construction

Green Anodized Aluminum Heatsink, Black Steel Chassis

Environmental

Storage Temperature

-40~185°F [-40~85°C]

Operating Temperature

-40~140°F [-40~60°C]

Storage Humidity

20 to 90%, non-condensing

Certification

IP Rating

IP30

CE

Yes

RoHS

Yes

FCC

Class A

Expansion I/O

Expansion Slot

Optional Wi-Fi Kit (IEEE 802.11 a/b/g/n/ac card and 2x antenna, Bluetooth 4.0 Support)

Available Software

Documentation & Resources

Need Additional Support?

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

What's Included

When you order the IPC2410A the following items are included in the box:

  • IPC2410A Series Industrial Box PC unit
  • Wall Mounting Kit (2 Wall Mount Plates, four bolts for attachment to Box PC)
  • 3-Pin Terminal Block Power Connector Header
  • 16-Pin Terminal Block Digital I/O Connector Header
  • Warranty Statement
