cMT3151

  • 1024×768 Resolution
  • 32-Bit RISC Cortex-A9 1GHz CPU
  • Built-in EasyAccess 2.0 License
  • Supports CANbus
  • Aluminum Enclosure

15.0″ Smart HMI, 2 Ethernet Ports, 1 USB Port, 2 Serial Ports, CANBus

cMT3151

This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.

cMT3152Xv2 replaces the cMT3151




As part of our most powerful HMI series, the Smart Series provides high-quality models for applications requiring maximum IIoT functionality. Sophisticated features include: CANbus, enhanced security, remote connectivity, web streaming, and more.

Specifications

System

Memory (RAM)

1 GB

Memory (Flash)

4 GB

RTC

Built-in

Programming Software

EasyBuilder Pro

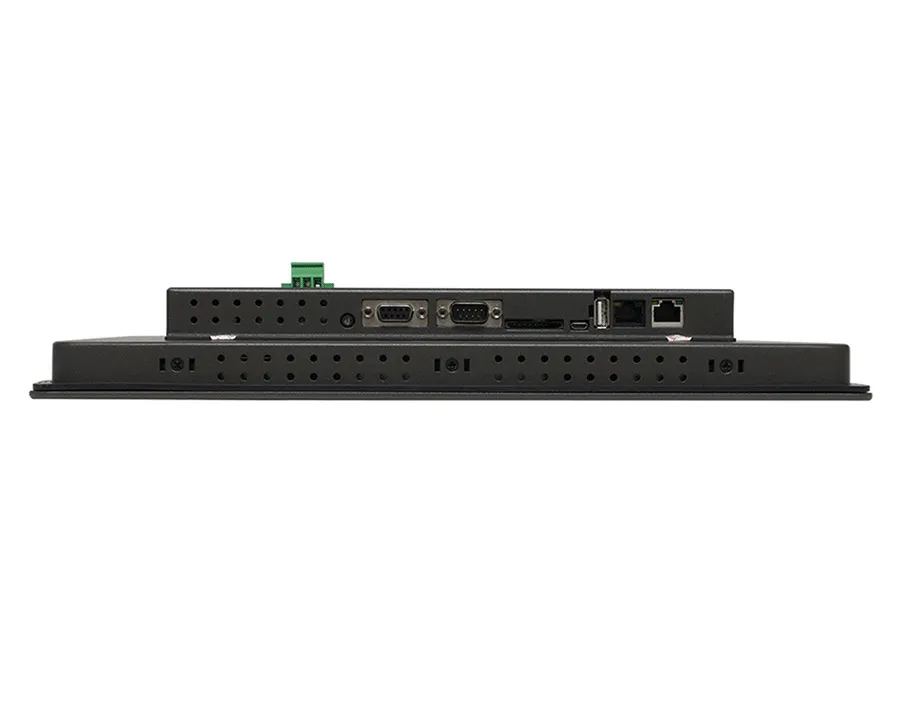

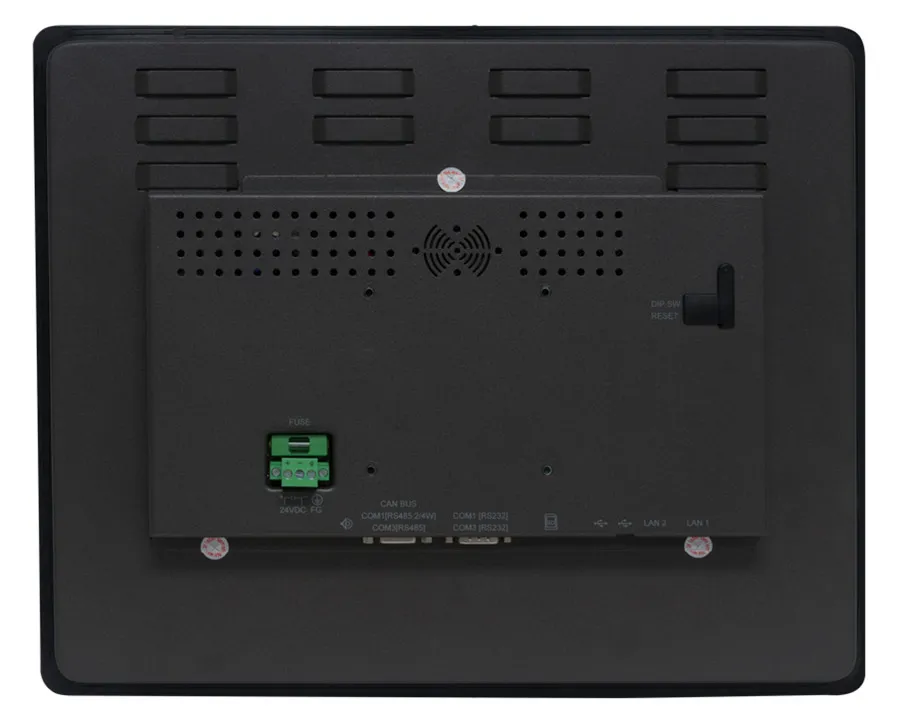

I/O Ports

Serial Ports

2

Ethernet/LAN

LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1

CANbus

Yes

Audio Output

Built-in Mono Speaker

SD Card Slot

SD/SDHC (32GB capacity)

USB Host Ports

USB 2.0 x 1

USB Client Ports

USB 2.0 x 1 (Micro USB)

Wi-Fi

N/A

RS-485 Dual Isolation

N/A

Local bus

N/A

HDMI Port

N/A

Video Input

Yes

Display

Resolution

1024 X 768

Luminance (cd/m^2)

1000

400

350

300

Contrast Ratio

700:1

Backlight Type

LED

Backlight Lifetime (hrs)

50,000+

Colors

16.2 M

Display Type

15" TFT

Viewing Angle (H°/V°)

160/140

Size (W x H)

12.01 x 8.98 inches [305 x 228 mm]

Touch Screen

Type

4-wire resistive touch

Electrical

Input Power

21.6 W

Power Isolation

Built-in

Isolation Resistance

Exceed 50 MO - @ 500 VDC

Input Voltage

24 ± 20% VDC

Input Current

900 mA @ 24 VDC

Mechanical

Vibration Endurance

10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Enclosure Material

Black Aluminum

PCB Coating

Yes

Dimensions WxHxD

14.41 x 11.54 x 1.9 inches [366 x 293 x 48.2 mm]

Panel Cutout (inches) [mm]

9.84 x 7.56 [250 x 192]

Weight

Approx. 2.2 lbs. [1 kg]

Mounting

Panel mount, VESA 75 x 75 mm

Environmental

Storage Temperature

-4° ~ 140°F (-20° ~ 60°C)

Operating Temperature

32° ~ 122°F (0° ~ 50°C)

Relative Humidity

10% ~ 90% (non-condensing)

Certification

UL Type Rating

UL Type 4X (indoor use only)

NEMA Rating

NEMA4

IP Rating

IP65 compliant front panel

CE

Yes

UL

cULus Listed

Class 1 Div 2

N/A

ATEX

N/A

RoHS

Yes
