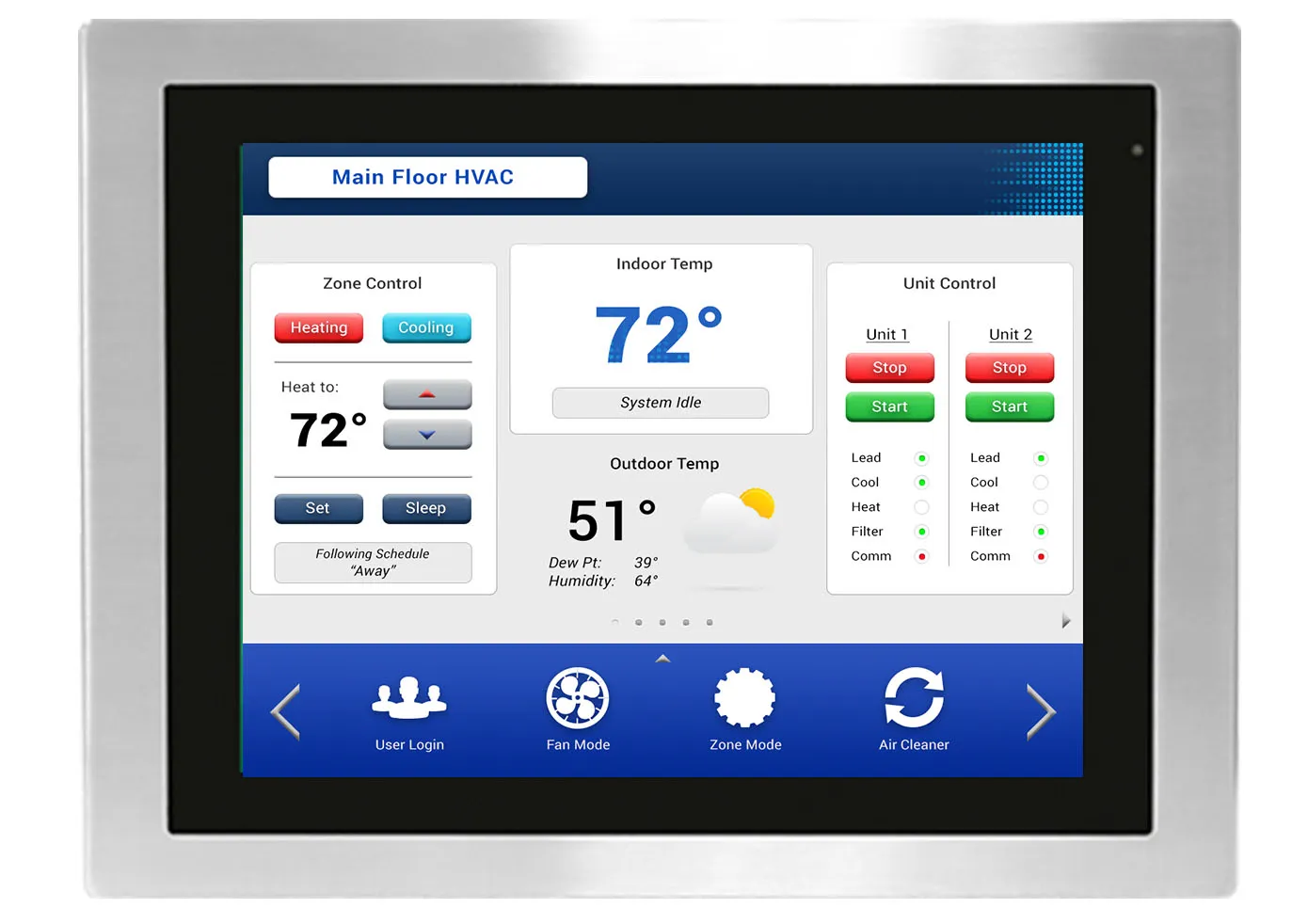

PCS6815APHEB Front View

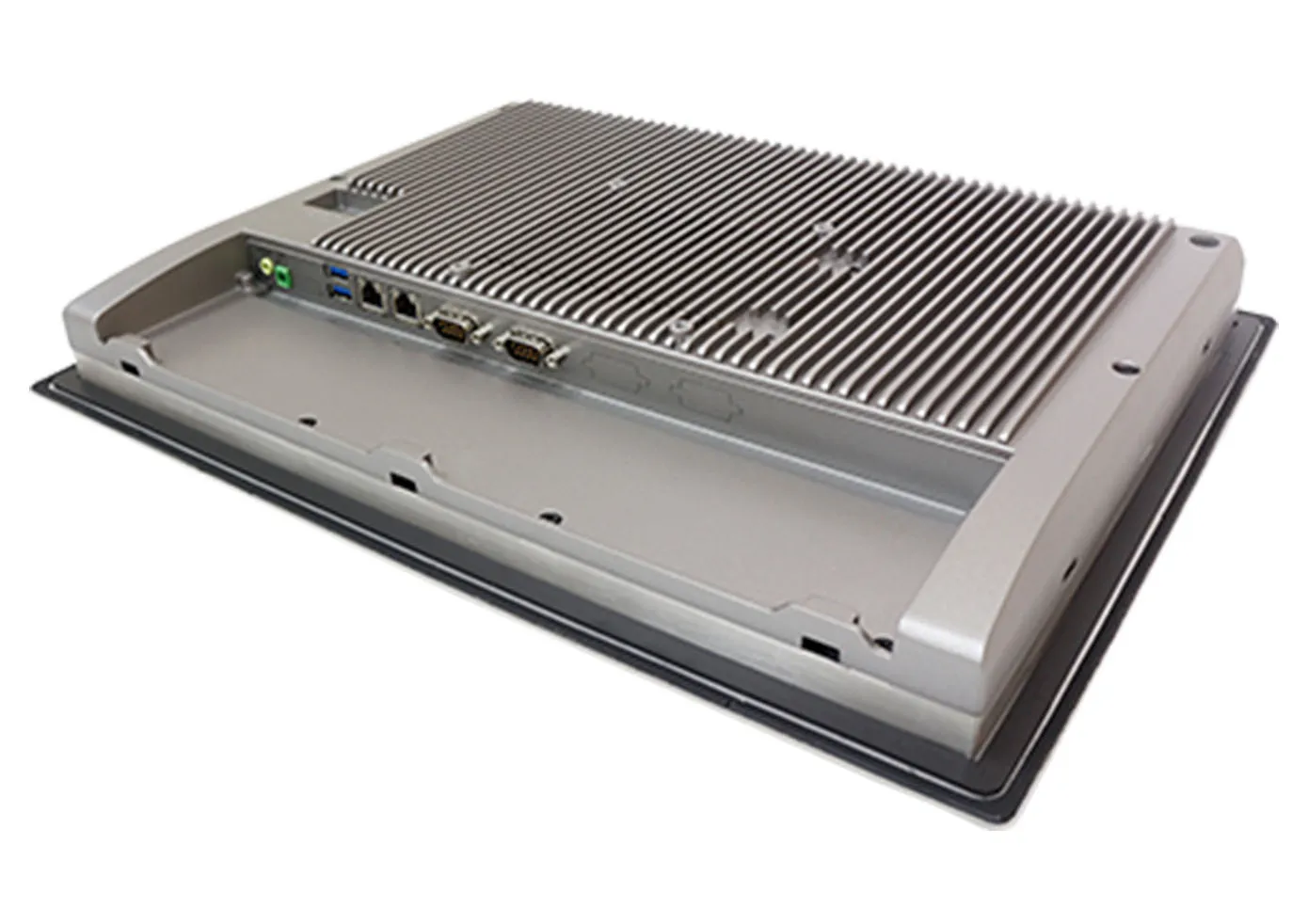

PCS6815APHEB Cross View
PCS6815APHEB Bottom View

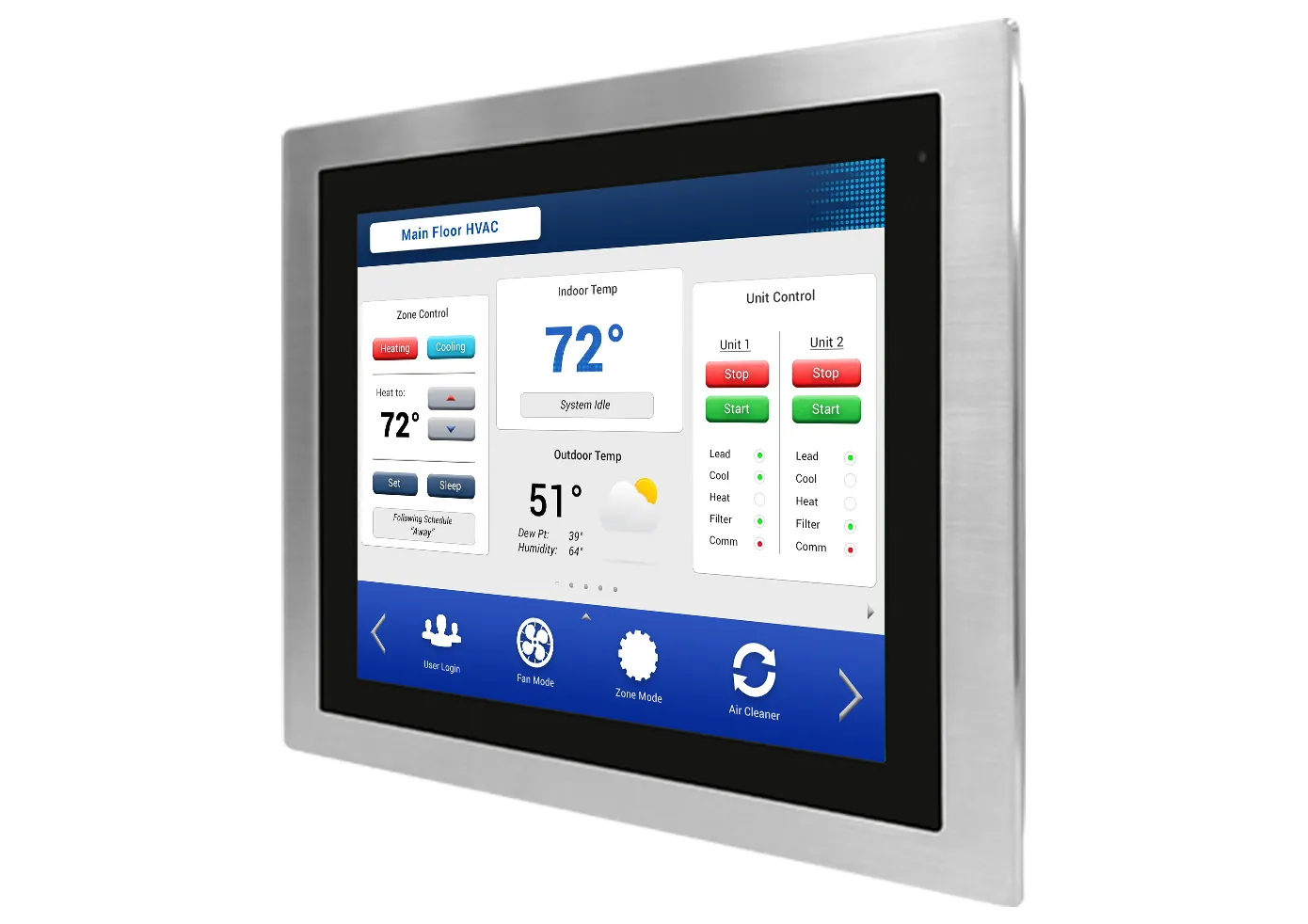

PCS6815APHEB Side1 View

PCS6815APHEB

  • 1024 x 768 Resolution
  • 1000 nits High Brightness
  • Intel® Celeron N2930 Quad-Core 1.83 GHz Processor
  • Windows® or Linux® Operating System
  • -20 ~ 60 C Operating Temperature
  • IP66K/IP69K Rating
  • Optional Wi-Fi Upgrade
  • Integrate with Aveva™ Edge
View Datasheet

15.0" Intel Celeron Stainless Steel, Wide-Temp, 1000nit Panel PC

PCS6815APHEB

$3,075.00
Configure Your PC

A high-quality 15”capacitive touchscreen, extended temperature (-20 ~ 60 C), 1000 nits display IPC provides power, performance and functionality in one package. Designed for industries that require stringent disinfection processes and splashing cleanup routines, the PCS6815APHEB is ideal for demanding work environments. With 304 stainless steel housing and IP66/IP69K protection for dust and water resistance, this industrial computer is ready for high-pressure, high-temperature washdowns. VESA or Panel mount.
Because it runs any 3rd party software including FactoryTalk®, it is extremely flexible. Need SCADA software? Take a look at our AvevaTM Edge software options.

Configure your PC

The base options are selected by default. Select the options to get the desired configuration.

Compare "Intel® Celeron® Quad Core N2930, 1.83 GHz" performance with other processors

Relative CPU performance scores provided by PassMark
+$45
+$155
+$300
+$650
-$50

Ubuntu® Linux® Desktop LTS

Supported Models: AEX-2410, IPC2330A, IPC2110A, IPC2210A, IPC2400A Series, IPC2550A, IPC2700A Series, OMI6800BPHEB Series, OMI6900BP Series, PC1200A Series, PC1300X Series, PCS6800A Series, and PCS6800APHEB Series.

This powerful Operating System delivers enterprise manageability and security across a wide range of industries. Additionally, most features and functionality that customers expect to find on their desktop PCs are available in this Open-Source Operating System. The Long-Term Support (LTS) version ensures long-term stability with five years of free security and maintenance updates.

Included Apps:

  • Libre Office Suite
  • Mozilla Firefox Web Browser
  • Gnome Desktop
  • Rythm Box Media Player
  • VIM

Microsoft® Windows® 10 IoT Enterprise Embedded (EPKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

EPKEA Extended Denotation, “Embedded Product Key Entry Activation.”

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft® Windows® 10 IoT Enterprise Embedded LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 10 IoT Enterprise (PKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

PKEA Extended Denotation, “Product Key Entry Activation.”

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Microsoft® Windows® 10 IoT Enterprise LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft® Edge Web Browser
  • Libre Office
  • Media Player
+$85
Reset Configuration
Current Configuration
Base Price
PCS6815APHEB		 $3075
Display
 Included
Processor
 Included
System Memory
 Included
Storage
 Included
Operating System
 Included
Expansion Kit
 Included

Part Number:

Download 2D CAD file
Download 3D CAD file
Datasheet

System

Memory (RAM)

Onboard DDR3L 4 GB 1600 MHz

System Chipset

SoC

Solid State Drive Type

1 x 2.5” SATA III, MLC

Solid State Drive Capacity

64, 128, 256, 512 GB, 1TB SSD

Input Current

1.07-4.29 A

Capacity (Screens)

500

I/O Ports

Serial Ports

2

Ethernet/LAN

2 x GbE RJ-45

Audio Output

1 x 3.5 mm line out

SD Card Slot

1 x internal micro Secure Digital memory card socket, up to 32 GB

Remote Power Switch

2-pin connector header

Power

3-pin connector header, DC power input

USB 3.0 Type A

2

Serial Options

1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 1 x RS-232 DE-9P, COM2

Expansion Option

Optional Wi-Fi kit (IEEE 802.11a/b/g/n/ac card and antenna)

Display

Display Size

15.0” XGA TFT LCD

Resolution

1024 X 768

Luminance (cd/m^2)

1000

Contrast Ratio

800:1

Backlight Lifetime (hrs)

50000

Colors

16.7 M

View Angle (H° V°)

160/150

Touch Screen

Touch Interface

USB

Light Transmission

90+%

Optical Bonding

Yes

Digital I/O Port

N/A

Touch Screen Type

Projected Capacitive Touch

Electrical

Input Power

38.6 W

Input Voltage

9-36 VDC

Mechanical

Enclosure Material

304 Stainless Steel Front Bezel and Aluminum Chassis

Dimensions WxHxD

16.61 x 12.68 x 2.43” [422 x 322 x 54.1 mm]

Panel Cutout (inches) [mm]

15.43 x 11.50 [392 x 292 ]

Weight

~ 11.24 lbs [5.1 kg]

Mounting

Panel mounting, VESA 100 x 100 mm

Environmental

Storage Temperature

-22~158°F [-30~70°C]

Operating Temperature

-4~140°F [-20~60°C]

Relative Humidity

10 to 95% @ 40°C, non-condensing

Certification

NEMA Rating

NEMA 4 when panel mounted

IP Rating

IP69 K

CE

Yes

UL

No

ATEX

No

RoHS

Yes

FCC

Yes

Customers who bought this product also bought:

  • 2511-0150
    2511-0150
    Screen Protector, 15.0” (303mm x 228mm) 1 each.
    $35.00
  • 7532-0102
    7532-0102
    Win 10 OS Recovery Media USB Flash Drive.
    $20.00
  • 7532-0103
    7532-0103
    Win 10 OS Recovery Media USB Flash Drive.
    $40.00
  • 2860-0012
    2860-0012
    Mounting Clips Kit for OMI (each).
    $6.00
  • 7431-0104
    7431-0104
    Cable, CAT5E Ethernet, Crossover, 5′
    $15.00
  • 7431-0103
    7431-0103
    Cable, CAT5E Ethernet, 5′
    $15.00
  • 4010-0014
    4010-0014
    Supply, Switching, Desktop, 12VDC, 5A, Leads, With AC Power Cord.
    $45.00

Documents

Manuals

Certifications

Need Additional Support?

Contact Us

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

When you order the PCS6815APHEB the following items are included in the box:

  • PCS6815APHEB Industrial Panel PC
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • DC Power Connector
  • DC Power Adapter with cord
  • 2-Pin Remote Power Switch connector
  • Mounting Kit (Quantity determined by screen size)
