Connection Parameters Needed for HMI/cMT Products to Communicate with a Yaskawa Electric SMC 3010 (Ethernet) Controller using EBPro (EasyBuilder Pro)

Introduction

All Maple Systems HMIs programmed with EBPro (EasyBuilder Pro), including every cMT X Series and cMT Series model, are compatible with a Yaskawa Electric SMC 3010 (Ethernet) Controller. Configure your Controller and HMI/cMT with the following parameters to establish reliable communication.

Supported Series: YASKAWA SMC Series Servo Motor Controller

HMI Setting

Parameters	Recommended	Options	Notes
PLC type	YASKAWA SMC 3010 (Ethernet)
PLC I/F	Ethernet
Port no.	23

Device Address

Bit/Word	Device type	Format	Range	Memo
B	AF	D	0 ~ 7
B	BN	D	0	Write only
B	BP	D	0	Write only
B	BV	D	0	Write only
B	CB	DDDD	0 ~ 9999	Write only
B	CM	D	0 ~ 0	Read only
B	DV	D	0 ~ 7
B	EB	D	0
B	OE	D	0 ~ 7
B	RS	D	0	Write only
B	ST	D	0	Write only
B	TB	Do	0 ~ 07	Read only
B	V_Bit	DDDdd	0 ~ 99931	*2
B	D_arr_Bit	DDDdd	0 ~ 99931
DW	AC	D	0 ~ 7
DW	DC	D	0 ~ 7
DW	BL	D	0 ~ 7
W	CD	D	0 ~ 7	Write only
W	CE	D	0 ~ 7
DW	DE	D	0 ~ 7
DW	DP	D	0 ~ 7
W	DT	D	0
W	EC	D	0
DW	EM	D	0 ~ 7
W	ER	D	0 ~ 7
W	FA	D	0 ~ 7
DW	FL	D	0 ~ 7
W	FV	D	0 ~ 7
DW	GR	D	0	32 bit float
DW	JG	D	0 ~ 7
DW	MM	D	0
W	MT	D	0 ~ 7
W	NA	D	0
W	OP	D	0
DW	PA	D	0 ~ 7	Write only
DW	PR	D	0 ~ 7
DW	SP	D	0 ~ 7
W	TC	D	0	Read only
W	TM	D	0
W	TW	D	0 ~ 7
DW	VA	D	0
DW	VD	D	0
DW	VS	D	0
DW	IL	D	0 ~ 7	32 bit float
DW	IT	D	0 ~ 7	32 bit float
DW	KD	D	0 ~ 7	32 bit float
DW	KI	D	0 ~ 7	32 bit float
DW	KP	D	0 ~ 7	32 bit float
DW	OF	D	0 ~ 7	32 bit float
DW	TL	D	0 ~ 7	32 bit float
DW	VR	D	0	32 bit float
DW	VT	D	0	32 bit float
DW	PF	D	0	32 bit float ^*1
DW	VF	D	0	32 bit float
DW	V	DDD	0 ~ 999	^*2
W	F	DDD	0 ~ 999	32 bit float ^*2
W	D_array	DDD	0 ~ 999
DW	R_array	DDD	0 ~ 999	32 bit float

Note

^*1 PF is the communication parameter of SMC_3010. The default is 10.4; if the value is not 10.4, all values will be displayed incorrectly.

^*2 User defined integer variable V000~V999, floating point variable F000~F999.

Wiring Diagram

NOTE: Connect the HMI to the YASKAWA SMC 3010 controller using a standard straight-through Ethernet cable.

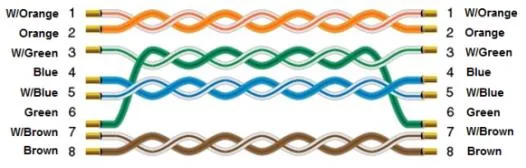

The diagram below shows the Ethernet cable wiring.

Straight-through Ethernet cable pinout showing all 8 wire pairs connected pin-to-pin: W/Orange, Orange, W/Green, Blue, W/Blue, Green, W/Brown, Brown.
