Connection Parameters Needed for HMI/cMT Products to Communicate with a Koyo (Automation Direct) CLICK PLC using EBPro (EasyBuilder Pro)

Introduction

All Maple Systems HMIs programmed with EBPro (EasyBuilder Pro), including every cMT X Series and cMT Series model, are compatible with a Koyo (Automation Direct) CLICK PLC. Configure your Controller and HMI/cMT with the following parameters to establish reliable communication.

Supported Series: KOYO CLICK PLC series

Website: www.automationdirect.com

HMI Settings

Parameter	Recommended	Options
PLC type	KOYO CLICK
PLC I/F	RS232
Baud rate	38400	1200~115200
Data bits	8
Parity	Odd	Odd, Even, None
Stop bits	1	1, 2
PLC sta. no.	1	1~247
Turn around delay	5	5~10

NOTE: Turn around delay should be set to 10 when the PLC firmware version is 2.1 or later.

Device Address

Bit/Word	Device type	Format	Range	Memo
B	`X`	Ddd	001~816	Input Status (Read Only)
B	`Y`	Ddd	001~816	Output Status
B	`C`	DDDD	1~2000	Control Bit
B	`T`	DDD	1~500	Timer Status (Read Only)
B	`CT`	DDD	1~250	Counter Status (Read Only)
B	`SC`	DDDD	1~1000	System Control Bit (Read Only)
W	`DS`	DDDD	1~4500	Data Registers
W	`DD`	DDDD	1~1000	Data Registers (Double Word)
W	`DH`	DDD	1~500	Data Registers
W	`DF`	DDD	1~500	Data Registers (Double Word)
W	`XD`	D	0~8	Input Status Registers (Read Only)
W	`YD`	D	0~8	Output Status Registers
W	`TD`	DDD	1~500	Timer Current Values (Read Only)
W	`CTD`	DDD	1~250	Counter Current Values (Double Word / Read Only)
W	`SD`	DDDD	1~1000	System Data Registers (Read Only)
W	`TXT`	DDDD	1~1000	Text Data Registers

Wiring Diagram

NOTE: The serial port pin assignments may vary between HMI models.

RS-232

The following is the view from the soldering point of a connector.

KOYO CLICK PLC Com Port:

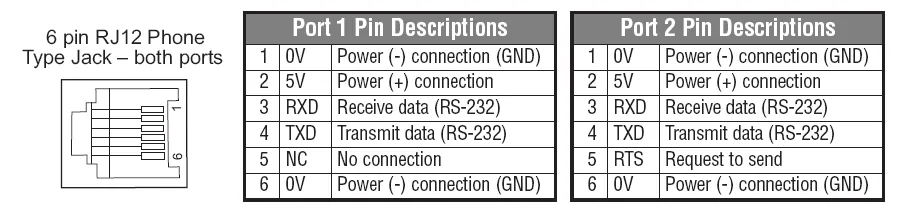

Koyo CLICK PLC 6-pin RJ12 connector diagram showing Port 1 and Port 2 pin assignments including RXD, TXD, and GND connections.

HMI	Direction	PLC
Pin assignments		RS232 6P RJ12 Male
Rx	↔ (bidirectional)	4 TXD
Tx	↔ (bidirectional)	3 RXD
GND	↔ (bidirectional)	1 GND
