Introduction
All Maple Systems HMIs programmed with EBPro (EasyBuilder Pro), including every cMT X Series and cMT Series model, are compatible with Delta Electronics Ethernet/IP (AS Series). Configure your Controller and HMI/cMT with the following parameters to establish reliable communication.
Supported Series: Delta AS332T
Website: http://www.deltadriver.com
HMI Setting
| Parameters | Recommended | Options | Notes |
|---|---|---|---|
| PLC type | DELTA Ethernet/IP (AS Series) | ||
| PLC I/F | Ethernet | ||
| Port no. | 44818 |
Device Address
| Bit/Word | Device type | Format | Range | Memo |
|---|---|---|---|---|
| B | X_Bit | DDdd | 0 ~ 6315 | |
| B | Y_Bit | DDdd | 0 ~ 6315 | |
| B | D_Bit | DDDDDdd | 0 ~ 2999915 | |
| B | M | DDDD | 0 ~ 8191 | |
| B | S | DDDD | 0 ~ 2047 | |
| B | T_Flag | DDD | 0 ~ 511 | |
| B | C_Flag | DDD | 0 ~ 511 | |
| B | HC_Flag | DDD | 0 ~ 255 | |
| B | SM | DDDD | 0 ~ 4095 | |
| W | X | DD | 0 ~ 63 | |
| W | Y | DD | 0 ~ 63 | |
| W | D | DDDDD | 0 ~ 29999 | |
| W | T | DDD | 0 ~ 511 | |
| W | C | DDD | 0 ~ 511 | |
| DW | HC | DDD | 0 ~ 255 | |
| W | SR | DDD | 0 ~ 2047 | |
| W | E | D | 0 ~ 8 |
Wiring Diagram

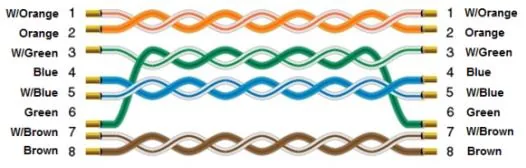

The diagram below shows the Ethernet cable wiring.
