HMI5103L
-
- 1024 x 600 Resolution
- 32-Bit RISC Cortex-A8, 600 MHz CPU
- Wi-Fi Enabled
- EasyAccess 2.0 License Included
- 2 Year Warranty
- Support for over 300 protocols

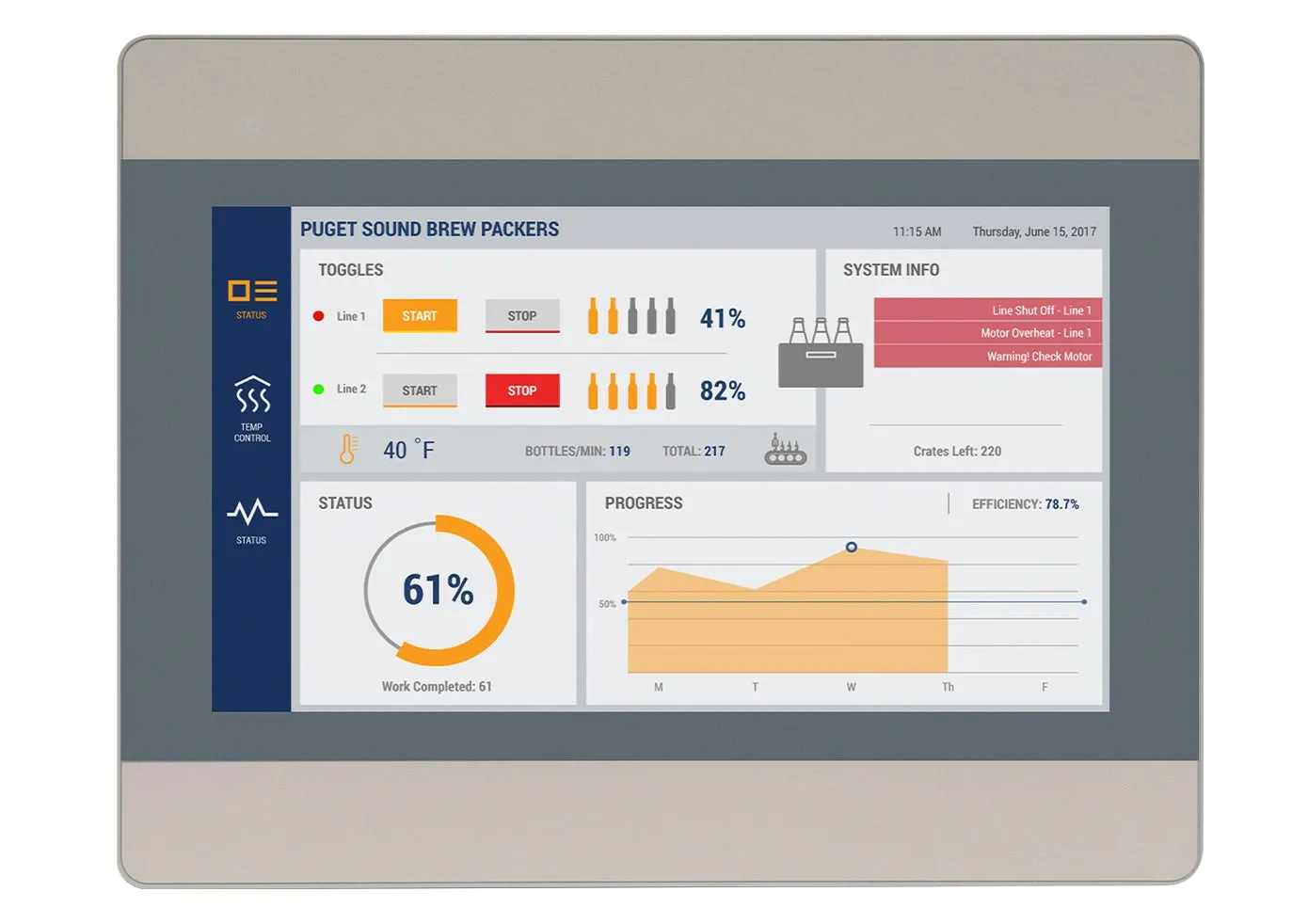

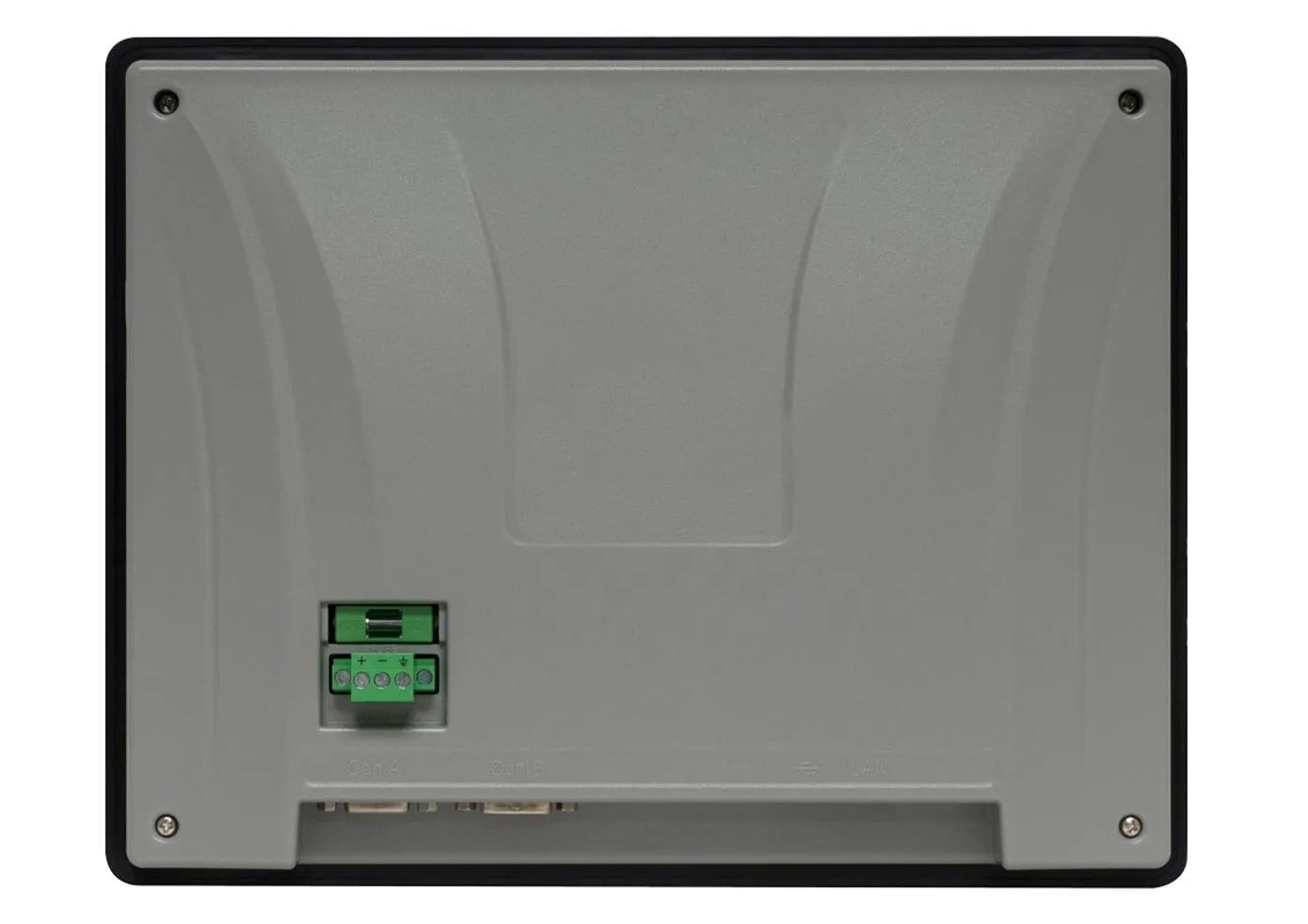

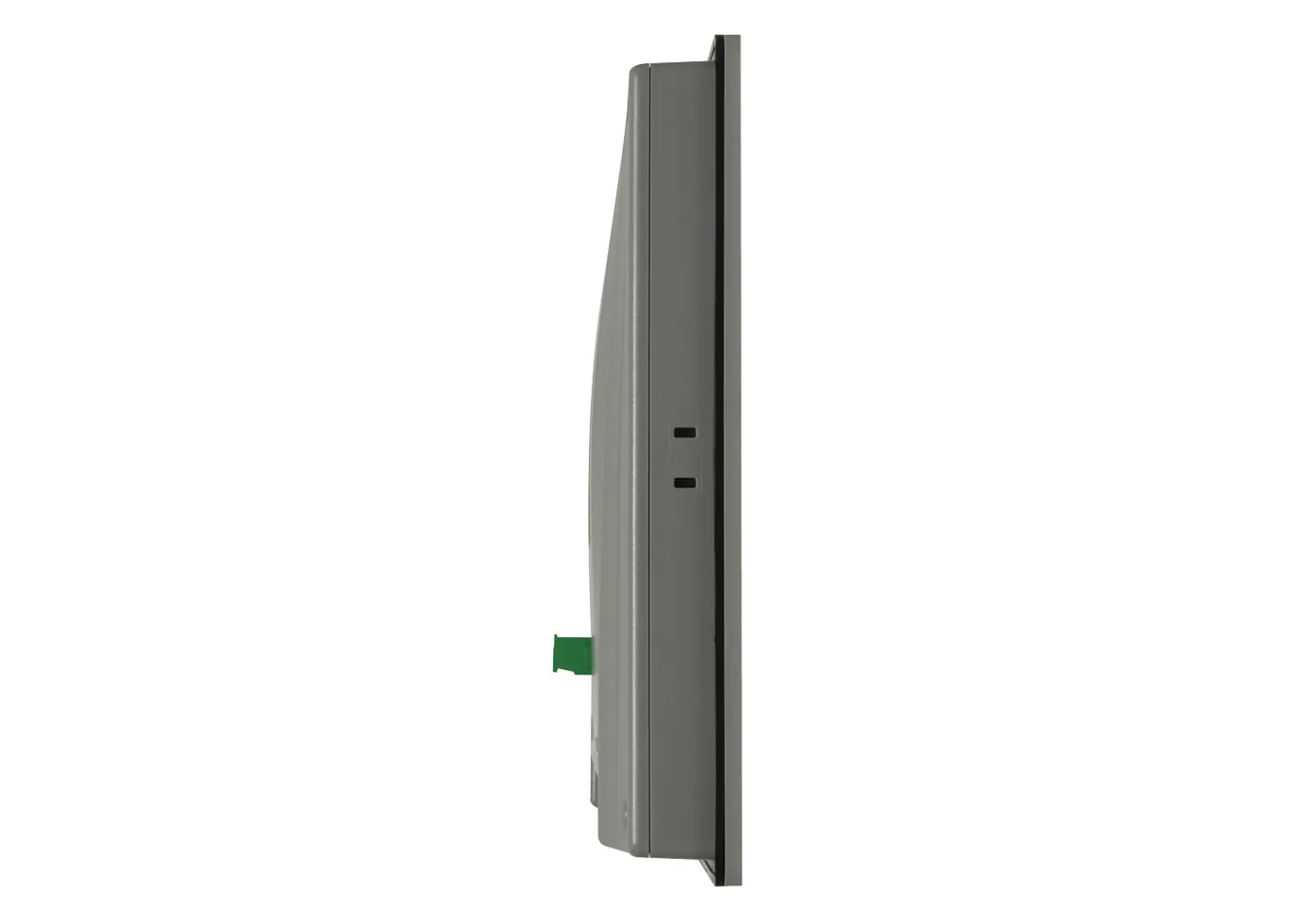

10.1″ Advanced HMI, 1 Ethernet Port, 1 USB Port, 2 Serial Ports, Wi-Fi, Light Grey
HMI5103L
This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.
The cMT2108X2v2 replaces the HMI5103L.
If you would like more features like CODESYS, Media Player, Web Server, Capacitive Touch, or High Bright options, see our Compare Models tool for more upgrade options.
System
| Memory (RAM) | 128 MB |
| Memory (Flash) | 128 MB |
| RTC | Built-in |
| Programming Software | EasyBuilder Pro V6.01.01 or later versions |
I/O Ports

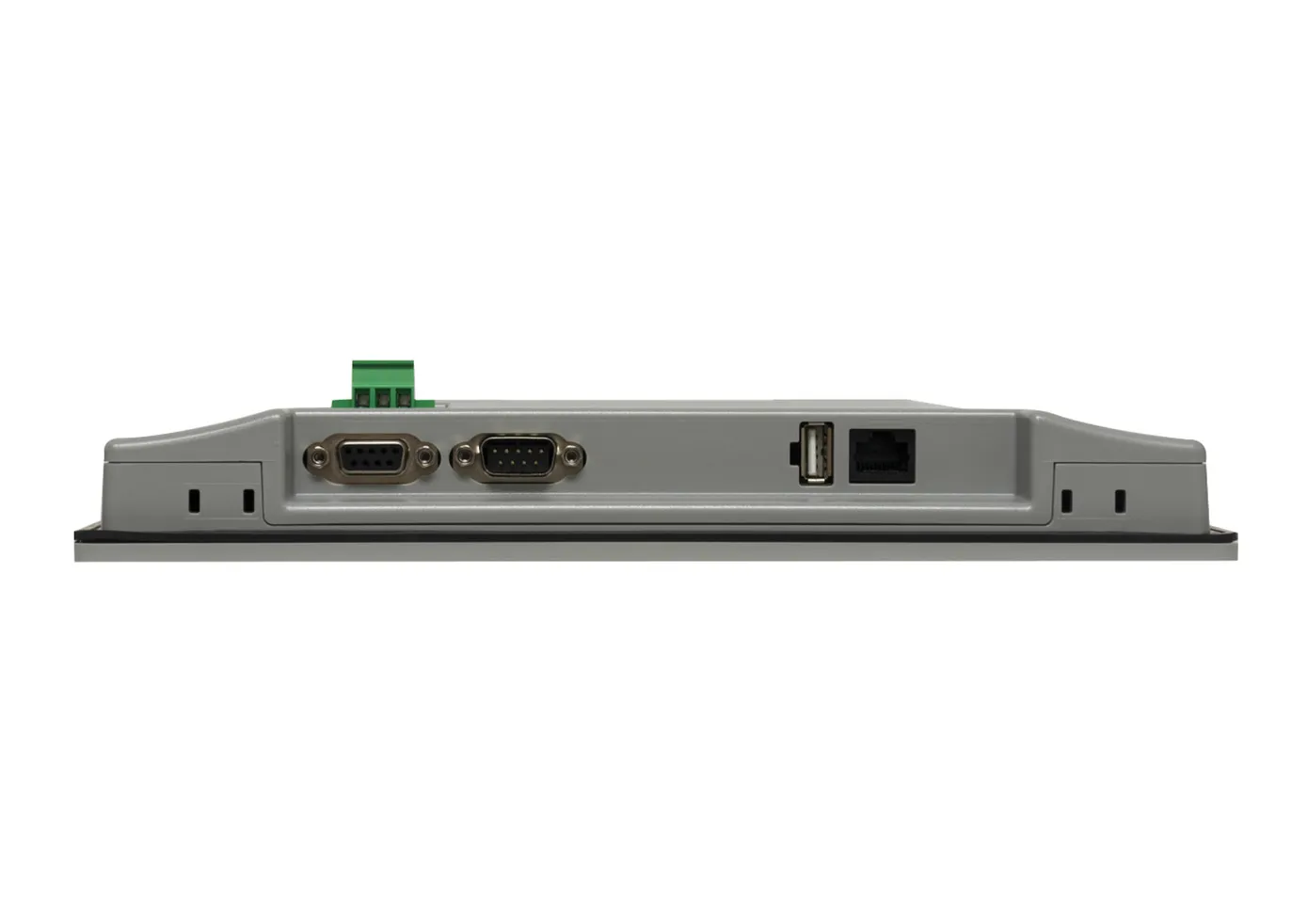

| Serial Ports | 2 |
| Ethernet/LAN | 10/100 Base-T x 1 |
| CANbus | N/A |
| Audio Output | N/A |
| SD Card Slot | N/A |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | N/A |
| Wi-Fi | Yes |
| COM Port | 1 x DE9S COM1: RS-485 2 wire, COM2: RS-485 2 or 4 wire, COM3: RS-485 2 or 4 wire 1 x DE9P COM1: RS-232, COM3: RS-232 |
| HDMI Port | N/A |
| Video Input | N/A |
Display
| Display Size | 10.1" TFT |
| Resolution | 1024 x 600 |
| Luminance (cd/m^2) | 350 |
| Contrast Ratio | 500:1 |
| Backlight Type | LED |
| Backlight Lifetime (hrs) | 50,000+ |
| Colors | 16.7 M |
| LCD Viewing Angle (T/B/L/R) | 70/70/80/80 |
| Display Type | 10.1" TFT |
| Viewing Angle (H°/V°) | 120/140 |
| Size (W x H) | 8.70 x 5.12 inches [221 x 130 mm] |
Touch Screen
| Type | 4-wire resistive touch |
| Accuracy | Length (X) ±2%, width (Y) ±2% |
Electrical
| Input Power | 15.6 W |
| Power Isolation | Built-in |
| Isolation Resistance | Exceed 50 MO - @ 500 VDC |
| Input Voltage | 24 ± 20% VDC |
| Input Current | 650 mA @ 24 VDC |
Mechanical
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| Enclosure Material | Plastic, light grey |
| PCB Coating | Yes |
| Dimensions WxHxD | 10.67 x 8.39 x 1.42 inches [271 x 213 x 36.5 mm] |
| Panel Cutout (inches) [mm] | 10.24 x 7.95 [260 x 202] |
| Weight | Approx. 2.2 lbs. [1.0 kg] |
| Mounting | Panel mount |
Environmental
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Operating Temperature | 32° ~ 122°F (0° ~ 50°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| UL Type Rating | UL Type 4X (indoor use only) |
| NEMA Rating | NEMA4 |
| IP Rating | IP65 compliant front panel |
| CE | Yes |
| UL | cULus Listed |
| Class 1 Div 2 | N/A |
| ATEX | N/A |
| RoHS | Yes |
