HMI5100BN

    • 1024 x 600 Resolution
    • 600MHz RISC CPU
    • Non-UL Certified
    • 1 Year Warranty
    • Support for over 300 protocols

</ul >

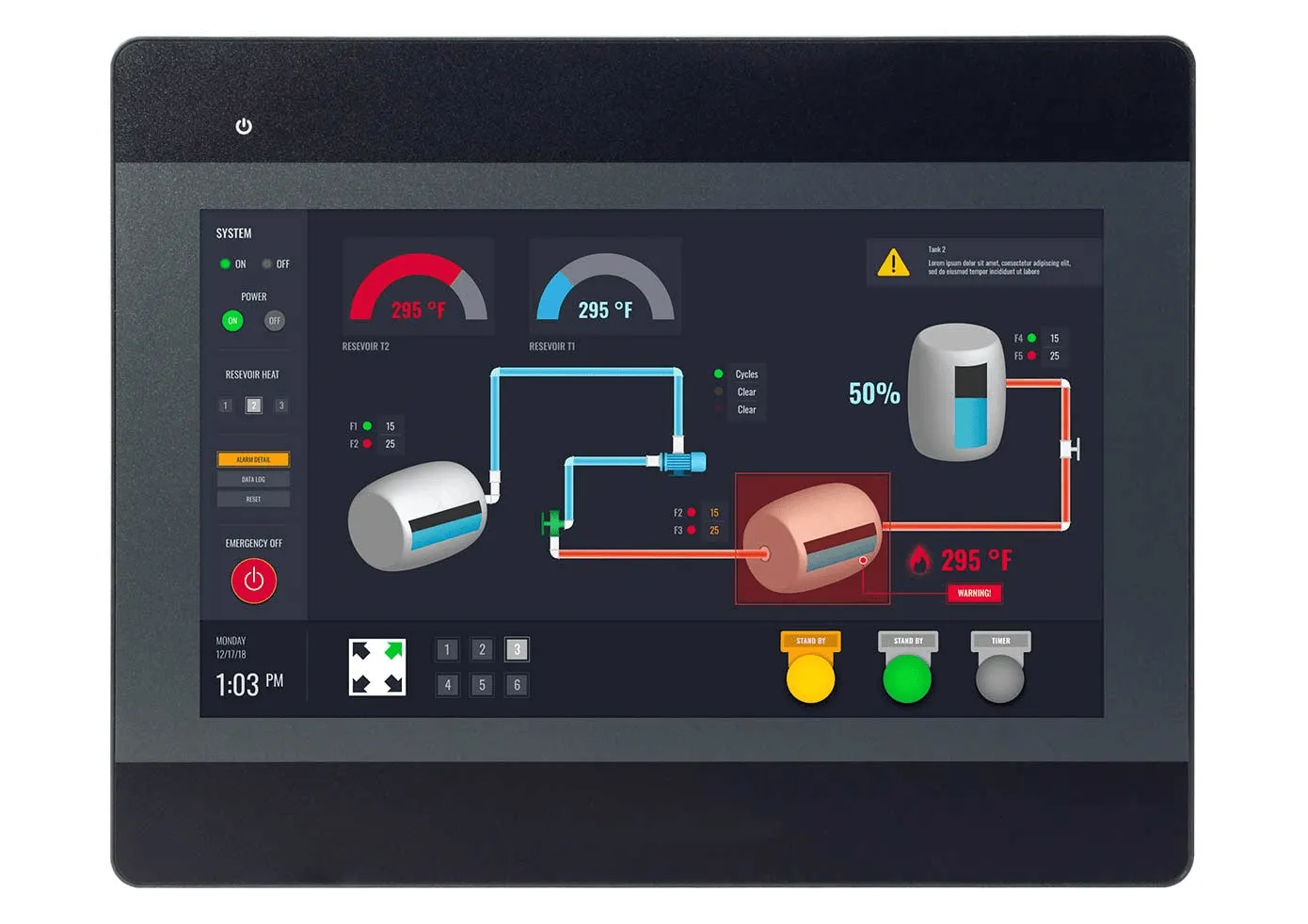

10.1″ Basic HMI With TFT LDC Display

HMI5100BN

This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.

HMI5100Bv2 replaces the HMI5100BN

10.1″ Basic HMI, Non-Ethernet, 1024×600 Pixel Resolution, 600 MHz RISC CPU, 128 MB RAM, 2 Serial Ports, 1 USB Host Port, 1 Micro USB Port

Specifications

System

Memory (RAM)

128 MB

Memory (Flash)

128 MB

RTC

Built-in

Programming Software

EasyBuilder Pro

I/O Ports

Serial Ports

2

Ethernet/LAN

N/A

CANbus

N/A

Audio Output

N/A

SD Card Slot

N/A

USB Host Ports

N/A

USB Client Ports

USB 2.0 x 1 (Micro USB)

Wi-Fi

N/A

RS-485 Dual Isolation

N/A

Local bus

N/A

HDMI Port

N/A

Video Input

N/A

Display

Display Size

4.3" TFT

Resolution

480 x 272

Luminance (cd/m^2)

400

350

300

Contrast Ratio

500:1

Backlight Type

LED

Backlight Lifetime (hrs)

30,000+

Colors

16.2 M

LCD Viewing Angle (T/B/L/R)

70/70/80/80

Display Type

4.3" TFT

Size (W x H)

8.70 x 5.12 inches [221 x 130 mm]

Touch Screen

Type

4-wire resistive touch

Electrical

Power Isolation

Built-in

Power Dissipation

N/A

Current for Internal Bus

N/A

Current Consumption

N/A

Voltage Resistance

N/A

Isolation Resistance

Exceed 50 MO - @ 500 VDC

Input Voltage

24 ± 20% VDC

Input Current

300 mA @ 24 VDC

Mechanical

Vibration Endurance

10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Enclosure Material

Plastic, charcoal grey

PCB Coating

Yes

Panel Cutout (inches) [mm]

4.69 x 3.66 [119 x 93]

Weight

Approx. 0.55 lbs. [0.25 Kg]

Mounting

Panel mount

Environmental

Storage Temperature

-4° ~ 140°F (-20° ~ 60°C)

Operating Temperature

32° ~ 122°F (0° ~ 50°C)

Relative Humidity

10% ~ 90% (non-condensing)

Certification

UL Type Rating

N/A

NEMA Rating

NEMA4

IP Rating

IP65 compliant front panel

CE

Yes

UL

N/A

Class 1 Div 2

N/A

ATEX

N/A

RoHS

Yes
