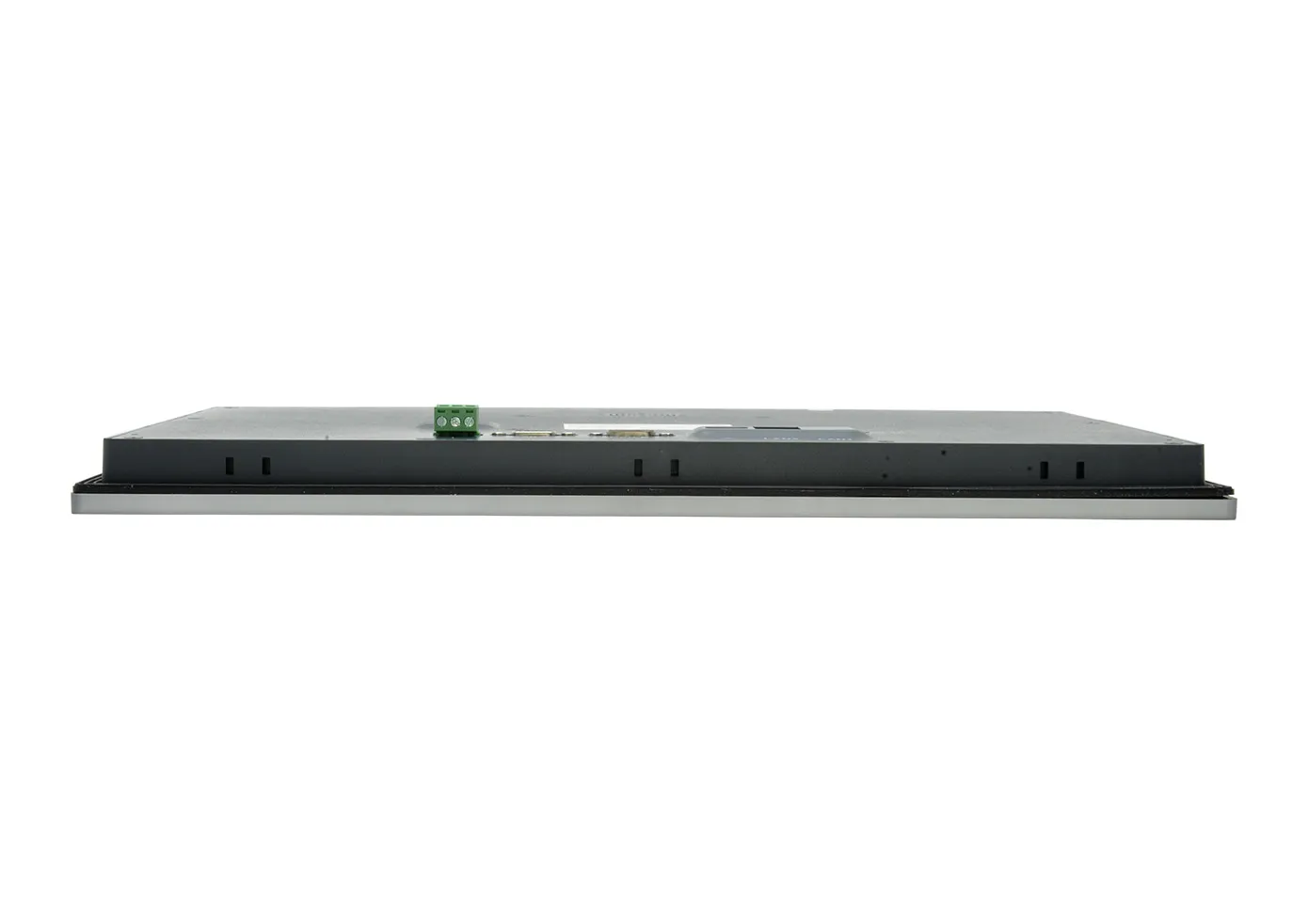

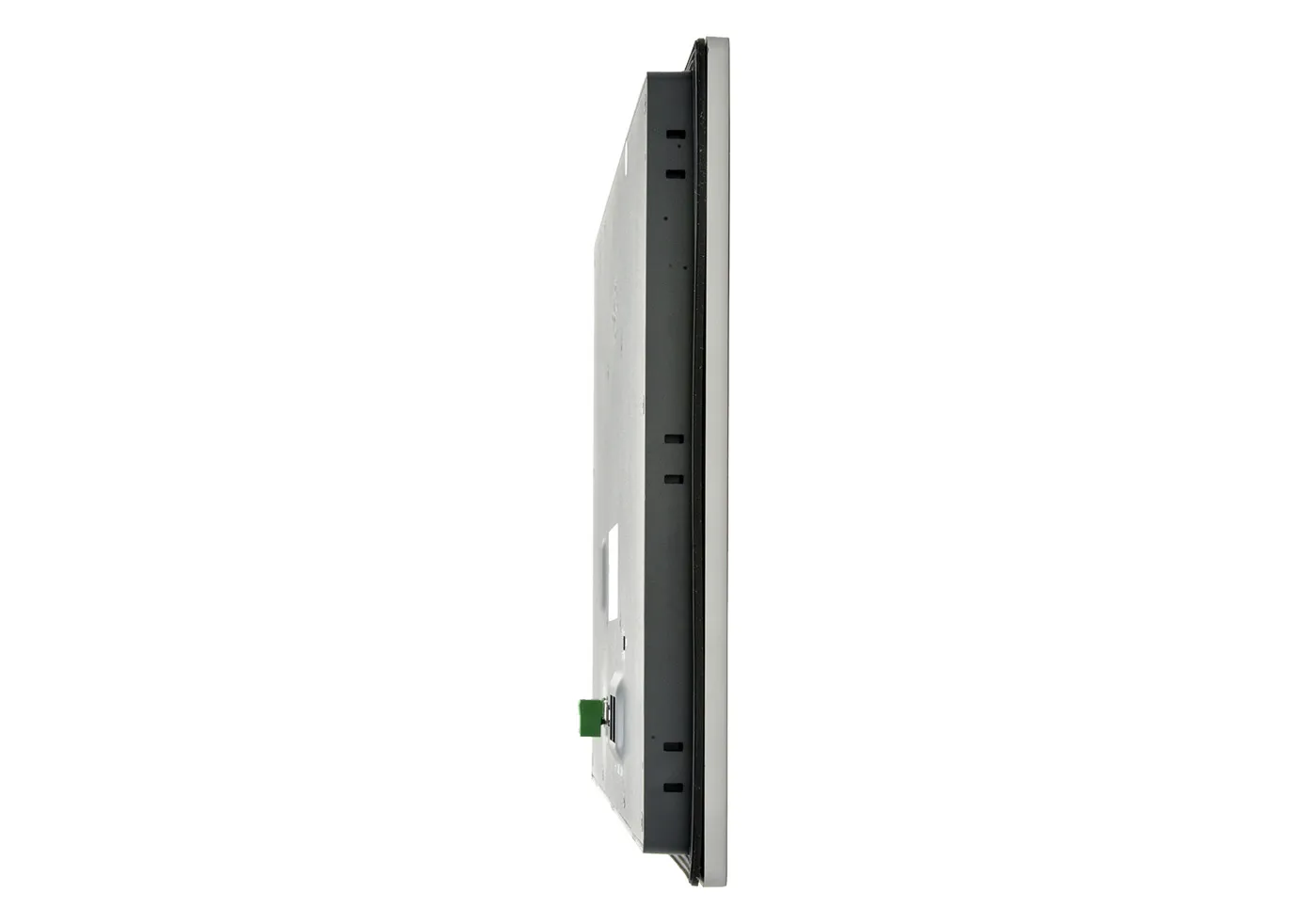

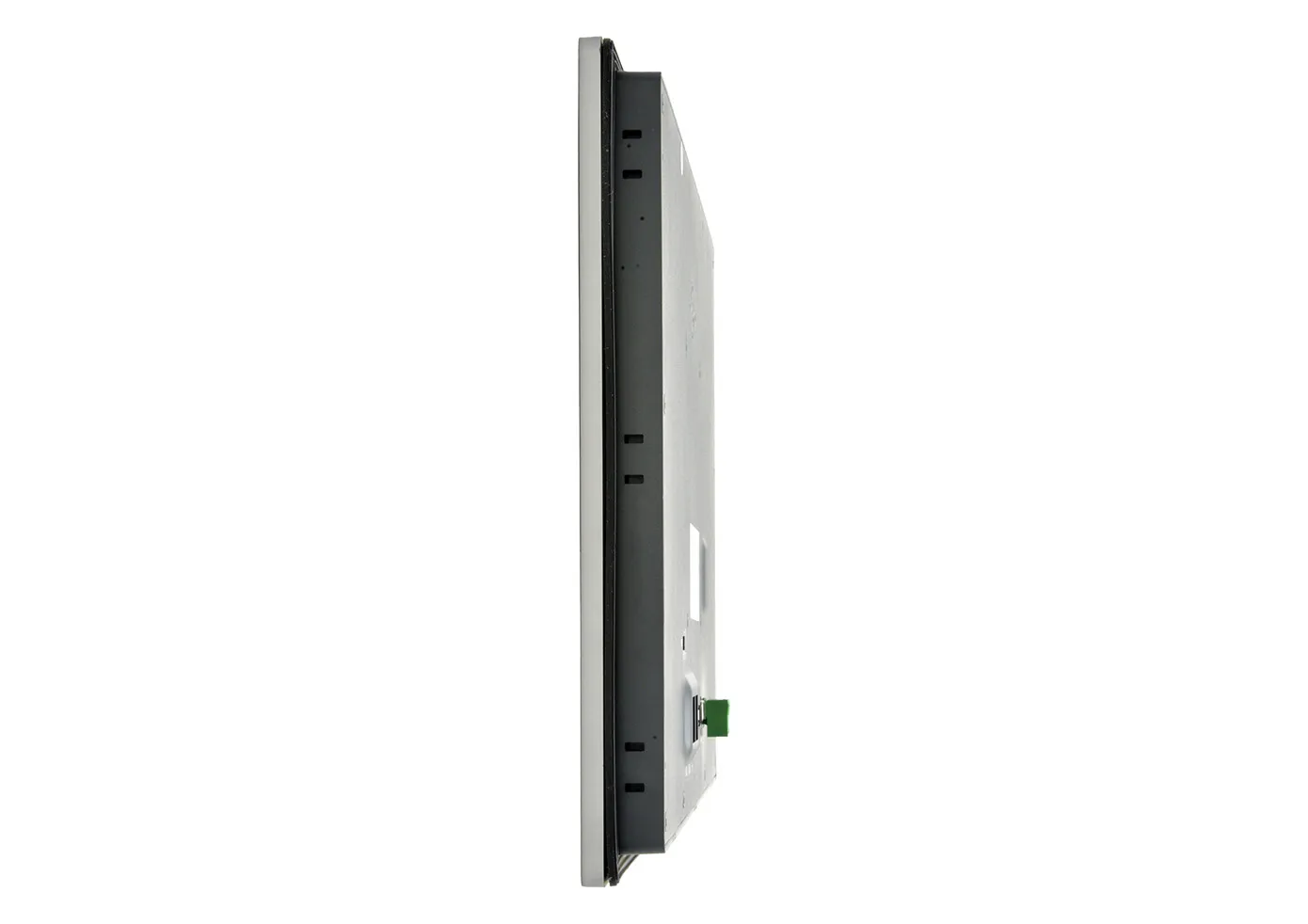

cMT3161X

  • 1920×1080 Resolution
  • 32-bit RISC Quad-Core Cortex-A17, 1.6 GHz CPU
  • Plastic/Aluminum Enclosure

15.6″ Smart HMI, Projected Capacitive Touchscreen, 1 Ethernet Port, 1 USB Port, 2 Serial Ports

cMT3161X

This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.

cMT3162Xv2 replaces the cMT3161X




As part of our most powerful HMI series, the Smart Series provides high-quality models for applications requiring maximum IIoT functionality. Sophisticated features include: enhanced security, remote connectivity, web streaming, and more.

Joe Funsch

Senior Technical Support

dp Brown of Saginaw, Inc.

Customer Review

With ethernet connectivity, I can text cell phones with errors or warnings or just send e-mailed reports to shift production status.  Remote VPN gives my customers the ability to login to the screen to view status from anywhere in the world.

Specifications

System

Memory (RAM)

1 GB

Memory (Flash)

4 GB

RTC

Built-in

Programming Software

EasyBuilder Pro V6.04.01 or later versions

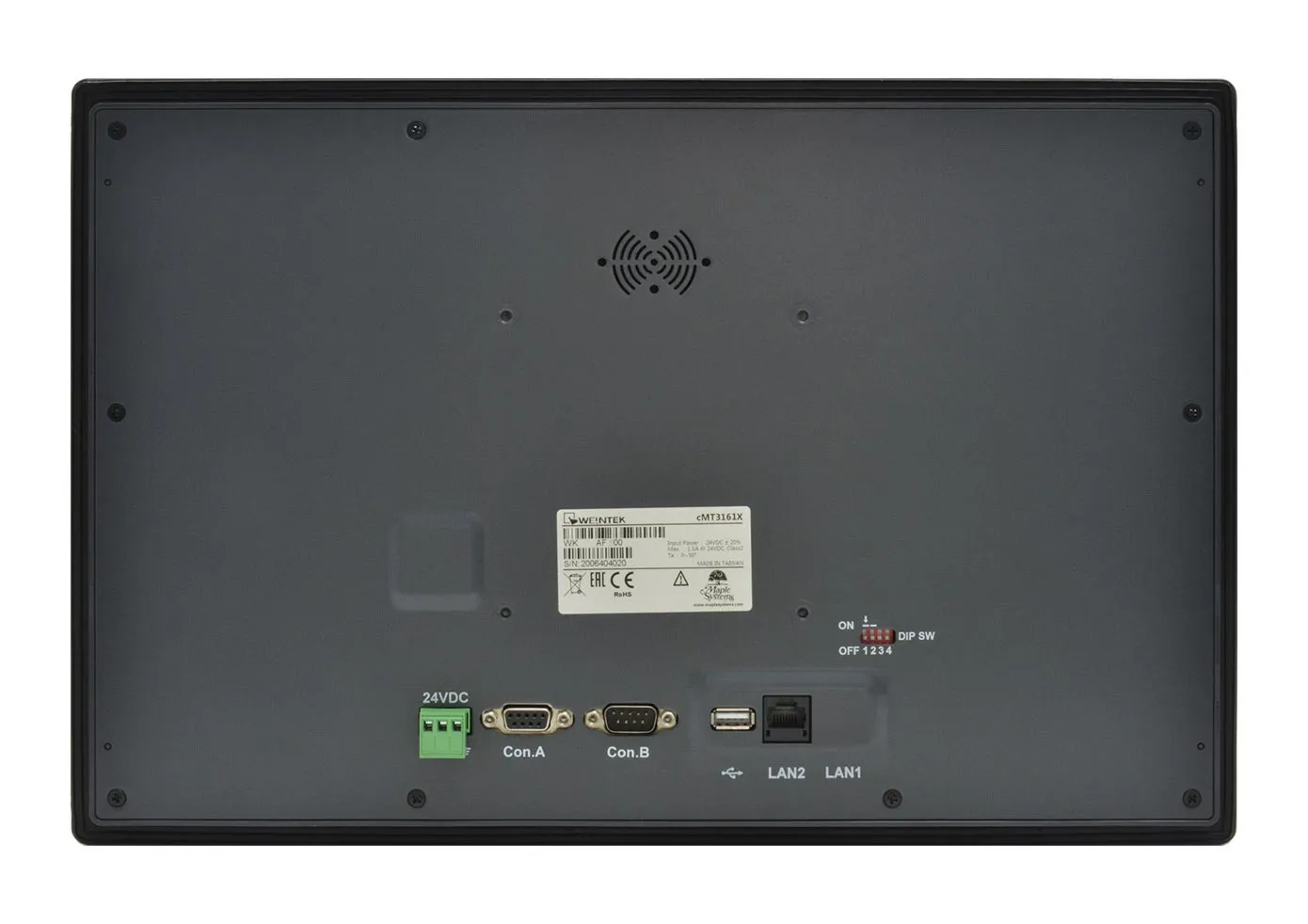

I/O Ports

Serial Ports

2

Ethernet/LAN

LAN 1: 10/100/1000 Base-T x 1

CANbus

N/A

Audio Output

Built-in Mono Speaker

SD Card Slot

N/A

USB Host Ports

USB 2.0 x 1

USB Client Ports

N/A

Wi-Fi

N/A

RS-485 Dual Isolation

N/A

Local bus

N/A

HDMI Port

N/A

Video Input

N/A

Siemens MPI

N/A

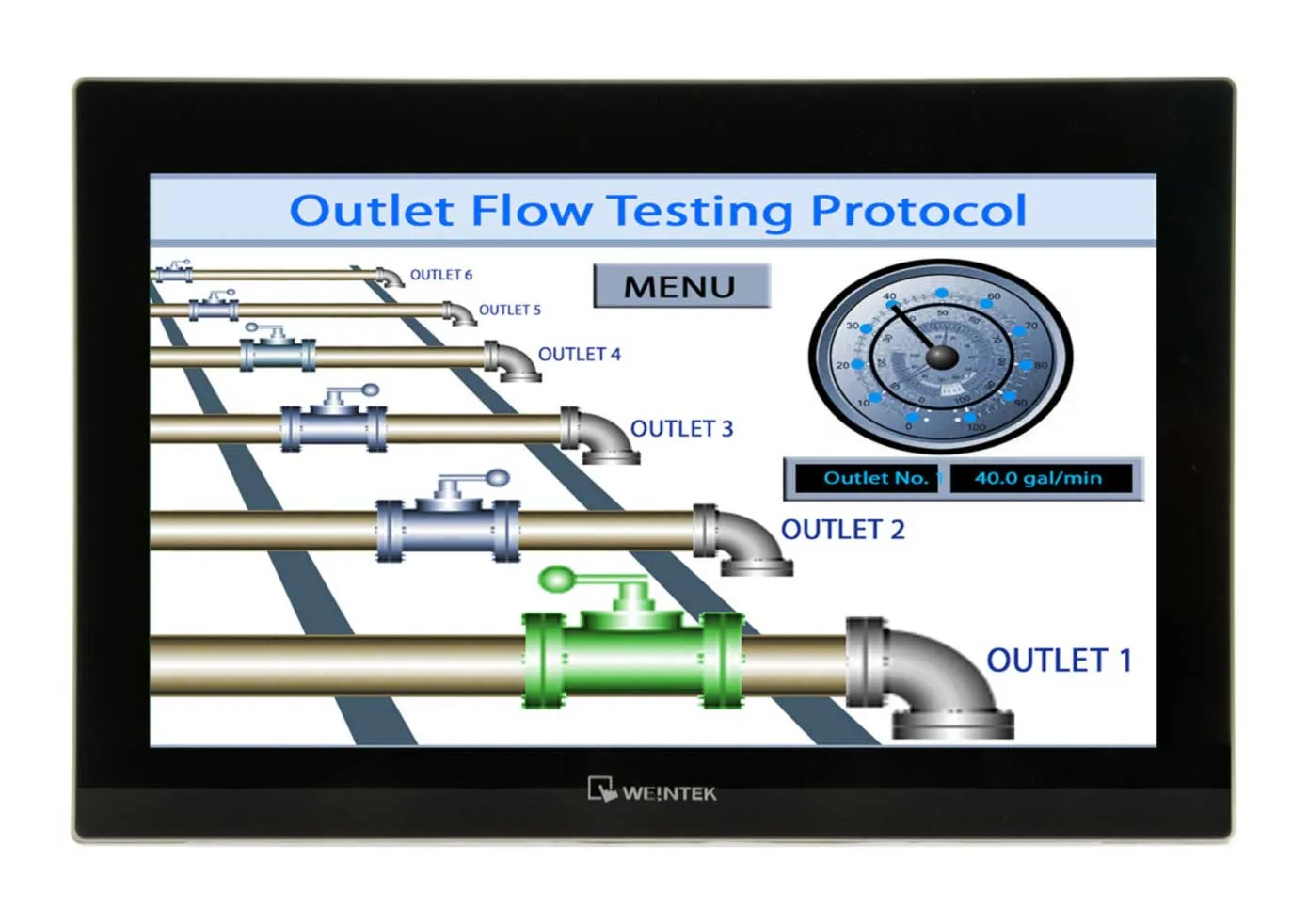

Display

Resolution

1920 x 1080

Luminance (cd/m^2)

1000

400

350

300

Contrast Ratio

800:1

Backlight Type

LED

Backlight Lifetime (hrs)

30,000+

Colors

16.2 M

Display Type

15.6" IPS

Viewing Angle (H°/V°)

178/178

Size (W x H)

13.60 x 7.68 inches [345.6 x 195 mm]

Touch Screen

Type

Tempered Glass, Projected Capacitive

Electrical

Input Power

31.2 W

Power Isolation

Built-in

Power Dissipation

N/A

Current for Internal Bus

N/A

Current Consumption

N/A

Isolation Resistance

Exceed 50 MO - @ 500 VDC

Input Voltage

24 ± 20% VDC

Input Current

1.3 A @ 24 VDC

Mechanical

Vibration Endurance

10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Enclosure Material

Front bezel: Plastic, Rear Enclosure: Aluminum

PCB Coating

Yes

Dimensions WxHxD

15.75 x 10.35 x 1.03 inches [400 x 263 x 26.1 mm]

Panel Cutout (inches) [mm]

15.12 x 9.72 [384 x 247]

Weight

Approx. 3.53 lbs. [1.6 kg]

Mounting

Panel mount, VESA 100 x 100 mm

Environmental

Storage Temperature

-4° ~ 140°F (-20° ~ 60°C)

Operating Temperature

32° ~ 122°F (0° ~ 50°C)

Relative Humidity

10% ~ 90% (non-condensing)

Certification

UL Type Rating

N/A

NEMA Rating

NEMA4

IP Rating

IP66 Compliant Front Panel

CE

Yes

UL

N/A

Class 1 Div 2

N/A

ATEX

N/A

RoHS

Yes

What's Included

When you order the cMT3161X the following items are included in the box:

  • cMT3161X Touchscreen HMI
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • Power Connector
  • Mounting Clips
