cMT3102X

  • 1024×600 Resolution

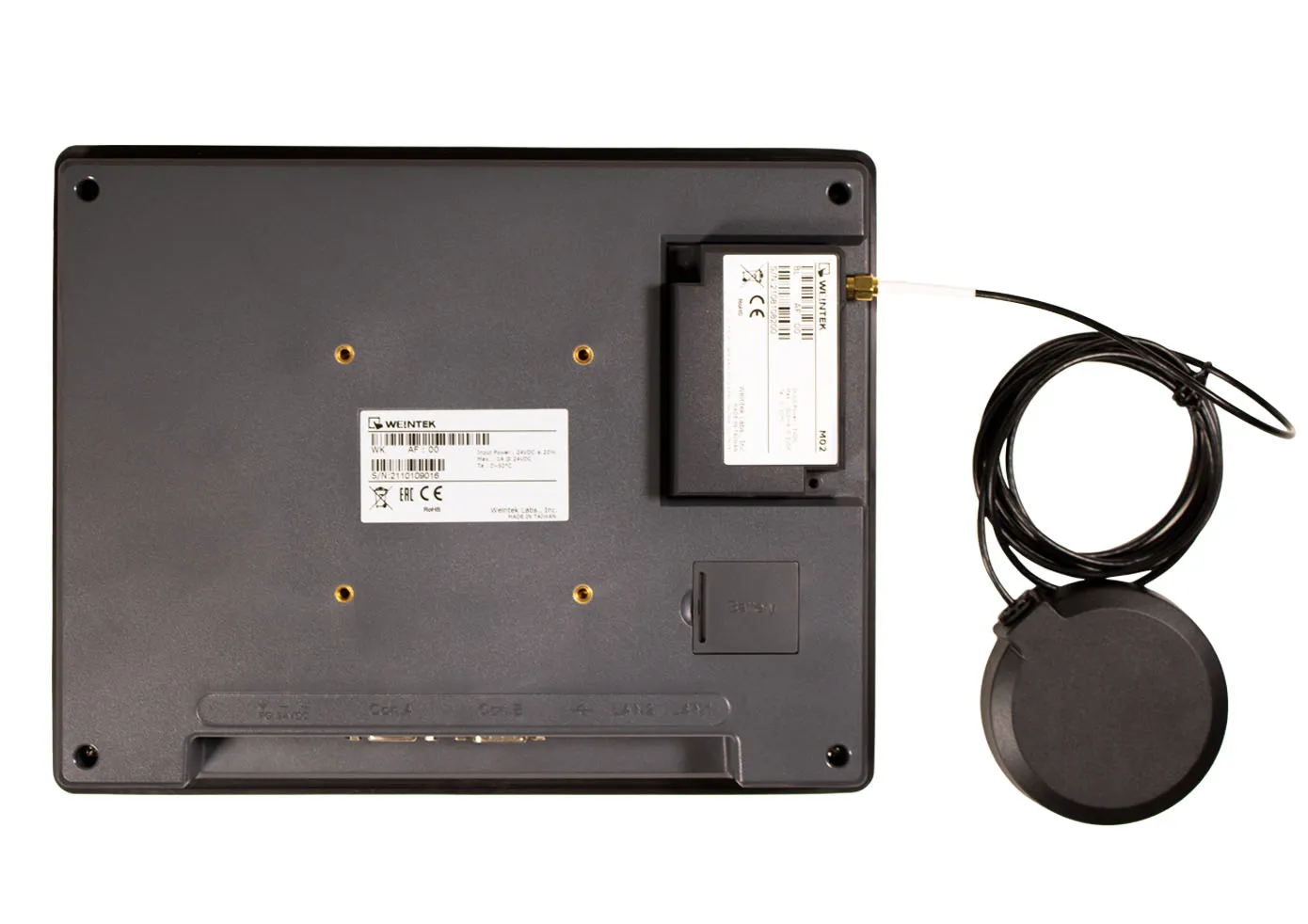

  • Wifi Capable via Expansion Module*
  • 32-bit RISC Quad-Core Cortex-A17, 1.6 GHz CPU
  • IIoT Ready

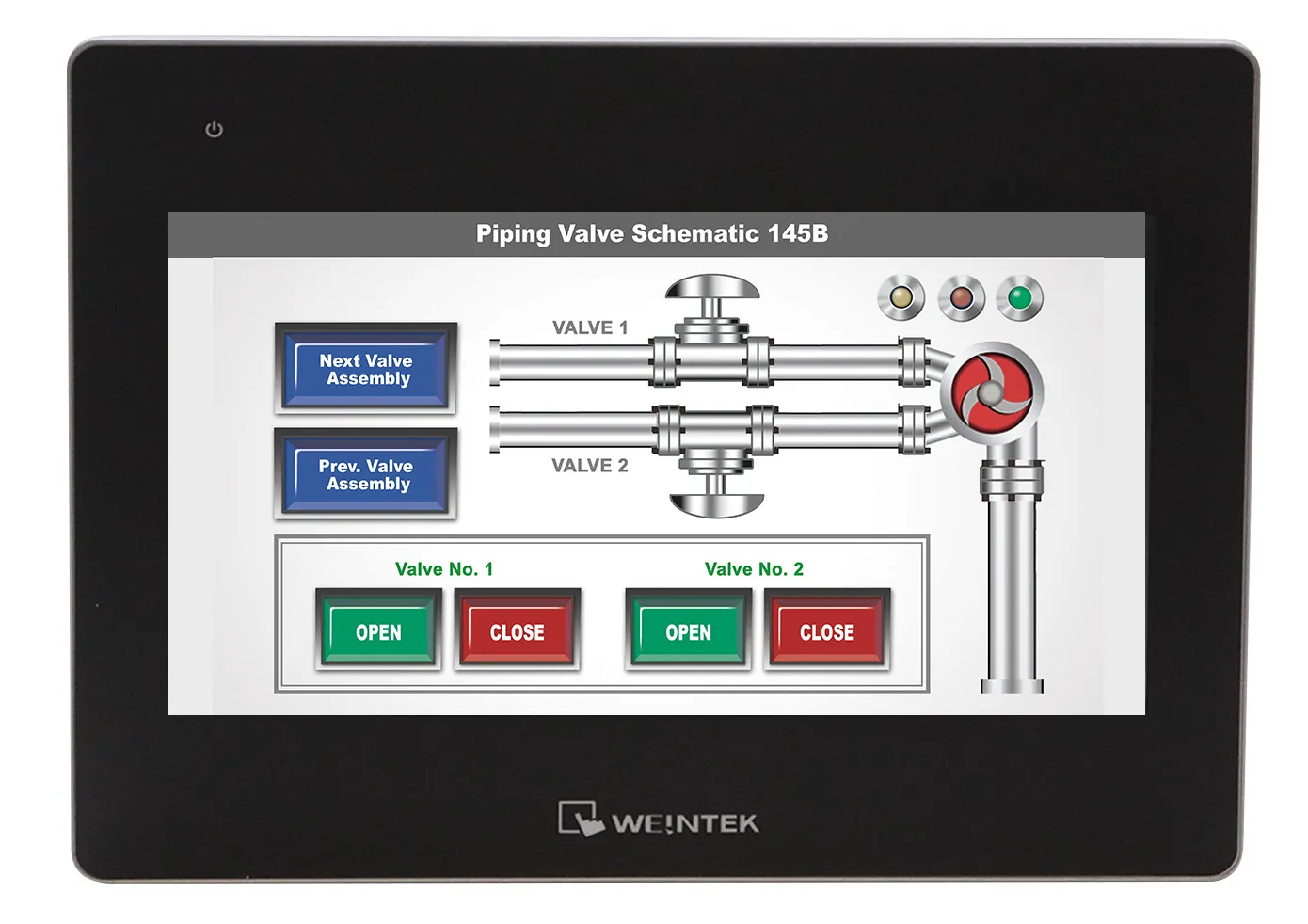

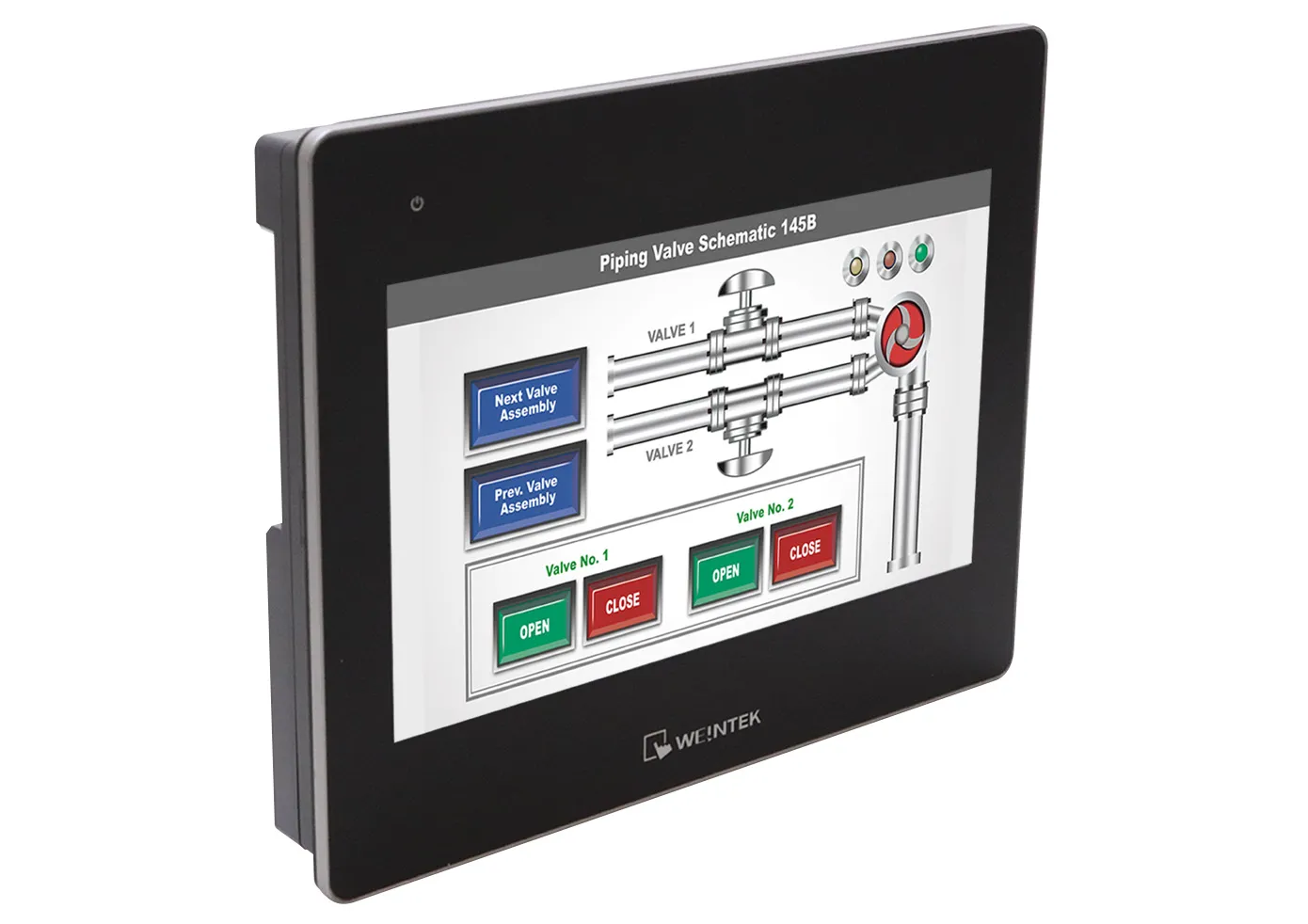

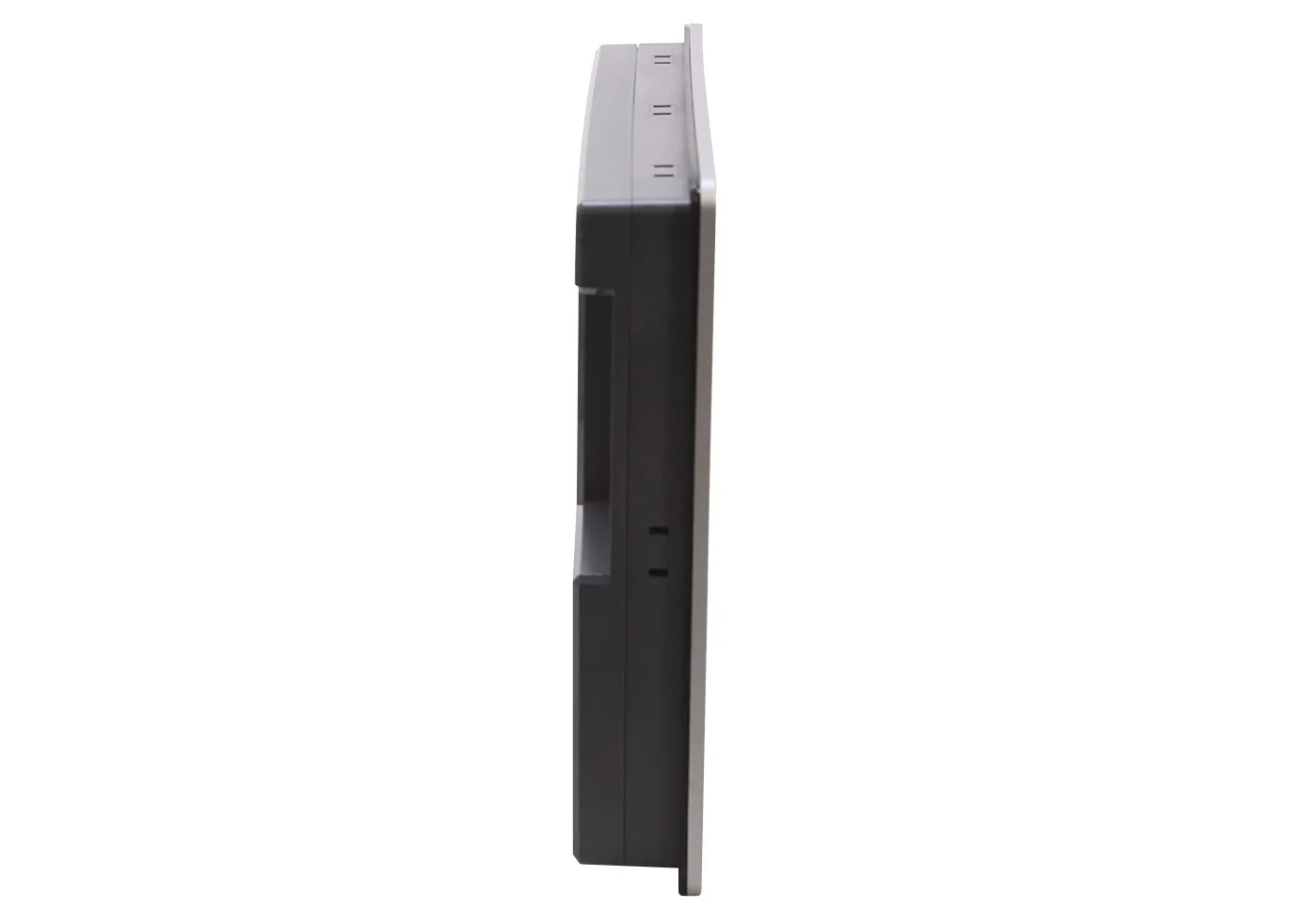

10.1" WiFi Capable High Performance HMI

cMT3102X

This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.

cMT3102Xv2 replaces the cMT3102X




The cMT3102X features a powerful CPU, remote access capabilities, IIoT functionality, and our most advanced feature set, making this touch panel a powerful solution for your application. Pair this operator interface with our remote IO and CODESYS license for soft PLC functionality. Because our free HMI software supports Modbus and over 300 different PLC and controllers, pairing one of our HMIs with your Allen-Bradley, Seimens, Omron, and/or Mitsubishi PLC is easy.

Tucker Epp

Director of Marketing and Business Development

EPP Well Solutions

Customer Review

Support was great! You guys helped us identify the best product for our systems and if there were any issues with the hardware or software you were quick to answer any questions or help us get it back working again.

Specifications

System

Memory (RAM)

1 GB

Memory (Flash)

4 GB

RTC

Built-in

Programming Software

EasyBuilder Pro V6.06.02 or later versions

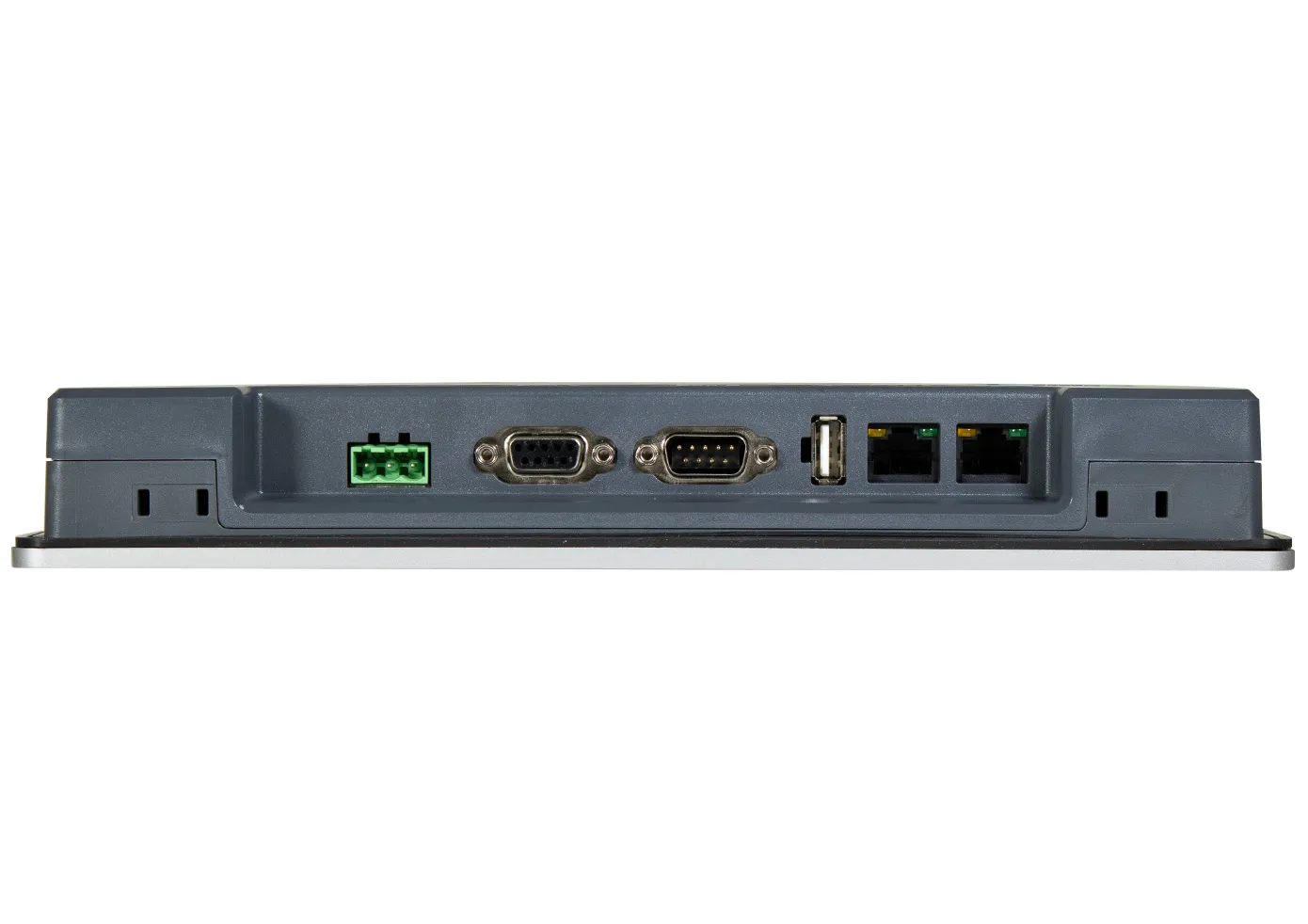

I/O Ports

Serial Ports

2

Ethernet/LAN

LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1

CANbus

Yes

Audio Output

N/A

SD Card Slot

N/A

USB Host Ports

USB 2.0 x 1

USB Client Ports

N/A

Wi-Fi

MO2 Wifi - Expansion Module (Optional)

RS-485 Dual Isolation

Yes

Local bus

N/A

HDMI Port

N/A

Video Input

N/A

Siemens MPI

N/A

Display

Display Size

10.1" TFT

Resolution

1024 x 600

Luminance (cd/m^2)

1000

400

350

300

Contrast Ratio

500:1

Backlight Type

LED

Backlight Lifetime (hrs)

50,000+

Colors

16.7 M

LCD Viewing Angle (T/B/L/R)

70/70/80/80

Display Type

10.1" TFT

Viewing Angle (H°/V°)

160/140

Size (W x H)

8.82 x 4.96 inches [224 x 126 mm]

Touch Screen

Type

4-wire resistive touch

Accuracy

Length (x)±2%, Width(y)±2%

Touch Panel Hardness Scale

N/A

Electrical

Input Power

24 W

Power Isolation

Built-in

Power Dissipation

N/A

Current for Internal Bus

N/A

Current Consumption

N/A

Isolation Resistance

Exceed 50 MO - @ 500 VDC

Input Voltage

24 ± 20% VDC

Input Current

1 A @ 24 VDC

Mechanical

Vibration Endurance

10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Enclosure Material

Plastic, charcoal grey

PCB Coating

Yes

Dimensions WxHxD

10.67 x 8.39 x 1.50 inches [271 x 213 x 38 mm]

Panel Cutout (inches) [mm]

10.24 x 7.95 [260 x 202]

Weight

Approx. 2.65 lbs. [1.2 Kg]

Mounting

Panel mount, VESA 75 x 75 mm

Environmental

Storage Temperature

-4° ~ 140°F (-20° ~ 60°C)

Operating Temperature

32° ~ 122°F (0° ~ 50°C)

Relative Humidity

10% ~ 90% (non-condensing)

Certification

UL Type Rating

UL Type 4X (indoor use only)

NEMA Rating

NEMA4

IP Rating

IP66 Compliant Front Panel

CE

Yes

UL

cULus Listed

Class 1 Div 2

N/A

ATEX

N/A

RoHS

Yes

What's Included

When you order the cMT3102X the following items are included in the box:

  • cMT3102X Touchscreen HMI
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • Power Connector
  • Mounting Clips
  • USB Stick Clamp & Tying Strap
