Legacy 7.0" Dual-Ethernet Advanced HMI with CODESYS

Name: Legacy 7.0 Dual-Ethernet Advanced HMI CODESYS cMT2078X-CODESYS
SKU: cMT2078X-CODESYS
Availability: OutOfStock

$640.00

Out of stock

The cMT2078X with an activated CODESYS license is a powerful HMI that provides high performance for applications requiring a more advanced feature set, remote access, and IIoT functionality. Pair this operator interface with our remote IO for soft PLC functionality.

Try Before You Buy: Follow along to learn how EBPro, our 100% free HMI configuration software, allows you to develop and simulate your HMI program entirely free of charge.

Customize product with your company logo. Minimum quantities apply.
Connect to +400 PLCs and Controllers.
US-based technical support.

TFT LCD with 800 x 480 Pixel Resolution
Quad-Core 64-bit RISC, 1.5 GHz
2 Ethernet, 1 USB, 2 Serial Ports
MQTT, Sparkplug B, WebView, VNC
Add an EasyAccess2.0 license for remote access
Activated CODESYS License
Pair with our remote IO for Soft PLC functionality
UNBRANDED

View Datasheet Download Software

Datasheet 2D CAD File 3D CAD File

System

CPU	Quad-Core 64-bit RISC 1.5 GHz
Memory (RAM)	1 GB
Memory (Flash)	4 GB
RTC	Built-in
Programming Software	EBPro (Latest Version)

I/O Ports

Ethernet/LAN	10/100 Base-T x 2
CANbus	N/A
Audio Output	N/A
SD Card Slot	N/A
USB Host Ports	USB 2.0 x 1
USB Client Ports	N/A
Wi-Fi	N/A
COM Port	1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wires 1 x DE9P COM1: RS-232, COM3: RS-232 COM1: RS-232 COM2: RS-485 2W/4W COM3: RS-232/RS-485 2W*2
RS-485 Dual Isolation	Yes
Local bus	N/A
HDMI Port	N/A
Video Input	N/A
Siemens MPI	N/A
Serial Ports	2

Display

Display Size	7" TFT
Resolution	800 x 480
Luminance (cd/m^2)	400
Contrast Ratio	800:1
Backlight Type	LED
Backlight Lifetime (hrs)	30,000+
Colors	16.7 M
Display Type	7" TFT
Viewing Angle (H°/V°)	160/140
Size (W x H)	6.02 x 3.39 inches [153 x 86 mm]

Touch Screen

Type	4-wire resistive touch
Accuracy	Length (X) ±2%, width (Y) ±2%
Touch Panel Hardness Scale	N/A

Electrical

Input Power	19.7 W
Power Isolation	Built-in
Power Dissipation	N/A
Current for Internal Bus	N/A
Current Consumption	N/A
Isolation Resistance	Exceed 50 MO – @ 500 VDC
Input Voltage	24 ± 20% VDC
Input Current	820 mA @ 24 VDC

Mechanical

Vibration Endurance	10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
Enclosure Material	Black Plastic
PCB Coating	Yes
Dimensions WxHxD	7.89 x 5.76 x 1.38 inches [200.3 x 146.3 x 35 mm]
Panel Cutout (inches) [mm]	7.56 x 5.43 [192.0 x 138.0]
Weight	Approx. 1.32 lbs. [0.6 kg]
Mounting	Panel mount

Environmental

Operating Temperature	32° ~ 131°F (0° ~ 55°C)
Storage Temperature	-4° ~ 140°F (-20° ~ 60°C)
Relative Humidity	10% ~ 90% (non-condensing)

Certification

CE UKCA	Yes
UL Type Rating	UL Type 4X (indoor use only)
NEMA Rating	NEMA4
IP Rating	IP66 Compliant Front Panel
CE	Yes
UL	cULus Listed
Class 1 Div 2	N/A
ATEX	N/A
RoHS	Yes

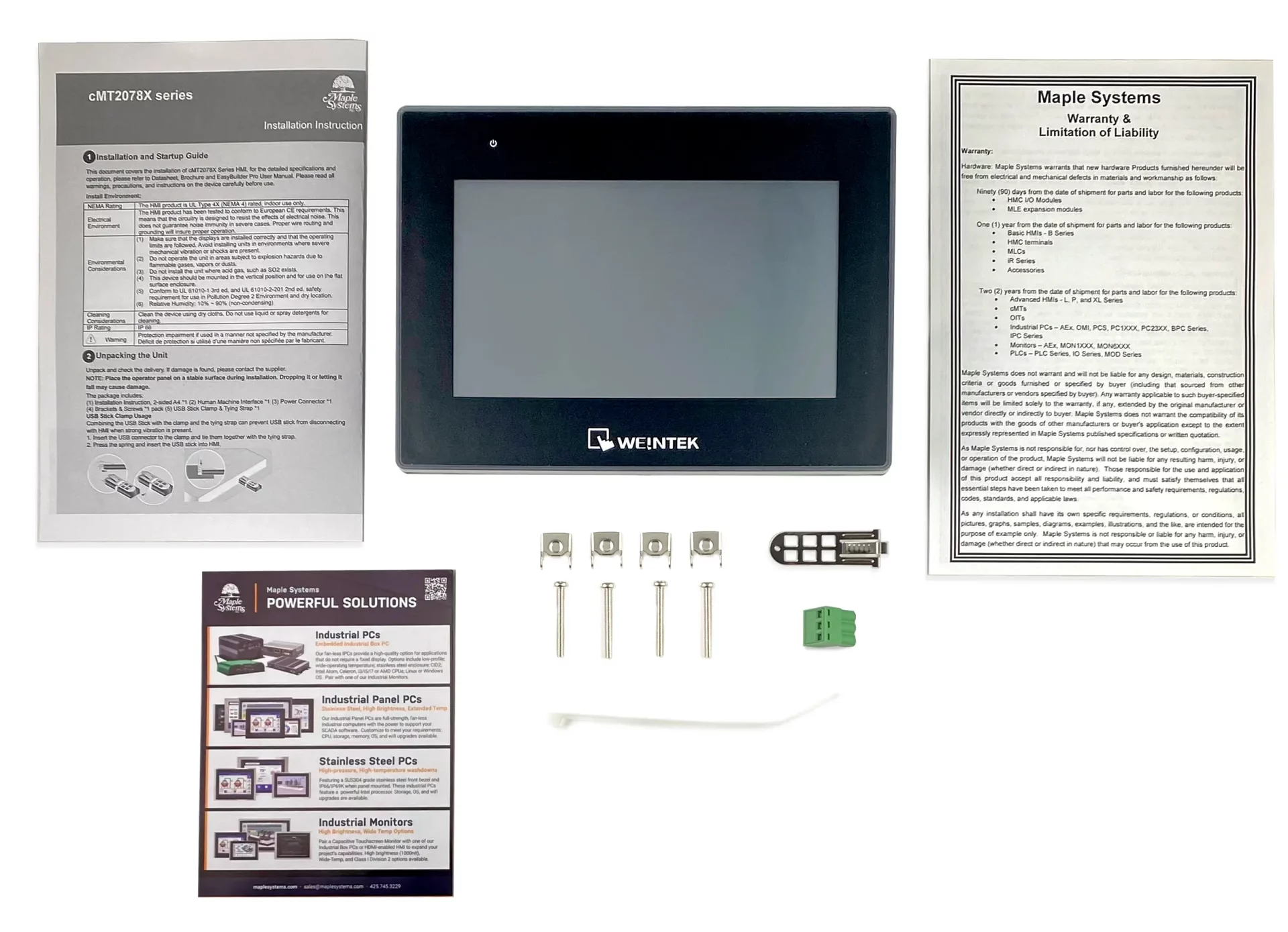

Unboxing a cMT2078X

Watch as we unbox, show accessories & I/O ports on the HMI, then load a demo project.

Watch on YouTube
