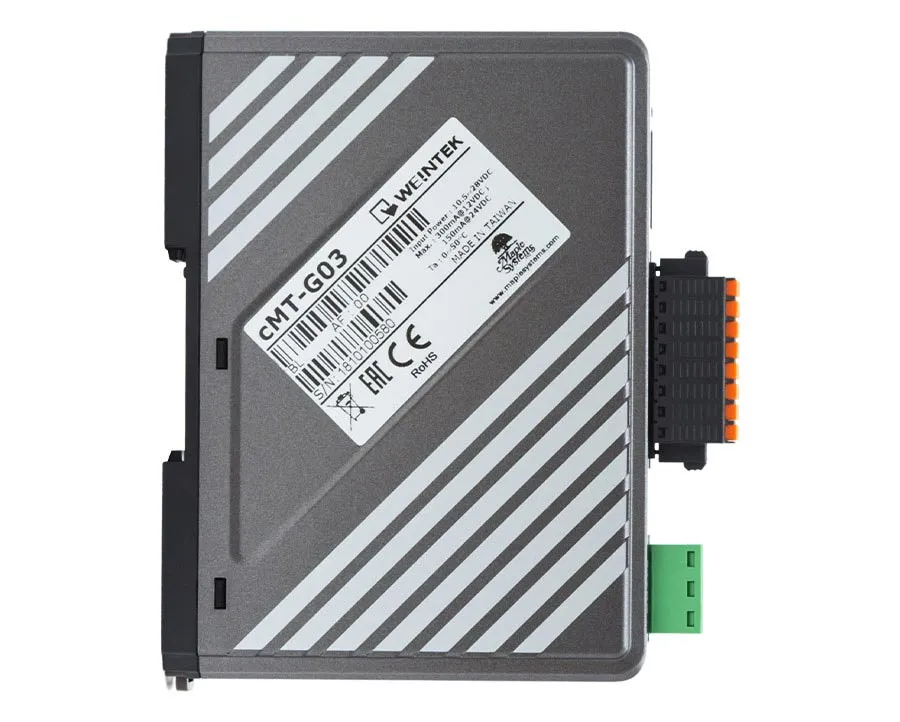

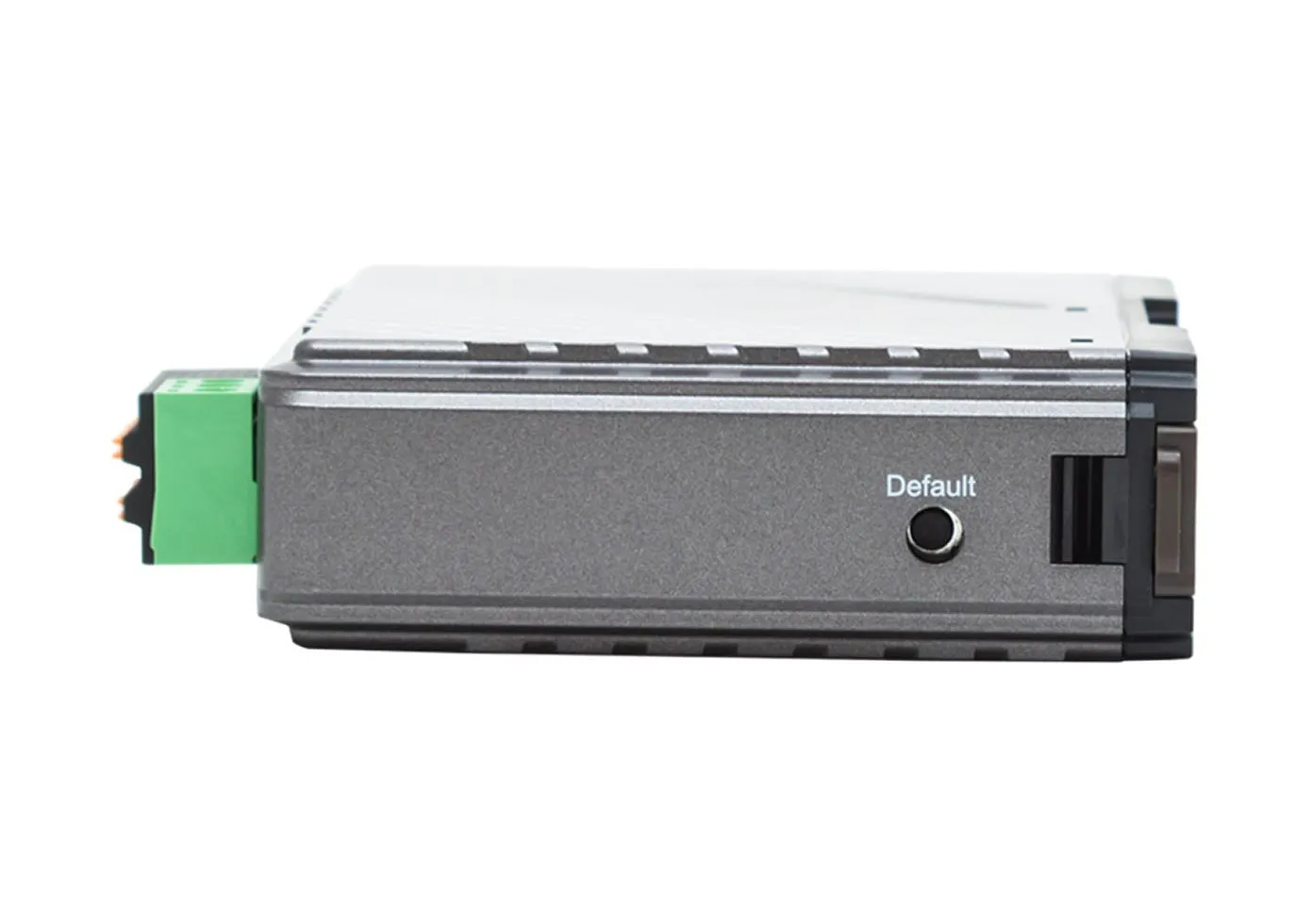

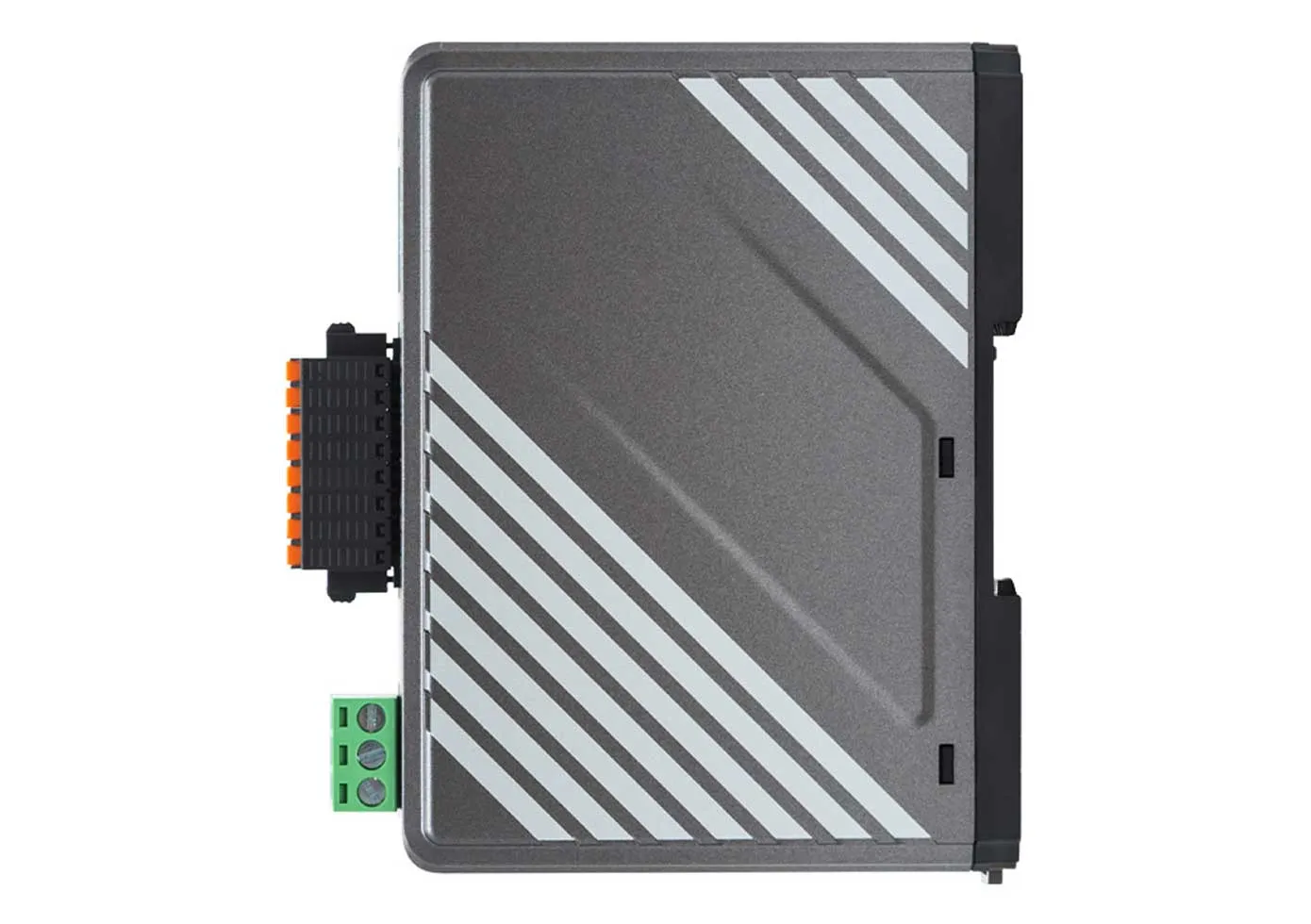

cMT-G03
- ARM RISC 528 MHz CPU
- 256 MB Flash, 256 MB RAM
- Supports OPC UA
- Supports MQTT
- Supports MODBUS TCP/IP Gateway
- DIN Rail Mount
cMT-G03 - Communication Protocol Gateway
cMT-G03
Contact Sales for more details.
Use this IIoT Gateway with a serial bridge to upgrade your serial-based controller and touch panel without the need for modifying the PLC or HMI projects. Transmit data from your factory floor securely into your SCADA or ERP system with ease.
- Volume Discounts available. Contact Sales for more details.
- US Based Technical Support
System
| RTC | Built-in |
I/O Ports
| Serial Ports | 2 |
Display
| Luminance (cd/m^2) | 1000 350 300 |
| Viewing Angle (H°/V°) | N/A |
Electrical
| Input Power | 3.6 W |
| Power Isolation | Built-in |
| Isolation Resistance | Exceed 50 MO - @ 500 VDC |
| Input Voltage | 24 ± 20% VDC |
| Input Current | 300 mA @ 12 VDC; 150 mA @ 24 VDC |
Mechanical
| Vibration Endurance | 10 to 25Hz(X, Y, Z direction 2G 30 minutes) |
| Enclosure Material | Plastic |
| Dimensions WxHxD | 4.29 x 3.19 x 1.06 inches [109 x 81 x 27 mm] |
| Weight | Approx. 0.31 lbs. [0.14 kg] |
| Mounting | 35 mm DIN rail |
Environmental
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Operating Temperature | 32° ~ 122°F (0° ~ 50°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| UL Type Rating | N/A |
| IP Rating | IP20 |
| CE | Yes |
| UL | cULus Listed |
| RoHS | Yes |
