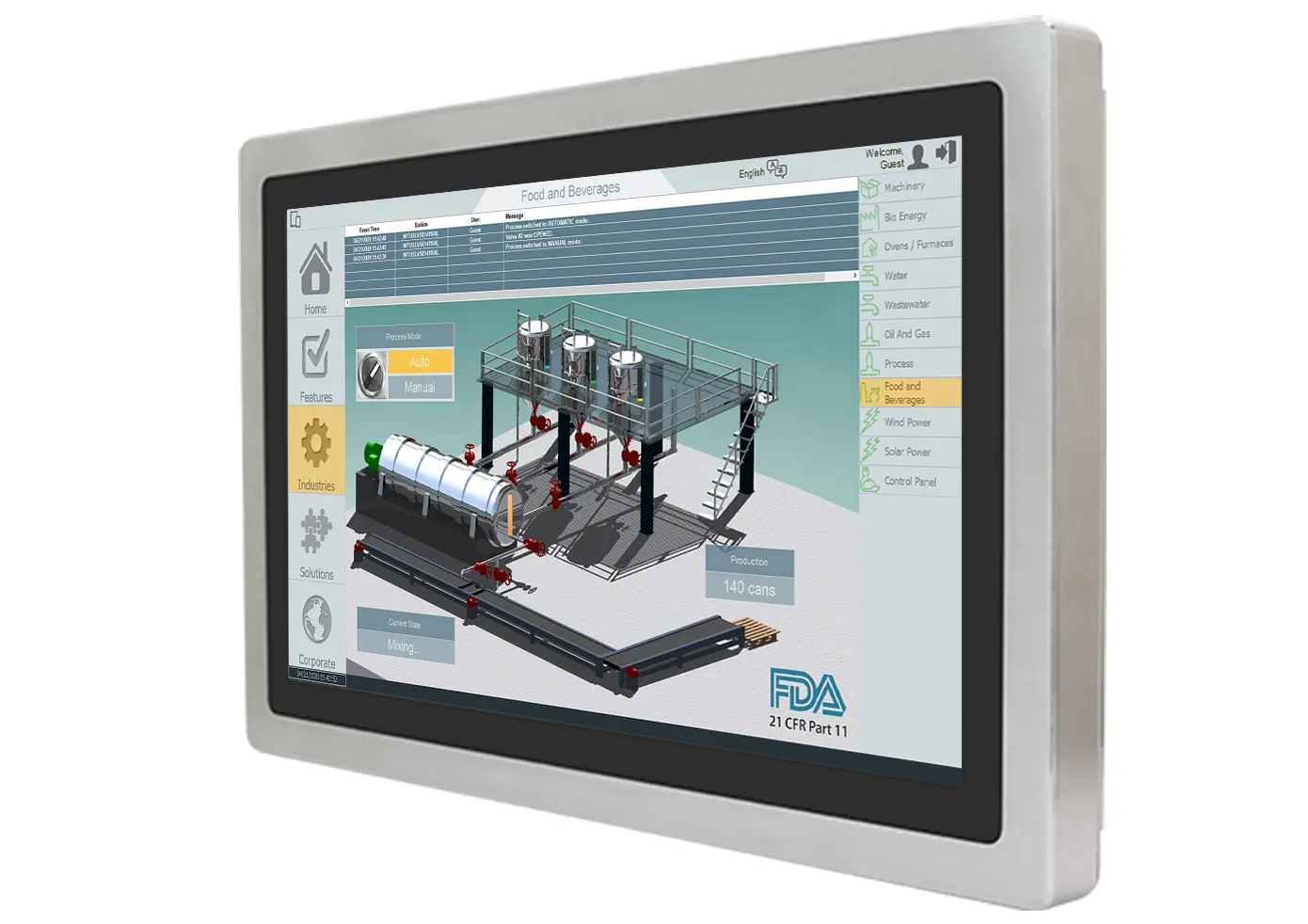

21.5" C1D2, Stainless Steel, Wide-Temp Intel® Core® i5 Industrial Panel PC
$6,950.00
The 21.5” AEx-921AP features an extended operating temperature range (-20~60°C) , capacitive touchscreen, 316 Stainless Steel enclosure, and is IP66 rated. And because this IPC is CID2 rated, it is designed to keep operators and their environment safe. Comes with a Windows® 10 IoT OS, a powerful Intel Processor, and 16 GB RAM. VESA mount. ATEX rated. Supports 3rd party SCADA software like SIMATIC WinCC, Ignition, FactoryTalk®, & Aveva Edge®.
- Intel® Certified Gold Partner.
- Volume discounts available.
- Customize product with your company logo. Minimum quantities apply.
- Typically ships in 2 days.
- US-based technical support.
Share the product:
The base options are selected by default. Select the options to get the desired configuration.
System
| CPU | Intel® Skylake Core™ i5-6300U 2.4GHz Dual-Core Processor |
| Memory (RAM) | 1 x DDR4 260-pin SO-DIMM 16 GB 2133 MHz |
| System Chipset | SoC |
| Solid State Drive Type | SATA mSATA |
| Solid State Drive Capacity | 1 x 256 GB 2.5” SATA III, MLC SSD, 1 x 64 GB mSATA MLC SSD |
I/O Ports

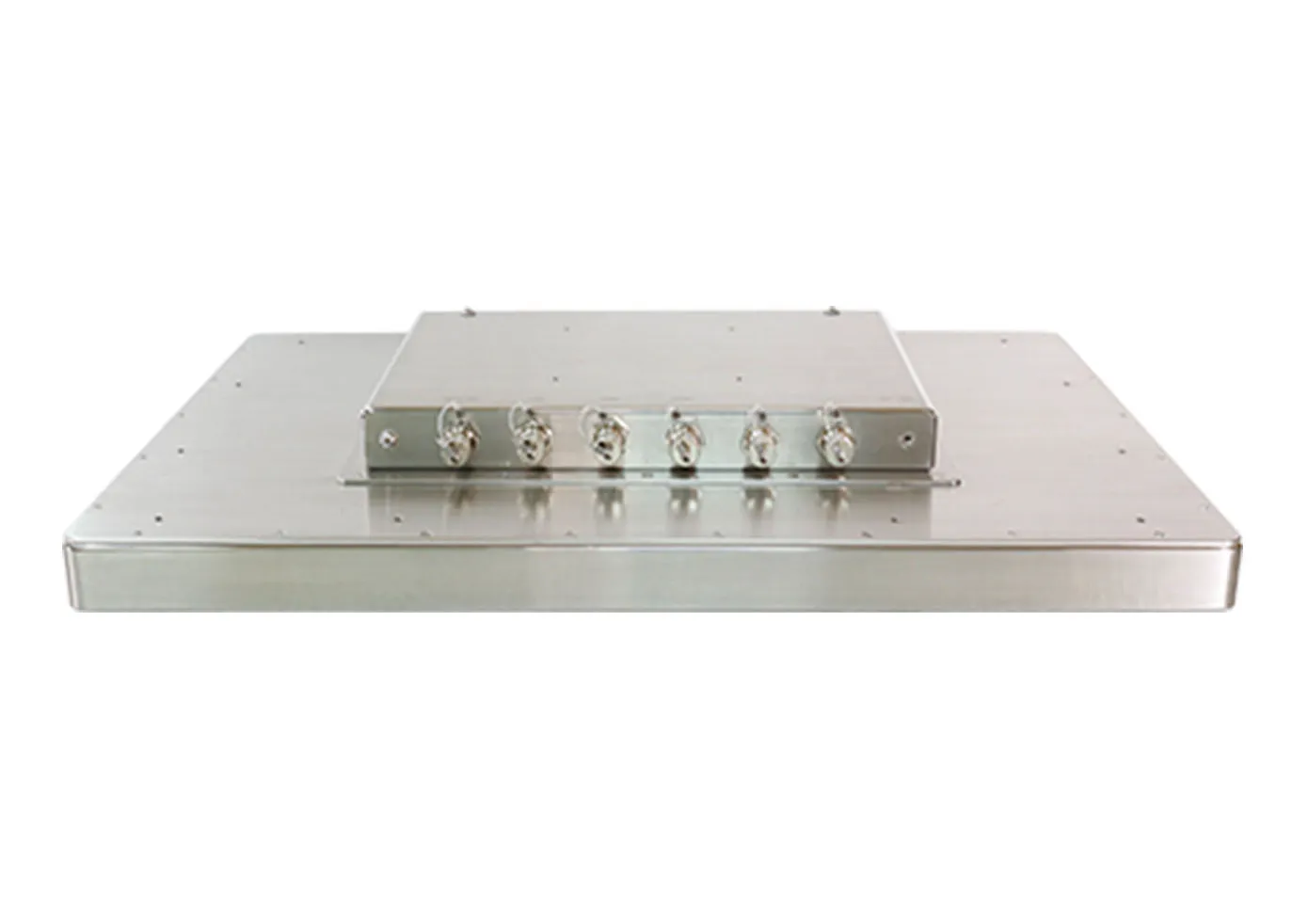

| Connector Type | M12, with waterproof cover and tether chain |
| Power | 1 x M12 3-pin for DC power input (leads) |
| Ethernet/LAN | 2 x M12 8-pin for RJ-45 |
| Display Output | 1 x M12 12-pin for VGA |
| USB 2.0 Type A | 2 (1 x M12 8-pin for 2 x USB 2.0) |
| Serial Ports | 1 |
| Serial Options | 1 x M12 8-pin for RS-232/422/485, DE-9, COM1 (default RS-232) |
Display
| Display Size | 21.5” FHD TFT LCD |
| Resolution | 1920 x 1080 |
| Luminance (cd/m^2) | 300 |
| Contrast Ratio | 3000:1 |
| Backlight Lifetime (hrs) | 50,000+ |
| Colors | 16.7 M |
| View Angle (H° V°) | 178/178 |
Touch Screen
| Touch Interface | USB (Internal) |
| Light Transmission | 90+% |
| Optical Bonding | Yes |
| Touch Screen Type | Projected Capacitive |
Electrical
| Input Power | 48.3 W |
| Input Voltage | 9~36 VDC |
| Input Current | 5.37 A Max |
Mechanical
| Enclosure Material | 316 Stainless Steel Chassis |
| Dimensions WxHxD | 22.48 x 14.25 x 2.96 inches, [571 x 362 x 75.1 mm] |
| Weight | ~ 27.78 lbs [12.6 kg] |
| Mounting | VESA 100 x 100 mm |
Environmental
| Operating Temperature | -4~140°F [-20~60°C] |
| Storage Temperature | -22~158°F [-30~70°C] |
| Relative Humidity | 10 to 95% @ 40°C, non-condensing |
Certification
| IP Rating | IP66 |
| CE | Yes |
| Class 1 Div 2 | Yes |
| ATEX | ATEX / IECEx Zone 2 Ex ec ic IIC T4 Gc ATEX / IECEx Zone 22 Ex tc IIIC T135°C Dc |
| RoHS | Yes |
| FCC | FCC Class A |
| UL Class 2 Div 2 | Class II Division 2 Group F, G, T135°C |
| UL Class 3 | Class III |
AEx Series Unboxing
We'll review what comes with the PC, the I/O ports and some features, and other sizes we offer.
Capacitive/Glove Friendly
Our Rugged, Industrial Panel PCs with Capacitive Touchscreens are Glove Friendly, watch as we demonstrate with our OMI6900 Series Panel PC.
When you order the AEx-921AP- the following items are included in the box:
- AEx-921AP Industrial Panel PC
- Warranty Statement
- Product Flyer
- 2 x DC Power Cable (M12 to leads)
- USB 2.0 Cable (M12 to 2x USB 2.0 Type A)
- VGA Cable (M12 to VGA)
- 2 x Ethernet Cable (M12 to RJ45 Ethernet)
- 2 x Ethernet Couplers
- Serial Cable (M12 to DE9)
Note: Cables are for testing and/or inside a cabinet installation. Cables and Accessories are not CID2 rated
