Comparison Between OIT3160A/OIT4160A and OIT3160B/OIT4160B
Technical Note 1063
Applicable Model(s)
OIT3160A
OIT4160A
OIT3160B
OIT4160B
Title
Comparison Between OIT3160A/OIT4160A and OIT3160B/OIT4160B
Date
10/23/2023
Rev
01
P/N
0907-1063
The OIT3160-B00 and OIT4160-B00 Operator Interface Terminals use the same enclosure,
display, keyboard, overlay and exterior dimensions as the OIT3160-A00 and OIT4160-A00
products, but includes additional features that make them more cost effective and easier to use.
| OIT3160-A00 OIT4160-A00 | OIT3160-B00 OIT4160-B00 |
|---|---|
| DE9P serial communications connector | RJ45 serial communications connector |
Using the RJ45 connector on the product will require a cable with a mating RJ45 connector,
which reduces the cost of the cable.

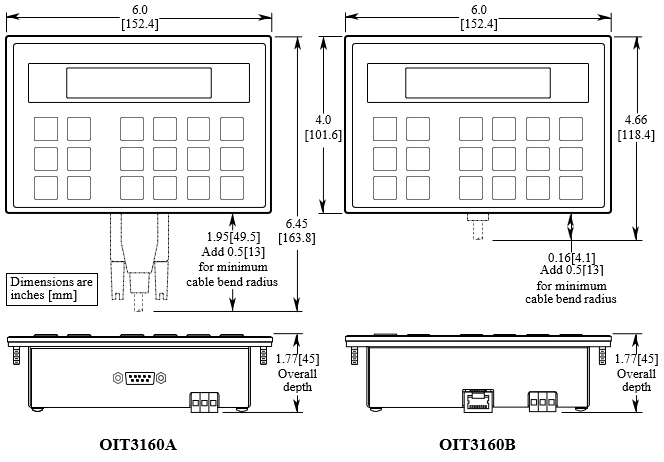

The OIT3160-A00 and OIT4160-A00 require a panel clearance of 6 inches wide by 6.45 inches high. The OIT3160-B00 and OIT4160-B00 with the RJ45 connector provides for an overall smaller panel area with 6 inches wide by 4.66 inches high.

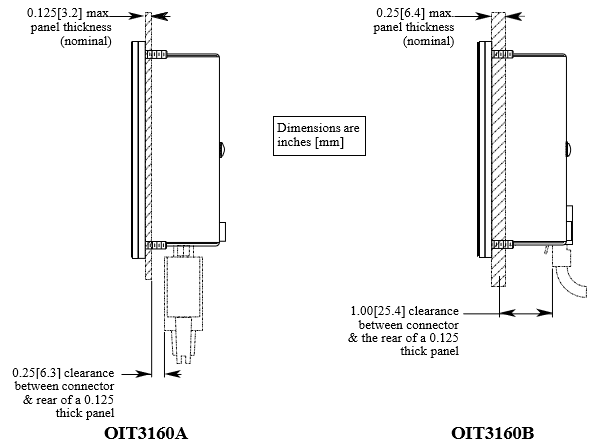

The OIT3160-A00 and OIT4160-A00 have a 0.25 inch clearance between the connector and the rear of a 0.125 inch thick panel. The OIT3160-B00 and OIT4160-B00 with the RJ45 connector provides 1.00 inch clearance between the connector and the rear of a 0.125 inch thick panel, allowing a thicker panel to be used.
