Introduction
All Maple Systems HMIs programmed with EBPro (EasyBuilder Pro), including every cMT X Series and cMT Series model, are compatible with JTEKT Toyopuc CMP-Link (Ethernet). Configure your Controller and HMI/cMT with the following parameters to establish reliable communication.
Website: http://www.jtekt.co.jp/
HMI Setting
| Parameters | Recommended | Options | Notes |
|---|---|---|---|
| PLC type | JTEKT Toyopuc CMP-Link (Ethernet) | ||
| PLC I/F | Ethernet | ||
| Port no. | 4096 | 1024 ~ 65534 |
PLC Setting

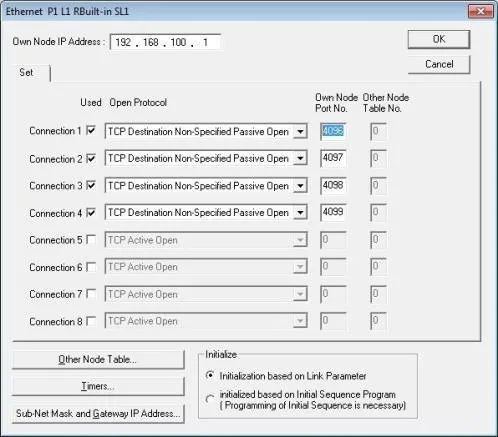

Device Address
| Bit/Word | Device type | Format | Range | Memo |
|---|---|---|---|---|
| B | 1X | HHh | 0 ~ 7FF | |
| B | 2X | HHh | 0 ~ 7FF | |
| B | 3X | HHh | 0 ~ 7FF | |
| B | 1Y | HHh | 0 ~ 7FF | |
| B | 2Y | HHh | 0 ~ 7FF | |
| B | 3Y | HHh | 0 ~ 7FF | |
| B | 1M | HHh | 0 ~ 7FF | |
| B | 2M | HHh | 0 ~ 7FF | |
| B | 3M | HHh | 0 ~ 7FF | |
| B | 1K | HHh | 0 ~ 7FF | |
| B | 2K | HHh | 0 ~ 7FF | |
| B | 3K | HHh | 0 ~ 7FF | |
| B | 1L | HHh | 0 ~ 7FF | |
| B | 2L | HHh | 0 ~ 7FF | |
| B | 3L | HHh | 0 ~ 7FF | |
| B | 1V | Hh | 0 ~ FF | |
| B | 2V | Hh | 0 ~ FF | |
| B | 3V | Hh | 0 ~ FF | |
| B | 1T | HHh | 0 ~ 7FF | |
| B | 2T | HHh | 0 ~ 7FF | |
| B | 3T | HHh | 0 ~ 7FF | |
| B | 1C | HHh | 0 ~ 7FF | |
| B | 2C | HHh | 0 ~ 7FF | |
| B | 3C | HHh | 0 ~ 7FF | |
| B | 1S | HHHh | 0 ~ 3FFF | |
| B | 2S | HHHh | 0 ~ 3FFF | |
| B | 3S | HHHh | 0 ~ 3FFF | |
| B | 1N | HHHh | 0 ~ 1FFF | |
| B | 2N | HHHh | 0 ~ 1FFF | |
| B | 3N | HHHh | 0 ~ 1FFF | |
| B | 1D | HHHHh | 0 ~ 2FFFF | |
| B | 2D | HHHHh | 0 ~ 2FFFF | |
| B | 3D | HHHHh | 0 ~ 2FFFF | |
| B | 1R | HHHh | 0 ~ 7FFF | |
| B | 2R | HHHh | 0 ~ 7FFF | |
| B | 3R | HHHh | 0 ~ 7FFF | |
| B | B | HHHHh | 0 ~ 1FFFF | |
| B | H | HHHh | 0 ~ 7FFF | |
| B | U | HHHHHh | 0 ~ 1FFFFF | |
| B | EX | HHh | 0 ~ 7FF | |
| B | EY | HHh | 0 ~ 7FF | |
| B | EM | HHHh | 0 ~ 1FFF | |
| B | EK | HHh | 0 ~ FFF | |
| B | EL | HHHh | 0 ~ 1FFF | |
| B | EV | HHHh | 0 ~ 1FFF | |
| B | ET | HHh | 0 ~ 7FF | |
| B | EC | HHh | 0 ~ 7FF | |
| B | ES | HHHh | 0 ~ 7FFF | |
| B | EN | HHHh | 0 ~ 7FFF | |
| B | GX | HHHh | 0 ~ FFFF | |
| B | GY | HHHh | 0 ~ FFFF | |
| B | GM | HHHh | 0 ~ FFFF | |
| B | EB | HHHHHh | 0 ~ 3FFFFF | |
| B | FR | HHHHHh | 0 ~ 1FFFFF | |
| W | 1XW | HH | 0 ~ 7F | |
| W | 2XW | HH | 0 ~ 7F | |
| W | 3XW | HH | 0 ~ 7F | |
| W | 1YW | HH | 0 ~ 7F | |
| W | 2YW | HH | 0 ~ 7F | |
| W | 3YW | HH | 0 ~ 7F | |
| W | 1MW | HH | 0 ~ 7F | |
| W | 2MW | HH | 0 ~ 7F | |
| W | 3MW | HH | 0 ~ 7F | |
| W | 1KW | HH | 0 ~ 2F | |
| W | 2KW | HH | 0 ~ 2F | |
| W | 3KW | HH | 0 ~ 2F | |
| W | 1LW | HH | 0 ~ 7F | |
| W | 2LW | HH | 0 ~ 7F | |
| W | 3LW | HH | 0 ~ 7F | |
| W | 1VW | H | 0 ~ F | |
| W | 2VW | H | 0 ~ F | |
| W | 3VW | H | 0 ~ F | |
| W | 1TW | HH | 0 ~ 1F | |
| W | 2TW | HH | 0 ~ 1F | |
| W | 3TW | HH | 0 ~ 1F | |
| W | 1CW | HH | 0 ~ 1F | |
| W | 2CW | HH | 0 ~ 1F | |
| W | 3CW | HH | 0 ~ 1F | |
| W | 1SW | HHH | 0 ~ 3FF | |
| W | 2SW | HHH | 0 ~ 3FF | |
| W | 3SW | HHH | 0 ~ 3FF | |
| W | 1NW | HHH | 0 ~ 1FF | |
| W | 2NW | HHH | 0 ~ 1FF | |
| W | 3NW | HHH | 0 ~ 1FF | |
| W | 1DW | HHHH | 0 ~ 2FFF | |
| W | 2DW | HHHH | 0 ~ 2FFF | |
| W | 3DW | HHHH | 0 ~ 2FFF | |
| W | 1RW | HHH | 0 ~ 7FF | |
| W | 2RW | HHH | 0 ~ 7FF | |
| W | 3RW | HHH | 0 ~ 7FF | |
| W | BW | HHHH | 0 ~ 1FFF | |
| W | HW | HHH | 0 ~ 7FF | |
| W | UW | HHHHH | 0 ~ 1FFFF | |
| W | EXW | HH | 0 ~ 7F | |
| W | EYW | HH | 0 ~ 7F | |
| W | EMW | HHH | 0 ~ 1FF | |
| W | EKW | HH | 0 ~ FF | |
| W | ELW | HHH | 0 ~ 1FF | |
| W | EVW | HHH | 0 ~ 1FF | |
| W | ETW | HH | 0 ~ 7F | |
| W | ECW | HH | 0 ~ 7F | |
| W | ESW | HHH | 0 ~ 7FF | |
| W | ENW | HHH | 0 ~ 7FF | |
| W | GXW | HHH | 0 ~ FFF | |
| W | GYW | HHH | 0 ~ FFF | |
| W | GMW | HHH | 0 ~ FFF | |
| W | WT | H | 0 ~ 6 | |
| W | EBW | HHHHH | 0 ~ 3FFFF | |
| W | FRW | HHHHH | 0 ~ 1FFFF |
Wiring Diagram

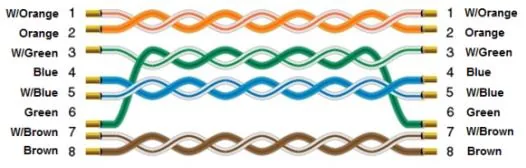

NOTE: Connect the HMI to the PLC using a standard Ethernet straight-through cable.
The diagram below shows the Ethernet cable wiring.
