Introduction
All Maple Systems HMIs programmed with EBPro (EasyBuilder Pro), including every cMT X Series and cMT Series model, are compatible with GE Intelligent Platforms RX3i (Ethernet). Configure your Controller and HMI/cMT with the following parameters to establish reliable communication.
Website: http://www.ge.com
HMI Settings
| Parameters | Recommended | Options | Notes |
|---|---|---|---|
| PLC type | GE RX3i (Ethernet) | ||
| PLC I/F | Ethernet | ||
| Port no. | 18245 | ||
| CPU slot no. | 1 |
Device Address
| Bit/Word | Device type | Format | Range | Memo |
|---|---|---|---|---|
| B | I | DDDDD | 1 ~ 32768 | |
| B | Q | DDDDD | 1 ~ 32768 | |
| B | M | DDDDD | 1 ~ 32768 | |
| B | G | DDDD | 1 ~ 7680 | |
| B | T | DDDD | 1 ~ 1024 | |
| B | SA | DDD | 1 ~ 128 | |
| B | SB | DDD | 1 ~ 128 | |
| B | SC | DDD | 1 ~ 128 | |
| B | S | DDD | 1 ~ 128 | |
| W | AI | DDDDD | 1 ~ 32640 | |
| W | AQ | DDDDD | 1 ~ 32640 | |
| W | R | DDDDD | 1 ~ 32640 |

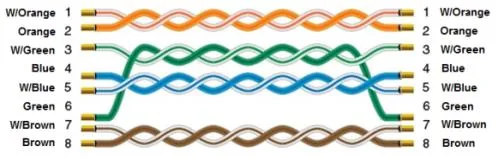

Wiring Diagram
The diagram below shows the Ethernet cable wiring.
