Connection Parameters Needed for HMI/cMT Products to Communicate with an Allen-Bradley DF1 using EBPro (EasyBuilder Pro)

Introduction

All Maple Systems HMIs programmed with EBPro (EasyBuilder Pro), including every cMT X Series and cMT Series model, are compatible with a Rockwell/Allen-Bradley DF1 Controller. Configure your Controller and HMI/cMT with the following parameters to establish reliable communication.

Supported Series: Rockwell/Allen-Bradley MicroLogix 1000, 1100, 1200, 1400, 1500, SLC 5/01, 5/02, 5/03, 5/04, 5/05.

Website: https://www.rockwellautomation.com/

NOTE: Allen-Bradley DF1 driver uses CRC checksum.

HMI Settings

Parameters	Recommended	Options
PLC type	Rockwell DF1
PLC I/F	RS232
Baud rate	19200	9600, 19200, 38400
Data bits	8	8
Parity	None	Even, Odd, None
Stop bits	1	1
HMI sta. no.	0
PLC sta. no.	1	1-31

PLC Settings

Communication mode: DF1 Full Duplex protocol 19200, None, 8, 1 (default). Error Check: CRC.

Device Address

Bit/Word	Device Type	Format	Range	Memo
B	`I1`	`DDDdd`	0 ~ 25515	Input (I)
B	`O0`	`DDDdd`	0 ~ 25515	Output (O)
B	`I1n_Bit`	`SSEEdd`	0 ~ 303115	SS: slot, EE: sub element, dd:bit
B	`O0n_Bit`	`SSEEdd`	0 ~ 303115	SS: slot, EE: sub element, dd:bit
B	`B3`	`DDDdd`	0 ~ 25515	Bit data file (B3)
B	`B10 ~ 13`	`DDDdd`	0 ~ 25515	Bit data file (B10 ~ 13)
B	`S_Bit`	`DDDdd`	0 ~ 25515	Status (S) bit level
B	`Lfn_Bit`	`FFFDDDdd`	0 ~ 25525531	Long (Bit)
B	`Bfn`	`FFFDDDdd`	0 ~ 25525515	Bit data file (B3, 10 ~ 254)
B	`NfnBit`	`FFFDDDdd`	0 ~ 25525515	Integer data file bit level (N7, 10 ~ 254)
W	`I1n`	`SSEE`	0 ~ 3031	SS: slot, EE: sub element
W	`O0n`	`SSEE`	0 ~ 3031	SS: slot, EE: sub element
W	`T4SV`	`DDD`	0 ~ 255	Timer Preset Value (T4)
W	`T4PV`	`DDD`	0 ~ 255	Timer Accumulator Value (T4)
W	`C5SV`	`DDD`	0 ~ 255	Counter Preset Value (C5)
W	`C5PV`	`DDD`	0 ~ 255	Counter Accumulator Value (C5)
W	`TfnSV`	`FFFDDD`	0 ~ 255255	Timer Preset Value
W	`TfnPV`	`FFFDDD`	0 ~ 255255	Timer Accumulator Value
W	`CfnSV`	`FFFDDD`	0 ~ 255255	Counter Preset Value
W	`CfnPV`	`FFFDDD`	0 ~ 255255	Counter Accumulator Value
W	`N7`	`DDD`	0 ~ 255	Integer data file (N7)
W	`N10 ~ 15`	`DDD`	0 ~ 255	Integer data file (N10 ~ 15)
W	`Nfn`	`FFFDDD`	0 ~ 255255	Integer data file (N7, 10 ~ 254)
W	`S`	`DDD`	0 ~ 255	Status (S)
W	`F8`	`DDD`	0 ~ 255	Floating point data file (F8)
W	`Ffn`	`FFFDDD`	0 ~ 255255	Floating point data file
W	`Lfn`	`FFFDDD`	0 ~ 255255	Long
W	`Bfn_Word`	`FFFDDD`	0 ~ 255255	Bit data file (Word)
String	`STfn`	`DDD.DDD.DD`	0 ~ 255.255.40	File no. Element no. Data no.

Import Tags

Open ASCII Export menu

In RSLogix 500, go to Tools → Database → ASCII Export.
Configure export options
Select the CSV tab, check Addr/Symbol Desc., and enter the destination file names.
Review export result
The Export Results window confirms the export completed successfully.
Import tags in EBPro (EasyBuilder Pro)

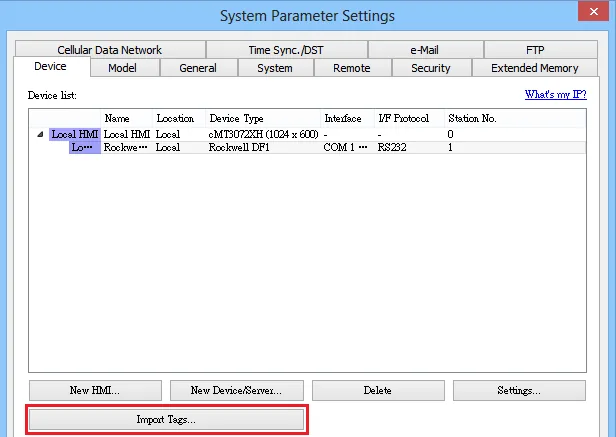

In EBPro (EasyBuilder Pro), open System Parameter → Device. Create a Rockwell DF1 driver, click Import Tags, and select the CSV file to import.
Select tags to import

In the Add Tags dialog, select the tags to import and click OK.
Confirm successful import

EBPro (EasyBuilder Pro) displays a confirmation dialog: “Imported tag information successfully.”

Wiring Diagrams

NOTE: The serial port pin assignments may vary between HMI models.

Diagram 1: RS-232 (9P D-Sub to 8P Mini-DIN)

Applies to: MicroLogix 1000, 1100, 1200, 1400, 1500.

The following is the view from the soldering point of a connector.

8-pin Mini-DIN connector pin layout diagram showing numbered pin positions 1 through 8.

HMI	Direction	PLC
Pin assignments		MicroLogix RS232 8P Mini-DIN Male
Rx	↔ (bidirectional)	7 TXD
Tx	↔ (bidirectional)	4 RXD
GND	↔ (bidirectional)	2 GND

Diagram 2: RS-232 (9P D-Sub to 9P D-Sub)

Applies to: SLC 5/03, 5/04, 5/05 CH0.

HMI	Direction	PLC
Pin assignments		AB CPU CH0 RS232 9P D-Sub Female
Rx	↔ (bidirectional)	3 TD
Tx	↔ (bidirectional)	2 RD
GND	↔ (bidirectional)	5 GND
