Introduction

All Maple Systems HMIs programmed with EBPro (EasyBuilder Pro), including every cMT X Series and cMT Series model, are compatible with an Rockwell/Allen-Bradley DF1 BCC PLC. Configure your Controller and HMI/cMT with the following parameters to establish reliable communication.

Supported Series: Rockwell/Allen-Bradley MicroLogix 1000, 1100, 1200, 1400, 1500, SLC 5/01, 5/02, 5/03, 5/04, 5/05.

Website: https://www.rockwellautomation.com/

NOTE: Allen-Bradley DF1 (BCC) and Allen-Bradley DF1 are the same; the only difference is the use of BCC checksum.

HMI Setting

ParametersRecommendedOptionsNotes
PLC typeRockwell DF1 (BCC)
PLC I/FRS232
Baud rate192009600, 19200, 38400
Data bits88
ParityNoneEven, Odd, None
Stop bits11
HMI sta. no.0
PLC sta. no.11–31

PLC Setting

Communication mode: DF1 Full Duplex protocol 19200, None, 8, 1 (default). Error Check: BCC.

Device Address

Bit/WordDevice typeFormatRangeMemo
BI1DDDdd0 ~ 25515Input (I)
BO0DDDdd0 ~ 25515Output (O)
BI1n_BitSSEEdd0 ~ 303115SS: slot, EE: sub element, dd: bit
BO0n_BitSSEEdd0 ~ 303115SS: slot, EE: sub element, dd: bit
BB3DDDdd0 ~ 25515Bit data file (B3)
BB10 ~ 13DDDdd0 ~ 25515Bit data file (B10 ~ 13)
BS_BitDDDdd0 ~ 25515Status (S) bit level
BLfn_BitFFFDDDdd0 ~ 25525531Long (Bit)
BBfnFFFDDDdd0 ~ 25525515Bit data file (B3, 10 ~ 254)
BNfnBitFFFDDDdd0 ~ 25525515Integer data file bit level (N7, 10 ~ 254)
WI1nSSEE0 ~ 3031SS: slot, EE: sub element
WO0nSSEE0 ~ 3031SS: slot, EE: sub element
WT4SVDDD0 ~ 255Timer Preset Value (T4)
WT4PVDDD0 ~ 255Timer Accumulator Value (T4)
WC5SVDDD0 ~ 255Counter Preset Value (C5)
WC5PVDDD0 ~ 255Counter Accumulator Value (C5)
WTfnSVFFFDDD0 ~ 255255Timer Preset Value
WTfnPVFFFDDD0 ~ 255255Timer Accumulator Value
WCfnSVFFFDDD0 ~ 255255Counter Preset Value
WCfnPVFFFDDD0 ~ 255255Counter Accumulator Value
WN7DDD0 ~ 255Integer data file (N7)
WN10~15DDD0 ~ 255Integer data file (N10 ~ 15)
WNfnFFFDDD0 ~ 255255Integer data file (N7, 10 ~ 254)
WSDDD0 ~ 255Status (S)
DW (F)F8DDD0 ~ 255Floating point data file (F8)
DW (F)FfnFFFDDD0 ~ 255255Floating point data file
DWLfnFFFDDD0 ~ 255255Long
WBfn_WordFFFDDD0 ~ 255255Bit data file (Word)
WSTfnDDD.DDD.DD0 ~ 255.255.40File no. Element no. Data no.

Import Tags

  1. Open ASCII Export Tool

    In RSLogix 500, navigate to Tools → Database → ASCII Export.

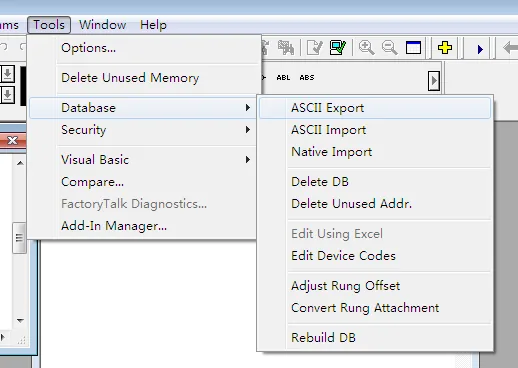

    RSLogix 500 Tools menu open with Database submenu expanded, showing ASCII Export option highlighted.
  2. Configure CSV Export Settings

    Select the CSV tab, check Addr/Symbol Desc., and enter the destination file name.

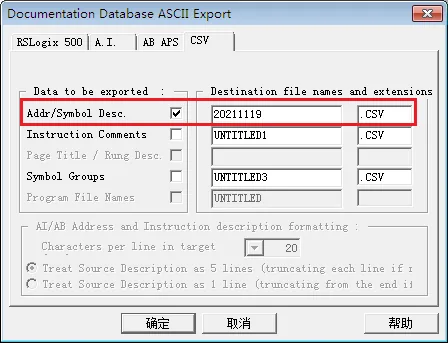

    Documentation Database ASCII Export dialog with CSV tab selected and Addr/Symbol Desc. checkbox checked, showing destination file name field.
  3. Select Export Destination Directory

    Browse to your chosen location and confirm the export destination directory.

    Select Export Destination Directory dialog showing a folder browser with Documents selected as the destination.
  4. Confirm Export Results

    Review the Export Results dialog to confirm the address/symbol description database was exported to CSV successfully.

    Export Results dialog showing EXPORTING ADDRESS/SYMBOL DESCRIPTION DATABASE and EXPORT finished messages.
  5. Import Tags in EBPro (EasyBuilder Pro)

    In EBPro (EasyBuilder Pro), go to System Parameter → Device. Create a Rockwell DF1 (BCC) driver, click Import Tags, then select the CSV file to import.

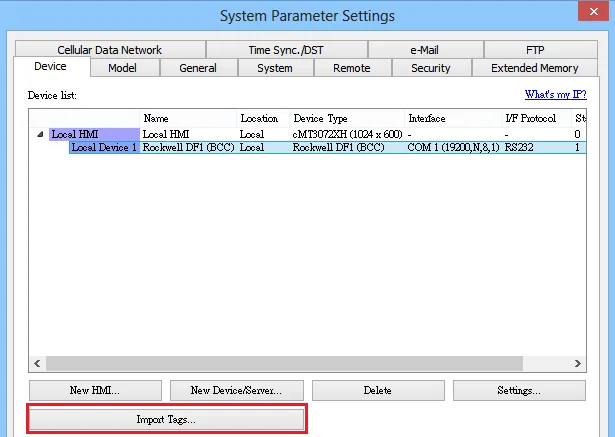

    EBPro (EasyBuilder Pro) System Parameter Settings Device tab showing a Rockwell DF1 (BCC) device entry with the Import Tags button highlighted.
  6. Select Tags to Import

    In the Add Tags dialog, select the tags to import and click OK.

    EBPro (EasyBuilder Pro) Add Tags dialog listing TAG1, TAG2, TAG3 with Word address mode and Nfn addresses, with checkboxes selected.
  7. Verify Successful Import

    EBPro (EasyBuilder Pro) displays a confirmation dialog: Imported tag information successfully.

    EBPro (EasyBuilder Pro) confirmation dialog with the message Imported tag information successfully.

Wiring Diagram

NOTE: The serial port pin assignments may vary between HMI models.

Diagram 1: RS-232 (9P D-Sub to 8P Mini-DIN: MicroLogix 1000, 1100, 1200, 1400, 1500)

HMIDirectionPLC
Pin assignmentsMicroLogix RS232
8P Mini-DIN
Male
Rx↔ (bidirectional)7 TXD
Tx↔ (bidirectional)4 RXD
GND↔ (bidirectional)2 GND
MicroLogix 8P Mini-DIN connector viewed from the soldering point, with pins numbered 1 through 8.

Diagram 2: RS-232 (9P D-Sub to 9P D-Sub: SLC5/03, 04, 05 CH0)

HMIDirectionPLC
Pin assignmentsAB CPU CH0
RS232 9P D-Sub
Female
Rx↔ (bidirectional)3 TD
Tx↔ (bidirectional)2 RD
GND↔ (bidirectional)5 GND
