pc2315b Front View

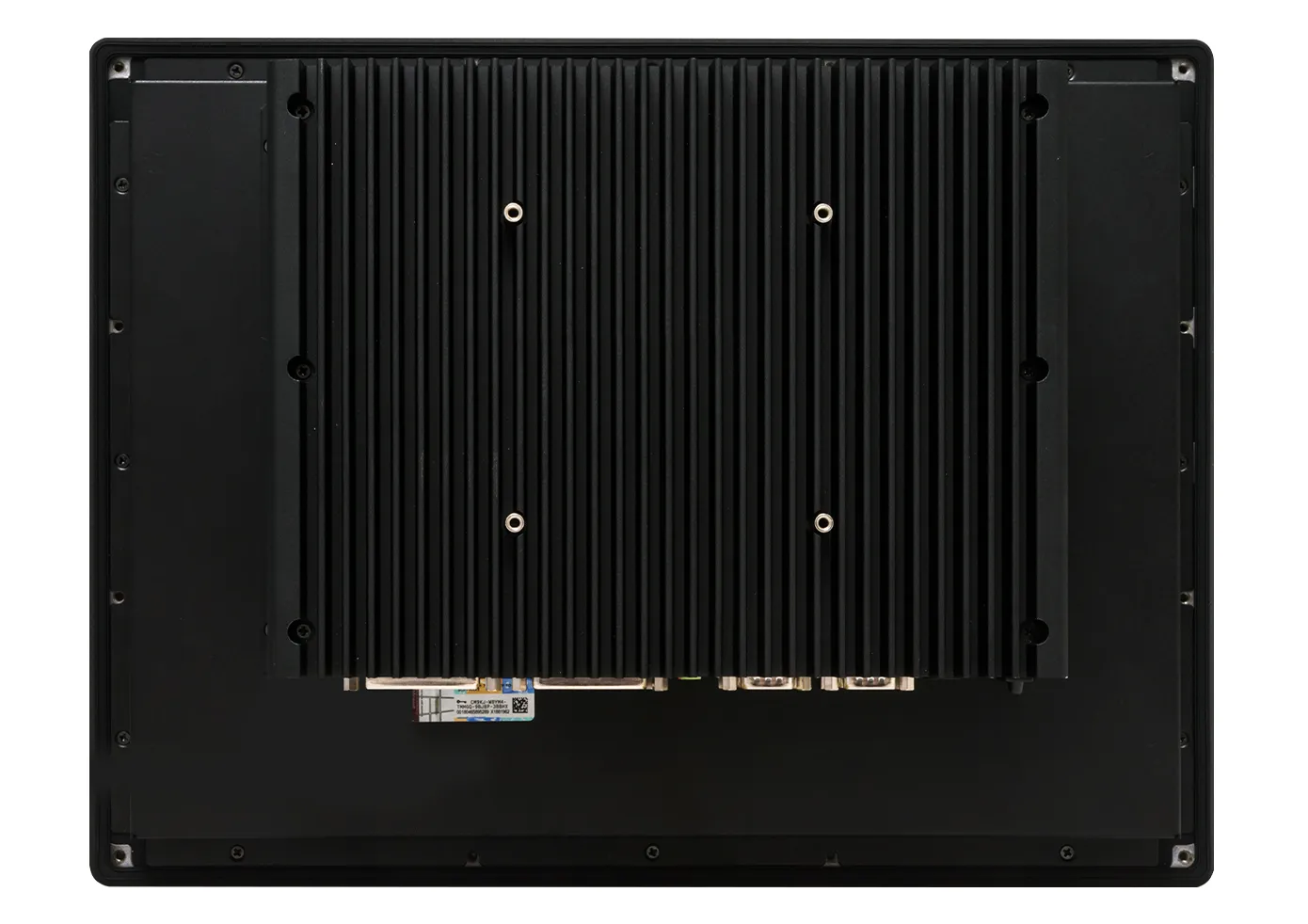

PC2315B Back View

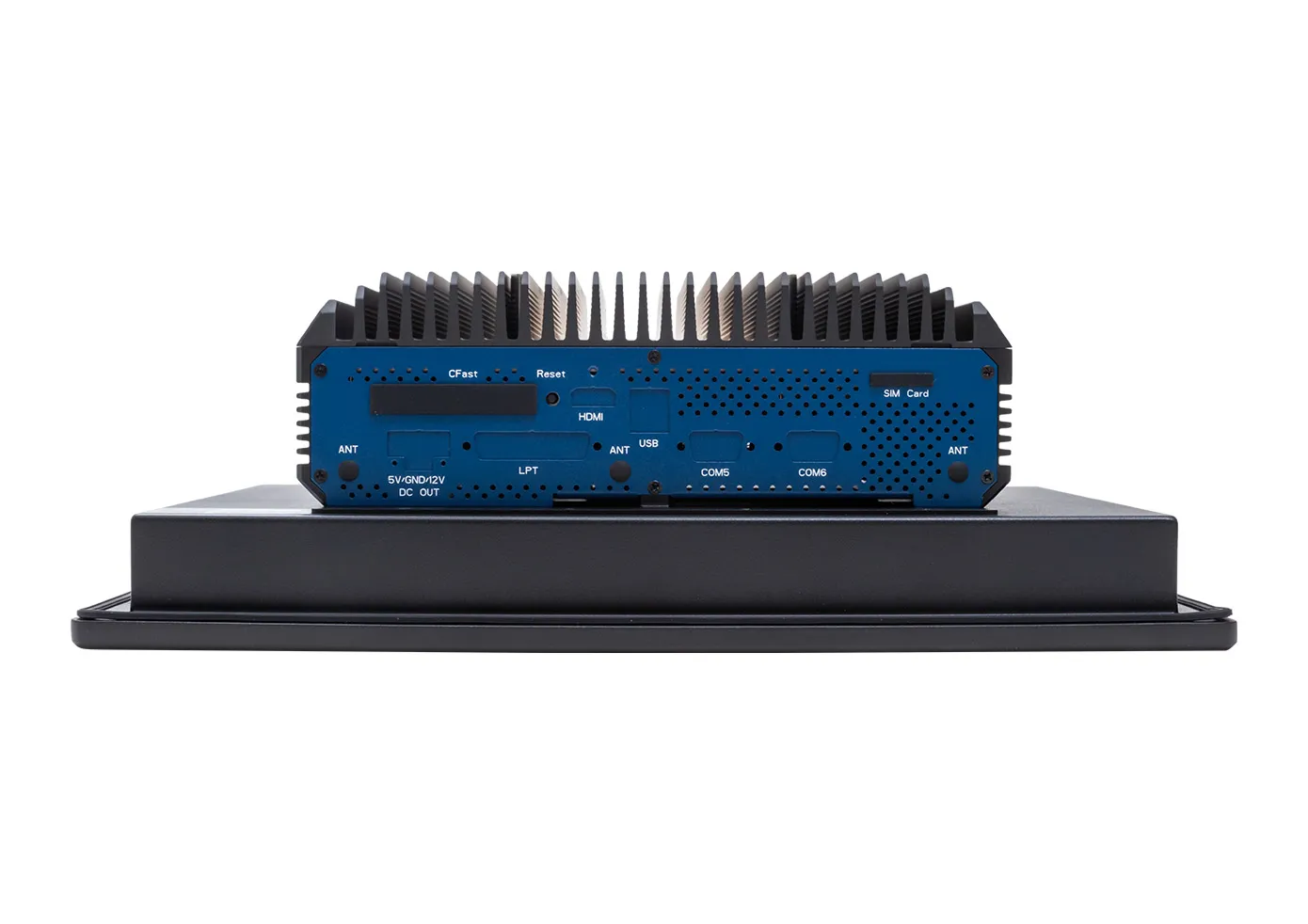

PC2315B top View

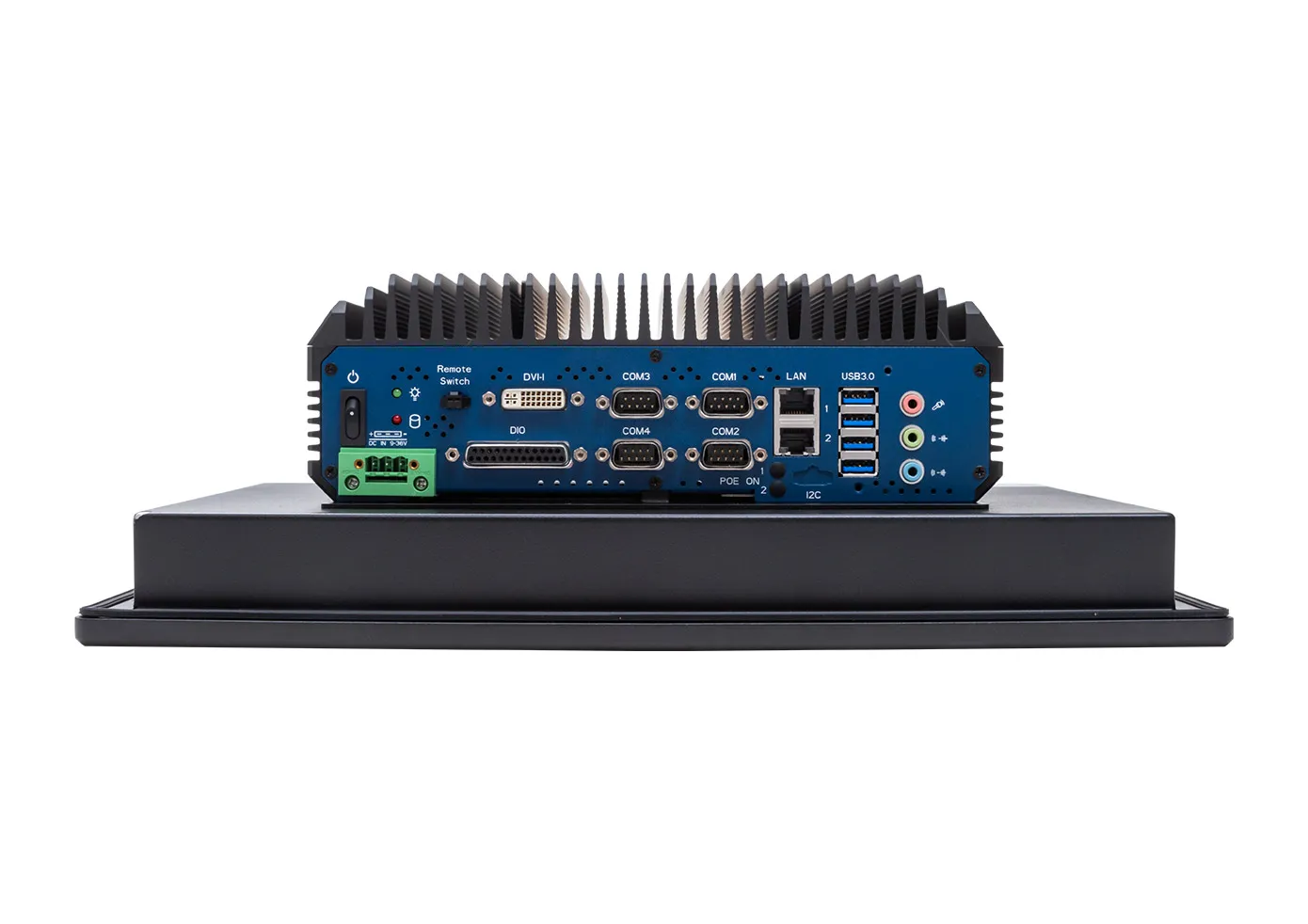

PC2315B Bottom View

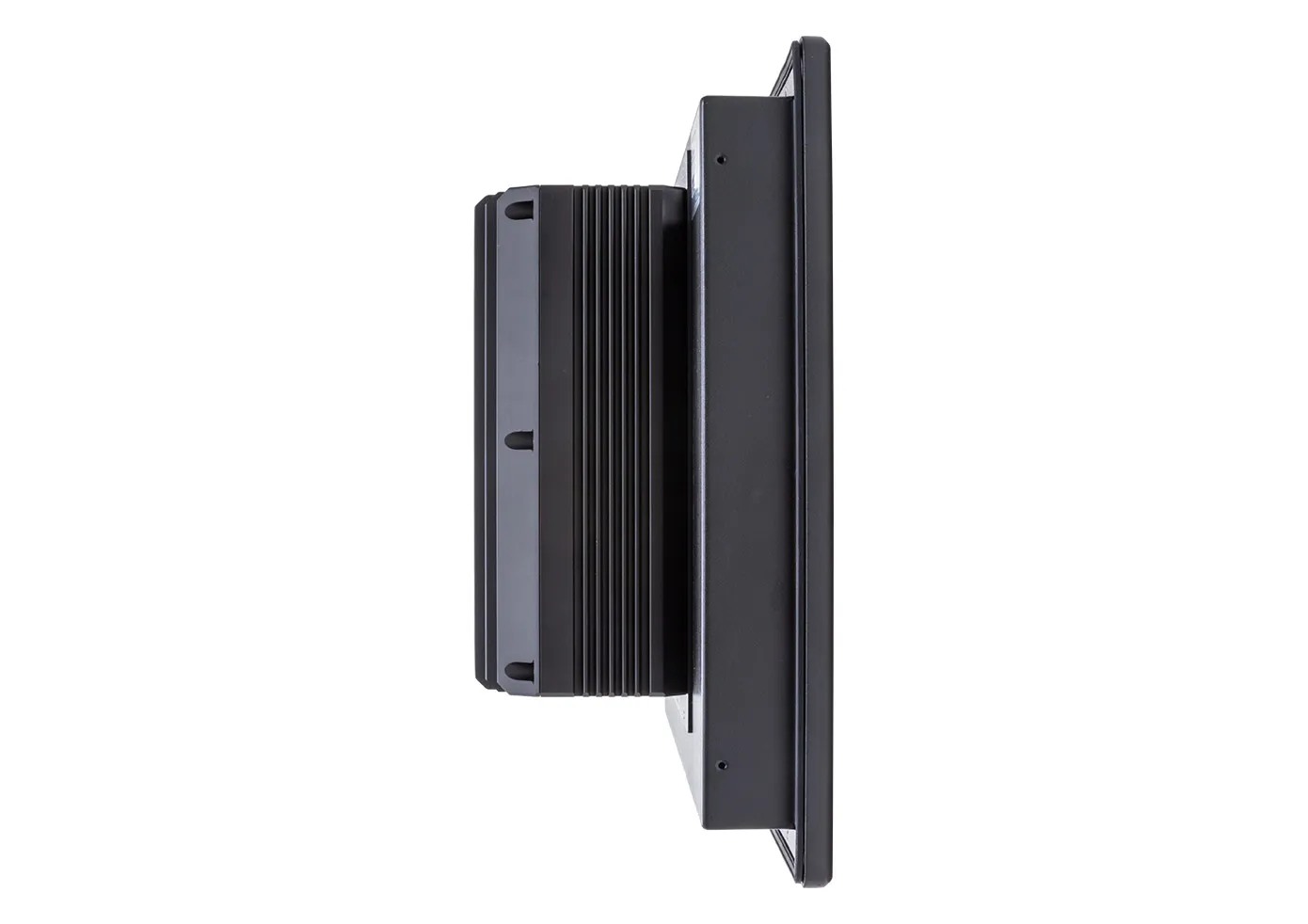

PC2315B Side1 View
PC2315B Side2 View

PC2315B

    • Intel 7th Gen Kaby Lake Core™ i7/i5/i3 CPU
    • 15” TFT XGA LCD 1024 x 768 Resolution
    • Up to 32GB DDR4 RAM
    • 2 Gigabit Ethernet Ports, 4 Serial Ports, 4 USB Ports
    • Microsoft Windows® Operating System
    • Supports 3rd-party software, including FactoryTalk®
View Datasheet

15.0" Intel Core i3/i5/i7 Panel PC with Windows® OS

PC2315B

$2,475.00
Configure Your PC

The PC2315B is a fast and powerful Industrial PC for demanding work environments. With the ability to modify this IPC to meet your specific needs, this high-quality unit is extremely scalable and customizable. Made with industrial grade components and an aluminum front/metal enclosure it is built for harsh environments. VESA or Panel mount. Because it has a Windows® OS it supports most 3rd party software, including FactoryTalk®.
Need SCADA software? Take a look at all our Aveva Edge® software options.

Configure your PC

The base options are selected by default. Select the options to get the desired configuration.

Compare "Intel® Dual Core™ i3-7101TE, 3.4 GHz" performance with other processors

Relative CPU performance scores provided by PassMark
+$320

Compare "Intel® Quad Core™ i5-7500T, 2.7 GHz" performance with other processors

Relative CPU performance scores provided by PassMark
+$690

Compare "Intel® Quad Core™ i7-7700T, 2.9 GHz" performance with other processors

Relative CPU performance scores provided by PassMark
+$95
+$275
+$45
+$155
+$300
+$650

Microsoft® Windows® 10 IoT Enterprise Embedded (EPKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

EPKEA Extended Denotation, “Embedded Product Key Entry Activation.”

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft® Windows® 10 IoT Enterprise Embedded LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 10 IoT Enterprise (PKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

PKEA Extended Denotation, “Product Key Entry Activation.”

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Microsoft® Windows® 10 IoT Enterprise LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft® Edge Web Browser
  • Libre Office
  • Media Player

Microsoft Windows® 11 IoT Enterprise Embedded (EPKEA) GAC

Supported Models: IPC2200A Series, IPC2400A Series, IPC2550A, IPC2700A Series, PC1300X Series, and PC2300B Series.

EPKEA Extended Denotation, “Embedded Product Key Entry Activation.”

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft® Windows® 11 IoT Enterprise Embedded GAC is a full Professional version of Windows® 11. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The General Availability Channel (GAC) version ensures the stability of systems using a 36-month support schedule to update the operating system components. With the optional benefit of yearly enterprise build updates.

Included Apps:

  • Microsoft® Edge Web Browser
  • Copilot Windows® AI
  • Libre Office
  • Media Player

Microsoft® Windows® 11 IoT Enterprise (PKEA) GAC

Supported Models: IPC2200A Series, IPC2400A Series, IPC2550A, IPC2700A Series, PC1300X Series, and PC2300B Series.

PKEA Extended Denotation, “Product Key Entry Activation.”

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Microsoft® Windows® 11 IoT Enterprise GAC is a full Professional version of Windows® 11. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The General Availability Channel (GAC) version ensures the stability of systems using a 36-month build support schedule to update the operating system components. With the optional benefit of yearly enterprise build updates.

Included Apps:

  • Microsoft® Edge Web Browser
  • Copilot Windows® AI
  • Libre Office
  • Media Player
+$200

Microsoft® Windows® 11 Pro 64-bit

Supported Models: IPC2200A Series, IPC2400A Series, IPC2550A, IPC2700A Series, PC1300X Series, and PC2300B Series.

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Windows® 11 Pro is Microsoft’s current gold standard for PC computing. All the features and functionality that customers expect to find on their desktop PC are available in this version as well as the addition of Copilot, the Windows® AI companion for users. Windows® 11 Pro also features a new enhanced hardware security standard to help protect your PC.

Included Apps:

  • Microsoft® Edge Web Browser
  • Copilot Windows® AI
  • Libre Office
  • Media Player
+$110
Reset Configuration
Current Configuration
Base Price
PC2315B		 $2475
Display
 Included
Processor
 Included
System Memory
 Included
Storage
 Included
Operating System
 Included
Expansion Kit
 Included

Part Number:

Datasheet

System

Memory (RAM)

2 x DDR4 260-pin SO-DIMM Non-ECC RAM slots (8, 16, 32 GB total)

System Chipset

Intel Q170 Chipset

Solid State Drive Type

1 x 2.5” SATA III, MLC

Solid State Drive Capacity

64, 128, 256, 512 GB SSD

Capacity (Screens)

500

Audio

1 x 3.5 mm Line-in, 1 x 3.5 mm Line-out, 1 x 3.5 mm Mic-in

I/O Ports

Serial Ports

4

Ethernet/LAN

2 x GbE RJ-45

Remote Power Switch

2-pin wire-to-wire connector (2.5mm pitch)

Display Output

1 x DVI-I port (max. 1920 x 1080 pixels)

Power

3-pin connector header, DC power input

USB 3.0 Type A
Expansion Option

Optional Wi-Fi kit (Wi-Fi card and antenna)

Power Switch

Momentary Toggle

CFast Card Slot

Yes

Display

Resolution

1024 X 768

Luminance (cd/m^2)

400

300

Contrast Ratio

600:1

Backlight Lifetime (hrs)

50000

Colors

16.7 M

View Angle (H° V°)

160/160

Display Type

15” TFT XGA LCD

Size (W x H)

12.0 x 9.0 inches [304.8 x 228.6 mm]

Touch Screen

Touch Interface

USB

Digital I/O Port

1x DB25S, 8 in/8 out

Touch Screen Type

5-Wire Resistive Touch

Electrical

Input Power

Typ. 60 W; Max. 144 W

Input Voltage

9~36 VDC

Input Current

Typ. 2.5 A @ 24VDC; M Ax 6 A @ 24VDC

Mechanical

Enclosure Material

Black Steel Chassis, Aluminum Heatsink

Dimensions WxHxD

16.06 x 12.13 x 5.24 inches [408 x 308 x 133mm]

Panel Cutout (inches) [mm]

14.69 x 10.63 inches [373 x 270 mm]

Weight

~ 16.53 lbs. [7.5 Kg]

Mounting

Panel mounting, VESA 100 x 100

Environmental

Storage Temperature

-4~176°F [-20~80°C]

Operating Temperature

32~113°F [0~45°C]

Relative Humidity

20 to 90% @ 40°C, non-condensing

Certification

NEMA Rating

NEMA 4

IP Rating

IP65

CE

Yes

RoHS

Yes

FCC Class A

Yes

Customers who bought this product also bought:

  • 2511-0150
    2511-0150
    Screen Protector, 15.0” (303mm x 228mm) 1 each.
    $35.00
  • 4010-0021
    4010-0021
    Power Supply, Single Output, DIN Rail, 24VDC, 6.5A.
    $80.00
  • 7431-0103
    7431-0103
    Cable, CAT5E Ethernet, 5′
    $15.00
  • 7431-0104
    7431-0104
    Cable, CAT5E Ethernet, Crossover, 5′
    $15.00
  • 7433-0005
    7433-0005
    Adapter, PC USB 2.0/3.0 to Ethernet.
    $40.00
  • 7532-0102
    7532-0102
    Win 10 OS Recovery Media USB Flash Drive.
    $20.00
  • 7532-0103
    7532-0103
    Win 10 OS Recovery Media USB Flash Drive.
    $40.00
  • 4010-0012
    4010-0012
    Power Supply & Cord, Desktop, 24VDC, 6.25A Power Brick with AC Cable.
    $150.00
  • 2140-0308
    2140-0308
    Input Power Connector
    $7.00

Documents

Manuals

Certifications

Need Additional Support?

Contact Us

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

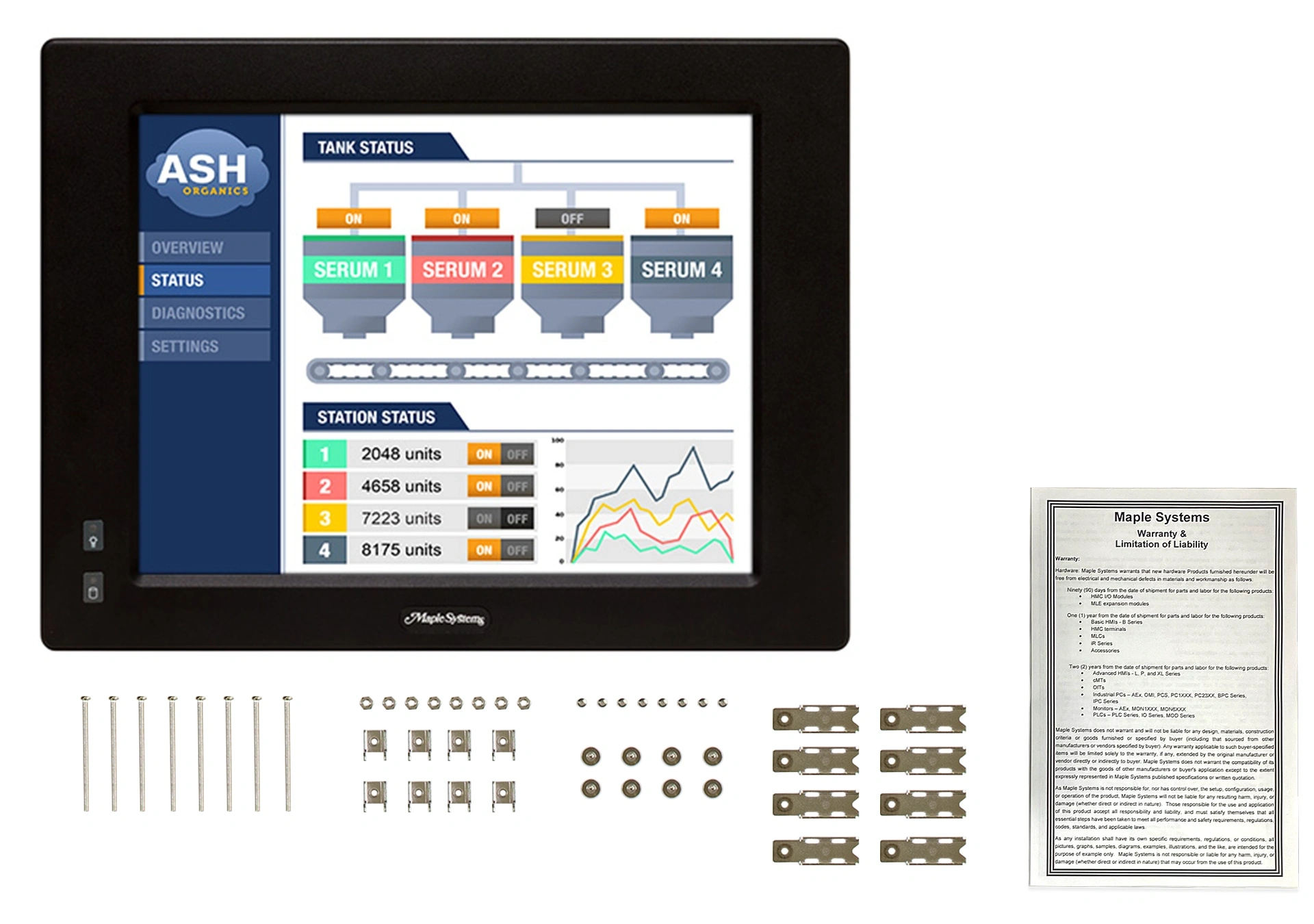

When you order the PC2315B the following items are included in the box:

  • PC2315B Industrial Panel PC
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • DC Power Connector
  • Mounting Kit (Quantity determined by screen size)
