PC1316AP

  • High-Resolution Capacitive Touch Screen
  • Intel® 7th Gen Core i3-7100U CPU, Upgrades Available
  • Multiple Memory and Storage Options Available
  • Windows® or Linux® Operating System
  • Optional Wi-Fi Upgrade
  • Integrate with AVEVA Edge

15.6" Intel® 7th Gen Core ® Panel PC with Windows® or Linux OS®

PC1316AP

$2,765.00

As part of our powerful Industrial PC Series, this customizable, fanless, wide screen 15.6” capacitive touchscreen IPC is customizable and comes with either a Linux® or a Windows® OS which supports most 3rd party and SCADA software like FactoryTalk® or our Aveva Edge®. High-quality construction and industrial grade components makes the PC1316BP a powerful industrial computer for your industrial application. VESA or panel mount.

Configure your PC

The base options are selected by default. Select the options to get the desired configuration.

Compare "Intel® Dual Core™ i3-7100U, 2.4 GHz" performance with other processors

Relative CPU performance scores provided by PassMark
+$320

Compare "Intel® Dual Core™ i5-7300U, 2.6 GHz" performance with other processors

Relative CPU performance scores provided by PassMark
+$690

Compare "Intel® Dual Core™ i7-7600U, 2.8 GHz" performance with other processors

Relative CPU performance scores provided by PassMark
+$60
+$95
+$275
+$45
+$155
+$300
+$650
-$50

Ubuntu® Linux® Desktop LTS

Supported Models: AEX-2410, IPC2330A, IPC2110A, IPC2210A, IPC2400A Series, IPC2550A, IPC2700A Series, OMI6800BPHEB Series, OMI6900BP Series, PC1200A Series, PC1300X Series, PCS6800A Series, and PCS6800APHEB Series.

This powerful Operating System delivers enterprise manageability and security across a wide range of industries. Additionally, most features and functionality that customers expect to find on their desktop PCs are available in this Open-Source Operating System. The Long-Term Support (LTS) version ensures long-term stability with five years of free security and maintenance updates.

Included Apps:

  • Libre Office Suite
  • Mozilla Firefox Web Browser
  • Gnome Desktop
  • Rythm Box Media Player
  • VIM

Microsoft® Windows® 10 IoT Enterprise Embedded (EPKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

EPKEA Extended Denotation, “Embedded Product Key Entry Activation.”

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft® Windows® 10 IoT Enterprise Embedded LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 10 IoT Enterprise (PKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

PKEA Extended Denotation, “Product Key Entry Activation.”

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Microsoft® Windows® 10 IoT Enterprise LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft® Edge Web Browser
  • Libre Office
  • Media Player

Microsoft Windows® 11 IoT Enterprise Embedded (EPKEA) GAC

Supported Models: IPC2200A Series, IPC2400A Series, IPC2550A, IPC2700A Series, PC1300X Series, and PC2300B Series.

EPKEA Extended Denotation, “Embedded Product Key Entry Activation.”

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft® Windows® 11 IoT Enterprise Embedded GAC is a full Professional version of Windows® 11. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The General Availability Channel (GAC) version ensures the stability of systems using a 36-month support schedule to update the operating system components. With the optional benefit of yearly enterprise build updates.

Included Apps:

  • Microsoft® Edge Web Browser
  • Copilot Windows® AI
  • Libre Office
  • Media Player

Microsoft® Windows® 11 IoT Enterprise (PKEA) GAC

Supported Models: IPC2200A Series, IPC2400A Series, IPC2550A, IPC2700A Series, PC1300X Series, and PC2300B Series.

PKEA Extended Denotation, “Product Key Entry Activation.”

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Microsoft® Windows® 11 IoT Enterprise GAC is a full Professional version of Windows® 11. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The General Availability Channel (GAC) version ensures the stability of systems using a 36-month build support schedule to update the operating system components. With the optional benefit of yearly enterprise build updates.

Included Apps:

  • Microsoft® Edge Web Browser
  • Copilot Windows® AI
  • Libre Office
  • Media Player
+$200

Microsoft® Windows® 11 Pro 64-bit

+$85
Current Configuration
Base Price
PC1316AP
$2765
Display
Included
Processor
Included
System Memory
Included
Storage
Included
Operating System
Included
Expansion Kit
Included

Part Number:

System

Memory (RAM)

2 x DDR4 260-pin SO-DIMM Non-ECC RAM (4, 8, 16, 32 GB)

System Chipset

SoC

Solid State Drive Type

1 x 2.5” SATA II, MLC

Solid State Drive Capacity

64, 128, 256, 512 GB, 1TB SSD

Input Current

1.63~4.33 A

Capacity (Screens)

500

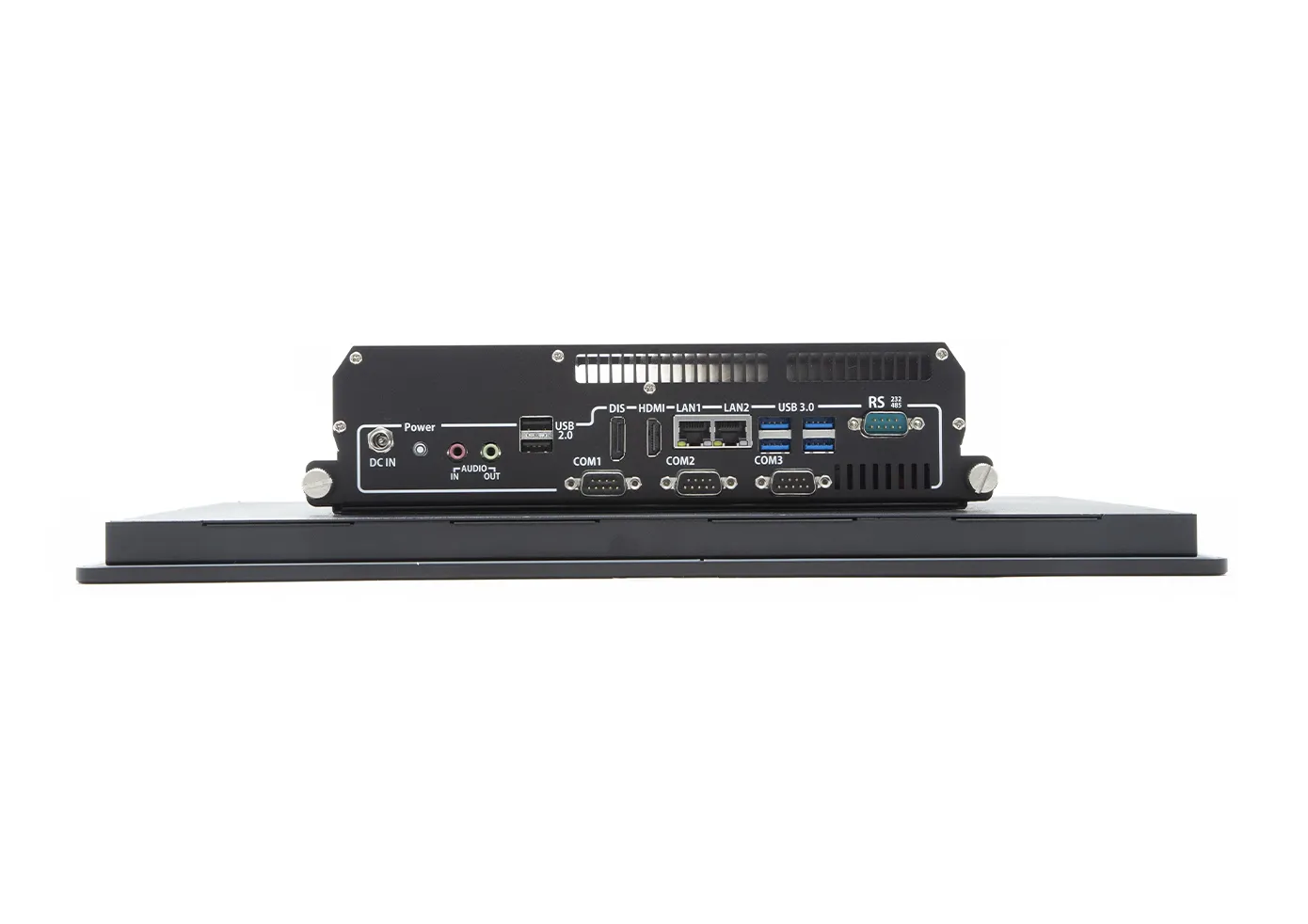

I/O Ports

Serial Ports

4

Ethernet/LAN

2 x GbE RJ-45

Audio Output

1 x 3.5 mm Line-out, 1 x 3.5 mm Mic-in

HDMI Port

Yes

Remote Power Switch

1 x Momentary Pushbutton with Integrated LED

Display Output

1 x HDMI® 1.4a, 1 x DisplayPort 1.2

Display Port

Yes

Power

DC power input jack, thumbscrew secured.

USB 2.0 Type A

2

USB 3.0 Type A

4

Serial Options

1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 3 x RS-232 DE-9P, COM2/COM3/COM4

Expansion Option

Optional Wi-Fi kit (IEEE 802.11a/b/g/n/ac card and antenna)

Display

Display Size

15.6” Widescreen TFT FHD LCD

Resolution

1920 x 1080

Luminance (cd/m^2)

450

Contrast Ratio

500:1

Backlight Lifetime (hrs)

50000

Colors

16.2 M

View Angle (H° V°)

170/170

Touch Screen

Touch Interface

USB

Optical Bonding

No

Touch Screen Type

Projected Capacitive Touch

Electrical

Input Power

39 W

Input Voltage

9~24 VDC

Input Current

1.63~4.33 A

Mechanical

Enclosure Material

Black Steel Chassis, Aluminum Heatsink

Dimensions WxHxD

15.75 x 9.84 x 3.36” [400 x 250 x 85.4 mm]

Panel Cutout (inches) [mm]

14.57 x 8.90 [370 x 226 ]

Weight

~ 11.46 lbs [5.2 kg]

Mounting

Panel mounting, VESA 100 x 100 mm

Environmental

Storage Temperature

-22~175°F [-30~80°C]

Operating Temperature

32~140°F [0~60°C]

Relative Humidity

10 to 90% @ 40°C, non-condensing

Certification

NEMA Rating

NEMA 4 when panel mounted

IP Rating

IP65

CE

Yes

RoHS

Yes

FCC

Yes

Customers who bought this product also bought:

  • 2511-0156
    Screen Protector, 15.6” (343mm x 193mm) 1 each.
    $35.00
  • 7532-0102
    Win 10 OS Recovery Media USB Flash Drive.
    $20.00
  • 4010-0011
    Power Supply, Single Output, DIN Rail, 24VDC, 2.5A.
    $50.00
  • 7431-0126
    Cable, Input Power, DC Jack/Leads, 5 ft
    $30.00
  • 7532-0103
    Win 10 OS Recovery Media USB Flash Drive.
    $40.00
  • 2860-0013A
    Mounting Clips Kit.
    $17.00
  • 7431-0103
    Cable, CAT5E Ethernet, 5′
    $15.00
  • 4010-0015
    Power Supply & Cord, Desktop, 24VDC, 2.71A Power Brick with AC Cable.
    $45.00
  • 7431-0104
    Cable, CAT5E Ethernet, Crossover, 5′
    $15.00
  • 7433-0005
    Adapter, PC USB 2.0/3.0 to Ethernet.
    $40.00
  • 2140-0003
    Input Power Connector
    $17.00

When you order the PC1316AP the following items are included in the box:

  • PC1316BP Industrial Panel PC
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • Input Power Cable
  • Mounting Kit (Quantity determined by screen size)
  • 4 x VESA Mounting Screws
