PC1221AP

    • High-Resolution Capacitive Touch Screen
    • Intel Pentium N4200 Quad-Core CPU
    • Multiple Memory and Storage Options Available
    • Windows® or Linux® Operating System
    • Optional Wi-Fi Upgrade
    • Integrate with AVEVA Edge

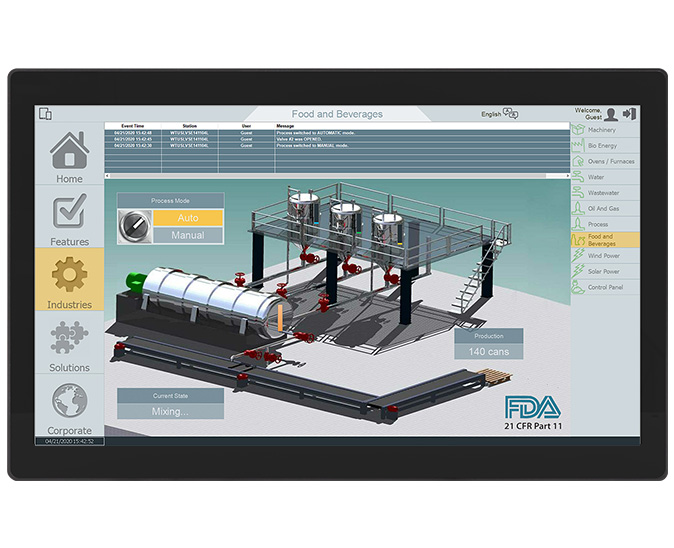

21.5" Intel® Pentium® Panel PC with Windows® or Linux OS®

PC1221AP

$2,300

Configure your PC

The base options are selected by default. Select the options to get the desired configuration.

Reset Configuration
Current Configuration
Base Price
PC1221AP
$2300.00
Display
Included
Processor
Included
System Memory
Included
Storage
Included
Operating System
Included
Expansion Kit
Included

Part Number:

Buy Now

High-quality construction and industrial grade components makes the PC1221AP a powerful industrial computer for your unique application. As part of our powerful Industrial PC Series, this fanless, wide screen 21.5” capacitive touchscreen IPC comes with either a Linux® or a Windows® OS which supports most 3rd party and SCADA software like FactoryTalk® or our Aveva Edge®. VESA or panel mount.

Specifications

System

Memory (RAM)

1 x DDR3-L 204-pin SO-DIMM RAM (4, 8 GB)

System Chipset

SoC

Solid State Drive Type

1 x 2.5” SATA II, MLC

Solid State Drive Capacity

64, 128, 256, 512 GB, 1TB SSD

Input Current

1.46~2.92 A

Capacity (Screens)

500

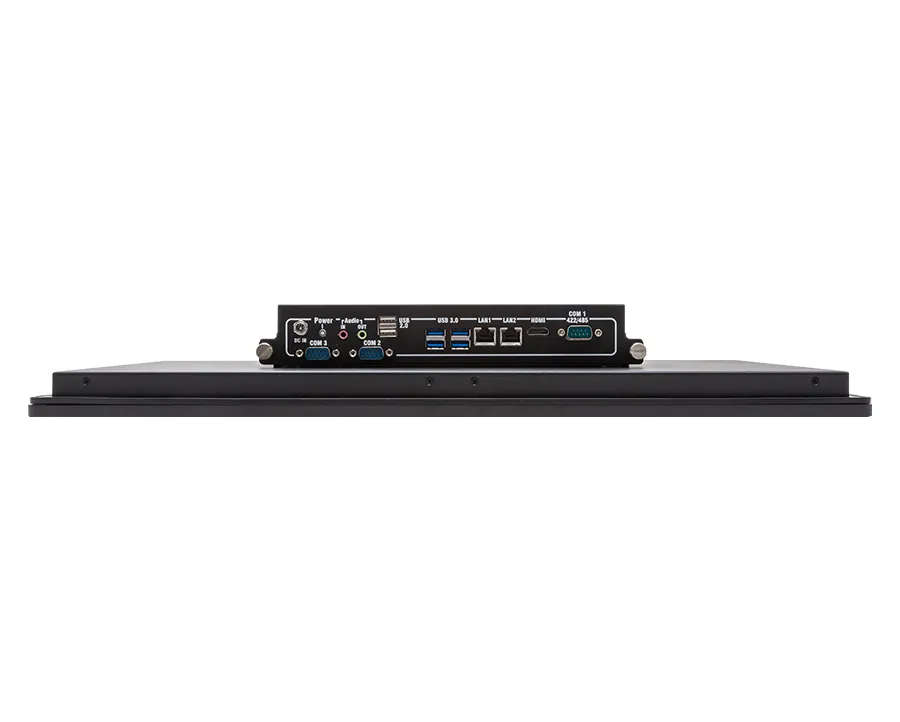

I/O Ports

Serial Ports

3

Ethernet/LAN

2 x GbE RJ-45

Audio Output

1 x 3.5 mm Line-out

HDMI Port

Yes

Remote Power Switch

1 x Momentary Pushbutton with Integrated LED

Display Output

1 x HDMI® 1.4a

Power

DC power input jack, thumbscrew secured.

USB 2.0 Type A

2

USB 3.0 Type A

4

Serial Options

1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 2 x RS-232 DE-9P, COM2/COM3

Expansion Option

Optional Wi-Fi kit (IEEE 802.11a/b/g/n/ac card and antenna)

Display

Display Size

21.5” Widescreen TFT FHD LCD

Resolution

1920 x 1080

Luminance (cd/m^2)

250

Contrast Ratio

3000:1

Backlight Lifetime (hrs)

50000

Colors

16.2 M

View Angle (H° V°)

170/160

Touch Screen

Touch Interface

USB

Optical Bonding

No

Touch Screen Type

Projected Capacitive Touch

Electrical

Input Power

35 W

Input Voltage

12~24 VDC

Mechanical

Enclosure Material

Black Steel Chassis, Aluminum Heatsink

Dimensions WxHxD

20.63 x 13.00 x 2.82” [524 x 330.2 x 71.6 mm]

Panel Cutout (inches) [mm]

19.69 x 12.09 [500 x 307 ]

Weight

~ 15.87 lbs [7.2 kg]

Mounting

Panel mounting, VESA 100 x 100 mm

Environmental

Storage Temperature

-22~175°F [-30~80°C]

Operating Temperature

32~140°F [0~60°C]

Relative Humidity

10 to 90% @ 40°C, non-condensing

Certification

NEMA Rating

NEMA 4 when panel mounted

IP Rating

IP65

CE

Yes

RoHS

Yes

FCC

Yes

Available Software

Documentation & Resources

Need Additional Support?

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

What's Included

When you order the PC1221AP the following items are included in the box:

  • PC1221AP Industrial Panel PC
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • Input Power Cable
  • Mounting Kit (Quantity determined by screen size)
  • 4 x VESA Mounting Screws
