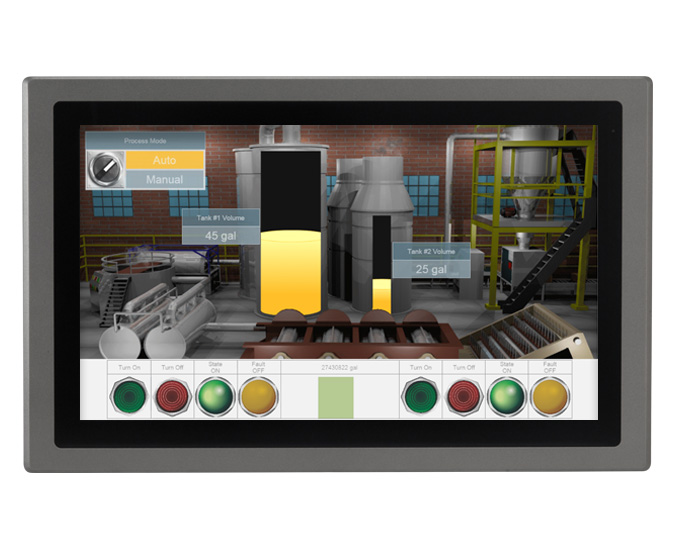

omi6818b Front View

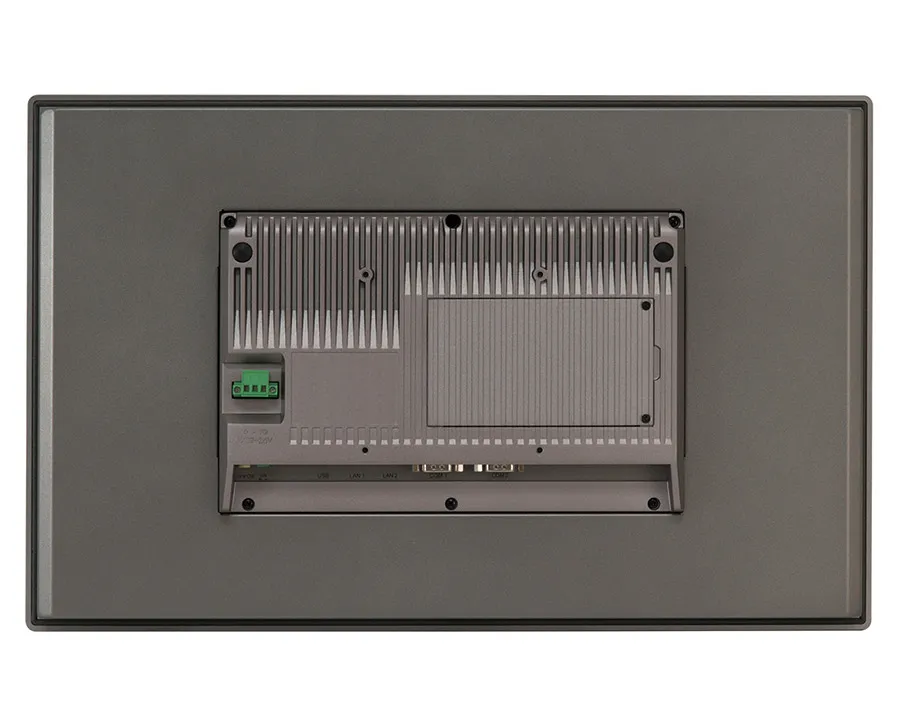

OMI6818B Back View

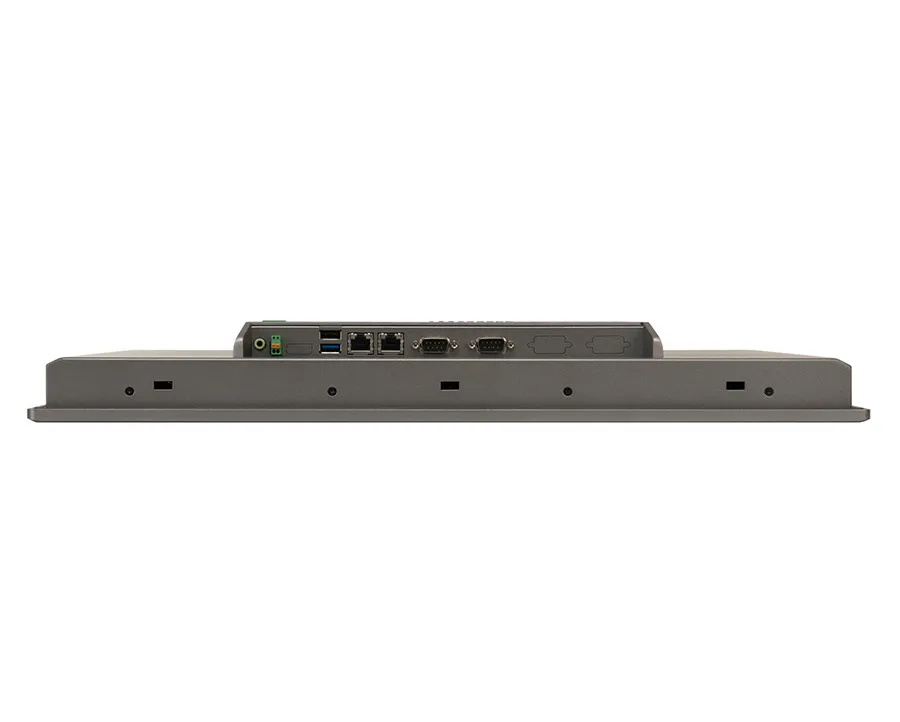

OMI6818B Bottom View

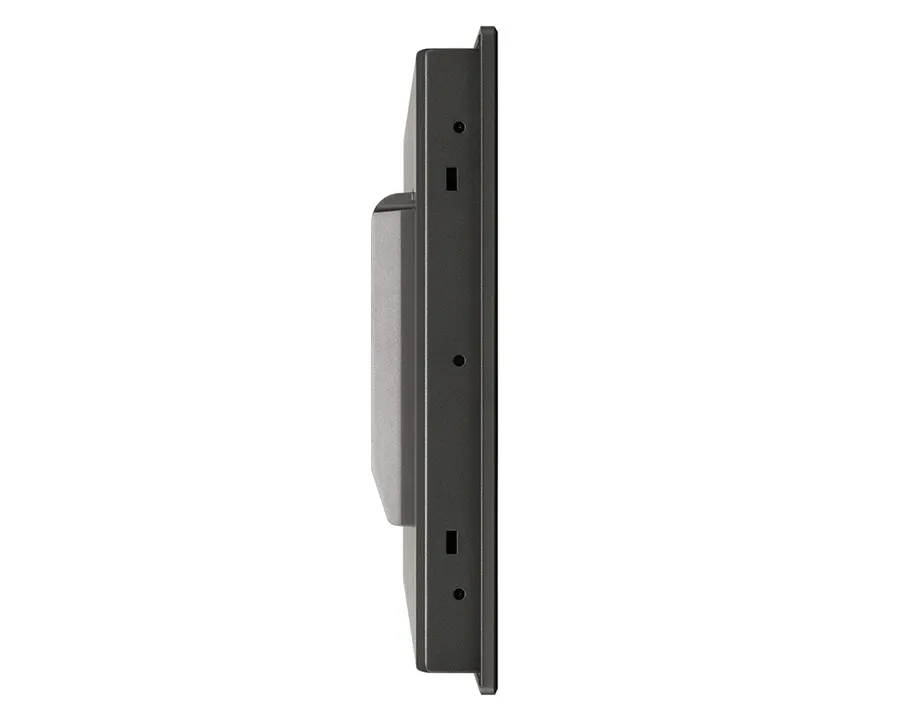

OMI6818B Left View

OMI6818B

  • 1366 x 768 Resolution
  • Intel® Pentium® N4200 1.1GHz Quad Core Processor
  • 4GB RAM, 64GB up to 1TB MLC SSD
  • Microsoft Windows® 10 IoT Ent Embedded 64-bit
  • Additional Storage and Wi-Fi Kit upgrades available
  • Aluminum Enclosure, VESA or Panel Mount
  • Integrate with AVEVA™ Edge
View Datasheet

18.5" Intel® Pentium® Panel PC with Windows®10 IoT OS

OMI6818B

$2,390.00
Configure Your PC

High-quality construction, industrial grade components, and a fanless cooling system makes this 18.5” resistive touchscreen an ideal IPC for most industrial applications. As part of our Panel PC Series, the OMI6818B is a UL-certified industrial computer that comes standard with a Windows® 10 IoT OS which supports most 3rd party and SCADA software like FactoryTalk® or our Aveva Edge®.

Configure your PC

The base options are selected by default. Select the options to get the desired configuration.

Compare "Intel® Pentium® N4200 Quad-Core, 1.1 GHz" performance with other processors

Relative CPU performance scores provided by PassMark
+$45
+$155
+$300
+$650

Microsoft® Windows® 10 IoT Enterprise Embedded (EPKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

EPKEA Extended Denotation, “Embedded Product Key Entry Activation.”

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft® Windows® 10 IoT Enterprise Embedded LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 10 IoT Enterprise (PKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

PKEA Extended Denotation, “Product Key Entry Activation.”

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Microsoft® Windows® 10 IoT Enterprise LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft® Edge Web Browser
  • Libre Office
  • Media Player
+$85
Reset Configuration
Current Configuration
Base Price
OMI6818B		 $2390
Display
 Included
Processor
 Included
System Memory
 Included
Storage
 Included
Operating System
 Included
Expansion Kit
 Included

Part Number:

Download 2D CAD file
Download 3D CAD file
Datasheet

System

Memory (RAM)

Onboard DDR3L 4 GB 1600 MHz

System Chipset

SoC

Solid State Drive Type

1 x 2.5” SATA III, MLC

Solid State Drive Capacity

64, 128, 256, 512 GB, 1TB SSD

Input Current

1.19-4.78 A

Capacity (Screens)

500

I/O Ports

Serial Ports

2

Ethernet/LAN

2 x GbE RJ-45

Audio Output

1 x 3.5 mm line out

SD Card Slot

1 x internal micro Secure Digital memory card socket, up to 32 GB

Remote Power Switch

2-pin connector header

Power

3-pin connector header, DC power input

USB 3.0 Type A

2

Serial Options

1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 1 x RS-232 DE-9P, COM2

Expansion Option

Optional Wi-Fi kit (IEEE 802.11a/b/g/n/ac card and antenna)

Display

Display Size

18.5” WXGA TFT LCD

Resolution

1366 x 768

Luminance (cd/m^2)

300

Contrast Ratio

1000:1

Backlight Lifetime (hrs)

50000

Colors

16.7 M

View Angle (H° V°)

170/160

Touch Screen

Touch Interface

USB

Light Transmission

80+%

Optical Bonding

No

Digital I/O Port

N/A

Touch Screen Type

5-Wire Resistive Touch

Electrical

Input Power

43 W

Input Voltage

9-36 VDC

Mechanical

Enclosure Material

Silver aluminum front bezel and chassis

Dimensions WxHxD

19.67 x 12.39 x 2.57” [499.6 x 314.6 x 65.4 mm]

Panel Cutout (inches) [mm]

18.98 x 11.69 [482 x 297 ]

Weight

~ 13.01 lbs [5.9 kg]

Mounting

Panel mounting, VESA 100 x 100 mm

Environmental

Storage Temperature

-22~158°F [-30~70°C]

Operating Temperature

32~122°F [0~50°C]

Relative Humidity

10 to 90% @ 40°C, non-condensing

Certification

NEMA Rating

NEMA 4 when panel mounted

IP Rating

IP66

CE

Yes

UL

Yes

ATEX

No

RoHS

Yes

FCC

Yes

Customers who bought this product also bought:

  • 2511-0185
    2511-0185
    Screen Protector, 18.5” (410mm x 231mm) 1 each.
    $40.00
  • 7431-0103
    7431-0103
    Cable, CAT5E Ethernet, 5′
    $15.00
  • 7431-0104
    7431-0104
    Cable, CAT5E Ethernet, Crossover, 5′
    $15.00
  • 7433-0005
    7433-0005
    Adapter, PC USB 2.0/3.0 to Ethernet.
    $40.00
  • 2860-0011
    2860-0011
    Mounting Clips Kit for OMI (each).
    $6.00
  • 2064-0001
    2064-0001
    4 GB SD Card.
    $20.00
  • 7532-0102
    7532-0102
    Win 10 OS Recovery Media USB Flash Drive.
    $20.00
  • 7532-0103
    7532-0103
    Win 10 OS Recovery Media USB Flash Drive.
    $40.00
  • 2140-0308
    2140-0308
    Input Power Connector
    $7.00
  • 4010-0014
    4010-0014
    Supply, Switching, Desktop, 12VDC, 5A, Leads, With AC Power Cord.
    $45.00

Documents

Certifications

Need Additional Support?

Contact Us

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

When you order the OMI6818B the following items are included in the box:

  • OMI6818B Industrial Panel PC
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • DC Power Connector
  • DC Power Adapter with cord
  • 2-Pin Remote Power Switch connector
  • Mounting Kit (Quantity determined by screen size)
