IPC2110 Cross2 View
IPC2110A displaying front and back I/0
IPC2110 Back View
IPC2110 Cross1 View
IPC2110 Cross2 View
IPC2110A what's in the box

IPC2110A

  • Intel Celeron® J4125 2.0GHz Processor
  • HDMITM and DP ports
  • Choose Microsoft Windows 10 or Ubuntu® Linux® OS
  • Additional Memory, Storage, and Wi-Fi Kit upgrades available
  • Integrates with AVEVA™ Edge
View Datasheet

Intel® Celeron® Fanless Mini Industrial PC

IPC2110A

$640.00
Configure Your PC

Perfect for small footprints, this mini computer is big on power and performance. The IPC2110A offers the choice of a Windows® or Linux® Ubuntu® Operating System. Support for FactoryTalk® and other 3rd party or SCADA software like our AVEVA® Edge. Pair this IPC with one of our Industrial Monitors for greater flexibility.

Configure your PC

The base options are selected by default. Select the options to get the desired configuration.

Compare "Intel® Celeron® J4125 2.0 GHz" performance with other processors

Relative CPU performance scores provided by PassMark
+$60
+$95
+$70
+$180
+$325
+$650
-$50

Ubuntu® Linux® Desktop LTS

Supported Models: AEX-2410, IPC2330A, IPC2110A, IPC2210A, IPC2400A Series, IPC2550A, IPC2700A Series, OMI6800BPHEB Series, OMI6900BP Series, PC1200A Series, PC1300X Series, PCS6800A Series, and PCS6800APHEB Series.

This powerful Operating System delivers enterprise manageability and security across a wide range of industries. Additionally, most features and functionality that customers expect to find on their desktop PCs are available in this Open-Source Operating System. The Long-Term Support (LTS) version ensures long-term stability with five years of free security and maintenance updates.

Included Apps:

  • Libre Office Suite
  • Mozilla Firefox Web Browser
  • Gnome Desktop
  • Rythm Box Media Player
  • VIM
-$50

Linux® Ubuntu® Server LTS

Supported Models: AEX-2410, IPC2110A, IPC2210A, IPC2400A Series, IPC2550A, IPC2700A Series, and BPC2330A.

This slim yet powerful option has all the tools you need with none of the bloat you don’t. Save space by skipping the desktop and getting only what you need to get the job done. The Long-Term Support (LTS) version ensures long-term stability with five years of free security and maintenance updates.

Note: Ubuntu Server does not have a graphical interface and requires a physical keyboard to operate.

Included Apps:

  • Open SSH server
  • VIM Text Editor
  • Aptitude Package Manager
  • Apache2

Microsoft® Windows® 10 IoT Enterprise Embedded (EPKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

EPKEA Extended Denotation, “Embedded Product Key Entry Activation.”

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft® Windows® 10 IoT Enterprise Embedded LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 10 IoT Enterprise (PKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

PKEA Extended Denotation, “Product Key Entry Activation.”

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Microsoft® Windows® 10 IoT Enterprise LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft® Edge Web Browser
  • Libre Office
  • Media Player
+$85
Reset Configuration
Current Configuration
Base Price
IPC2110A		 $640
Display
 Included
Processor
 Included
System Memory
 Included
Storage
 Included
Operating System
 Included
Expansion Kit
 Included

Part Number:

Specifications

Download 2D CAD file
Download 3D CAD file

System

Memory (RAM)

1 x DDR4 260-pin SO-DIMM RAM (4, 8, or 16 GB)

System Chipset

SoC

Solid State Drive Type

1 x 2.5” SATA3 MLC

Solid State Drive Capacity

64, 128, 256, 512 GB, 1TB SSD

Input Current

3A Max.

CPU Graphics

Intel® UHD Graphics 600

TPM Module

N/A

Front I/O

USB 2.0 Type A

2

USB 3.0 Type A

2

Power Switch

1 x Momentary Pushbutton

Serial

1 x RS-232/485-2W DE-9P, COM3 (default RS-232); 3 x RS-232 DE-9P (COM1/COM2/COM4)

Rear I/O

Ethernet/LAN

2 x GbE RJ-45

Audio Output

1 x 3.5 mm Headphone-out; 1 x 3.5 mm Mic-in

Display Output

1 x HDMI® 1.4b port (max. 4096 x 2160 pixels @30Hz)

Power

1 x DC power input jack

USB 3.0 Type A

2

Wireless LAN

2x Wireless LAN Antenna ports (covered unless optional Wi-Fi Expansion kit purchased)

Electrical

Input Power

36 W max.

Input Voltage

12 VDC +/- 10%

Mechanical

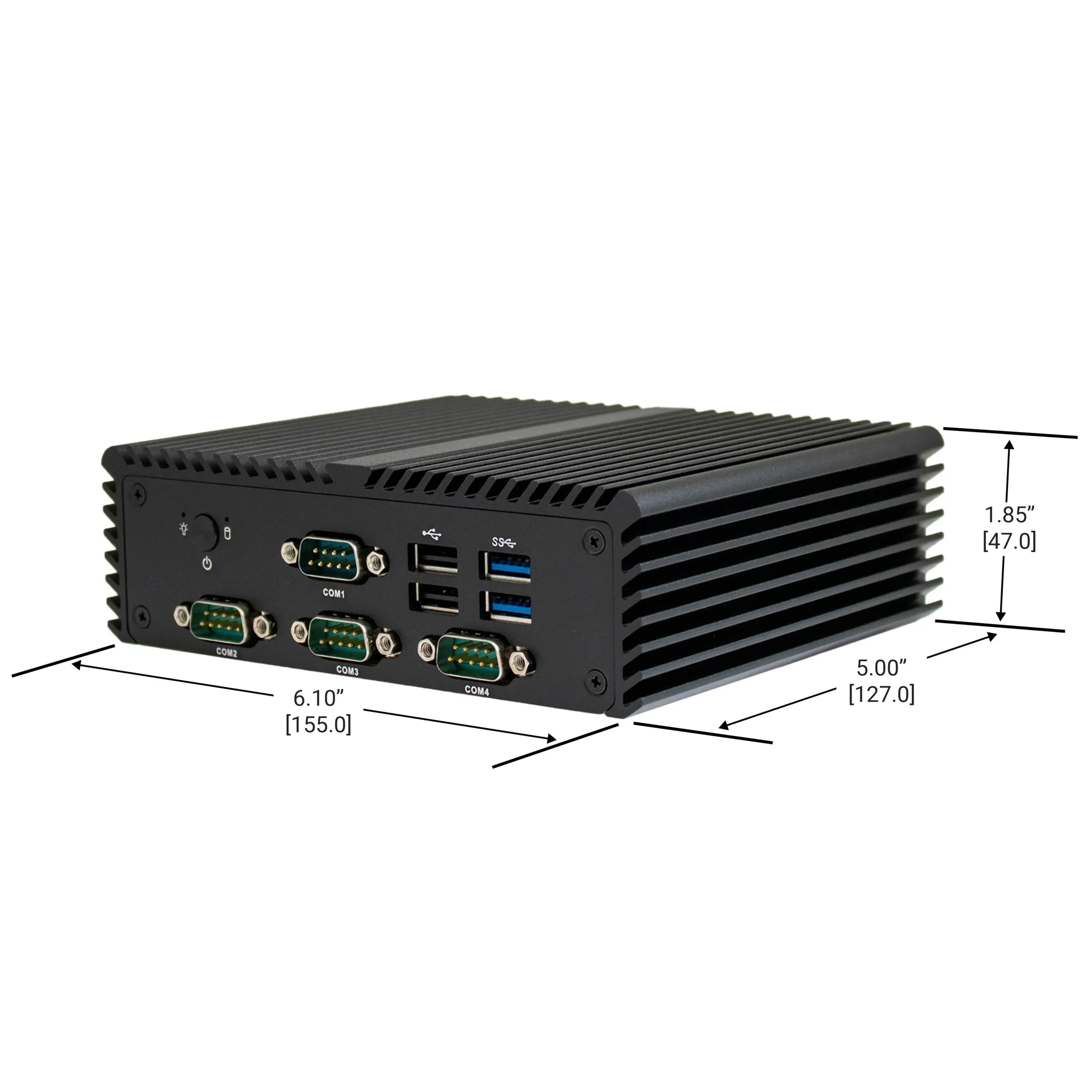

Dimensions WxHxD

6.10 x 5.00 x 1.85 inches [155 x 127 x 47 mm]

Weight

Approx. 2.2 lbs. [1 kg]

Mounting

VESA 75x75 Mounting Bracket (VESA Mounting Hardware not Included)

Construction

Black Aluminum Heatsink, SECC Steel Chassis

Environmental

Storage Temperature

-4~140°F [-20~60°C]

Operating Temperature

41~104°F [5~40°C]

Storage Humidity

20 to 90%, non-condensing

Certification

CE

Yes

RoHS

Yes

FCC

Class A

Accessories

Customers who bought this product also bought:

Power Supply, Single Output, DIN Rail Mountable. Input: 100-240VAC, 1.8A/Output: 12VDC, 5A. Compatible with: IPC2110A, IPC221xA Series, IPC2610A, IPC27xxA Series.
4010-0017

4010-0017

$55.00
Power Supply & Cord, Desktop, 12VDC, 3A Power Brick with AC Cable. Compatible with: IPC2110A.
4010-0019

4010-0019

$20.00
Win 7 OS Recovery Media USB Flash Drive.
Windows 7 Pro Operating Systems.
7532-0101

7532-0101

$20.00
Win 10 OS Recovery Media USB Flash Drive.
Windows 10 IOT Enterprise LTSC 2021.
7532-0103

7532-0103

$40.00
Shop All Accessories

Available Software

Documentation & Resources

Documents

Manuals

Certifications

Need Additional Support?

Contact Us

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

What's Included

When you order the IPC2110A the following items are included in the box:

  • 1 x IPC2110A
  • 1 x VESA Mounting Bracket Kit
  • 1 x Input Power Cable included (Power Supply not included)
  • 1 x 24V-12V Step Down
  • 4 x Rubber Feet
  • 1 x Product Brochure
  • 1 x Warranty Statement
