HMI5100L

  • 800 x 480 Resolution
  • 32-Bit RISC Cortex-A8, 600 MHz CPU
  • 2 Year Warranty
  • Support for over 300 protocols

10.1″ Advanced HMI, 1 Ethernet Port, 1 USB Port, 2 Serial Ports, Wide Screen Display, Light Grey

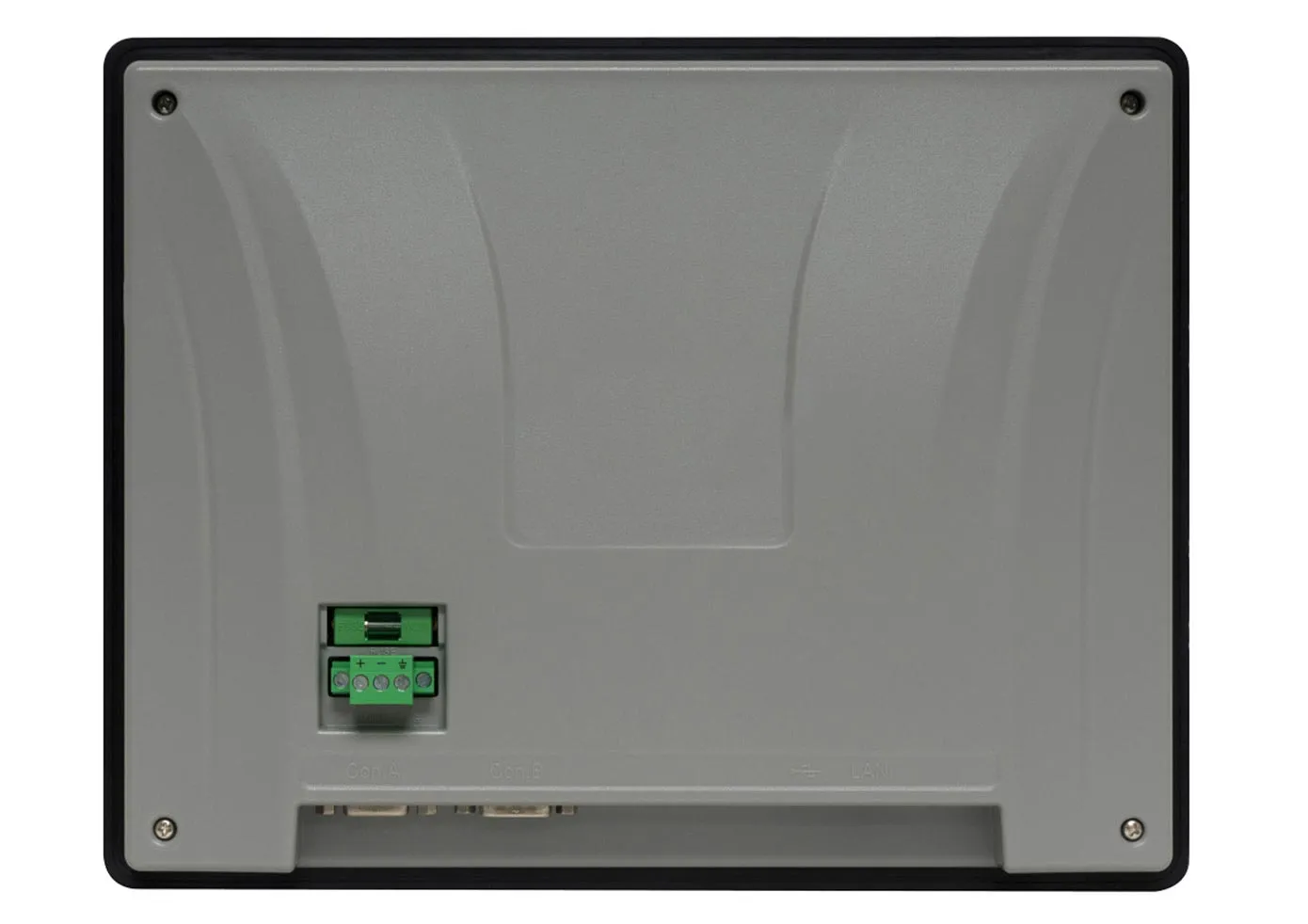

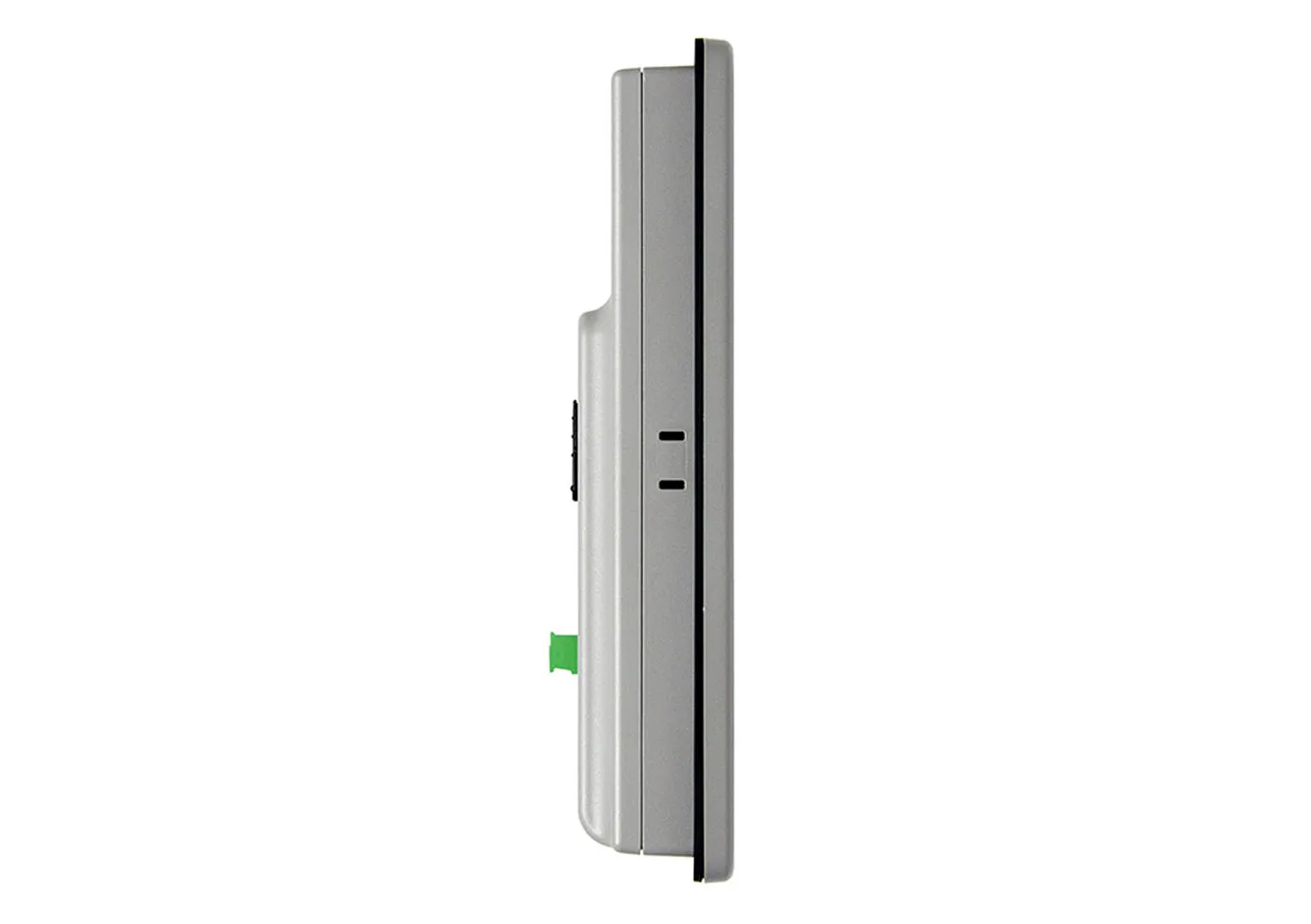

HMI5100L

This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.

cMT2108X2v2 replaces the HMI5100L




As part of our Advanced Series, this widescreen model takes advantage of the more progressive features in our free programming software and proves an excellent value for its enhanced capabilities. If you are in need of even more specific IIoT features, see our Smart HMI Series.

Specifications

System

Memory (RAM)

128 MB

Memory (Flash)

128 MB

RTC

Built-in

Programming Software

EasyBuilder Pro V5.00.01 or later versions

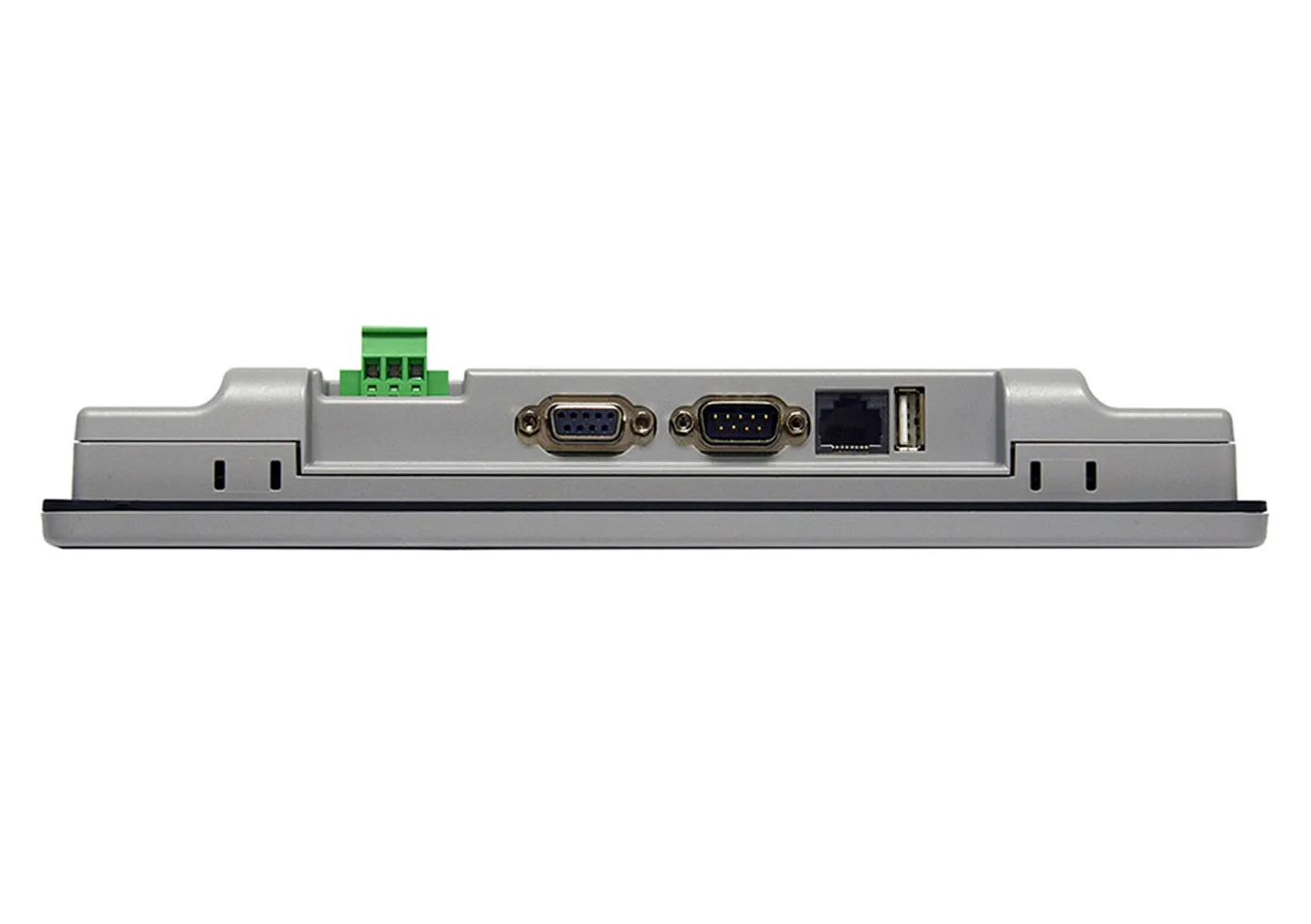

I/O Ports

Serial Ports

2

Ethernet/LAN

10/100 Base-T x 1

CANbus

N/A

Audio Output

N/A

SD Card Slot

N/A

USB Host Ports

USB 2.0 x 1

USB Client Ports

N/A

Wi-Fi

N/A

RS-485 Dual Isolation

Yes

Local bus

N/A

HDMI Port

N/A

Video Input

N/A

Display

Display Size

10.1" TFT

Resolution

800 x 480

Luminance (cd/m^2)

400

350

300

Contrast Ratio

500:1

Backlight Type

LED

Backlight Lifetime (hrs)

30,000+

Colors

262 K

Display Type

10.1" TFT

Viewing Angle (H°/V°)

130/110

Size (W x H)

8.66 x 5.24 inches [220 x 133 mm]

Touch Screen

Type

4-wire resistive touch

Electrical

Input Power

14.4 W

Power Isolation

Built-in

Power Dissipation

N/A

Current for Internal Bus

N/A

Current Consumption

N/A

Isolation Resistance

Exceed 50 MO - @ 500 VDC

Input Voltage

24 ± 20% VDC

Input Current

600 mA @ 24 VDC

Mechanical

Vibration Endurance

10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Enclosure Material

Plastic, light grey

PCB Coating

Yes

Dimensions WxHxD

10.67 x 8.39 x 1.57 inches [271 x 213 x 40 mm]

Panel Cutout (inches) [mm]

10.24 x 7.95 [260 x 202]

Weight

Approx. 2.9 lbs. [1.3 kg]

Mounting

Panel mount

Environmental

Storage Temperature

-4° ~ 140°F (-20° ~ 60°C)

Operating Temperature

32° ~ 122°F (0° ~ 50°C)

Relative Humidity

10% ~ 90% (non-condensing)

Certification

UL Type Rating

UL Type 4X (indoor use only)

NEMA Rating

NEMA4

IP Rating

IP65 compliant front panel

CE

Yes

UL

cULus Listed

Class 1 Div 2

N/A

ATEX

N/A

RoHS

Yes
