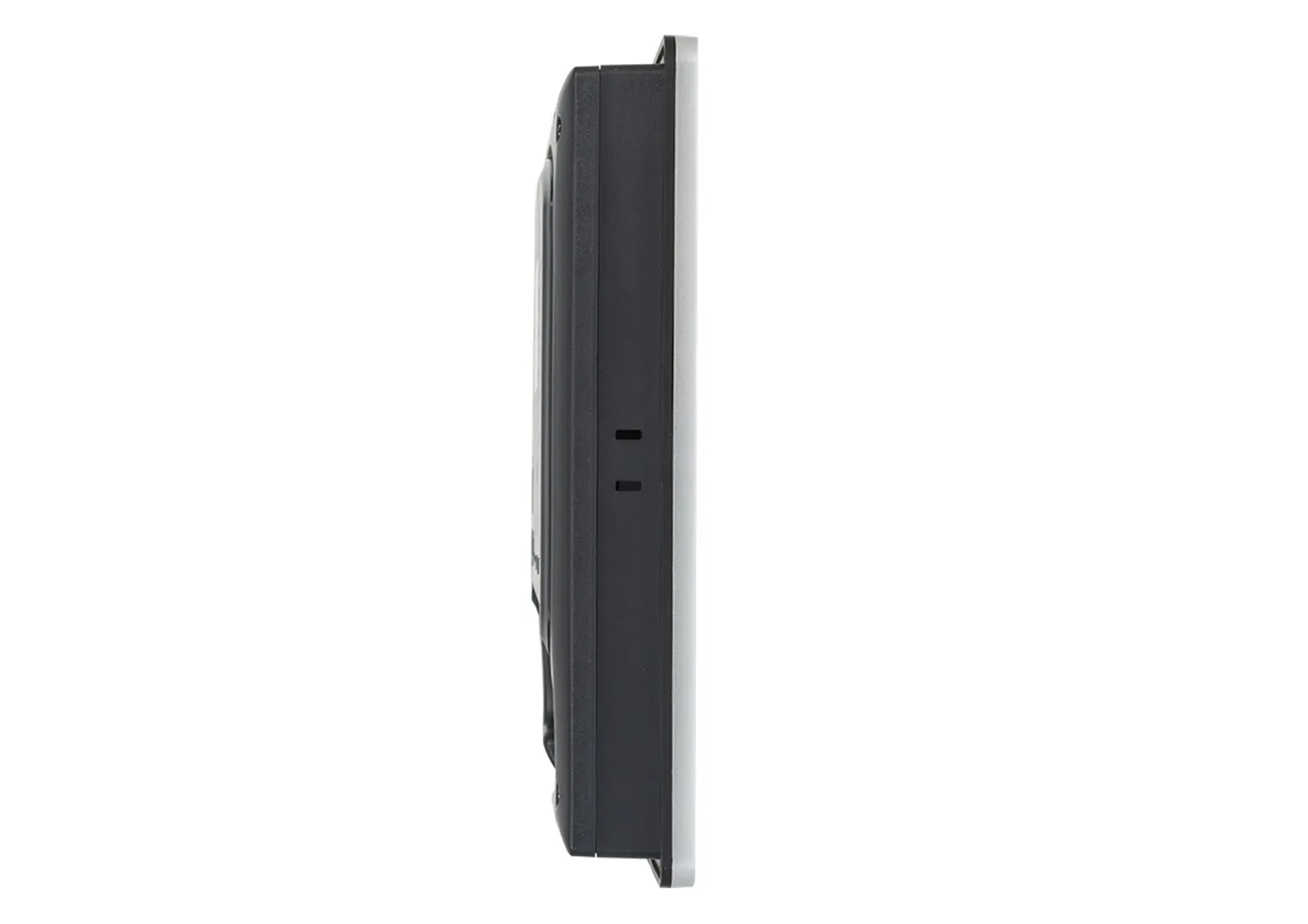

HMI5097DXL

  • 1024 x 768 Resolution
  • 32-Bit RISC Cortex-A8, 1 GHz CPU
  • Dual-Ethernet
  • Supports CANbus
  • EasyAccess 2.0 Included
  • 2 Year Warranty
  • Support for over 300 protocols

9.7″ Advanced HMI, 2 Ethernet Ports, 1 USB Port, 2 Serial Ports, CANBus, Dark Grey, EasyAccess 2.0 included

HMI5097DXL

This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.

cMT3092Xv2 replaces the HMI5097DXL




As part of our Advanced Series, this Dual-Ethernet model takes advantage of the more progressive features in our free programming software and proves an excellent value for its enhanced capabilities. Utilize CANbus protocol and the Pre-Installed EasyAccess 2.0 remote access license to employ secure communications from your HMI to anywhere in the world. If you are in need of even more specific IIoT features, see our Smart HMI Series.

Specifications

System

Memory (RAM)

256 MB

Memory (Flash)

512 MB

RTC

Built-in

Programming Software

EasyBuilder Pro V5.02.01 or later versions

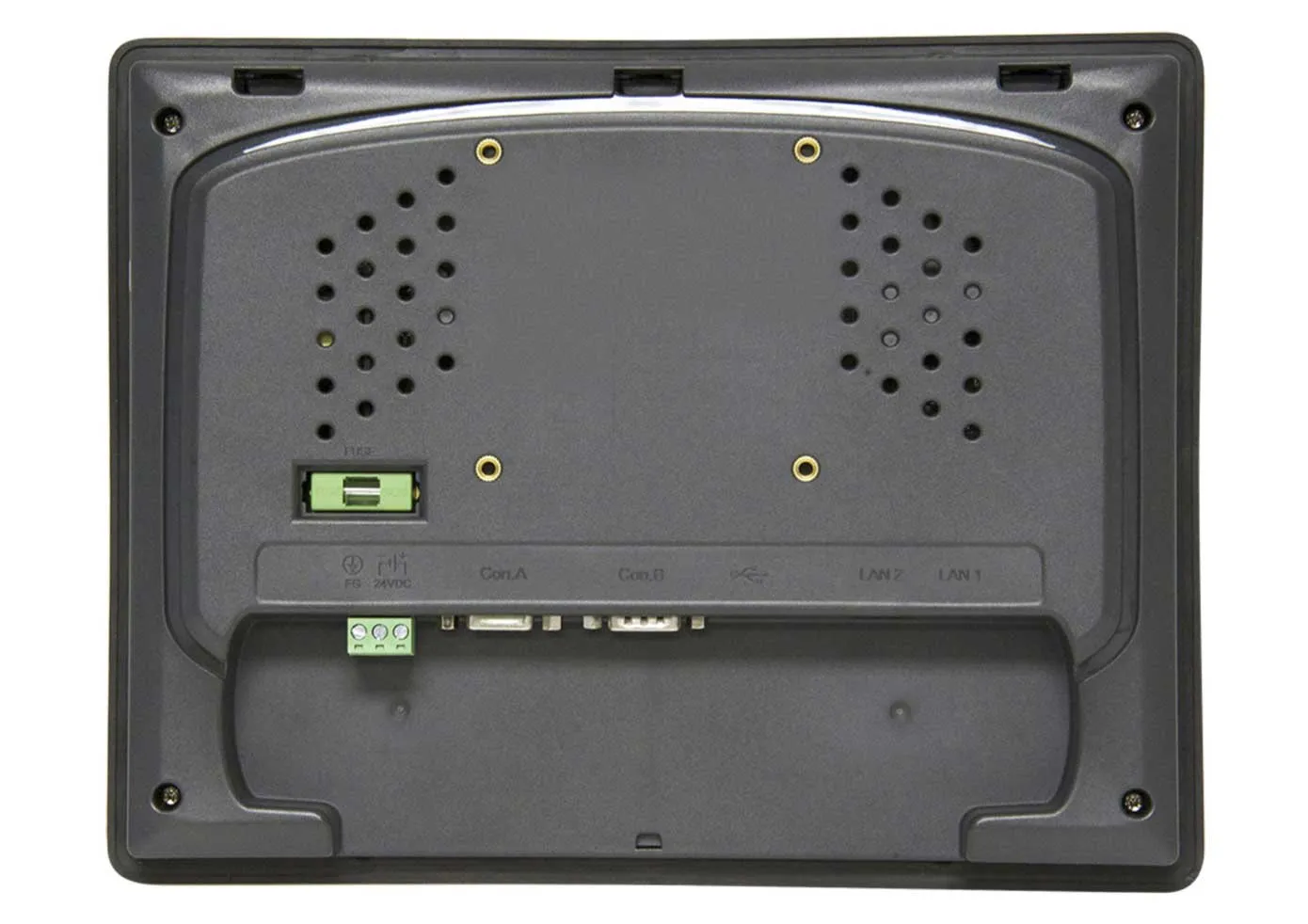

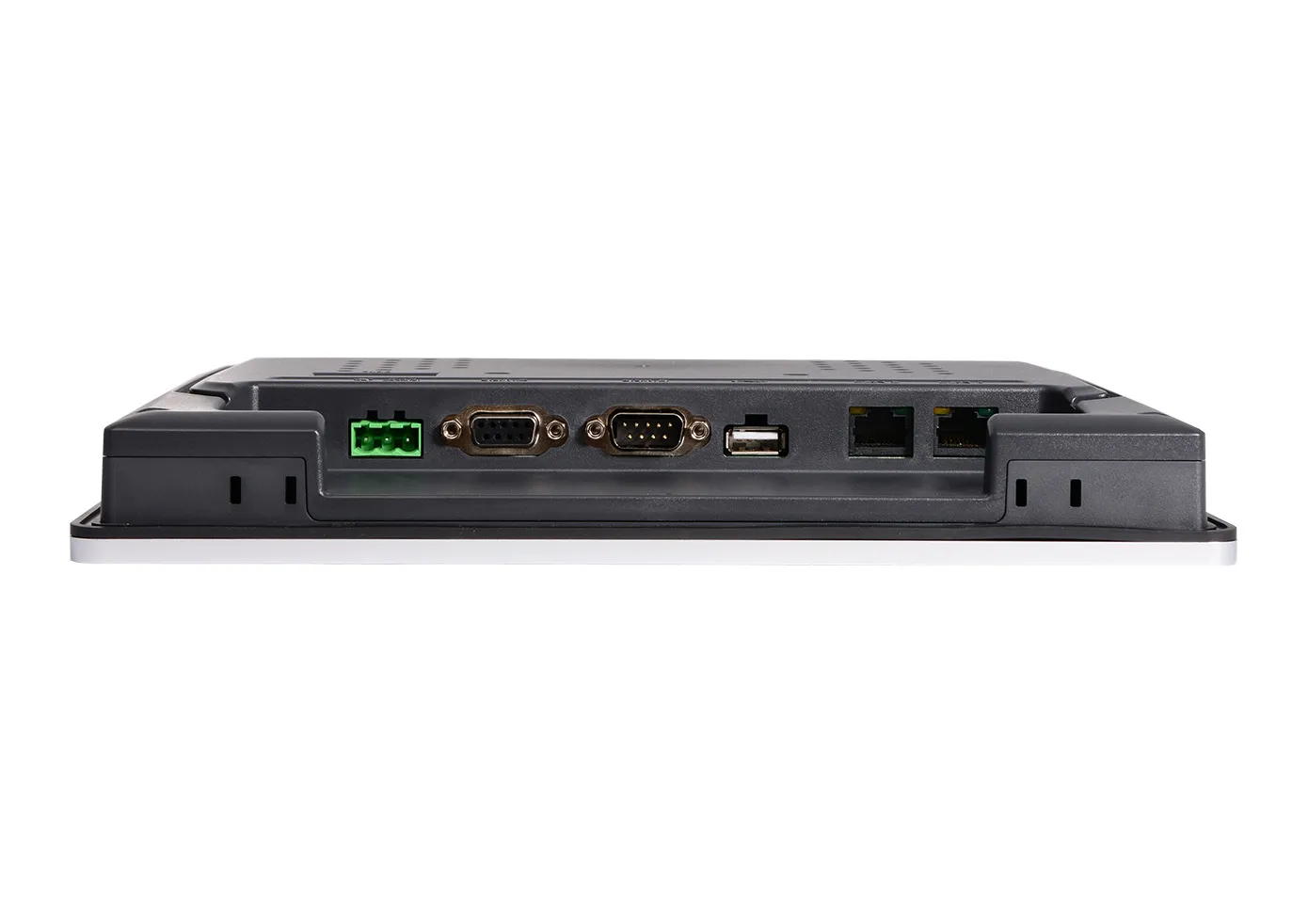

I/O Ports

Serial Ports

2

Ethernet/LAN

10/100/1000 Base-T x 2

CANbus

Yes

Audio Output

N/A

SD Card Slot

N/A

USB Host Ports

USB 2.0 x 1

USB Client Ports

N/A

Wi-Fi

N/A

RS-485 Dual Isolation

N/A

Local bus

N/A

HDMI Port

N/A

Video Input

N/A

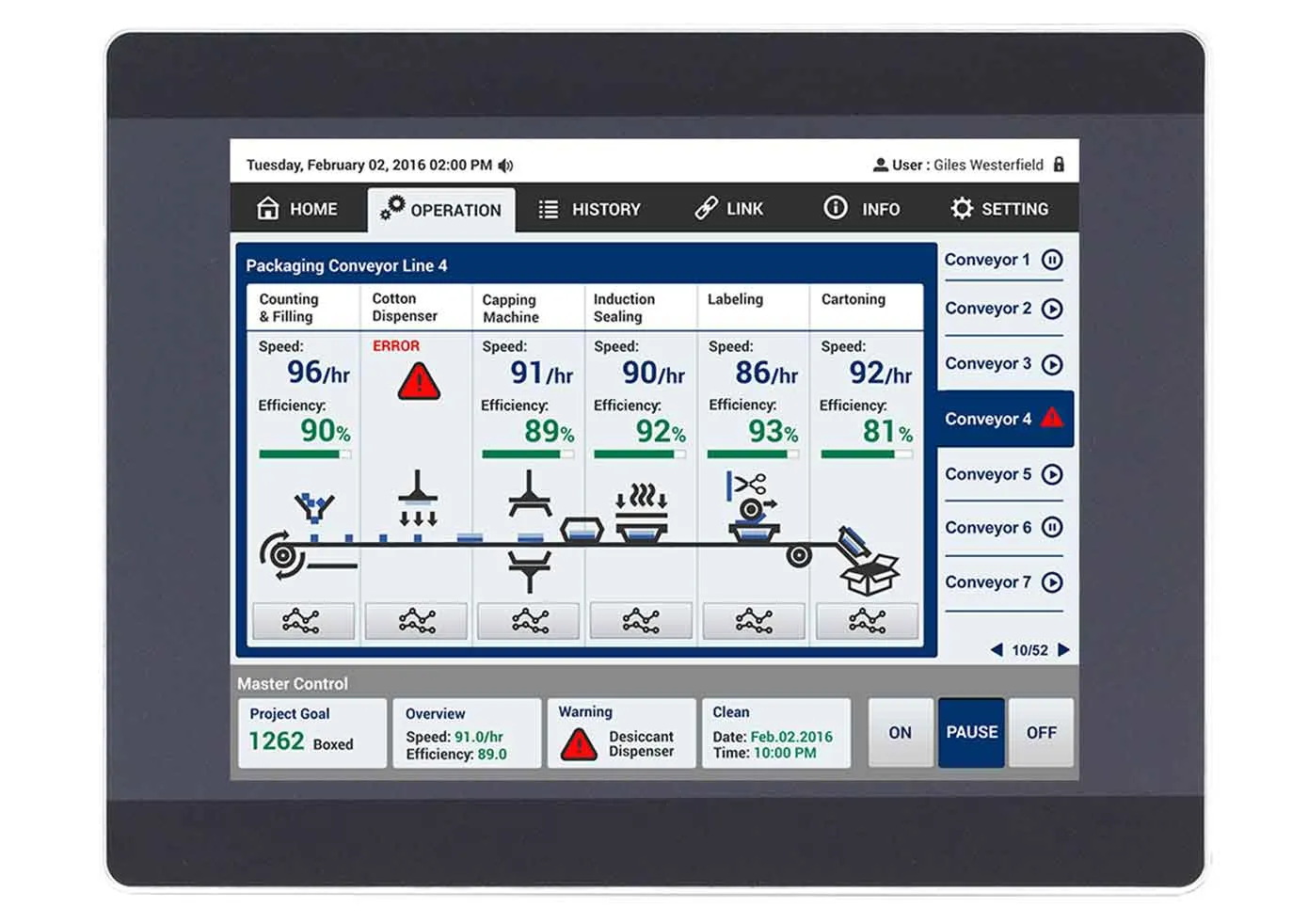

Display

Resolution

1024 X 768

Luminance (cd/m^2)

400

350

300

Contrast Ratio

500:1

Backlight Type

LED

Backlight Lifetime (hrs)

30,000+

Colors

262 K

Display Type

9.7" TFT

Viewing Angle (H°/V°)

140/130

Size (W x H)

7.78 x 5.83 inches [198 x 148 mm]

Touch Screen

Type

4-wire resistive touch

Electrical

Input Power

15.6 W

Power Isolation

Built-in

Power Dissipation

N/A

Current for Internal Bus

N/A

Current Consumption

N/A

Isolation Resistance

Exceed 50 MO - @ 500 VDC

Input Voltage

24 ± 20% VDC

Input Current

650 mA @ 24 VDC

Mechanical

Vibration Endurance

10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Enclosure Material

Plastic, charcoal grey/silver

PCB Coating

Yes

Dimensions WxHxD

10.26 x 8.00 x 1.42 inches [261 x 203 x 36.5 mm]

Panel Cutout (inches) [mm]

9.84 x 7.56 [250 x 192]

Weight

Approx. 1.87 lbs. [0.85 kg]

Mounting

Panel mount, VESA 75 x 75 mm

Environmental

Storage Temperature

-4° ~ 140°F (-20° ~ 60°C)

Operating Temperature

32° ~ 122°F (0° ~ 50°C)

Relative Humidity

10% ~ 90% (non-condensing)

Certification

UL Type Rating

UL Type 4X (indoor use only)

NEMA Rating

NEMA4

IP Rating

IP65 compliant front panel

CE

Yes

UL

cULus Listed

Class 1 Div 2

N/A

RoHS

Yes
