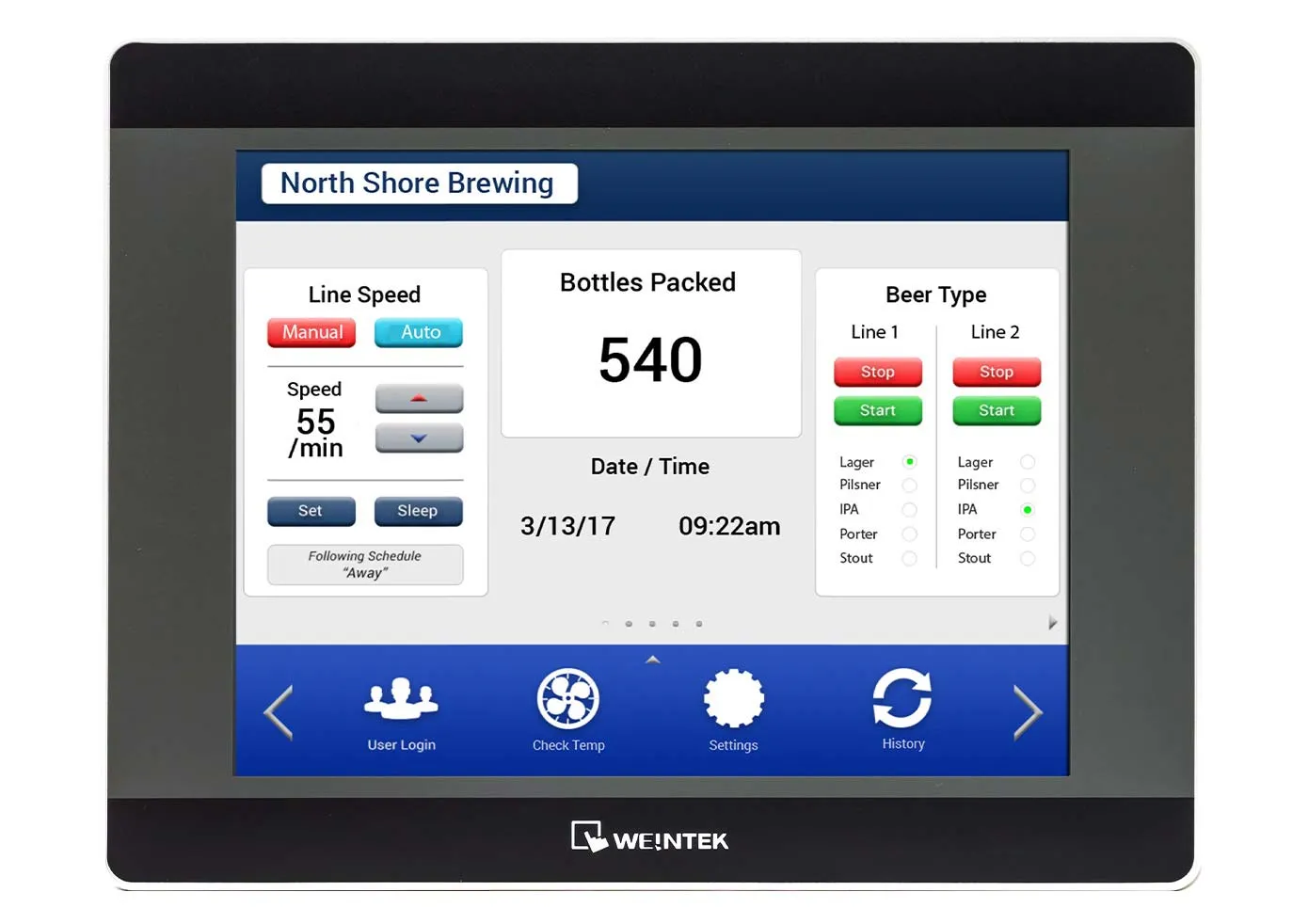

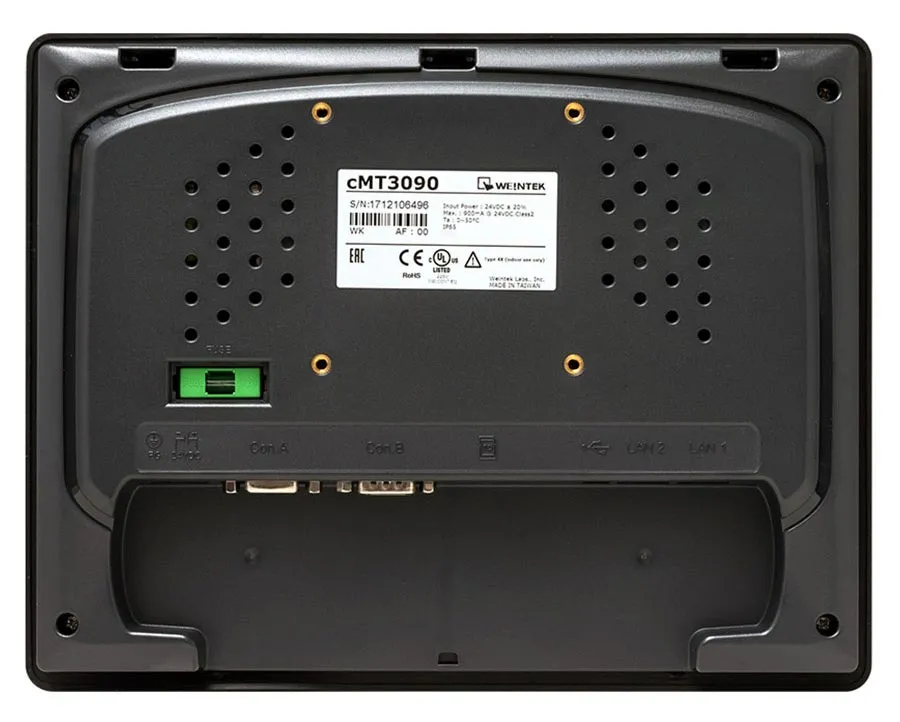

cMT3090
- 1024×768 Resolution
- 32-Bit RISC Cortex-A9 1GHz CPU
- Built-in EasyAccess 2.0 License
- Supports CANbus
9.7″ Smart HMI, 2 Ethernet Ports, 1 USB Port, 2 Serial Ports, CANBus
cMT3090
This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.
cMT3092Xv2 replaces the cMT3090
As part of our most powerful HMI series, the Smart Series provides high-quality models for applications requiring maximum IIoT functionality. Sophisticated features include: CANbus, enhanced security, remote connectivity, web streaming, and more.
- Compare cMT3090 and other models.
- Volume Discounts available. Contact Sales for more details.
- Customize your product with your company logo. Minimum quantities apply.
- Learn More about how our products interface with over 300+ PLCs and Controllers.
- US Based Technical Support
System
| Memory (RAM) | 1 GB |
| Memory (Flash) | 4 GB |
| RTC | Built-in |
| Programming Software | EasyBuilder Pro |

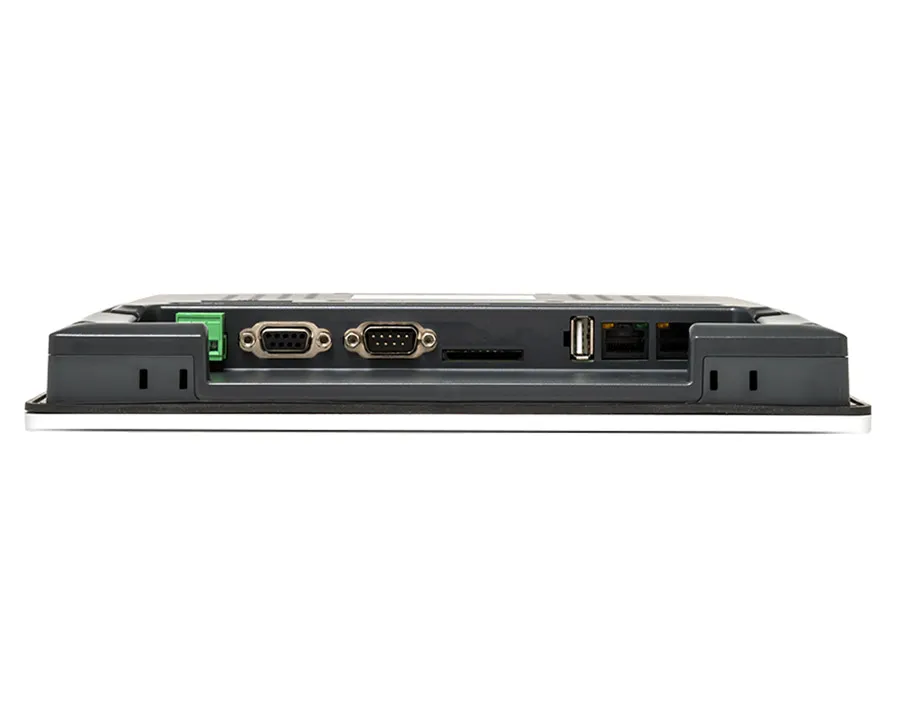

I/O Ports
| Serial Ports | 2 |
| Ethernet/LAN | LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1 |
| CANbus | Yes |
| Audio Output | Built-in Mono Speaker |
| SD Card Slot | SD/SDHC (32GB capacity) |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | N/A |
| Wi-Fi | N/A |
| RS-485 Dual Isolation | N/A |
| Local bus | N/A |
| HDMI Port | N/A |
| Video Input | N/A |
Display
| Resolution | 1024 x 600 |
| Luminance (cd/m^2) | 1000 400 350 300 |
| Contrast Ratio | 500:1 |
| Backlight Type | LED |
| Backlight Lifetime (hrs) | 30,000+ |
| Colors | 262 K |
| LCD Viewing Angle (T/B/L/R) | 70/70/80/80 |
| Display Type | 9.7" TFT |
| Viewing Angle (H°/V°) | 140/130 |
| Size (W x H) | 7.76 x 5.83 inches [197 x 148 mm] |
Touch Screen
| Type | 4-wire resistive touch |
Electrical
| Input Power | 21.6 W |
| Power Isolation | Built-in |
| Isolation Resistance | Exceed 50 MO - @ 500 VDC |
| Input Voltage | 24 ± 20% VDC |
| Input Current | 900 mA @ 24 VDC |

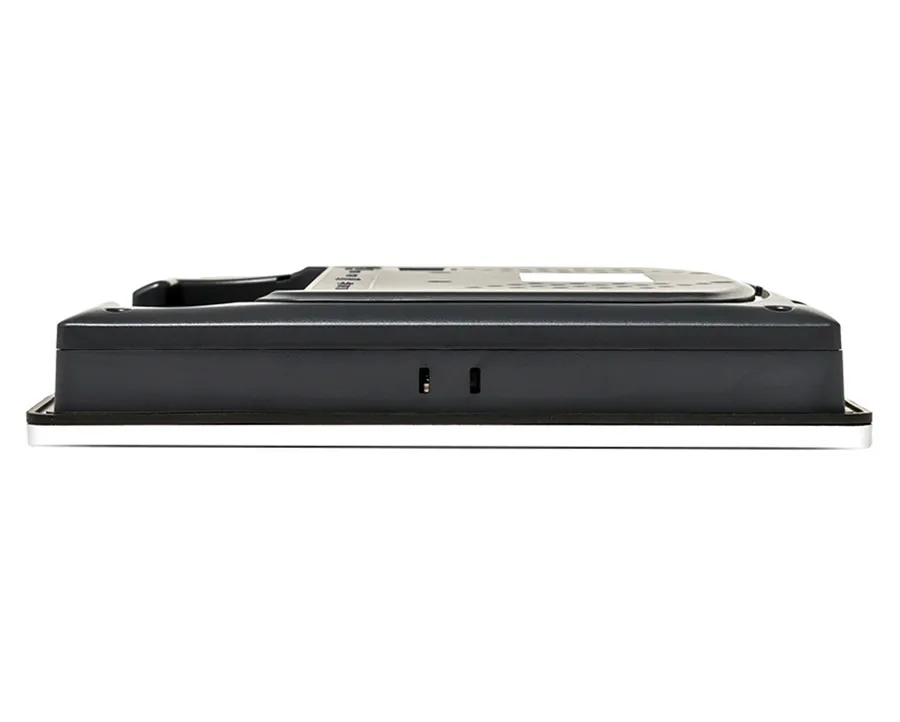

Mechanical
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| Enclosure Material | Black Aluminum |
| PCB Coating | Yes |
| Dimensions WxHxD | 10.26 x 8.00 x 1.44 inches [261 x 203 x 36.5 mm] |
| Panel Cutout (inches) [mm] | 9.84 x 7.56 [250 x 192] |
| Weight | Approx. 2.2 lbs. [1 kg] |
| Mounting | Panel mount, VESA 75 x 75 mm |
Environmental
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Operating Temperature | 32° ~ 122°F (0° ~ 50°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| UL Type Rating | UL Type 4X (indoor use only) |
| NEMA Rating | NEMA4 |
| IP Rating | IP65 compliant front panel |
| CE | Yes |
| UL | cULus Listed |
| Class 1 Div 2 | N/A |
| ATEX | N/A |
| RoHS | Yes |
