cMT-SVR-OPCUA

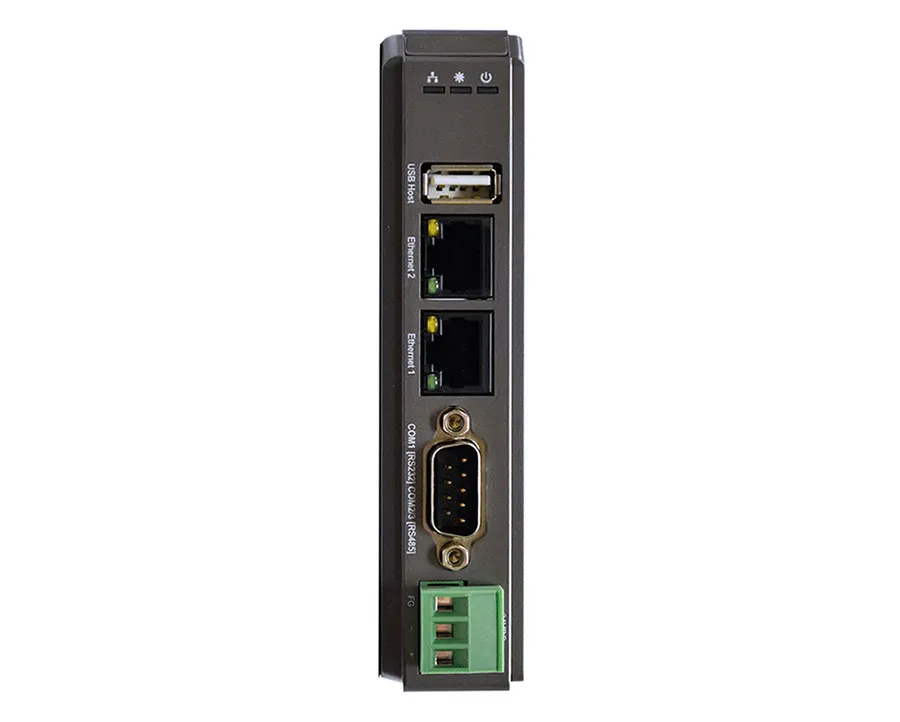

- 2 Ethernet Ports, 1 USB Port, 1 Serial Port
- 32-Bit RISC Cortex-A8 600 MHz CPU
- 256 MB Flash, 256 MB RAM
- Supports remote access
- Built-In OPC UA License
- DIN Rail Mount
Standard Headless HMI with OPCUA license
cMT-SVR-OPCUA
This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.

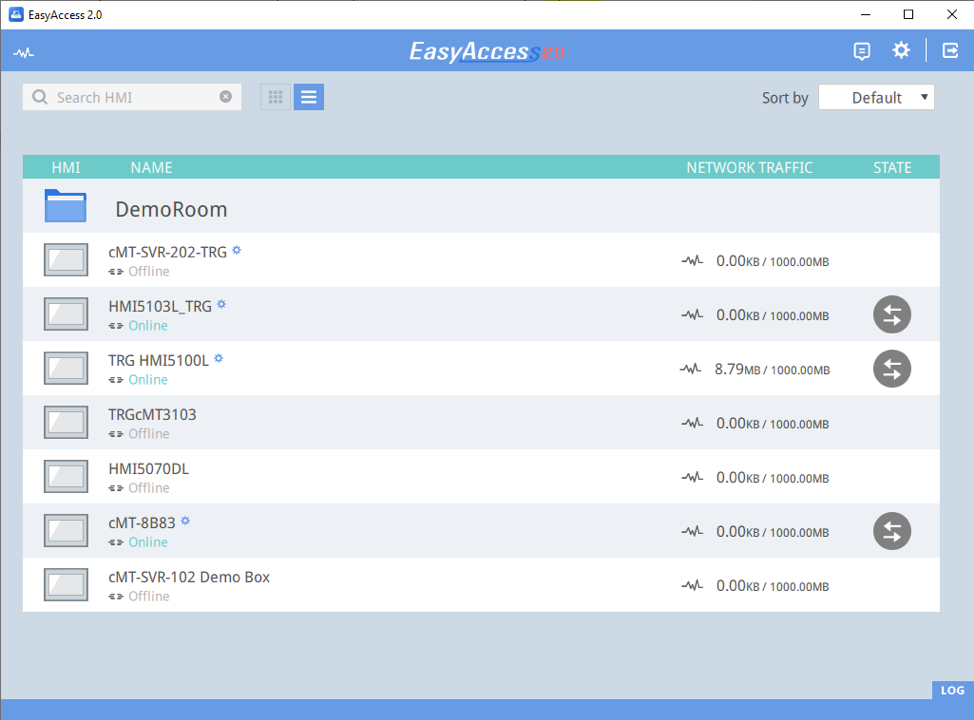

Our cMT-SVR-OPCUA headless HMI pairs OPC UA (license included) with straight-forward HMI functionality. This headless HMI is tailored for remote accessibility, monitor PLC operations, gather data, and remotely access your control system via the cMT Viewer App on your smart phone, tablet, laptop, or PC. Because our free HMI software supports Modbus and over 300 different PLC and controllers, pairing one of our headless HMIs with your Allen-Bradley, Seimens, Omron, and/or Emerson PLC is easy. Add EasyAccess 2.0 for additional remote capabilities.
Customer Review
I am happy across the board with all orders - projects are going well thanks to Maple Systems and we are pleased because Maple is always available at short notice to help.Specifications
System
| Memory (RAM) | 256 MB |
| Memory (Flash) | 256 MB |
| RTC | Built-in |
| Programming Software | EasyBuilder Pro V4.00.01 or later versions |
I/O Ports
| Serial Ports | 1 |
| Ethernet/LAN | 10/100/1000 Base-T x 2 |
| CANbus | N/A |
| Audio Output | N/A |
| SD Card Slot | SD/SDHC (32GB capacity) |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | N/A |
| Wi-Fi | N/A |
| RS-485 Dual Isolation | N/A |
| Local bus | N/A |
| HDMI Port | N/A |
| Video Input | N/A |
Display
| Display Size | N/A |
| Resolution | N/A |
| Luminance (cd/m^2) | N/A 1000 400 350 300 |
| Contrast Ratio | N/A |
| Backlight Type | N/A |
| Backlight Lifetime (hrs) | N/A |
| Colors | N/A |
| Display Type | N/A |
| Viewing Angle (H°/V°) | N/A |
Touch Screen
| Type | N/A |
Electrical
| Input Power | 5.52 W |
| Power Isolation | Built-in |
| Power Dissipation | N/A |
| Current for Internal Bus | N/A |
| Current Consumption | N/A |
| Isolation Resistance | Exceed 50 MO - @ 500 VDC |
| Input Voltage | 24 ± 20% VDC |
| Input Current | 230 mA @ 24 VDC |
Mechanical
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| Enclosure Material | Plastic, charcoal grey |
| PCB Coating | Yes |
| Dimensions WxHxD | 5.12 x 4.53 x 1.06 inches [130 x 115 x 27 mm] |
| Panel Cutout (inches) [mm] | N/A |
| Weight | Approx. 0.40 lbs. [0.18 kg] |

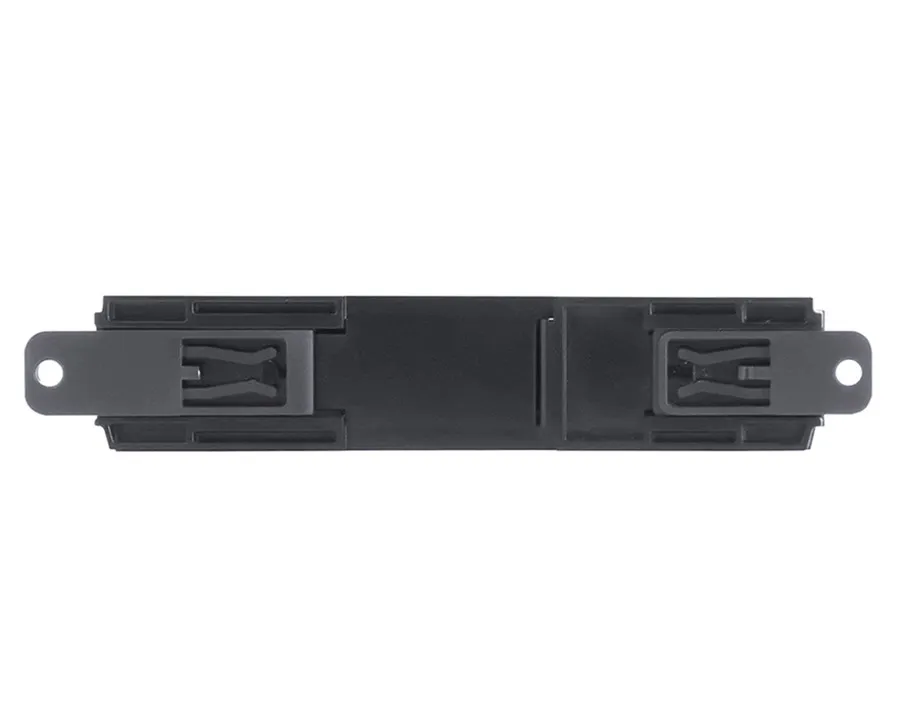

| Mounting | 35 mm DIN rail |
Environmental
| Storage Temperature | -4° ~ 158°F (-20° ~ 70°C) |
| Operating Temperature | -4° ~ 131°F (-20° ~ 55°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| UL Type Rating | cULus |
| NEMA Rating | N/A |
| IP Rating | IP20 |
| CE | Yes |
| UL | cULus Listed |
| Class 1 Div 2 | N/A |
| ATEX | N/A |
| RoHS | Yes |
Accessories
Customers who bought this product also bought:
Available Software
FREE User Friendly HMI Software
Download our free, full-featured HMI configuration software to create custom control applications for your industrial process. EBPro supports over 300 PLC & controller protocols, ensuring seamless integration with new or existing systems. No license or key required.
Documentation & Resources
Documents
Manuals
- Installation Guide
- cMT Quick Start Guide
- EBPro Quick Start Guide
- EBPro Programming Manual
- cMT MS SQL Quick Start Guide
- cMT MySQL Quick Start Guide
- cMT/HMI MQTT User Manual
- cMT OPC UA Server Setup Overview
- Macro Reference Manual
Certifications
Need Additional Support?
Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204
Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com
Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)
What's Included
When you order the cMT-SVR-OPCUA the following items are included in the box:
- cMT-SVR-OPCUA Headless HMI
- Warranty Statement
- Installation Instruction
- Product Flyer
- Power Connector
