How to Program Email & Alarms

How to Program Email & Alarms

This tutorial shows you how to program Email with Alarms using an HMI+PLC combo, while displaying on the user-interface. Please refer to the “How to Program Alarms” tutorial page for the complete Alarms setup.

Software Required

Hardware Required

  • HMC4070A-M – Other HMC2000/HMC4000 models can also be used

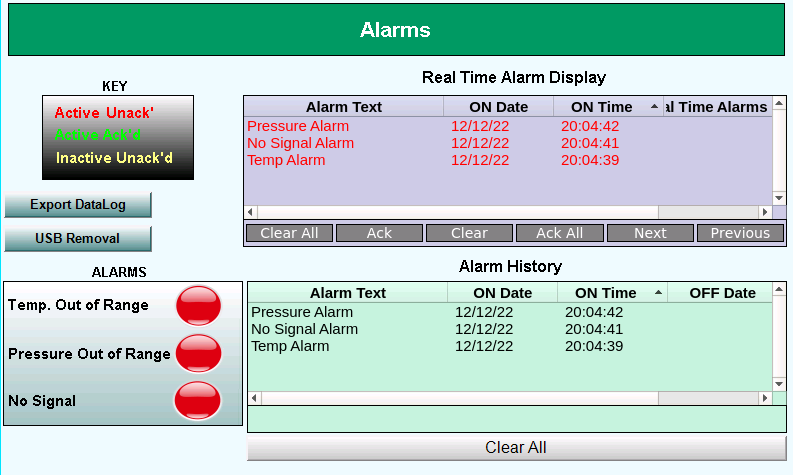

User Interface – Alarms

Active Unacknowledged Alarms

Inactive Unacknowledged Alarms

Active Acknowledged Alarms

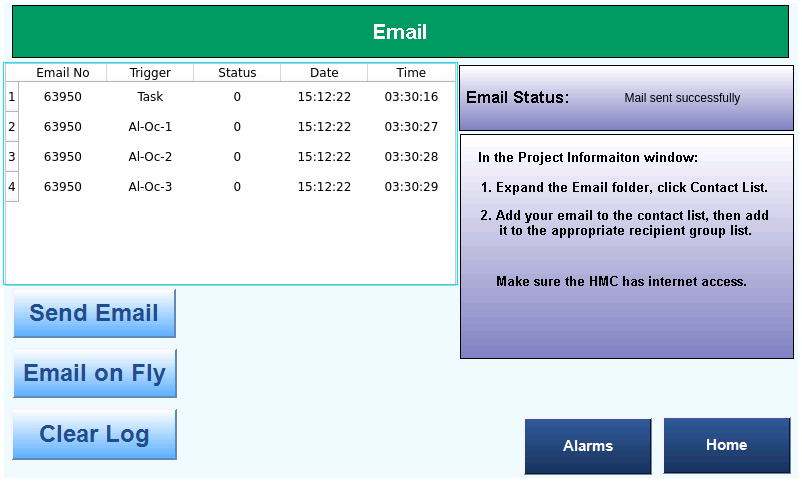

User Interface – Email Log & Email Status

You will need to be connected to the internet to use the Email function in MAPware-7000.

You can connect using a Static IP or DHCP.

If you are using a Static IP, you must enter the Gateway IP address on your HMC device.

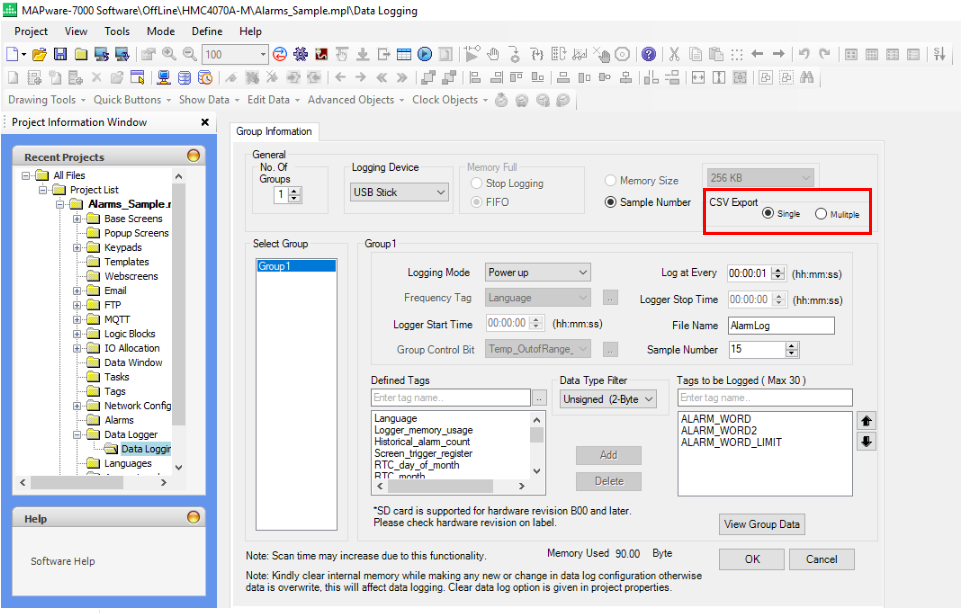

Data Logging

Single vs Multiple .CSV Export
(not in manual)

Single: This option will keep updating the same .csv file when the data logger is triggered.

Multiple: This option will create a new .csv file every time the data logger is triggered.

Please download the MAPware-7000 Programming Manual to get more detailed information on Data Logging.

See Chapter 10 – Data Logger and Trending

Sample Project

The project shown above was designed for the specific hardware mentioned at the beginning of the tutorial and is intended to provide you guidance when programming your unit. If you are using models other than the ones specified in this sample project, similar steps can be duplicated within your own project.

Download MAPware sample project

Resources & Documentation

HMC/MAPware-7000 Resources

MAPware-7000 Getting Started Guide
MAPware-7000 Programming Manual
IEC 61131-3 Programming Guide for MAPware-7000
HMC3 I/O Module Guide

More

See our Support Center for a complete list of Quick Start and Installation Guides
