How to Program Alarms
This tutorial shows you how to use Alarms with an HMI+PLC combo while displaying on the user-interface.
Software Required
Hardware Required
- HMC4070A-M – Other HMC2000/HMC4000 models can also be used

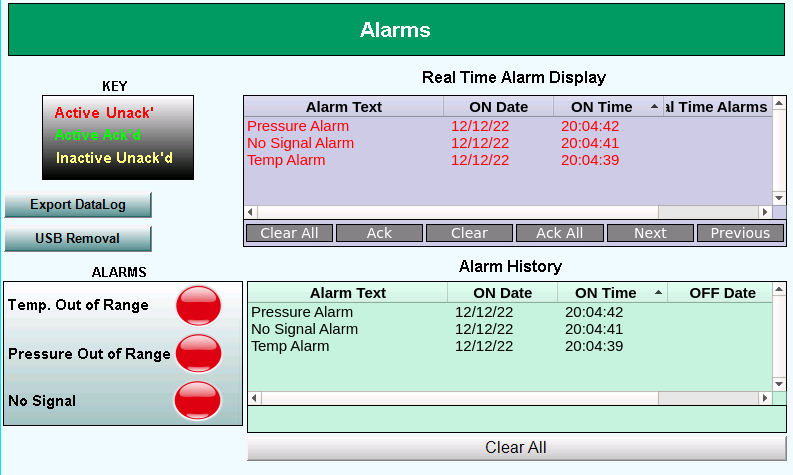

User Interface
Active Unacknowledged Alarms
Inactive Unacknowledged Alarms
Active Acknowledged Alarms
Data Logging

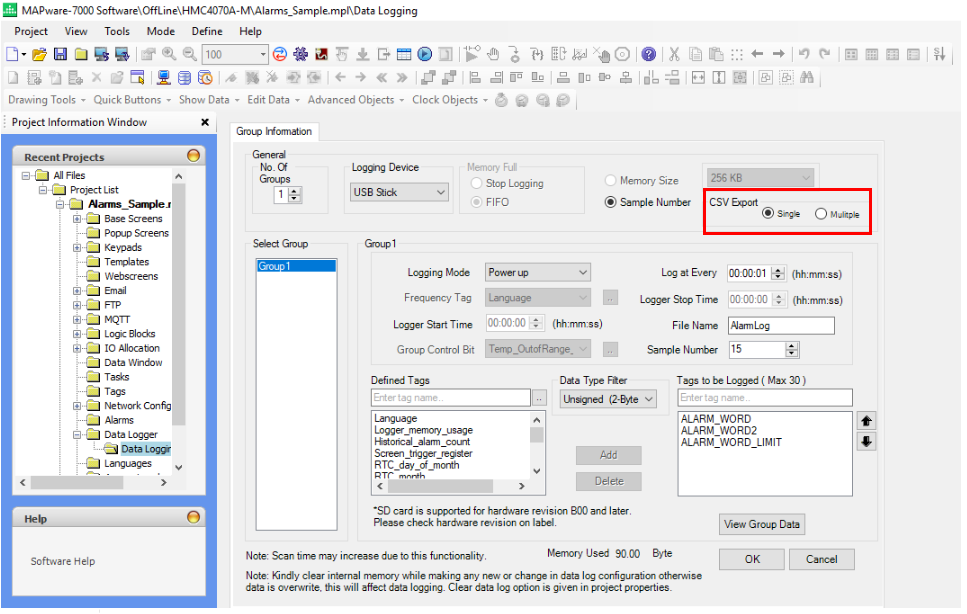

Single vs Multiple .CSV Export
(not in manual)
Single: This option will keep updating the same .csv file when the data logger is triggered.
Multiple: This option will create a new .csv file every time the data logger is triggered.
Please download the
MAPware Programming Manual
to get more detailed information on Data Logging.
See Chapter 10 – Data Logger and Trending
Sample Project
The project shown above was designed for the specific hardware mentioned at the beginning of the tutorial and is intended to provide you guidance when programming your unit. If you are using models other than the ones specified in this sample project, similar steps can be duplicated within your own project.
Download MAPware sample project
