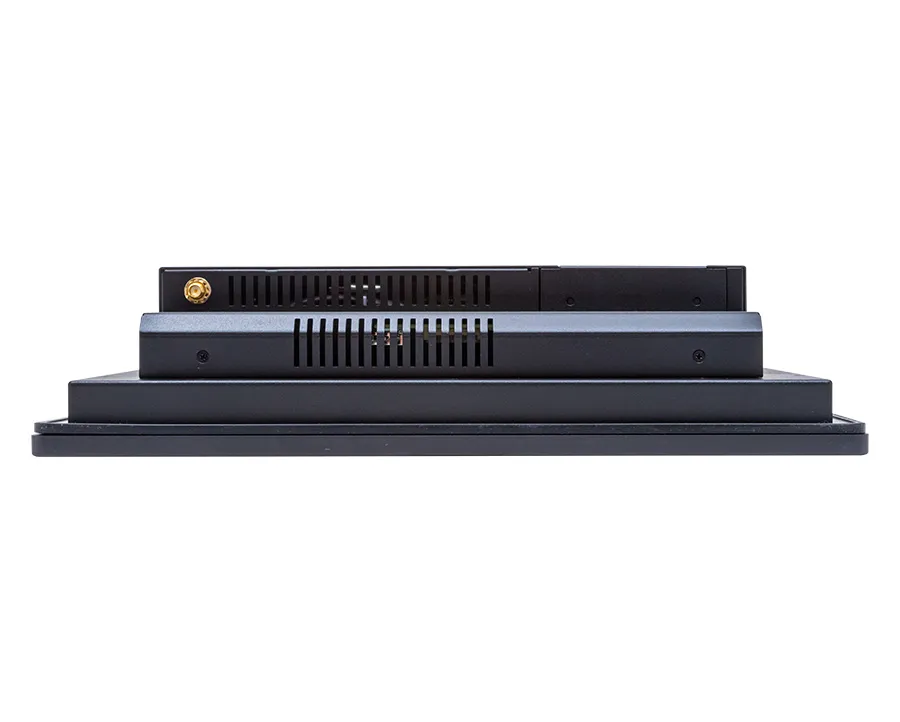

PC1212AP Top View

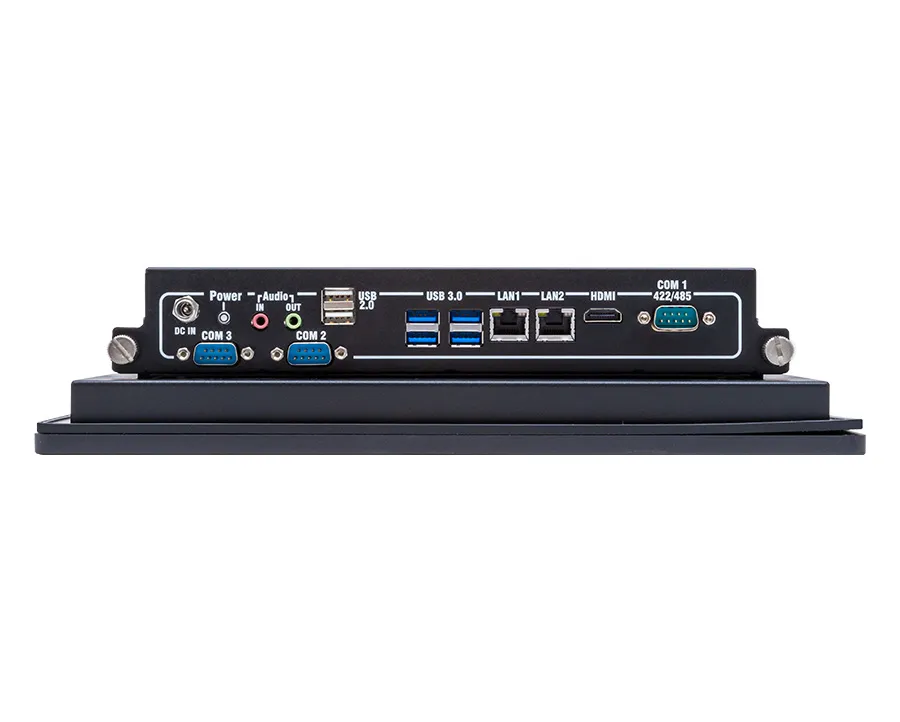

PC1212AP Bottom View

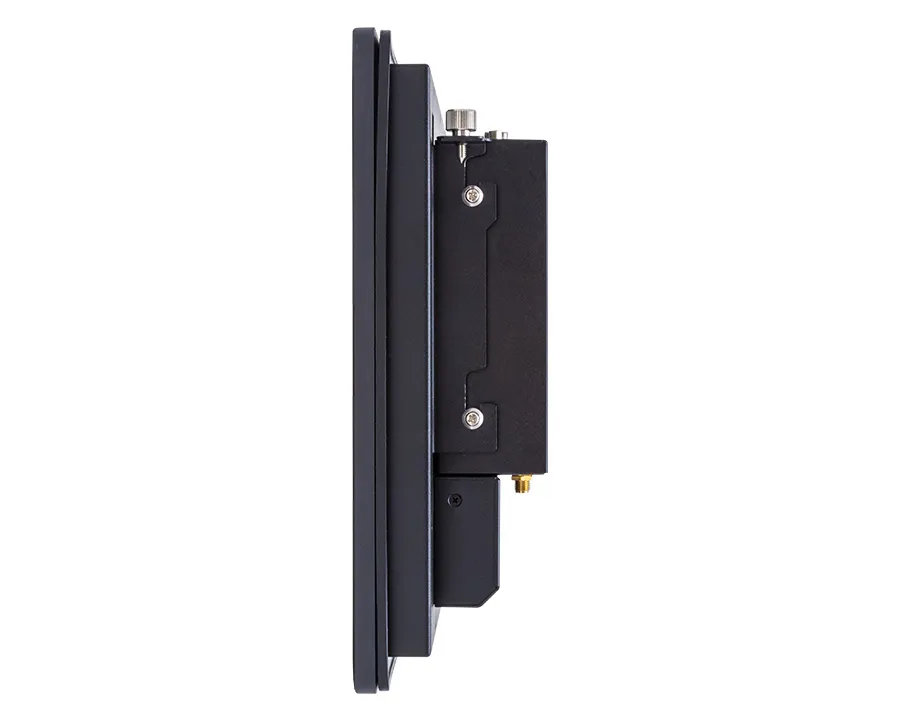

PC1212AP Side 1 View

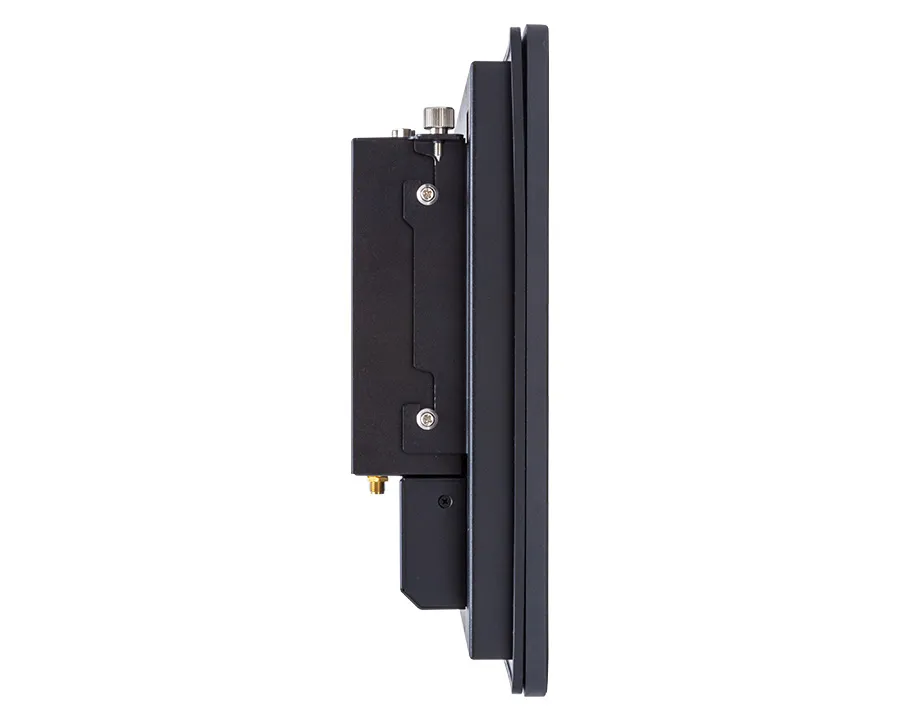

PC1212AP Side 2 View

PC1212AP

    • High-Resolution Capacitive Touch Screen
    • Intel Pentium N4200 Quad-Core CPU
    • Multiple Memory and Storage Options Available
    • Windows® or Linux® Operating System
    • Optional Wi-Fi Upgrade
    • Integrate with AVEVA™ Edge
View Datasheet

12.1" Intel® Pentium® Panel PC with Windows® or Linux OS®

PC1212AP

$1,845.00
Configure Your PC

With a steel chassis, aluminum heatsink, and the option of panel or VESA mount, the PC1212AP is both rugged and durable. This 12.1” capacitive touchscreen IPC provides power, performance, and functionality in one package. And because this industrial computer runs any 3rd party software, like FactoryTalk®, it is extremely flexible. Need SCADA software? Take a look all our Aveva Edge® software options.

Configure your PC

The base options are selected by default. Select the options to get the desired configuration.

Compare "Intel® Pentium® N4200 Quad-Core, 1.1 GHz" performance with other processors

Relative CPU performance scores provided by PassMark
+$60
+$70
+$180
+$325
+$650
-$50

Ubuntu® Linux® Desktop LTS

Supported Models: AEX-2410, IPC2330A, IPC2110A, IPC2210A, IPC2400A Series, IPC2550A, IPC2700A Series, OMI6800BPHEB Series, OMI6900BP Series, PC1200A Series, PC1300X Series, PCS6800A Series, and PCS6800APHEB Series.

This powerful Operating System delivers enterprise manageability and security across a wide range of industries. Additionally, most features and functionality that customers expect to find on their desktop PCs are available in this Open-Source Operating System. The Long-Term Support (LTS) version ensures long-term stability with five years of free security and maintenance updates.

Included Apps:

  • Libre Office Suite
  • Mozilla Firefox Web Browser
  • Gnome Desktop
  • Rythm Box Media Player
  • VIM

Microsoft® Windows® 10 IoT Enterprise Embedded (EPKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

EPKEA Extended Denotation, “Embedded Product Key Entry Activation.”

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft® Windows® 10 IoT Enterprise Embedded LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 10 IoT Enterprise (PKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

PKEA Extended Denotation, “Product Key Entry Activation.”

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Microsoft® Windows® 10 IoT Enterprise LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft® Edge Web Browser
  • Libre Office
  • Media Player
+$85
Reset Configuration
Current Configuration
Base Price
PC1212AP		 $1845
Display
 Included
Processor
 Included
System Memory
 Included
Storage
 Included
Operating System
 Included
Expansion Kit
 Included

Part Number:

Download 3D CAD file
Download 2D CAD file
Datasheet

System

Memory (RAM)

1 x DDR3-L 204-pin SO-DIMM RAM (4, 8 GB)

System Chipset

SoC

Solid State Drive Type

1 x 2.5” SATA II, MLC

Solid State Drive Capacity

64, 128, 256, 512 GB, 1TB SSD

Input Current

0.94~1.89 A

Capacity (Screens)

500

I/O Ports

Serial Ports

3

Ethernet/LAN

2 x GbE RJ-45

Audio Output

1 x 3.5 mm Line-out

HDMI Port

Yes

Remote Power Switch

1 x Momentary Pushbutton with Integrated LED

Display Output

1 x HDMI® 1.4a

Power

DC power input jack, thumbscrew secured.

USB 2.0 Type A

2

USB 3.0 Type A

4

Serial Options

1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 2 x RS-232 DE-9P, COM2/COM3

Expansion Option

Optional Wi-Fi kit (IEEE 802.11a/b/g/n/ac card and antenna)

Display

Display Size

12.1” TFT XGA LCD

Resolution

1024 X 768

Luminance (cd/m^2)

450

Contrast Ratio

700:1

Backlight Lifetime (hrs)

50000

Colors

16.2 M

View Angle (H° V°)

170/170

Touch Screen

Touch Interface

USB

Optical Bonding

No

Touch Screen Type

Projected Capacitive Touch

Electrical

Input Power

22.5 W

Input Voltage

12~24 VDC

Mechanical

Enclosure Material

Black Steel Chassis, Aluminum Heatsink

Dimensions WxHxD

12.48 x 9.65 x 2.82” [317 x 245 x 71.6 mm]

Panel Cutout (inches) [mm]

11.54 x 8.70 [293 x 221 ]

Weight

~ 7.28 lbs [3.3 kg]

Mounting

Panel mounting, VESA 100 x 100 mm

Environmental

Storage Temperature

-22~175°F [-30~80°C]

Operating Temperature

32~140°F [0~60°C]

Relative Humidity

10 to 90% @ 40°C, non-condensing

Certification

NEMA Rating

NEMA 4 when panel mounted

IP Rating

IP65

CE

Yes

RoHS

Yes

FCC

Yes

Customers who bought this product also bought:

  • 2511-0121
    2511-0121
    Screen Protector, 12.1” (245mm x 184mm) 1 each.
    $30.00
  • 7532-0102
    7532-0102
    Win 10 OS Recovery Media USB Flash Drive.
    $20.00
  • 7431-0126
    7431-0126
    Cable, Input Power, DC Jack/Leads, 5 ft
    $30.00
  • 7532-0103
    7532-0103
    Win 10 OS Recovery Media USB Flash Drive.
    $40.00
  • 2860-0013A
    2860-0013A
    Mounting Clips Kit.
    $17.00
  • 7431-0103
    7431-0103
    Cable, CAT5E Ethernet, 5′
    $15.00
  • 4010-0015
    4010-0015
    Power Supply & Cord, Desktop, 24VDC, 2.71A Power Brick with AC Cable.
    $45.00
  • 7431-0104
    7431-0104
    Cable, CAT5E Ethernet, Crossover, 5′
    $15.00
  • 7433-0005
    7433-0005
    Adapter, PC USB 2.0/3.0 to Ethernet.
    $40.00
  • 2140-0003
    2140-0003
    Input Power Connector
    $17.00

Documents

Certifications

Need Additional Support?

Contact Us

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

When you order the PC1212AP the following items are included in the box:

  • PC1212AP Industrial Panel PC
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • Input Power Cable
  • Mounting Kit (Quantity determined by screen size)
  • 4 x VESA Mounting Screws
