18.5" Intel® 6th Gen Core i5 Panel PC with Windows® or Linux OS®

OMI6918BP
— Leave a Review
$3,170.00
Configure PC

UL-certified (cULus), high-quality construction, industrial grade components, and a fanless cooling system, makes the OMI6918BP a great Panel PC choice for industrial applications. As part of our powerful Industrial PC Series, this 18.5” capacitive touchscreen industrial computer comes with either a Linux® or a Windows® OS which supports most 3rd party SCADA software like SIMATIC WinCC, Ignition, FactoryTalk®, & Aveva Edge®.

Compare our OMI6918BP with similar products

Share the product:
  • OMI6918BP Front View
  • OMI6918BP Back View
  • OMI6918BP Right View

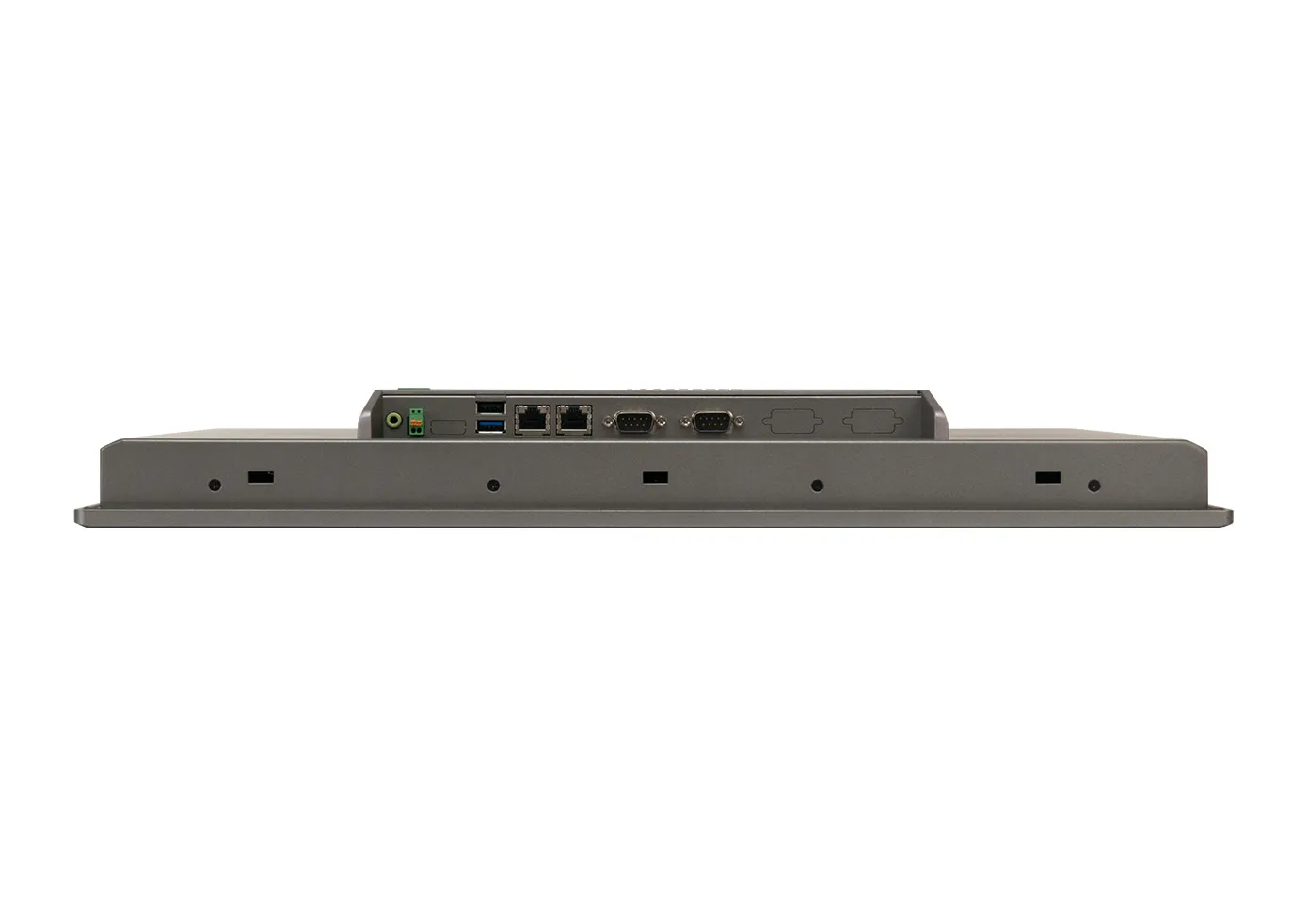

  • OMI6918BP Bottom View

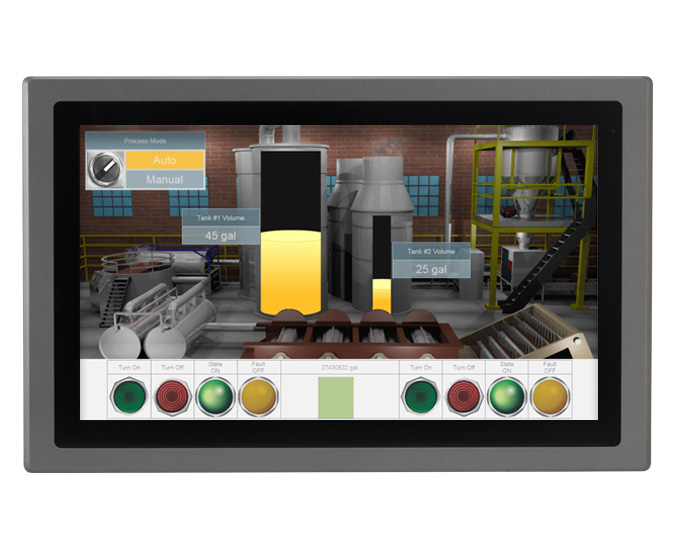

OMI6918BP Front View

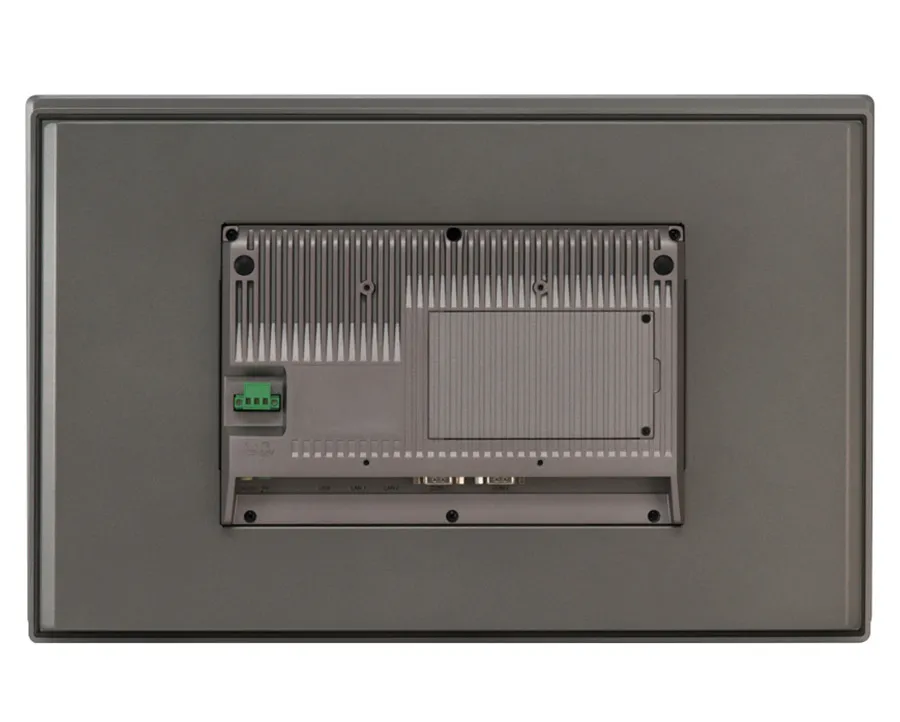

OMI6918BP Back View

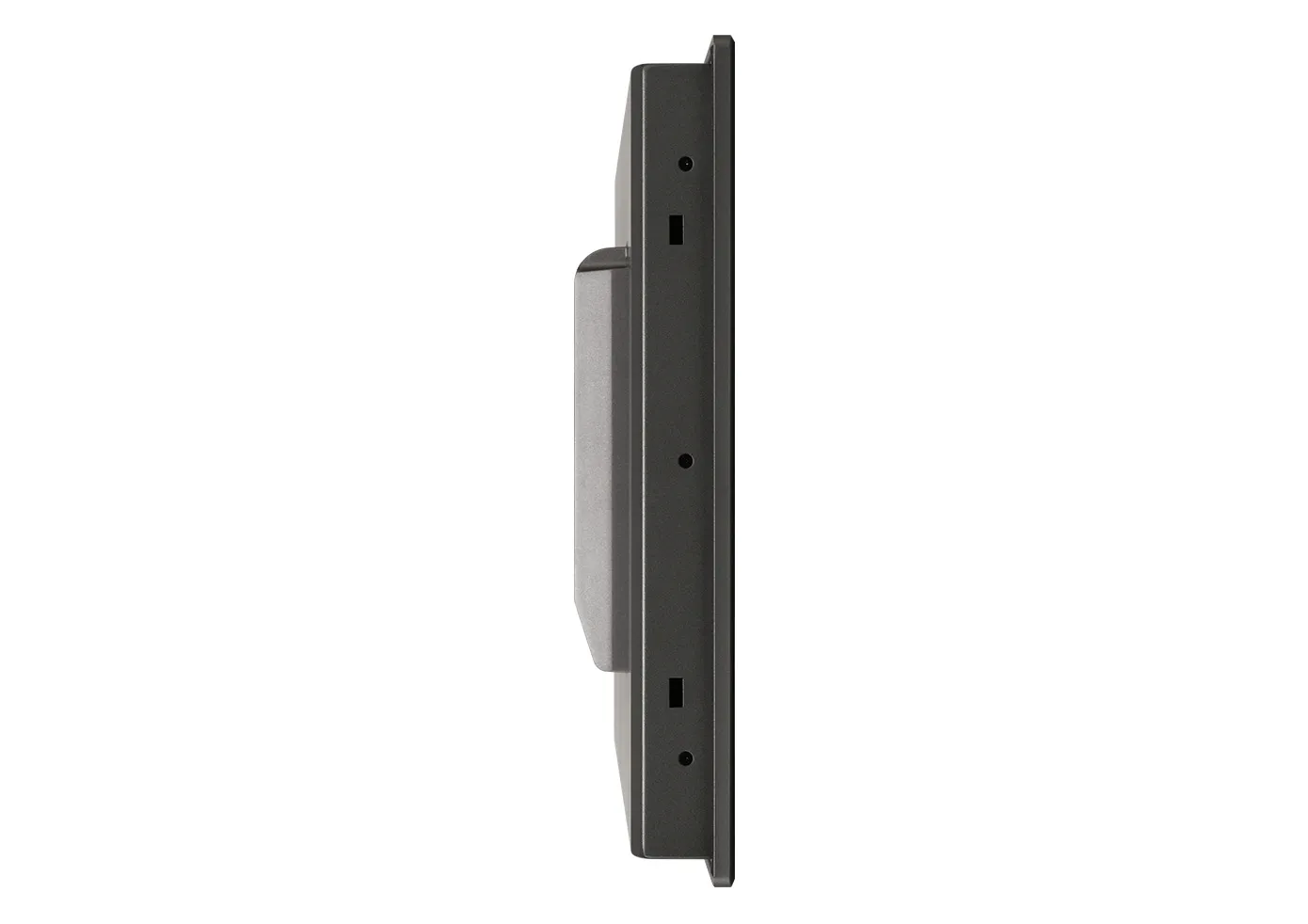

OMI6918BP Right View

Media Gallery

18.5" Intel® 6th Gen Core i5 Panel PC with Windows® or Linux OS®

  • OMI6918BP Front View
  • OMI6918BP Back View
  • OMI6918BP Right View
  • OMI6918BP Bottom View
  • Video thumbnail
  • Video thumbnail
OMI6918BP Front View
OMI6918BP Back View
OMI6918BP Right View
OMI6918BP Bottom View

OMI6900 Series Unboxing

We’ll review what comes with the PC, the I/O ports and some features, and other sizes we offer.

Watch on YouTube

Rugged Panel PC's

A glimpse at what our Panel PCs offer

Watch on YouTube

OMI6918BP Highlights

  • 1366 x 768 Resolution
  • Intel 6th Gen Core i5-6300U 2.4GHz CPU
  • 8GB to 16GB RAM, 64GB up to 1TB MLC SSD
  • Microsoft Windows® or Linux® Operating Systems
  • Wi-Fi Kit upgrades available
  • Aluminum Enclosure, VESA or Panel Mount



View Datasheet

This product:
Total price: N/A

The base options are selected by default. Select the options to get the desired configuration.

Compare “Intel® Skylake Core™ i5-6300 2.4GHz” performance with other processors

Relative CPU performance scores provided by PassMark

Ubuntu® Linux® Desktop LTS

Supported Models: AEX-2410, IPC2330A, IPC2110A, IPC2210A, IPC2400A Series, IPC2550A, IPC2700A Series, OMI6800BPHEB Series, OMI6900BP Series, PC1200A Series, PC1300X Series, PCS6800A Series, PCS6800APHEB, PC8100 Series and Windows Rugged Tablets.

This powerful Operating System delivers enterprise manageability and security across a wide range of industries. Additionally, most features and functionality that customers expect to find on their desktop PCs are available in this Open-Source Operating System. The Long-Term Support (LTS) version ensures long-term stability with five years of free security and maintenance updates.

Included Apps:

  • Libre Office Suite
  • Mozilla Firefox Web Browser
  • Gnome Desktop
  • Rythm Box Media Player
  • VIM

Microsoft® Windows® 10 IoT Enterprise Embedded (EPKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

EPKEA Extended Denotation, “Embedded Product Key Entry Activation.”

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft® Windows® 10 IoT Enterprise Embedded LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 10 IoT Enterprise (PKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

PKEA Extended Denotation, “Product Key Entry Activation.”

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Microsoft® Windows® 10 IoT Enterprise LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft® Edge Web Browser
  • Libre Office
  • Media Player
Reset Configuration

Current Configuration

Base Price

OMI6918BP

 $3170

Display

 Included

Processor

 Included

System Memory

 Included

Storage

 Included

Operating System

 Included

Expansion Kit

 Included
Part Number

Datasheet2D CAD File3D CAD File

System

CPU

Intel Skylake Core i5-6300U 2.4GHz Dual-Core

Memory (RAM)

1x DDR4 260-pin SO-DIMM 2133MHz RAM (8, 16 GB)

System Chipset

SoC

Solid State Drive Type

1 x 2.5” SATA III, MLC

Solid State Drive Capacity

64, 128, 256, 512 GB, 1TB SSD

I/O Ports

Power

3-pin connector header, DC power input

Ethernet/LAN

2 x GbE RJ-45

Audio Output

1 x 3.5 mm line out

SD Card Slot

N/A

HDMI Port

No

Remote Power Switch

2-pin connector header

Display Output

No

USB 3.0 Type A

2

Serial Ports

2

Serial Options

1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 1 x RS-232 DE-9P, COM2

Expansion Option

Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support

Display

Display Size

18.5" HD TFT LCD

Resolution

1366 x 768

Luminance (cd/m^2)

300

Contrast Ratio

1000:1

Backlight Lifetime (hrs)

50,000+

Colors

16.7 M

View Angle (H° V°)

170/160

Touch Screen

Touch Interface

USB

Light Transmission

90+%

Optical Bonding

No

Touch Screen Type

Projected Capacitive

Electrical

Input Power

55 W

Input Voltage

9~36 VDC

Input Current

6.11 A Max

Mechanical

Enclosure Material

Silver aluminum front bezel and chassis

Dimensions WxHxD

19.69 x 12.40 x 2.83 inches [500 x 315 x 72 mm]

Panel Cutout (inches) [mm]

18.98 x 11.69 [482 x 297]

11.69 x 18.98 [297 x 482 ]

Weight

~ 13.23 lbs. [6 kg]

Mounting

Panel mounting, VESA 100 x 100 mm

Environmental

Operating Temperature

32~122°F [0~50°C]

Storage Temperature

-22~158°F [-30~70°C]

Relative Humidity

10 to 90% @ 40°C, non-condensing

Certification

NEMA Rating

NEMA 4 when panel mounted

IP Rating

IP66

CE

Yes

UL

Yes

ATEX

No

RoHS

Yes

FCC

FCC Class A

OMI6900 Series Unboxing

We'll review what comes with the PC, the I/O ports and some features, and other sizes we offer.

Watch on YouTube

Capacitive/Glove Friendly

Our Rugged, Industrial Panel PCs with Capacitive Touchscreens are Glove Friendly, watch as we demonstrate with our OMI6900 Series Panel PC.

Watch on YouTube

Customers who bought this product also bought:

When you order the OMI6918BP the following items are included in the box:

  • OMI6918BP Industrial Panel PC
  • DC Power Connector (3 pin terminal block)
  • Remote Power Switch Connector (2 pin terminal block)
  • DC Power adapter with cord
  • Mounting Clamp Kit
