omi6812bpheb Front View

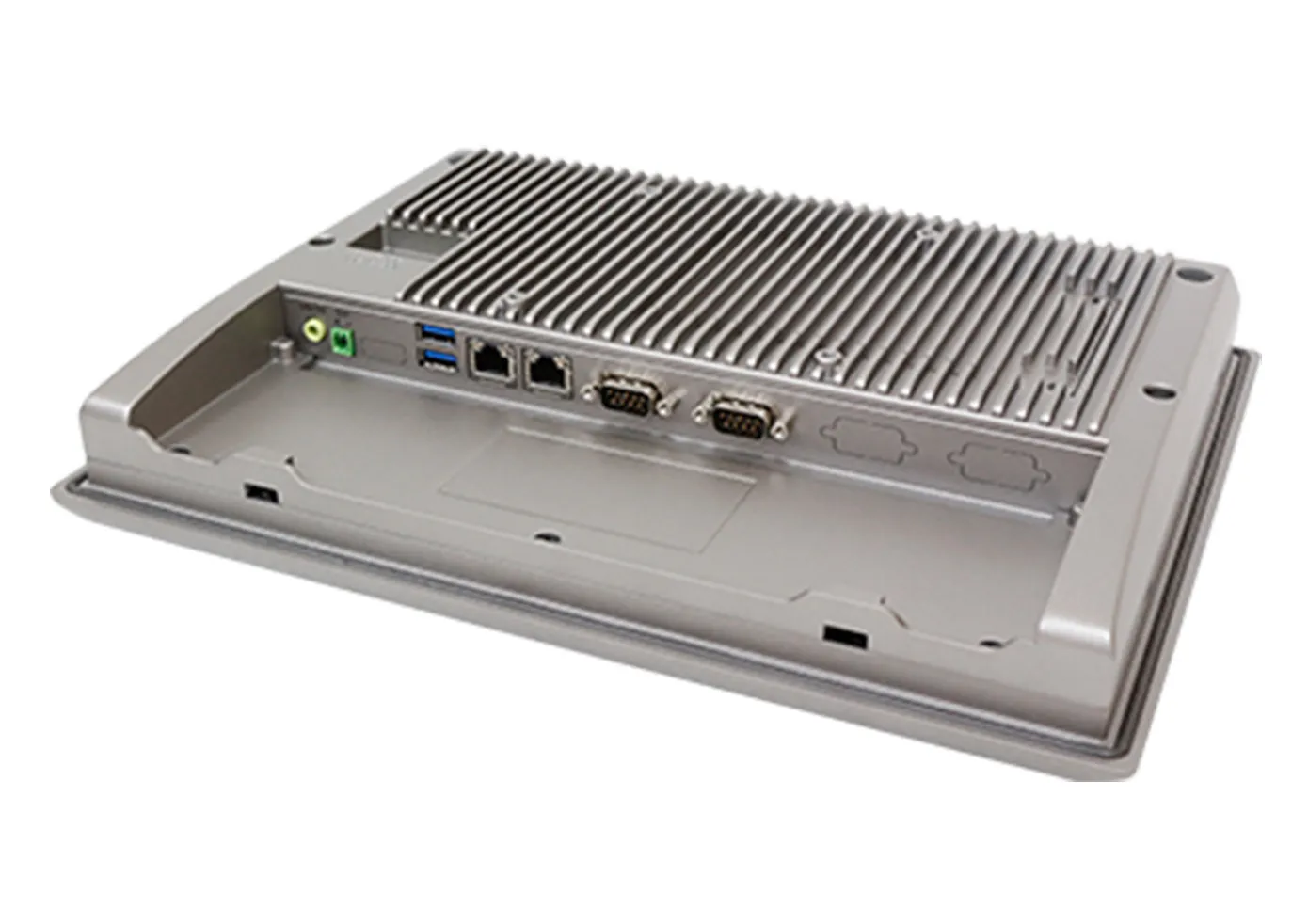

OMI6812BPHEB Cross View

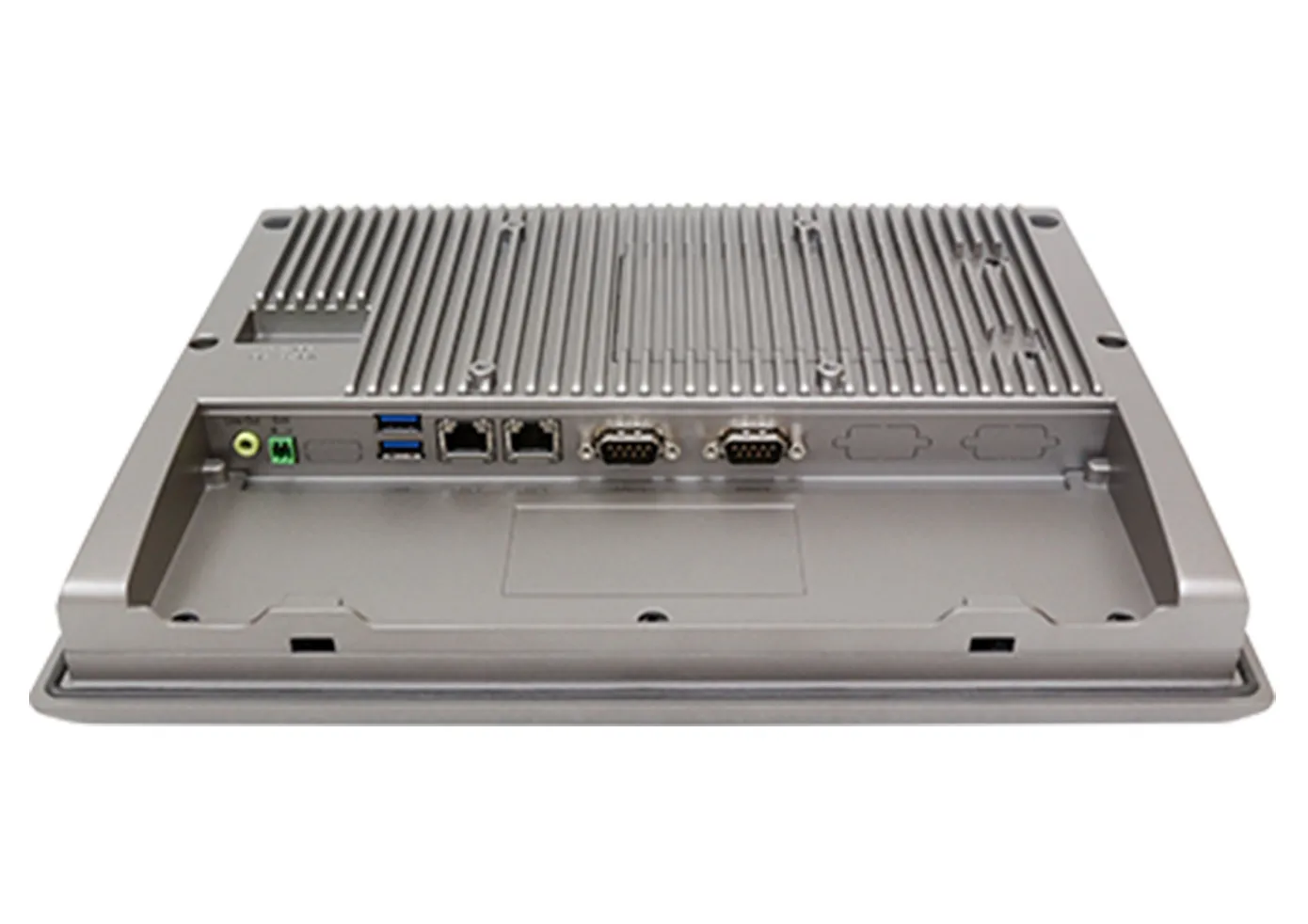

OMI6812BPHEB Top View

OMI6812BPHEB

  • 800 x 600 Resolution
  • High Brightness-1000 nits, Capacitive Touchscreen
  • Intel® Pentium Apollo Lake N4200 Quad-Core 1.1 GHz Processor
  • Microsoft Windows® 10 IoT Ent Embedded 64-bit
  • -20 ~ 60 C Operating Temperature
  • Aluminum Enclosure, VESA or Panel Mount
  • IP66/NEMA4
  • Optional Wi-Fi Upgrade
  • Integrate with AVEVA™ Edge
View Datasheet

12.1" Intel® Apollo Lake® Wide-Temp, High Bright IPC with Windows® OS

OMI6812BPHEB

$2,460.00
Configure Your PC

With a solid state platform and fanless cooling system, this UL-certified IPC is ideal for industrial applications. The OMI6812BPHEB is a rugged 12.1” extended temperature (-2~60c), 1000nits display, optically bonded capacitive touchscreen industrial computer designed to meets strict industry standards. With Windows® 10 IoT, this industrial computer supports 3rd party and SCADA software like FactoryTalk® or our Aveva Edge ®. Storage and optional WiFi upgrade available. VESA or Panel Mount.

Configure your PC

The base options are selected by default. Select the options to get the desired configuration.

Compare "Intel® Pentium® N4200 Quad-Core, 1.1 GHz" performance with other processors

Relative CPU performance scores provided by PassMark
+$45
+$155
+$300
+$650
-$50

Ubuntu® Linux® Desktop LTS

Supported Models: AEX-2410, IPC2330A, IPC2110A, IPC2210A, IPC2400A Series, IPC2550A, IPC2700A Series, OMI6800BPHEB Series, OMI6900BP Series, PC1200A Series, PC1300X Series, PCS6800A Series, and PCS6800APHEB Series.

This powerful Operating System delivers enterprise manageability and security across a wide range of industries. Additionally, most features and functionality that customers expect to find on their desktop PCs are available in this Open-Source Operating System. The Long-Term Support (LTS) version ensures long-term stability with five years of free security and maintenance updates.

Included Apps:

  • Libre Office Suite
  • Mozilla Firefox Web Browser
  • Gnome Desktop
  • Rythm Box Media Player
  • VIM

Microsoft® Windows® 10 IoT Enterprise Embedded (EPKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

EPKEA Extended Denotation, “Embedded Product Key Entry Activation.”

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft® Windows® 10 IoT Enterprise Embedded LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 10 IoT Enterprise (PKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

PKEA Extended Denotation, “Product Key Entry Activation.”

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Microsoft® Windows® 10 IoT Enterprise LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft® Edge Web Browser
  • Libre Office
  • Media Player
+$85
Reset Configuration
Current Configuration
Base Price
OMI6812BPHEB		 $2460
Display
 Included
Processor
 Included
System Memory
 Included
Storage
 Included
Operating System
 Included
Expansion Kit
 Included

Part Number:

Download 2D CAD file
Download 3D CAD file
Datasheet

System

Memory (RAM)

1 GB

Onboard DDR3L 4 GB 1600 MHz

Memory (Flash)

4 GB

RTC

Built-in

System Chipset

SoC

Solid State Drive Type

1 x 2.5” SATA III, MLC

Solid State Drive Capacity

64, 128, 256, 512 GB, 1TB SSD

Input Current

1.18-4.71 A

Capacity (Screens)

500

I/O Ports

Serial Ports

2

Ethernet/LAN

2 x GbE RJ-45

LAN 1: 10/100/1000 Base-T x 1LAN 2: 10/100 Base-T x 1

Audio Output

1 x 3.5 mm line out

SD Card Slot

1 x internal micro Secure Digital memory card socket, up to 32 GB

Wi-Fi
Remote Power Switch

2-pin connector header

Power

3-pin connector header, DC power input

USB 3.0 Type A

2

Serial Options

1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 1 x RS-232 DE-9P, COM2

Expansion Option

Optional Wi-Fi kit (IEEE 802.11a/b/g/n/ac card and antenna)

Display

Display Size

12.1” SVGA TFT LCD

Resolution

800 x 600

Luminance (cd/m^2)

1000

Contrast Ratio

700:1

Backlight Lifetime (hrs)

50000

Colors

16.2 M

View Angle (H° V°)

178/178

Touch Screen

Touch Interface

USB

Light Transmission

90+%

Optical Bonding

Yes

Digital I/O Port

N/A

Touch Screen Type

Projected Capacitive Touch

Electrical

Input Power

42.4 W

Con.A: COM2 RS-485 2 W/4 W, COM3 RS-485 2 W, CAN BusCon.B: COM1 RS-232 4 W, COM3 RS-232 2 W*

Power Isolation

N/A

Power Dissipation

N/A

Current for Internal Bus

N/A

Input Voltage

9~36 VDC

Mechanical

Enclosure Material

Silver aluminum front bezel and chassis

Dimensions WxHxD

12.56 x 9.65 x 2.03” [319 x 245 x 51.7 mm]

Panel Cutout (inches) [mm]

11.93 x 9.02 [303 x 229 ]

Weight

~ 6.2 lbs [2.8 kg]

Mounting

Panel mounting, VESA 100 x 100 mm

Environmental

Storage Temperature

-22~158°F [-30~70°C]

Operating Temperature

-4~140°F [-20~60°C]

Relative Humidity

10 to 95% @ 40°C, non-condensing

Certification

NEMA Rating

NEMA 4 when panel mounted

IP Rating

IP66

CE

Yes

UL

Yes

ATEX

No

RoHS

Yes

FCC

Yes

Customers who bought this product also bought:

  • 2511-0121
    2511-0121
    Screen Protector, 12.1” (245mm x 184mm) 1 each.
    $30.00
  • 4010-0011
    4010-0011
    Power Supply, Single Output, DIN Rail, 24VDC, 2.5A.
    $50.00
  • 7532-0102
    7532-0102
    Win 10 OS Recovery Media USB Flash Drive.
    $20.00
  • 7532-0103
    7532-0103
    Win 10 OS Recovery Media USB Flash Drive.
    $40.00
  • 7431-0103
    7431-0103
    Cable, CAT5E Ethernet, 5′
    $15.00
  • 7431-0104
    7431-0104
    Cable, CAT5E Ethernet, Crossover, 5′
    $15.00
  • 7433-0005
    7433-0005
    Adapter, PC USB 2.0/3.0 to Ethernet.
    $40.00
  • 2140-0308
    2140-0308
    Input Power Connector
    $7.00
  • 4010-0014
    4010-0014
    Supply, Switching, Desktop, 12VDC, 5A, Leads, With AC Power Cord.
    $45.00

Documents

Certifications

Need Additional Support?

Contact Us

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

When you order the OMI6812BPHEB the following items are included in the box:

  • OMI6812BPHEB Industrial Panel PC
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • DC Power Connector
  • DC Power Adapter with cord
  • 2-Pin Remote Power Switch connector
  • Mounting Kit (Quantity determined by screen size)

× Close
