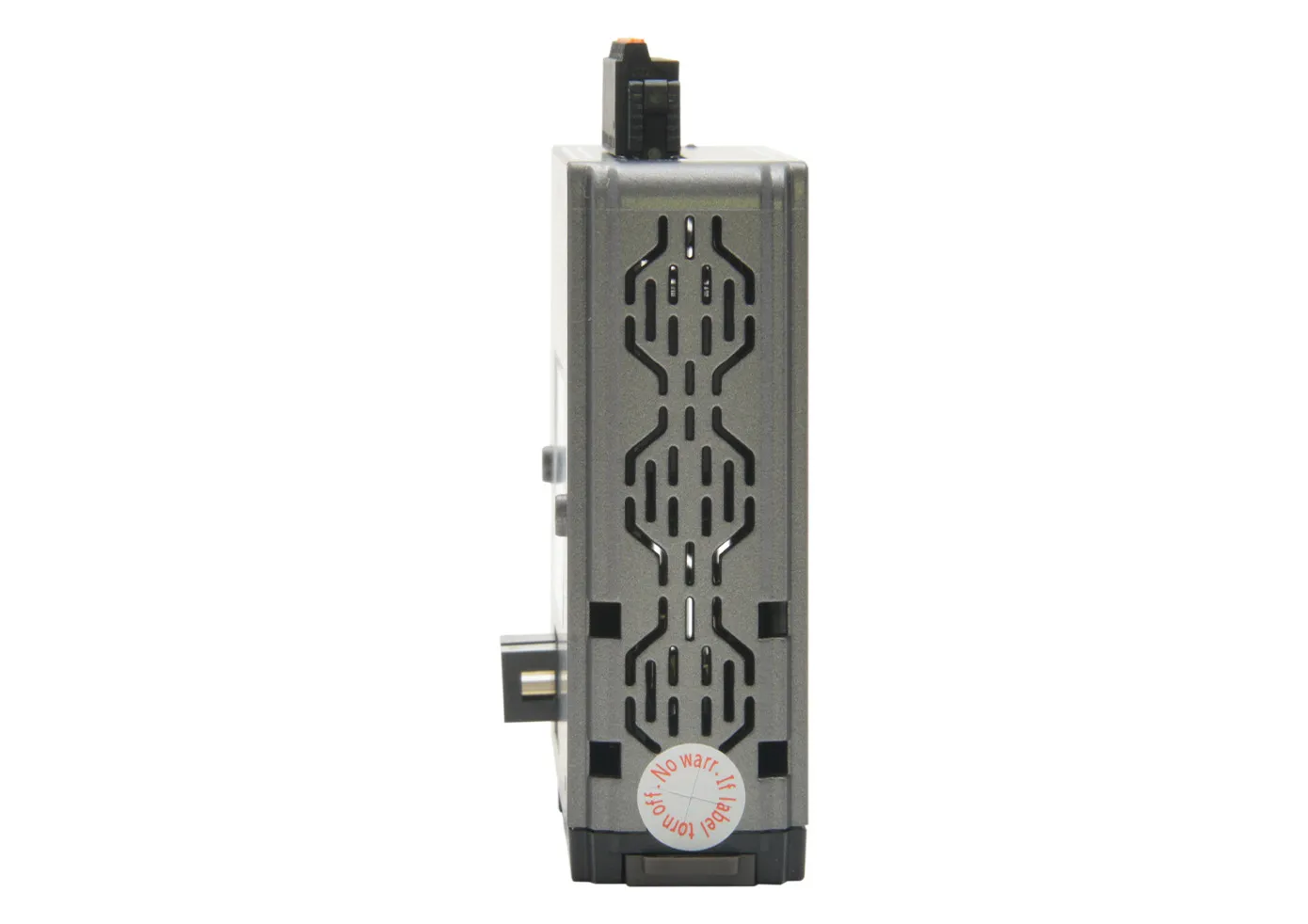

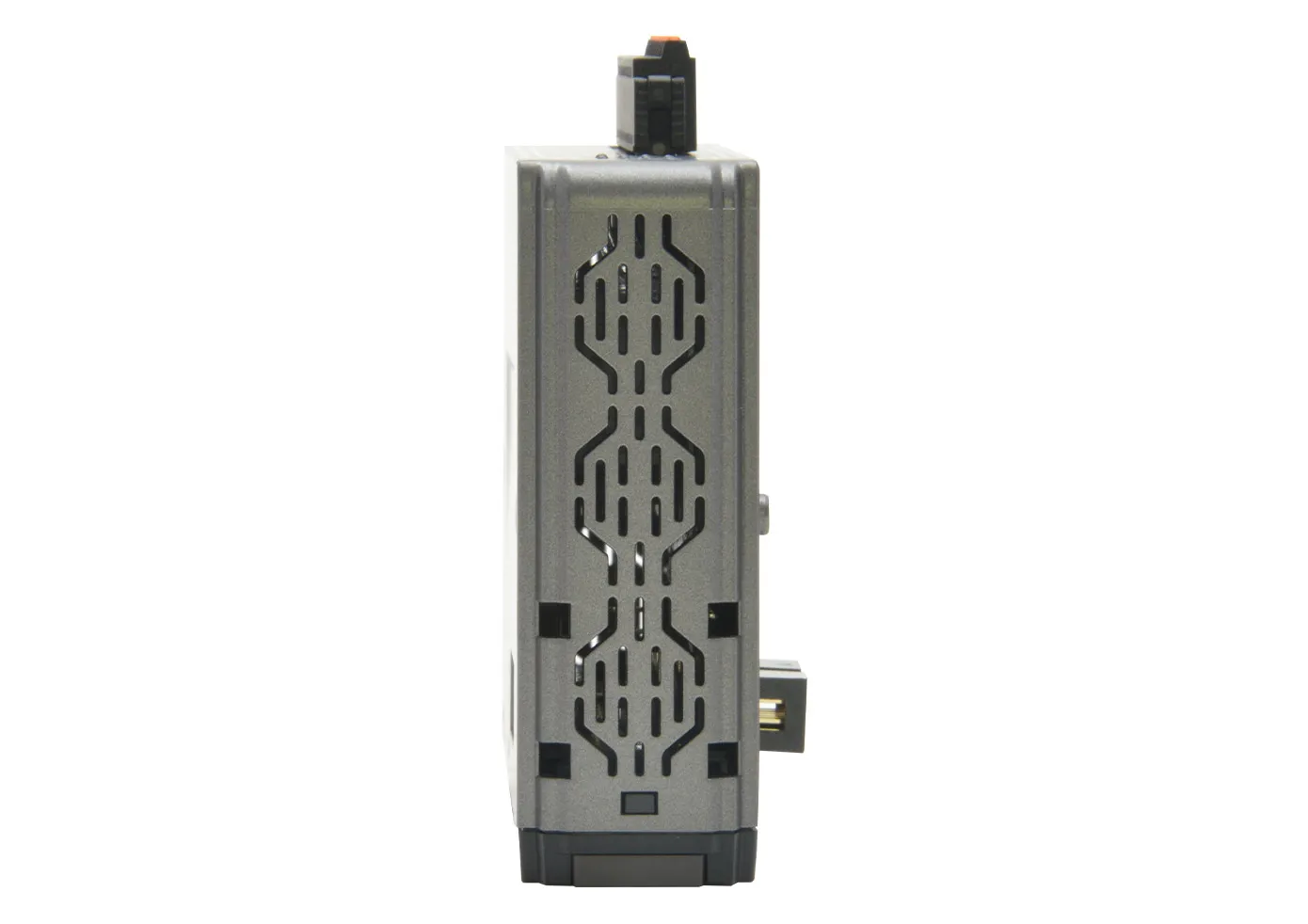

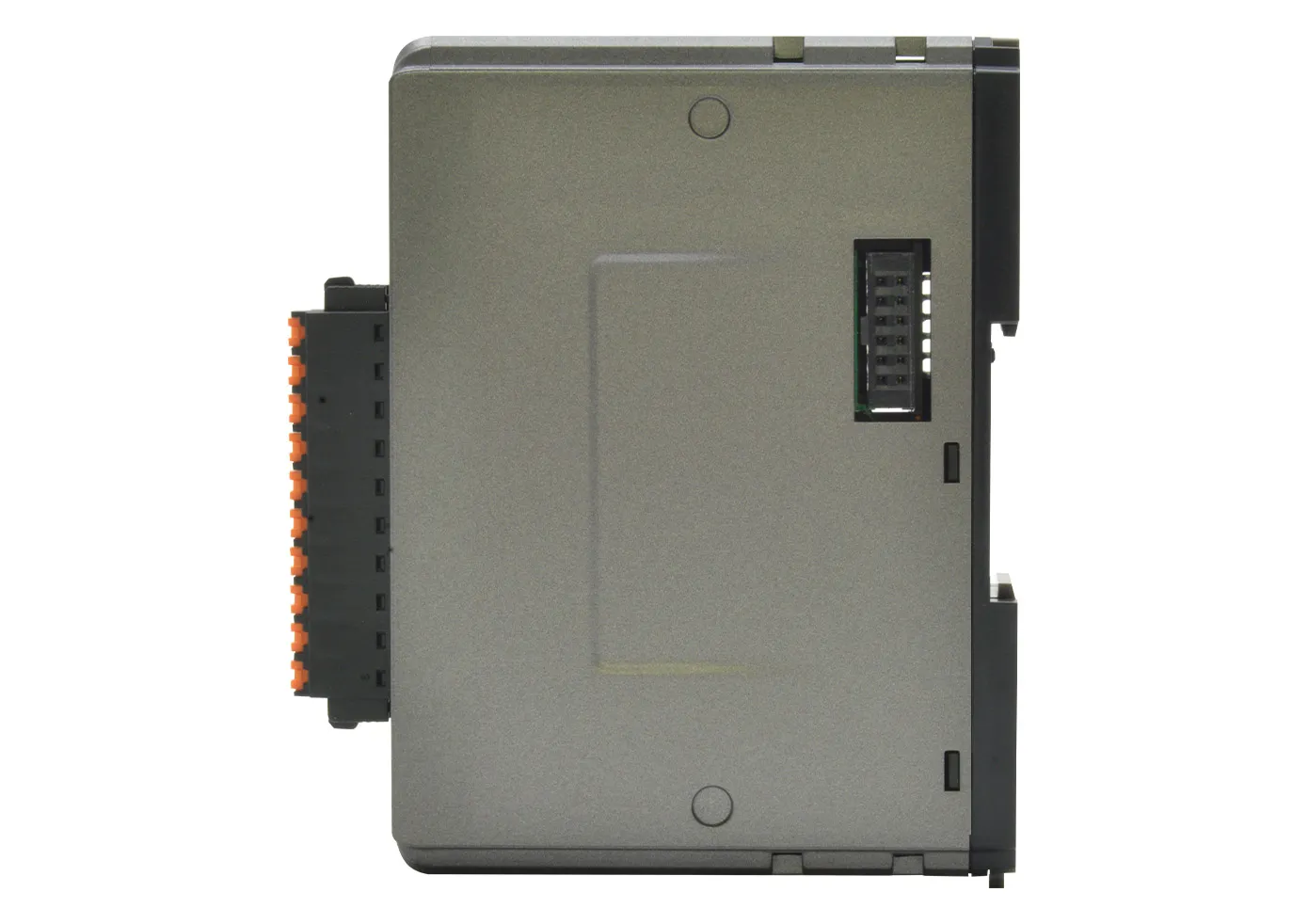

Digital IO Module | iR-DQ08-R
$139.00
As part of the iR Series, this I/O module works with any qualifying cMT HMI or PLC Base (cMT-CTRL01) to implement a control solution that utilizes our free EasyRemoteIO software or CODESYS programming. Mix and match additional I/O modules to meet your unique project needs. See below for more information how this module integrates with other hardware.
- US-based technical support.
Share the product:
- 8 Relay Digital Outputs
Communication
| Connection Cross-section | AWG 24-16 |
Digital Output
| Total Number of Outputs | 8 |
| Output Logic | Relay |
| Output Voltage | 250VAC/30VDC |
| Output Current | 2A per channel (Max 8A) |
| Response Time | 10ms |
| Isolation | Yes, electromagnetic isolation |
| Current Consumption | 220mA@5VDC |
Mechanical
| Enclosure Material | Plastic |
| PCB Coating | N/A |
| Dimensions WxHxD | 27 x 109 x 81 mm |
| Weight | Approx. 0.13 kg |
| Mounting | 35mm DIN Rail Mounting |
Environmental
| Operating Temperature | 0° ~ 55°C (32° ~ 131°F) |
| Storage Temperature | -20° ~ 70°C (-4° ~ 158°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| IP Rating | IP20 |
| CE | Yes |
| UL | cULus Listed |
| RoHS | Yes |
| EMC Immunity | Conforms to EN 55032: 2012+AC: 2013, Class A EN 61000-6-4: 2007+A1:2011 EN 55024: 2010+A1: 2015 EN 61000-6-2:2005 |
Remote IO Webinar
Remote IO product line demonstration and it's quick and simple integration into an existing system
User Friendly Configuration Software
Experience the freedom of configuring remote I/O without any cost.
Our free and user friendly configuration tool lets you easily design custom IO blocks by selecting digital and analog modules. With a straightforward interface, mapping them to your controller is seamless and stress-free. No hidden fees, no complicated steps—just simple setup to get your control systems up and running faster.
Documents
Manuals
Certifications
- CE-Declaration of Conformity – iR-ETN, iR-COP, iR-DI16-K, iR-DM16-P, iR-DQ16-P, iR-DM16-N, iR-DQ16-N, iR-DQ08-R
- UL Certification Declaration – cMT Series
- RoHS Declaration of Conformity (all series)
- Trade Agreement Act Declaration of Conformity
- Russian Iron and Steel Declaration
- Country of Origin Certification
CAD Files
When you order the IR-DQ08-R the following items are included in the box:
- Ir-DQ08-R
- 2 x Clips
- Manual
