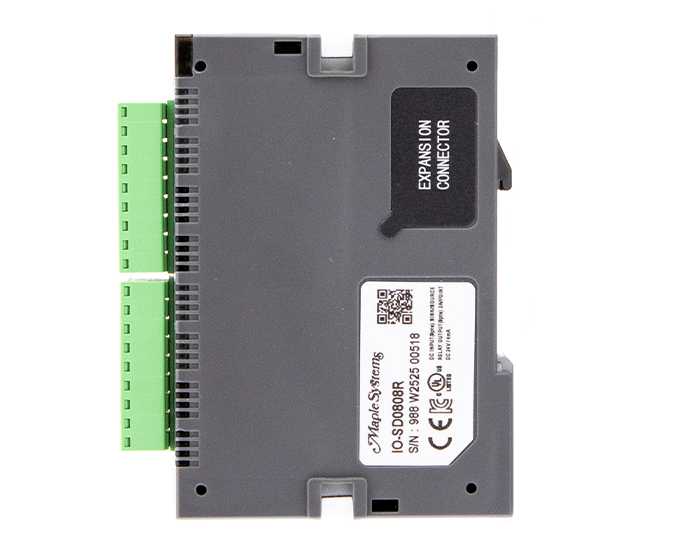

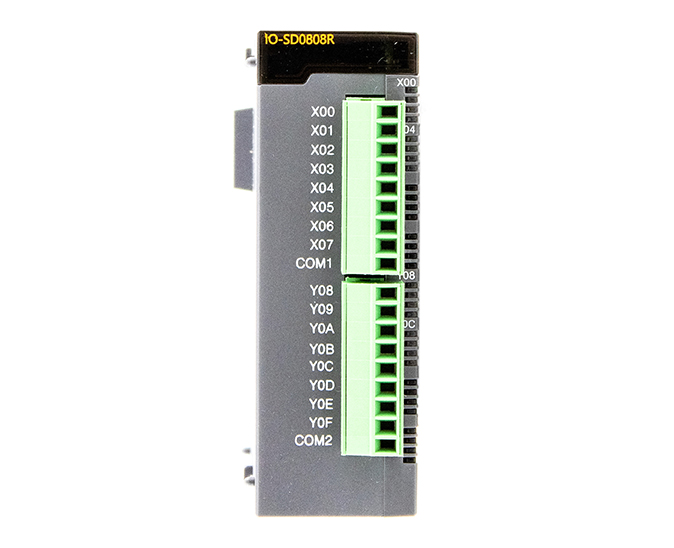

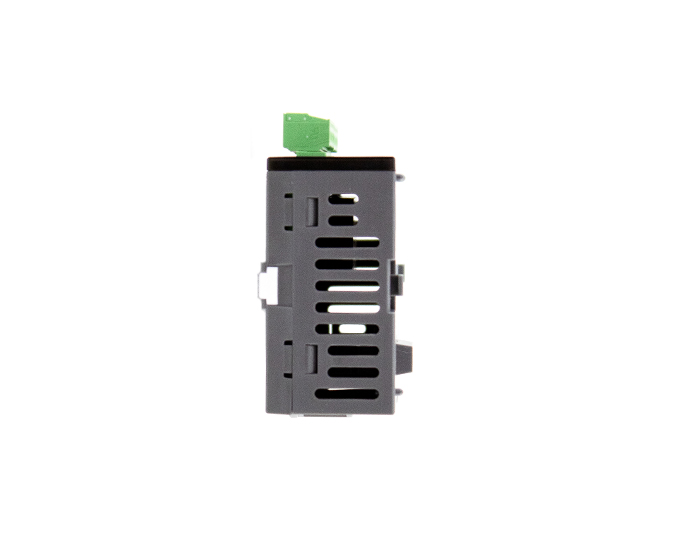

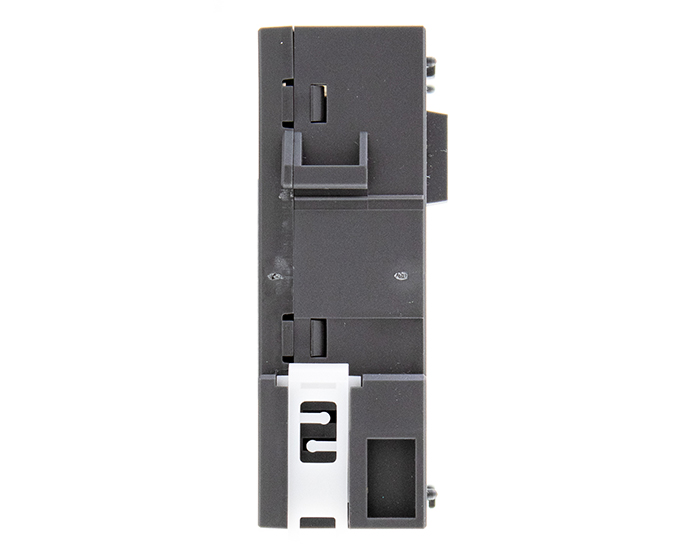

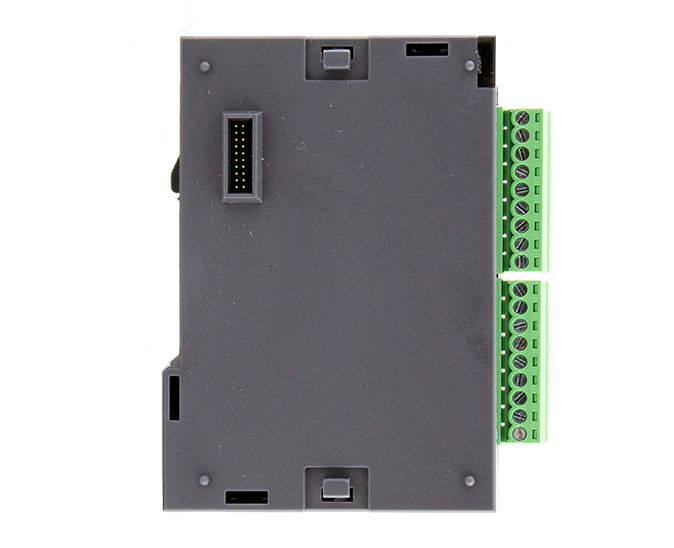

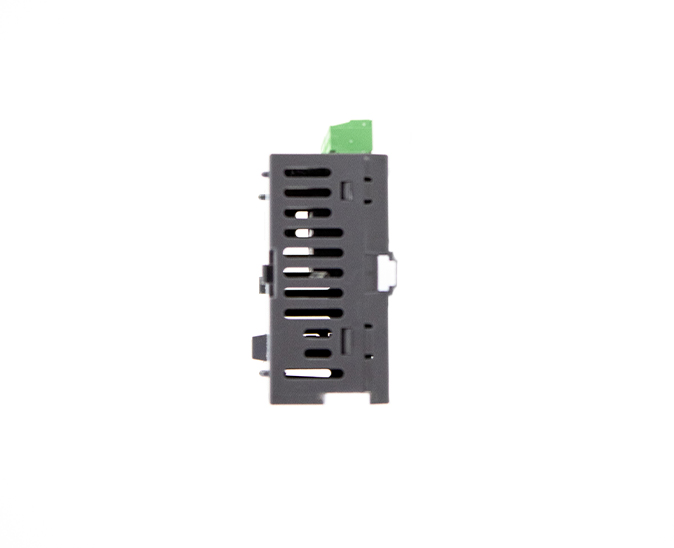

Digital Input/Output Module – 8 TR Sink/Source Inputs 8 Relay Outputs
$185.00
8 TR Sink/Source Inputs
8 Relay Outputs
Input: 24 VDC
Output: 24 VDC/220 VAC
Screw-based Terminal
- Volume discounts available.
- US-based technical support.
Share the product:
IO-SD0808R Highlights
- 8 TR Sink/Source Inputs
- 8 Relay Outputs
- Compatible expansion with any Maple modular PLC CPU
- Group-isolated
- Automatically detects sink/source input, no programming required
Digital Input
| Number of Digital Input Points | 8 |
| Input Type | Sink/Source |
| Rated Digital Input Voltage | 24 VDC |
| Rated Digital Input Current | 4 mA |
| Response Time: Off -> On | 3 ms or less |
| Response Time: On -> Off | 3 ms or less |
| On Voltage/Current | DC 19 V/3 mA |
| Off Voltage/Current | DC 6 V/1 mA |
| Operation Indication | LED will be ON when the input is ON |
| Insulation Method | Photocoupler |
Digital Output
| Output Type | Relay |
| Number of Digital Output Points | 8 |
| Rated Digital Output Voltage | 24 VDC, 220 VAC |
| Rated Digital Output Current | 1 point = 2 A, 1 COM = 5 A |
| Response Time: Off -> On | 10 ms or less |
| Response Time: On -> Off | 5 ms or less |
| Insulation Method | Relay |
| Operation Indication | LED will be ON when the input is ON |
Mechanical
| Terminal Connector Type | Screw-based Connector |
| Dimensions WxHxD | 90 x 30 x 63 mm (3.5 x 1.2 x 2.5 in) |
| Weight | 134 g (0.30 lb) |
| Shock | 15G |
| Vibration | 0.5G – Continuous, 1G – Discontinuous |
| Square Wave Impulse Noise | ±2 kV |
| ESD Immunity | ±4 kV – Contact Discharges, ±8 kV – Air Discharges |
| Radiated Electromagnetic Immunity | 80–1000 MHz, 10 V/m |
| Surge Transient Immunity | 2 kV – CPU, Power; 2 kV – Digital I/O (VAC), 1 kV – Digital I/O (VDC), 1 kV – Communication |
Environmental
| Operating Temperature | -10 – 65 °C (14 – 149 °F) |
| Storage Temperature | -25 – 80 °C (-13 – 176 °F) |
| Operating/Storage Relative Humidity | 5 – 95% Non-condensing |
Certification
| CE | Yes |
| UL | Yes |
Connect a Maple Systems HMI to a Maple Systems PLC
Whether you are new to Maple Systems or know our HMIs well, pairing one of our powerful HMIs with a low-cost PLC is easy.
PLC with Expansion Module
Unbox a PLC, add expansion modules, download a project, and show automatic I/O module detection
FREE User Friendly PLC Software
Download our free, powerful PLC configuration software. Using your preferred programming language—Ladder Diagram, Instruction List, Sequential Function Chart, or Function Block—you can create your project, your way, for a one-of-a-kind control solution.
When you order the IO-SD0808R the following items are included in the box:
- IO-SD0808R
- Product Manual
