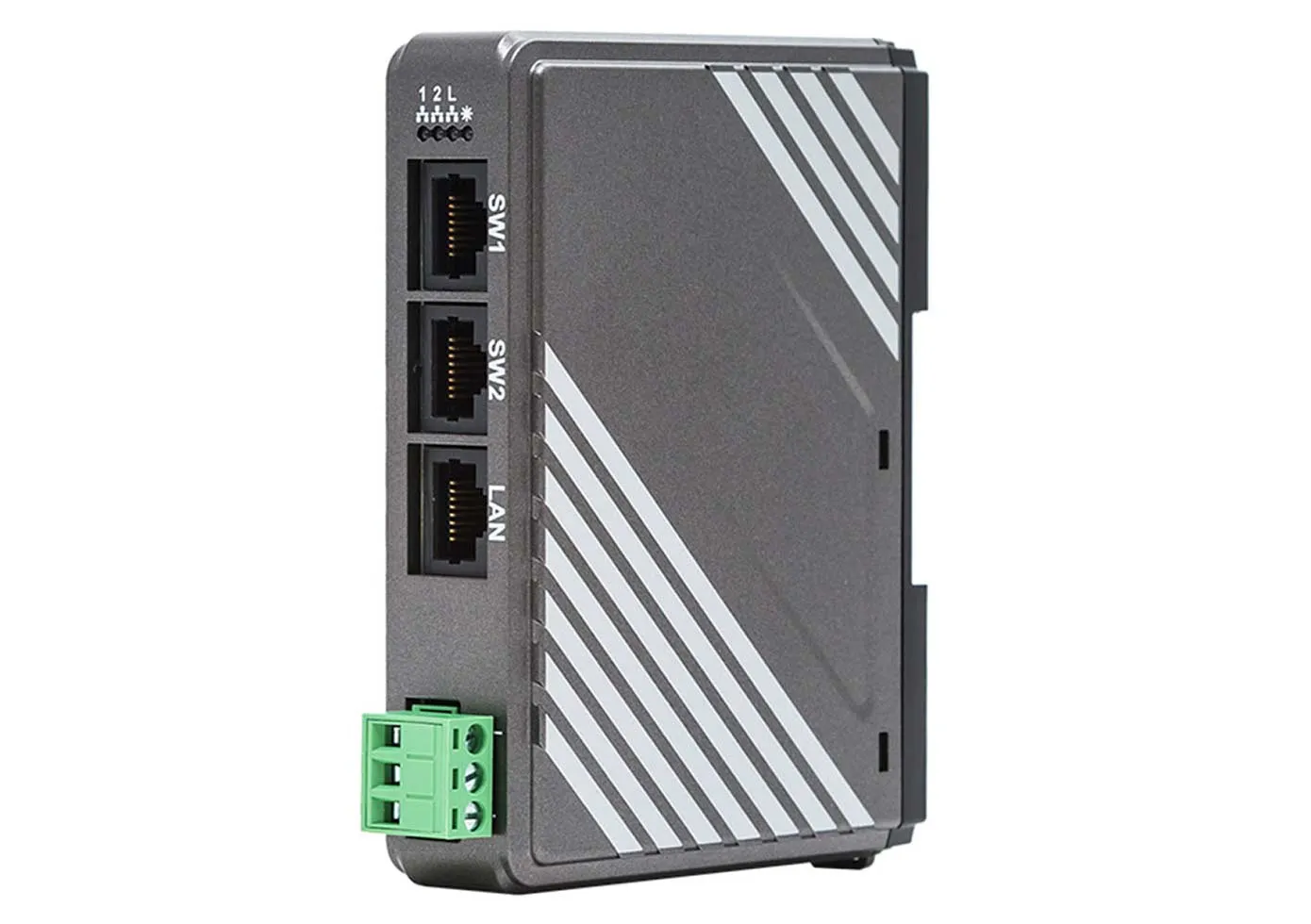

G04 Front View
G04 Back View

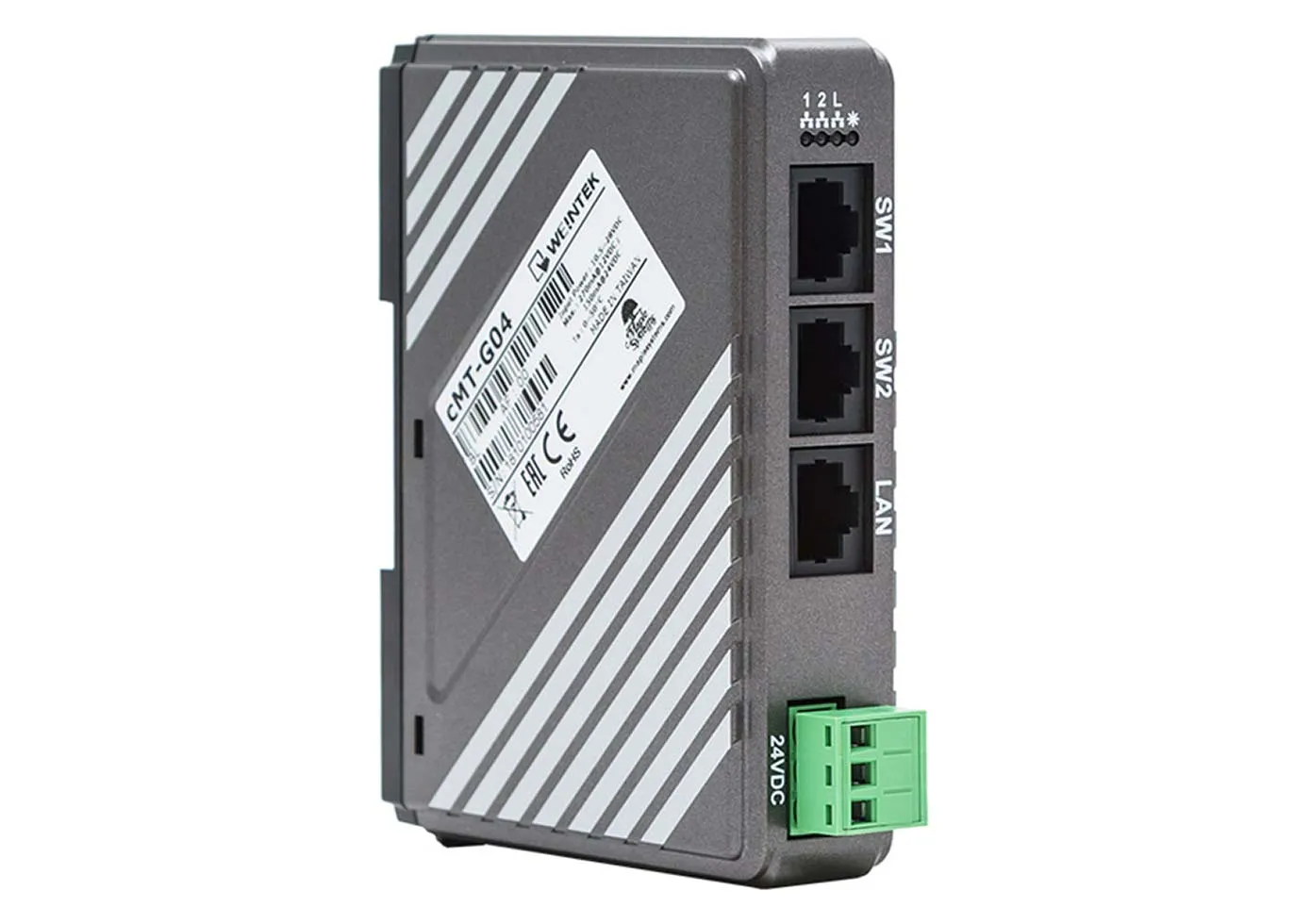

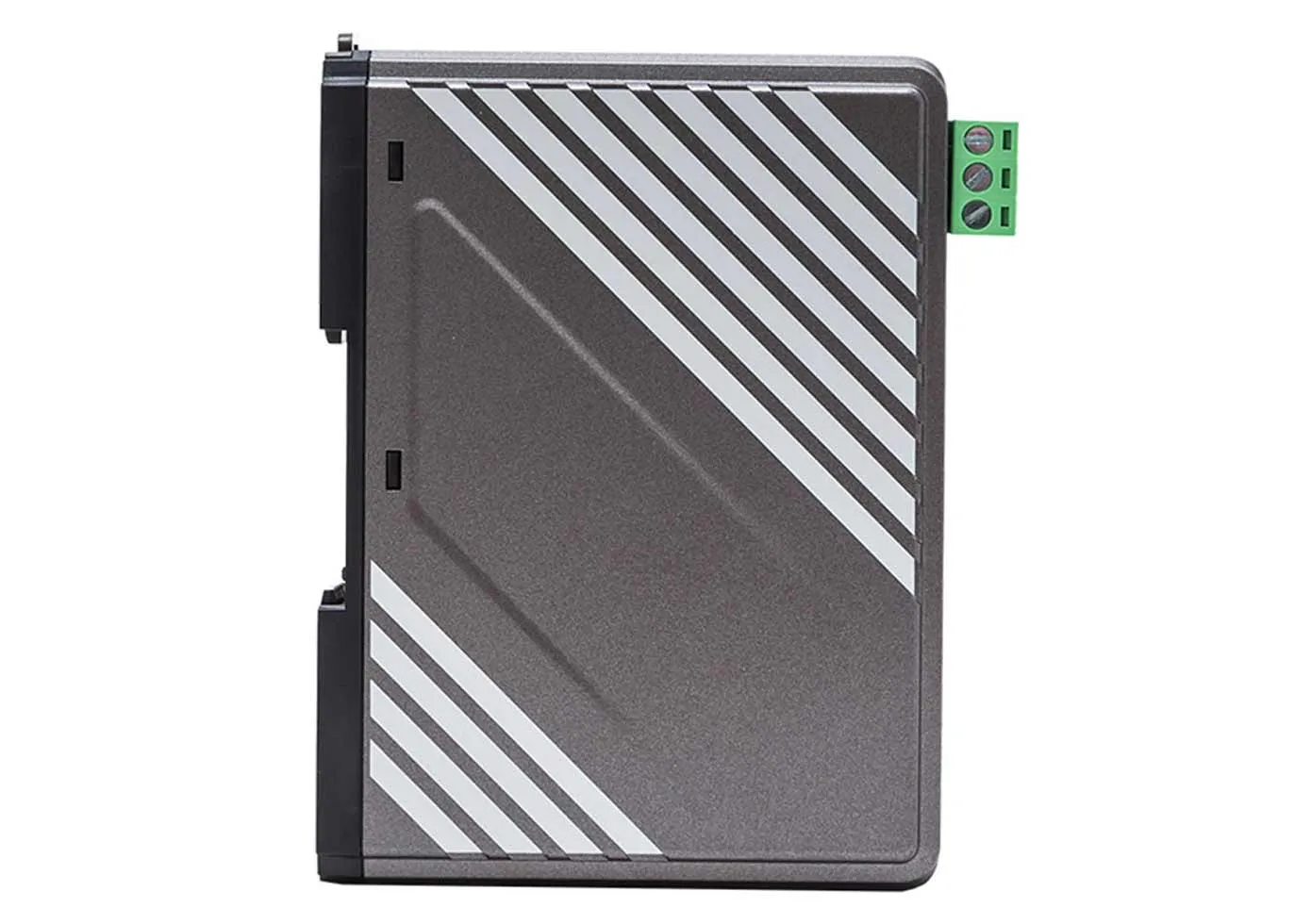

G04 side View

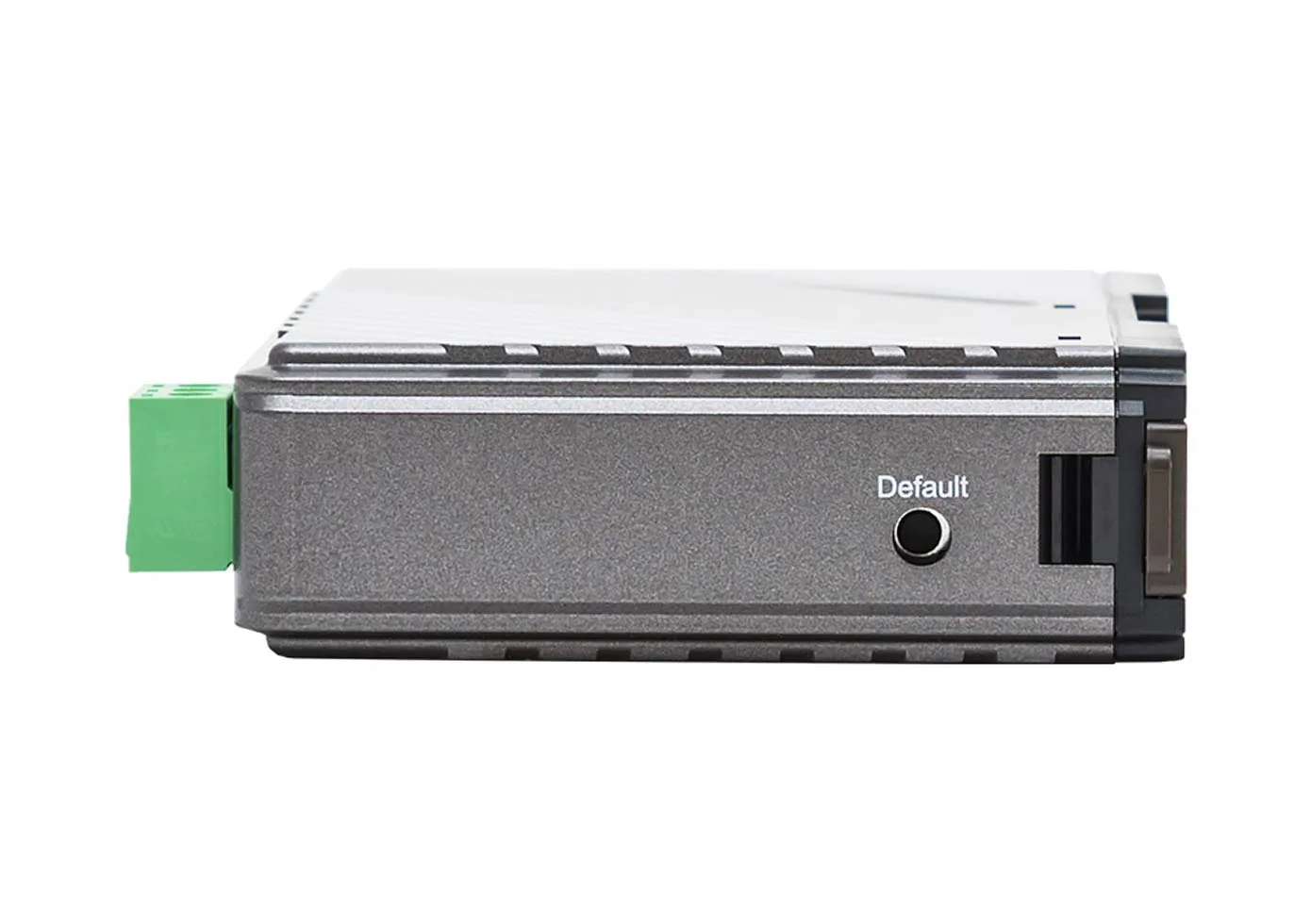

G04 Bottom View

cMT-G04

  • ARM RISC 528 MHz CPU
  • 256 MB Flash, 256 MB RAM
  • Supports OPC UA
  • Supports MQTT
  • Supports MODBUS TCP/IP Gateway
  • DIN Rail Mount
Download Software

cMT-G04 - Communication Protocol Gateway

cMT-G04

This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.

With built-in Ethernet switches, SW1 and SW2 can connect to your machine network without the need to add an additional Ethernet switch, saving you time and money. Transmit data from your factory floor securely into your SCADA or ERP system with ease.

Download 2D CAD file
Download 3D CAD file
Datasheet

System

Memory (RAM)

256 MB

Memory (Flash)

256 MB

RTC

Built-in

Programming Software

EasyBuilder Pro V6.01.02 or later versions

I/O Ports

Serial Ports

2

Ethernet/LAN

LAN: 10/100 Base-T x 1SW1, SW2: 10/100 Base-T x 1(2 port Ethernet switch)

CANbus

N/A

Audio Output

N/A

SD Card Slot

N/A

USB Host Ports

N/A

USB Client Ports

N/A

Wi-Fi

N/A

RS-485 Dual Isolation

N/A

Local bus

N/A

HDMI Port

N/A

Video Input

N/A

Display

Display Size

N/A

Resolution

N/A

Luminance (cd/m^2)

N/A

1000

400

350

300

Contrast Ratio

N/A

Backlight Type

N/A

Backlight Lifetime (hrs)

N/A

Colors

N/A

Display Type

N/A

Viewing Angle (H°/V°)

N/A

Touch Screen

Type

N/A

Electrical

Input Power

3.6 W

Power Isolation

Built-in

Power Dissipation

N/A

Current for Internal Bus

N/A

Current Consumption

N/A

Isolation Resistance

Exceed 50 MO - @ 500 VDC

Input Voltage

10.5 ~ 28 VDC

Input Current

270 mA @ 12 VDC;150 mA @ 24 VDC

Mechanical

Vibration Endurance

10 to 25Hz(X, Y, Z direction 2G 30 minutes)

Enclosure Material

Plastic

PCB Coating

Yes

Dimensions WxHxD

4.29 x 3.19 x 1.06 inches [109 x 81 x 27 mm]

Panel Cutout (inches) [mm]

N/A

Weight

Approx. 0.31 lbs. [0.14 kg]

Mounting

35 mm DIN rail

Environmental

Storage Temperature

-4° ~ 140°F (-20° ~ 60°C)

Operating Temperature

32° ~ 122°F (0° ~ 50°C)

Relative Humidity

10% ~ 90% (non-condensing)

Certification

UL Type Rating

N/A

NEMA Rating

N/A

IP Rating

IP20

CE

Yes

UL

cULus Listed

Class 1 Div 2

N/A

ATEX

N/A

RoHS

Yes
