cMT-G01

    • 32-Bit RISC Cortex-A8 600 MHz CPU
    • 256 MB Flash, 256 MB RAM
    • Supports OPC UA
    • Supports MQTT
    • Supports MODBUS TCP/IP Gateway
    • DIN Rail Mount

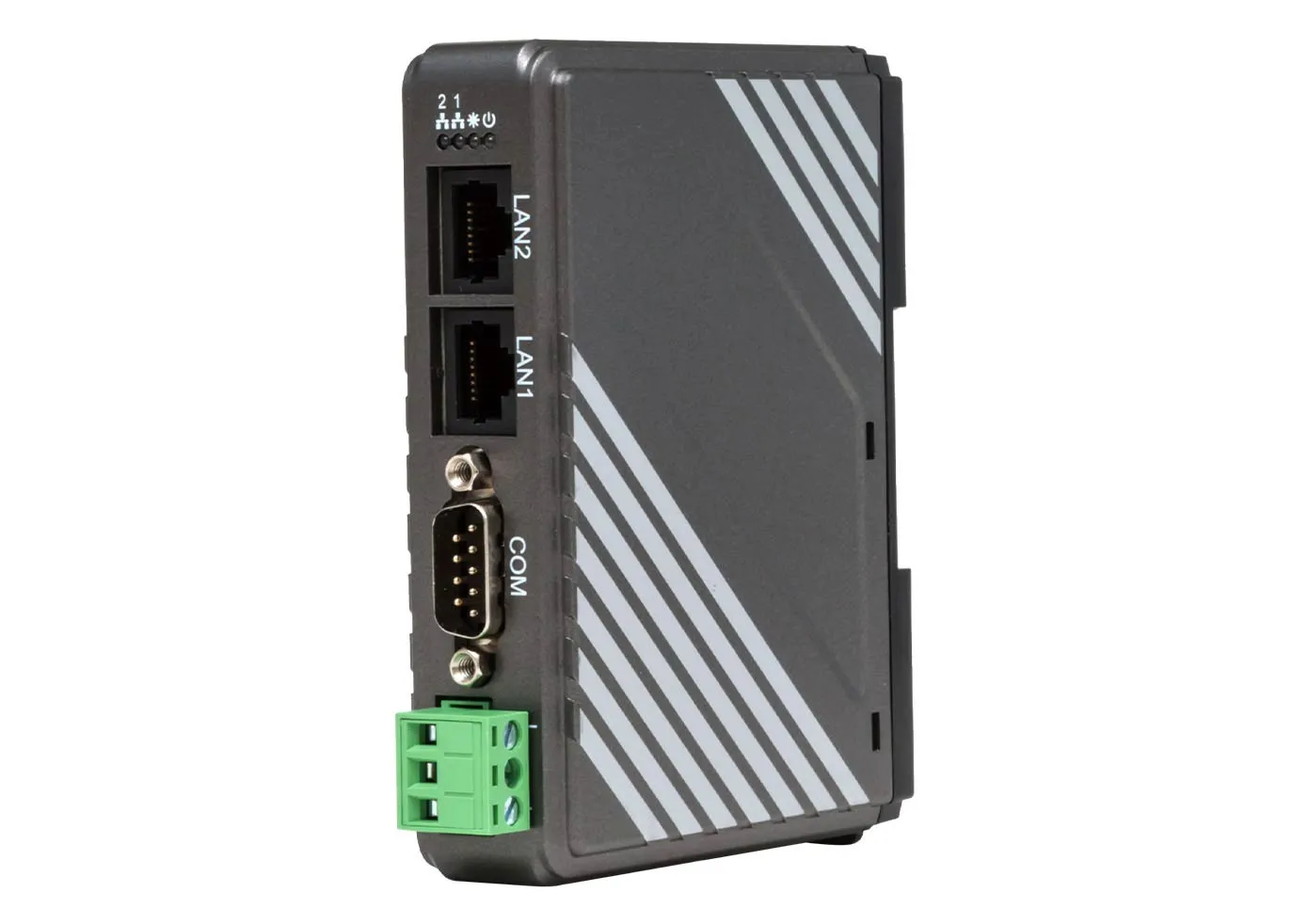

cMT-G01 - Communication Protocol Gateway

cMT-G01

$325.00

Buy Now

This Smart Communication Gateway with HMI data processing capabilities can communicate with more than 300 different controllers and then transmit all that data from the controllers to the SCADA or ERP system. With the de-facto IIoT protocols standard, MQTT, Sparkplug and Modbus, the cMT-G01 can fit into a lot of applications with real time data from different devices to provide a standard communication interface.

Specifications

System

Memory (RAM)

256 MB

Memory (Flash)

256 MB

RTC

Built-in

Programming Software

EasyBuilder Pro V5.06.01 or later versions

I/O Ports

Serial Ports

1

Ethernet/LAN

LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1

CANbus

N/A

Audio Output

N/A

SD Card Slot

N/A

USB Host Ports

N/A

USB Client Ports

N/A

Wi-Fi

N/A

RS-485 Dual Isolation

N/A

Local bus

N/A

HDMI Port

N/A

Video Input

N/A

Display

Display Size

N/A

Resolution

N/A

Luminance (cd/m^2)

N/A

Contrast Ratio

N/A

Backlight Type

N/A

Backlight Lifetime (hrs)

N/A

Colors

N/A

Display Type

N/A

Viewing Angle (H°/V°)

N/A

Touch Screen

Type

N/A

Electrical

Input Power

5.52 W

Power Isolation

Built-in

Power Dissipation

N/A

Current for Internal Bus

N/A

Current Consumption

N/A

Isolation Resistance

Exceed 50 MO - @ 500 VDC

Input Voltage

24 ± 20% VDC

Input Current

230 mA @ 24 VDC

Mechanical

Vibration Endurance

10 to 25Hz(X, Y, Z direction 2G 30 minutes)

Enclosure Material

Plastic

PCB Coating

Yes

Dimensions WxHxD

4.29 x 3.19 x 1.06 inches [109 x 81 x 27 mm]

Panel Cutout (inches) [mm]

N/A

Weight

Approx. 0.31 lbs. [0.14 kg]

Mounting

35 mm DIN rail

Environmental

Storage Temperature

-4° ~ 140°F (-20° ~ 60°C)

Operating Temperature

32° ~ 122°F (0° ~ 50°C)

Relative Humidity

10% ~ 90% (non-condensing)

Certification

UL Type Rating

N/A

NEMA Rating

N/A

IP Rating

IP20

CE

Yes

UL

cULus Listed

Class 1 Div 2

N/A

ATEX

N/A

RoHS

Yes
