cMT-FHD

  • 32-Bit RISC Cortex-A9 1GHz CPU
  • 4 GB Flash, 1 GB RAM
  • Built-In cMT Server

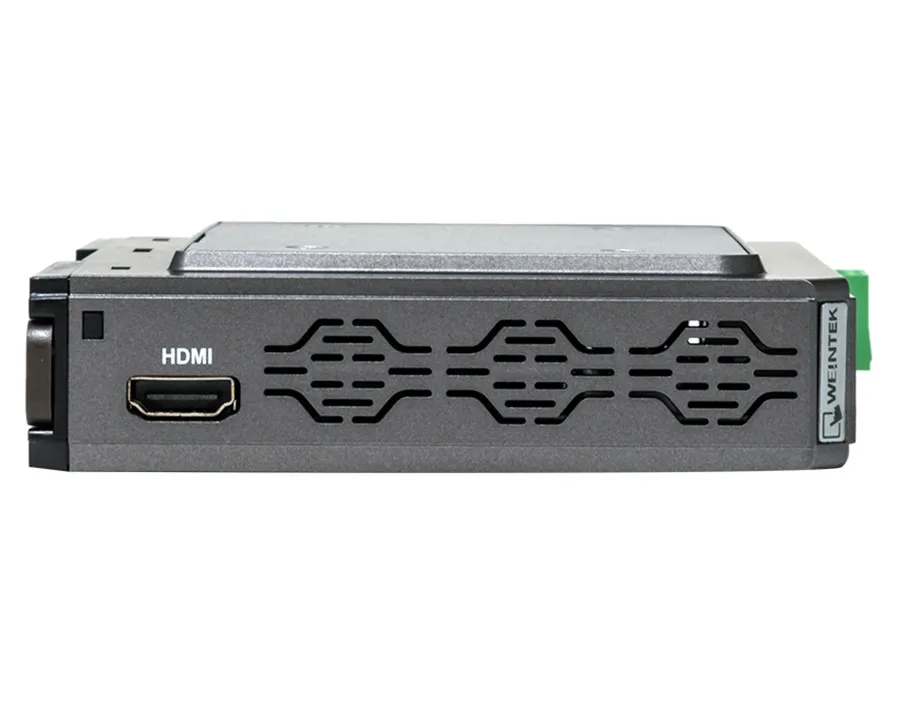

  • Supports full 1080P HDMI® Output
  • Support touch control through a USB connection
  • DIN Rail Mount

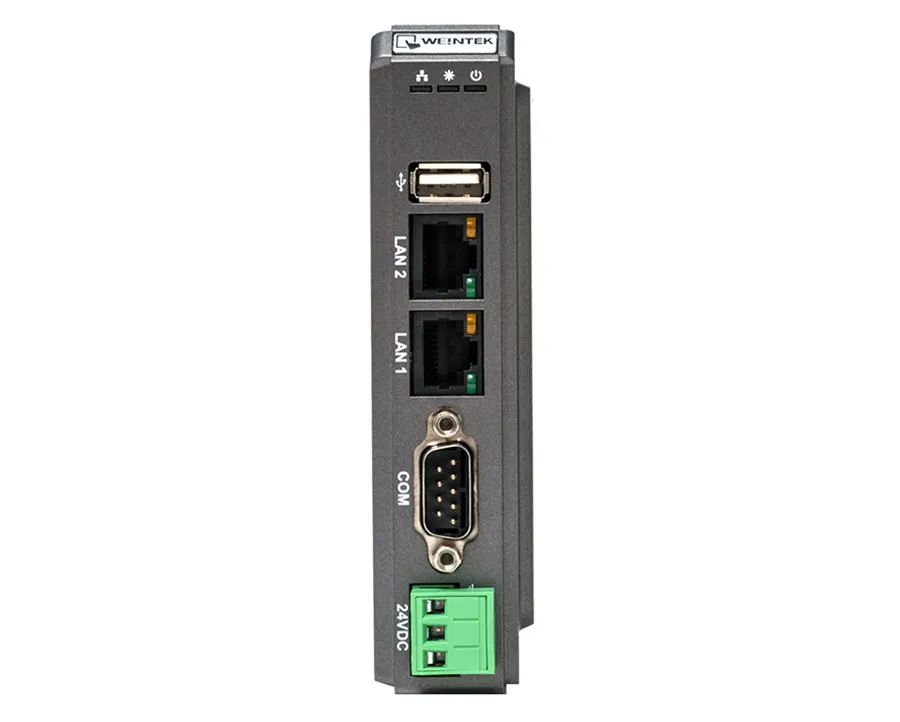

Smart Server, 2 Ethernet Ports, 1 USB Port, 1 Serial Port, 1 HDMI® Output

cMT-FHD

This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.

This HDMI®-enabled unit works with screens of any size, making screen size no longer a limitation in your application. As part of the Smart Series, the cMT-FHD has all the rich HMI functionality found in the Smart series without a the touchscreen display. Monitor PLC operations, gather data, and remotely access your control system via the cMT Viewer App on your Apple/Android smart phone, one of our smart displays, or your own tablet/laptop/PC.

Compare cMT-FHD and other models.

Volume Discounts available. Contact Sales for more details.

Customize your product with your company logo. Minimum quantities apply. Learn More

Specifications

System

Memory (RAM)

1 GB

Memory (Flash)

4 GB

RTC

Built-in

Programming Software

EasyBuilder Pro V6.02.01 or later versions

I/O Ports

Serial Ports

1

Ethernet/LAN

LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1

CANbus

N/A

Audio Output

HDMI Audio Output

SD Card Slot

N/A

USB Host Ports

USB 2.0 x 1

USB Client Ports

N/A

Wi-Fi

N/A

RS-485 Dual Isolation

N/A

Local bus

N/A

HDMI Port

Yes

Video Input

N/A

Display

Display Size

N/A

Resolution

N/A

Luminance (cd/m^2)

N/A

1000

400

350

300

Contrast Ratio

N/A

Backlight Type

N/A

Backlight Lifetime (hrs)

N/A

Colors

N/A

Display Type

N/A

Viewing Angle (H°/V°)

N/A

Touch Screen

Type

N/A

Electrical

Input Power

15 W

Power Isolation

Built-in

Power Dissipation

N/A

Current for Internal Bus

N/A

Current Consumption

N/A

Isolation Resistance

Exceed 50 MO - @ 500 VDC

Input Voltage

24 ± 20% VDC

Input Current

1250 mA @ 12 VDC ; 550 mA @ 24 VDC

Mechanical

Vibration Endurance

10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Enclosure Material

Plastic, charcoal grey

PCB Coating

Yes

Dimensions WxHxD

5.12 x 4.53 x 1.17 inches [130 x 115 x 29.8 mm]

Panel Cutout (inches) [mm]

N/A

Weight

Approx. 0.53 lbs. [0.24 kg]

Mounting

35 mm DIN rail

Environmental

Storage Temperature

-4° ~ 140°F (-20° ~ 60°C)

Operating Temperature

32° ~ 122°F (0° ~ 50°C)

Relative Humidity

10% ~ 90% (non-condensing)

Certification

UL Type Rating

N/A

NEMA Rating

N/A

IP Rating

IP20

CE

Yes

UL

cULus Listed

Class 1 Div 2

N/A

ATEX

N/A

RoHS

Yes
