Screenshots with EZware
Technical Note 5098
Applicable Model(s)
Graphic HMI
Title
Screenshots with EZware
Date
06/15/2015
Rev
01
P/N
0907-5098
Summary
EZware provides the option of taking a screenshot of the windows in the project for documentation or other purposes.
Solution
To take a screenshot of a window in a project:
1.
Open the project in EZware and run the Online Simulator or Offline Simulator (Tools > Online Simulation or Offline Simulation).
2.
In the simulator, navigate to the window you want to use for the screenshot.
3.

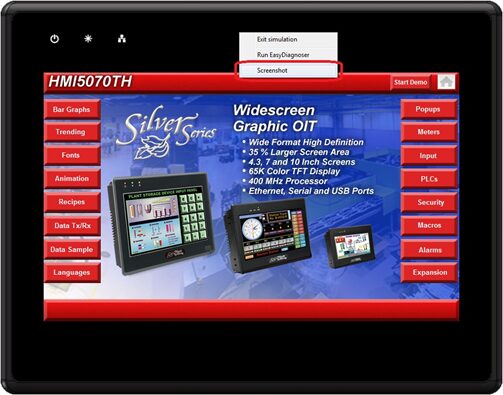

Right-click on the simulator and select “Screenshot.”
4.
A bitmap file of the window is saved to the Screenshot folder in the EZware folder (C:\MapleSystems\EZ5000\Screenshot or C:\MapleSystems\EZPlus\Screenshot). The bitmap file has the same name as the project with a number added to the end of the filename (for example, HMI5070THDemo_0000.bmp, HMI5070THDemo_0001.bmp, etc.).
5.
The bitmap file can be imported directly into a Word document or opened in a graphics program such as Paint for enhancement or modification.
