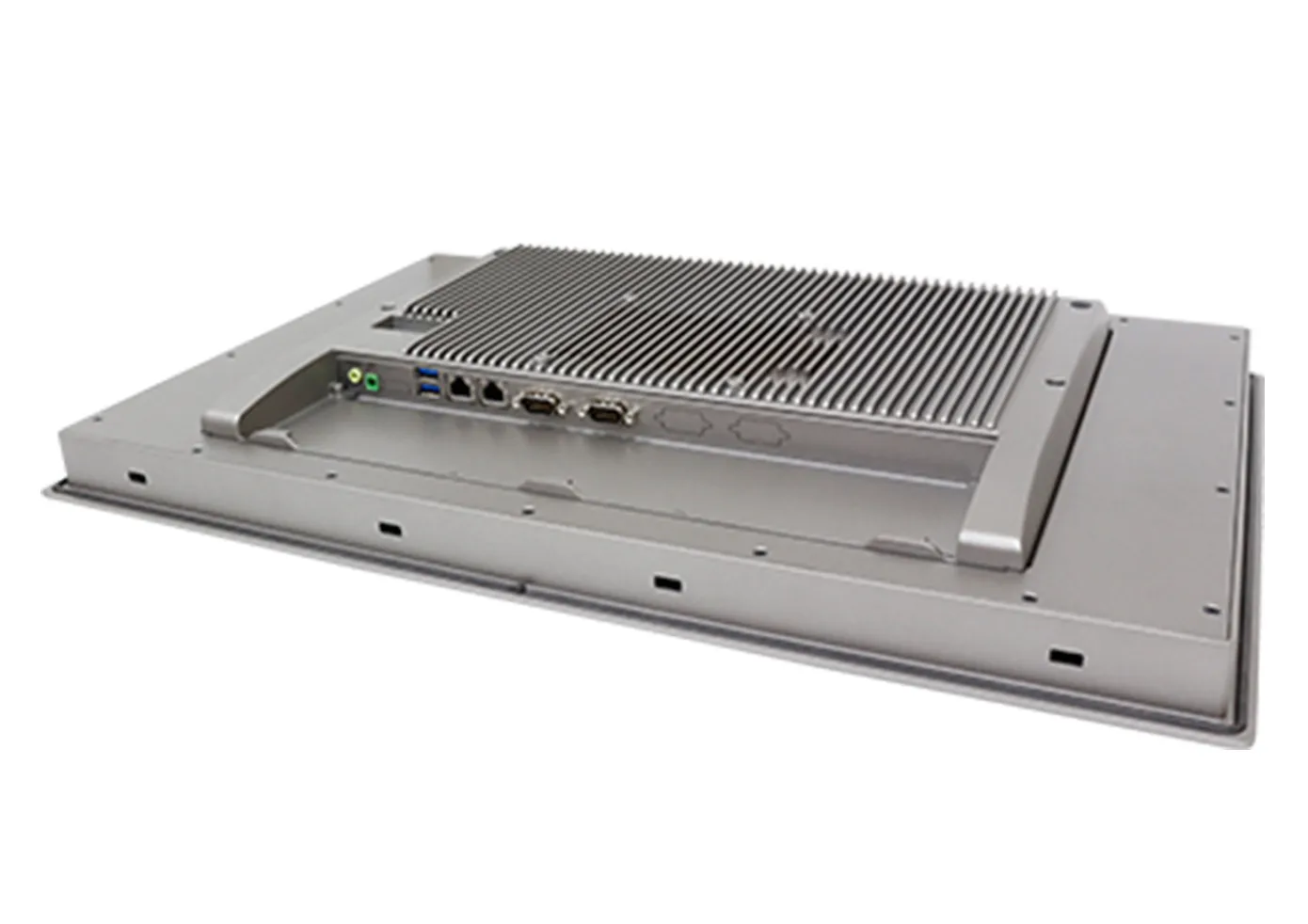

OMI6821BPHEB Cross View

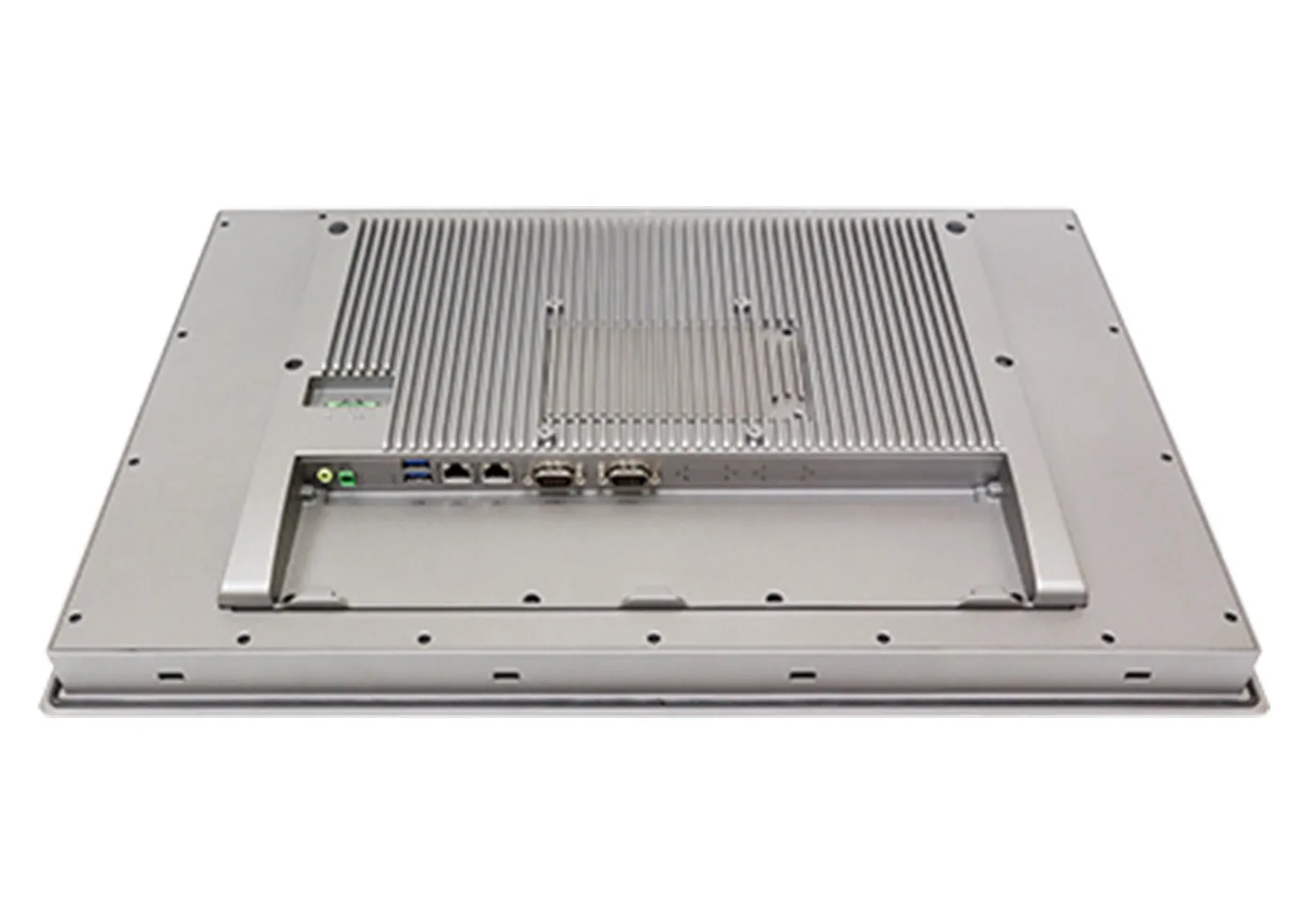

OMI6821BPHEB Back View

OMI6821BPHEB

21.5" Intelยฎ Apollo Lakeยฎ Wide-Temp, High Bright IPC with Windowsยฎ OS

  • omi6821bpheb Front View
  • OMI6821BPHEB Cross View
  • OMI6821BPHEB Back View
  • Video thumbnail
  • Video thumbnail
  • Video thumbnail
omi6821bpheb Front View
OMI6821BPHEB Cross View
OMI6821BPHEB Back View

OMI6800BPHEB Unboxing

We’ll review what comes with the PC, the I/O ports and some features, and other sizes we offer.

Watch on YouTube

Capacitive/Glove Friendly

Our Rugged, Industrial Panel PCs with Capacitive Touchscreens are Glove Friendly, watch as we demonstrate with our OMI6900 Series Panel PC.

Watch on YouTube

Rugged Panel PC's

A glimpse at what our Panel PCs offer

Watch on YouTube

OMI6821BPHEB

  • 1920 x 1080 Resolution
  • High Brightness-1000 nits, Optically Bonded Capacitive Touchscreen
  • Intelยฎ Pentium Apollo Lake N4200 Quad-Core 1.1 GHz Processor
  • Microsoft Windowsยฎ 10 IoT Ent Embedded 64-bit
  • -20~60ยฐC Operating Temperature
  • Aluminum Enclosure, VESA or Panel Mount
  • IP66/NEMA4
  • Optional Wi-Fi Upgrade
View Datasheet

This product:
Total price: N/A

21.5" Intelยฎ Apollo Lakeยฎ Wide-Temp, High Bright IPC with Windowsยฎ OS

OMI6821BPHEB

$3,785.00
Configure Your PC

With a 1000 nit-high bright display, an optically bonded 21.5 capacitive touchscreen, and an extended operating temperature range (-20~60ยฐC), the OMI6821BPHEB is designed to meet strict industry standards. With a solid state platform and fanless cooling system, this UL-certified industrial computer is ideal for industrial applications. With Windowsยฎ 10 IoT, this IPC supports most 3rd party SCADA software like SIMATIC WinCC, Ignition, FactoryTalkยฎ, & Aveva Edgeยฎ. VESA or Panel Mount.

OMI6812BPHEB03M6C

Share the product:

Review this product

Share your thoughts with other customers about this product

Write a Customer Review

The base options are selected by default. Select the options to get the desired configuration.

Compare “Intelยฎ Pentiumยฎ N4200 Quad-Core, 1.1 GHz” performance with other processors

Relative CPU performance scores provided by PassMark

Ubuntuยฎ Linuxยฎ Desktop LTS

Supported Models: AEX-2410, IPC2330A, IPC2110A, IPC2210A, IPC2400A Series, IPC2550A, IPC2700A Series, OMI6800BPHEB Series, OMI6900BP Series, PC1200A Series, PC1300X Series, PCS6800A Series, and PCS6800APHEB Series.

This powerful Operating System delivers enterprise manageability and security across a wide range of industries. Additionally, most features and functionality that customers expect to find on their desktop PCs are available in this Open-Source Operating System. The Long-Term Support (LTS) version ensures long-term stability with five years of free security and maintenance updates.

Included Apps:

  • Libre Office Suite
  • Mozilla Firefox Web Browser
  • Gnome Desktop
  • Rythm Box Media Player
  • VIM

Microsoftยฎ Windowsยฎ 10 IoT Enterprise Embedded (EPKEA) LTSC

Supported Models: Windowsยฎ 10 Enterprise if currently supported by all current Maple Systems PC offerings.

EPKEA Extended Denotation, “Embedded Product Key Entry Activation.”

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoftยฎ Windowsยฎ 10 IoT Enterprise Embedded LTSC is a full Professional version of Windowsยฎ 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft Edge Web Browser
  • Libre Office
  • Media Player

Microsoftยฎ Windowsยฎ 10 IoT Enterprise (PKEA) LTSC

Supported Models: Windowsยฎ 10 Enterprise if currently supported by all current Maple Systems PC offerings.

PKEA Extended Denotation, “Product Key Entry Activation.”

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windowsยฎ before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Microsoftยฎ Windowsยฎ 10 IoT Enterprise LTSC is a full Professional version of Windowsยฎ 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoftยฎ Edge Web Browser
  • Libre Office
  • Media Player
Reset Configuration

Current Configuration

Base Price

OMI6821BPHEB

 $3785

Display

 Included

Processor

 Included

System Memory

 Included

Storage

 Included

Operating System

 Included

Expansion Kit

 Included

Part Number:

Datasheet2D CAD File3D CAD File

System

CPU

Intelยฎ Pentiumโ„ข Apollo Lakeโ„ข N4200 Quad-Core 1.1GHz Processor

Memory (RAM)

Onboard DDR3L 4 GB 1600 MHz

System Chipset

SoC

Solid State Drive Type

1 x 2.5โ€ SATA III, MLC

Solid State Drive Capacity

64, 128, 256, 512 GB, 1TB SSD

I/O Ports

Serial Ports

2

Ethernet/LAN

2 x GbE RJ-45

Audio Output

1 x 3.5 mm line out

SD Card Slot

1 x internal micro Secure Digital memory card socket, up to 32 GB

HDMI Port

No

Remote Power Switch

2-pin connector header

Display Output

No

Power

3-pin connector header, DC power input

USB 3.0 Type A

2

Serial Options

1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 1 x RS-232 DE-9P, COM2

Expansion Option

Optional Wi-Fi kit (IEEE 802.11a/b/g/n/ac card and antenna)

Display

Display Size

21.5โ€ FHD TFT LCD

Resolution

1920 x 1080

Luminance (cd/m^2)

1000

Contrast Ratio

1000:1

Backlight Lifetime (hrs)

30,000+

Colors

16.7 M

View Angle (Hยฐ Vยฐ)

178/178

Touch Screen

Touch Interface

USB

Light Transmission

90+%

Optical Bonding

Yes

Touch Screen Type

Projected Capacitive

Electrical

Input Power

42.6 W

Input Voltage

9~36 VDC

Input Current

1.18-4.73 A

Mechanical

Enclosure Material

Silver aluminum front bezel and chassis

Dimensions WxHxD

21.94 x 14.26 x 2.56โ€ [557.3 x 362.3 x 64.8 mm]

Panel Cutout (inches) [mm]

21.22 x 13.54 [539 x 344 ]

Weight

~ 16.53 lbs [7.5 kg]

Mounting

Panel mounting, VESA 100 x 100 mm

Environmental

Storage Temperature

-22~158ยฐF [-30~70ยฐC]

Operating Temperature

-4~140ยฐF [-20~60ยฐC]

Relative Humidity

10 to 90% @ 40ยฐC, non-condensing

Certification

NEMA Rating

NEMA 4 when panel mounted

IP Rating

IP66

CE

Yes

UL

Yes

ATEX

No

RoHS

Yes

FCC

FCC Class A

OMI6800BPHEB Unboxing

We'll review what comes with the PC, the I/O ports and some features, and other sizes we offer.

Watch on YouTube

Capacitive/Glove Friendly

Our Rugged, Industrial Panel PCs with Capacitive Touchscreens are Glove Friendly, watch as we demonstrate with our OMI6900 Series Panel PC.

Watch on YouTube

Customers who bought this product also bought:

When you order the OMI6821BPHEB the following items are included in the box:

  • OMI6821BPHEB Industrial Panel PC
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • DC Power Connector
  • DC Power Adapter with cord
  • 2-Pin Remote Power Switch connector
  • Mounting Kit (Quantity determined by screen size)
