Standard Connection Box
$149.00

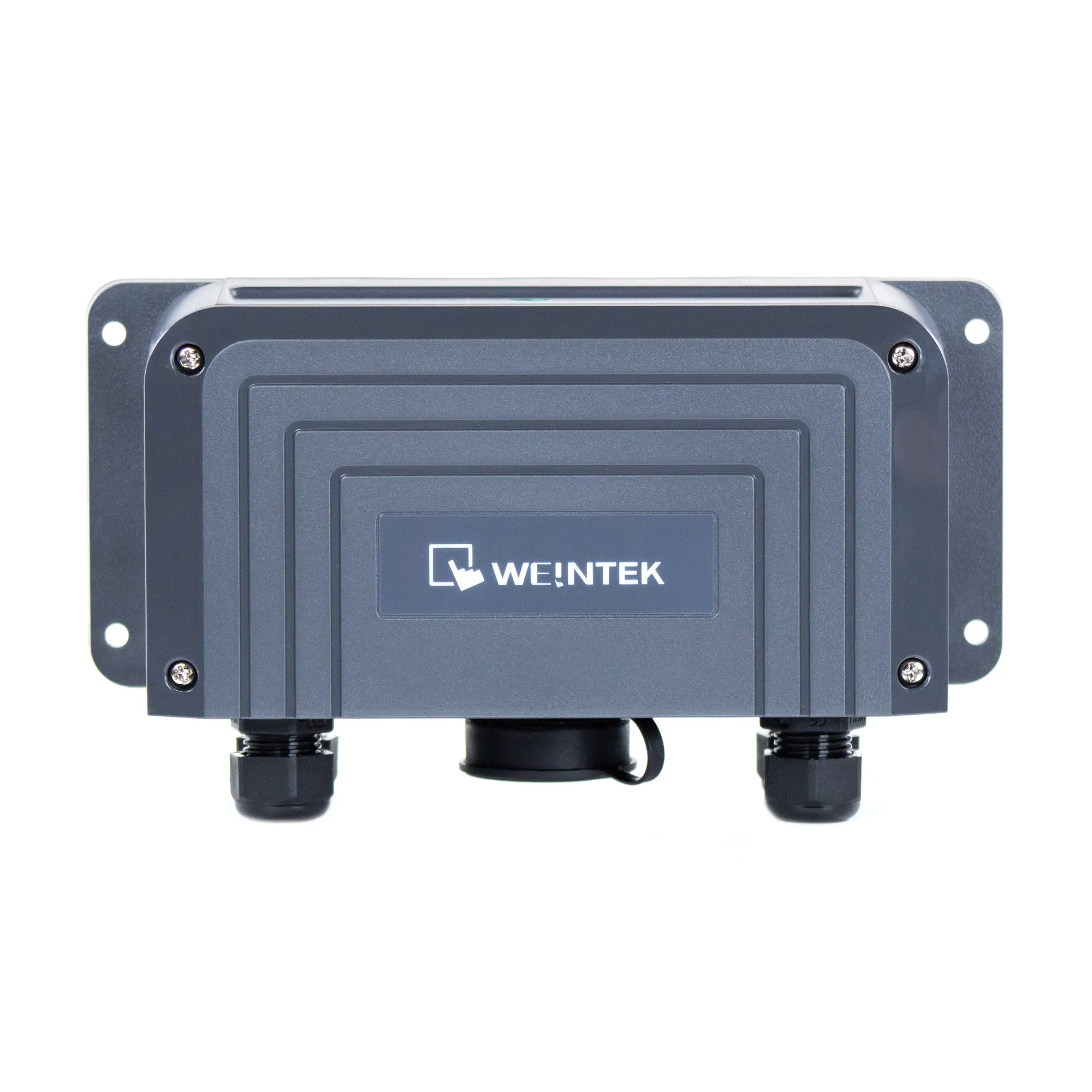

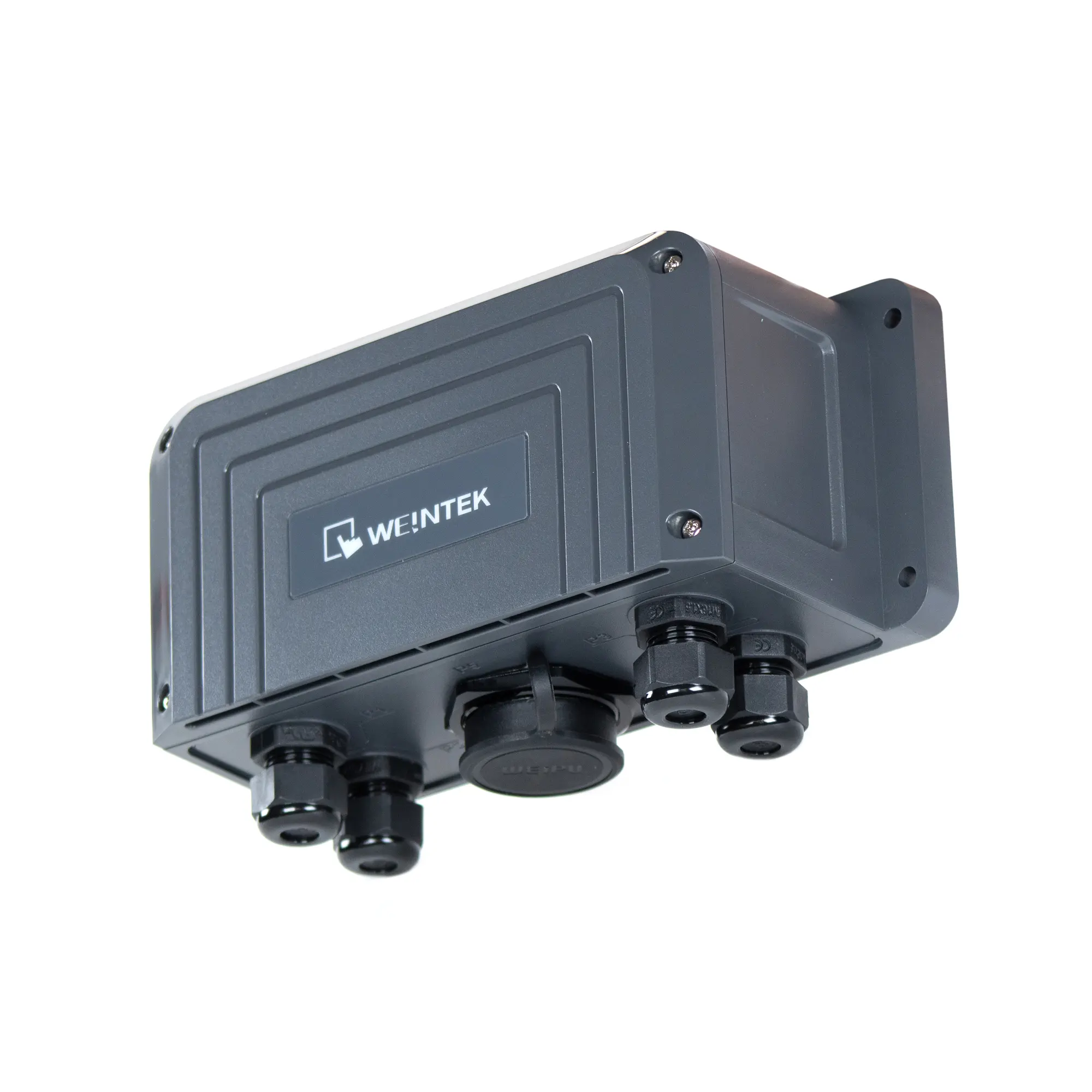

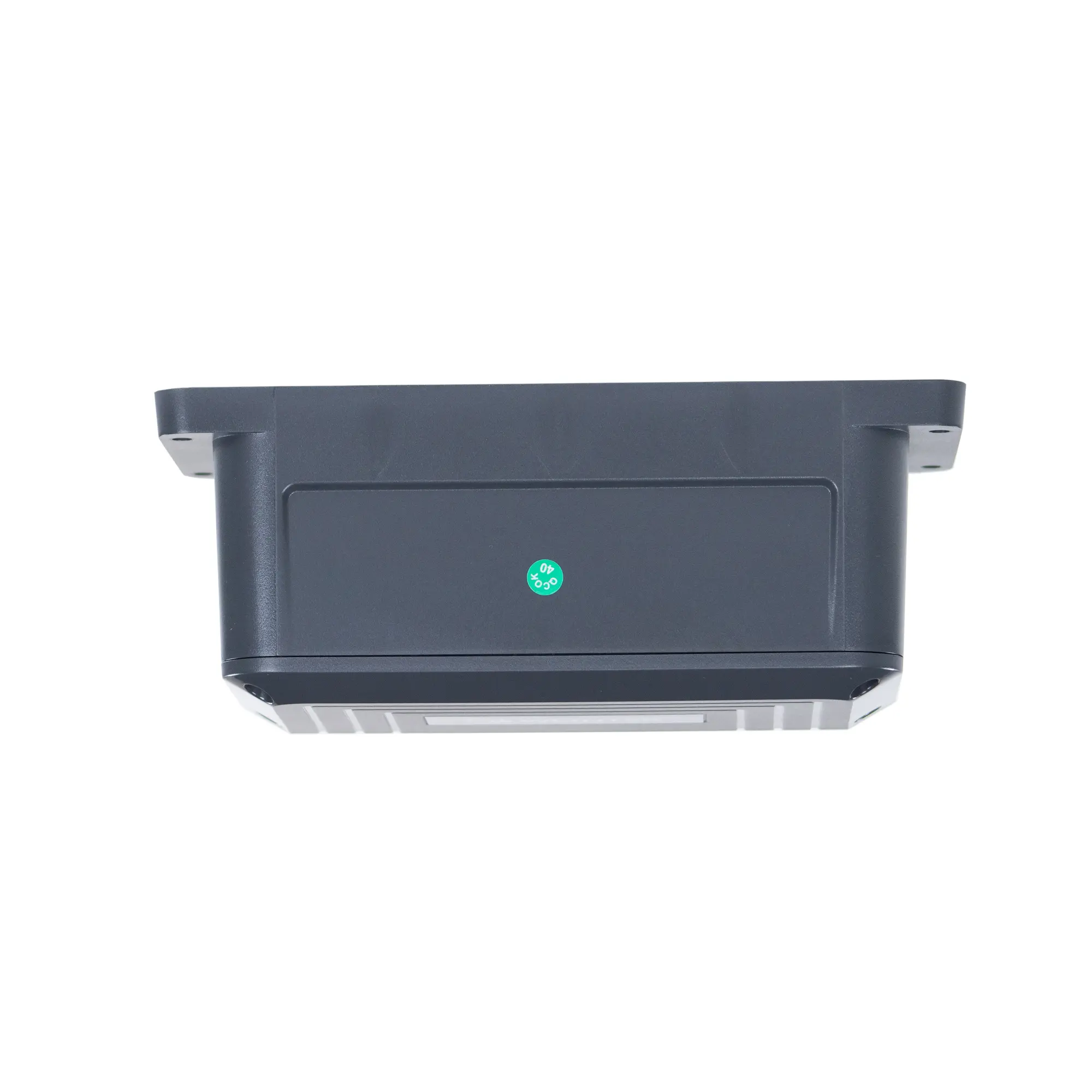

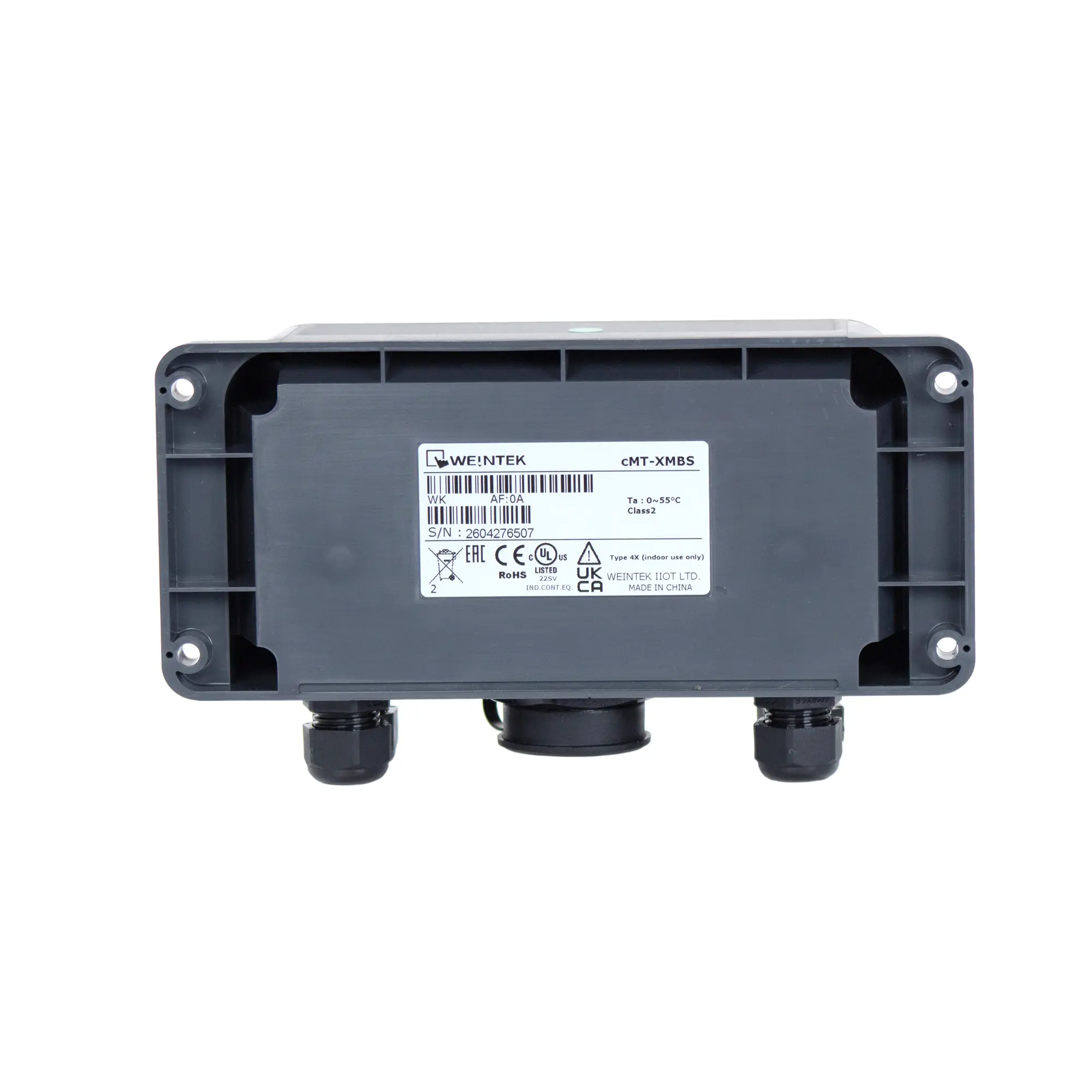

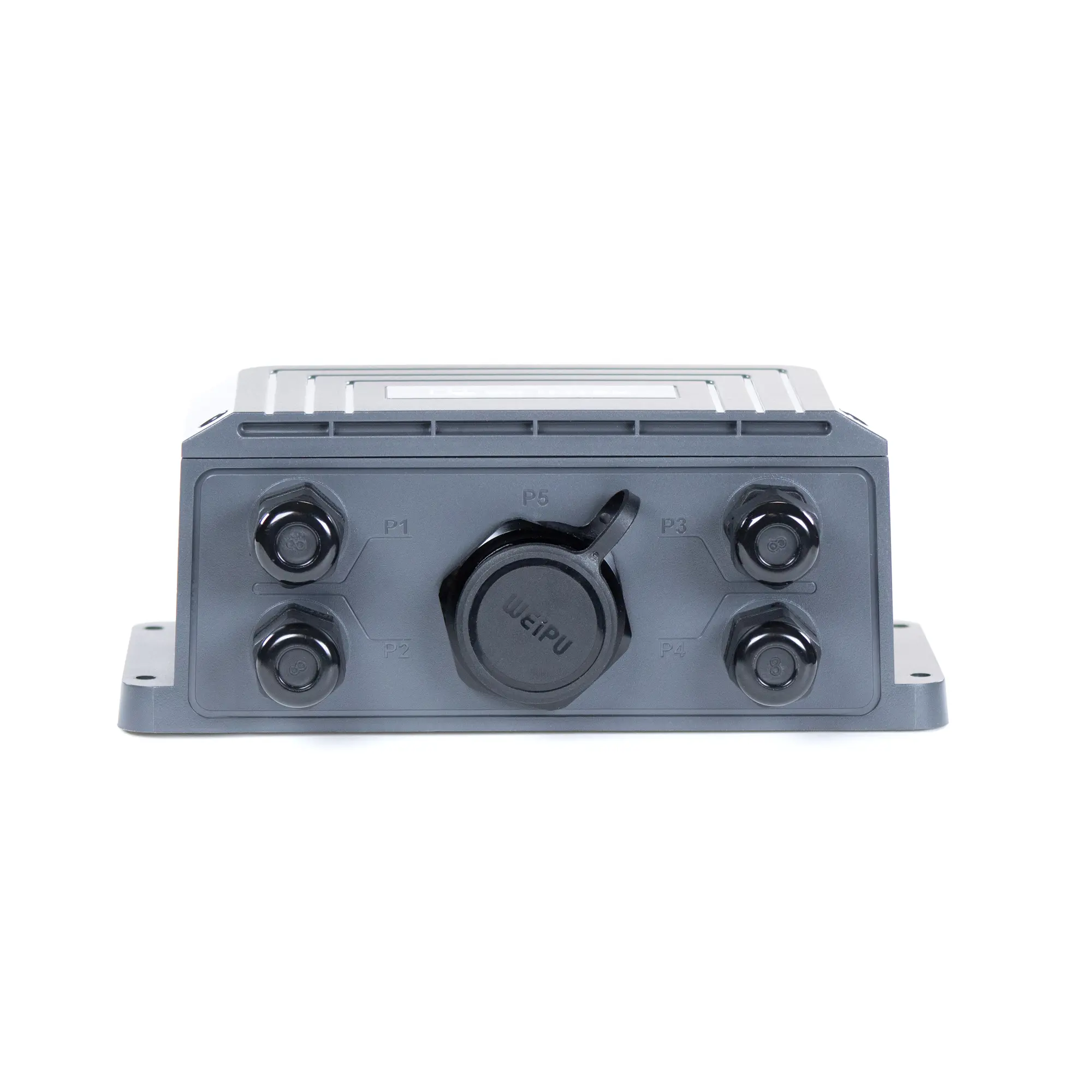

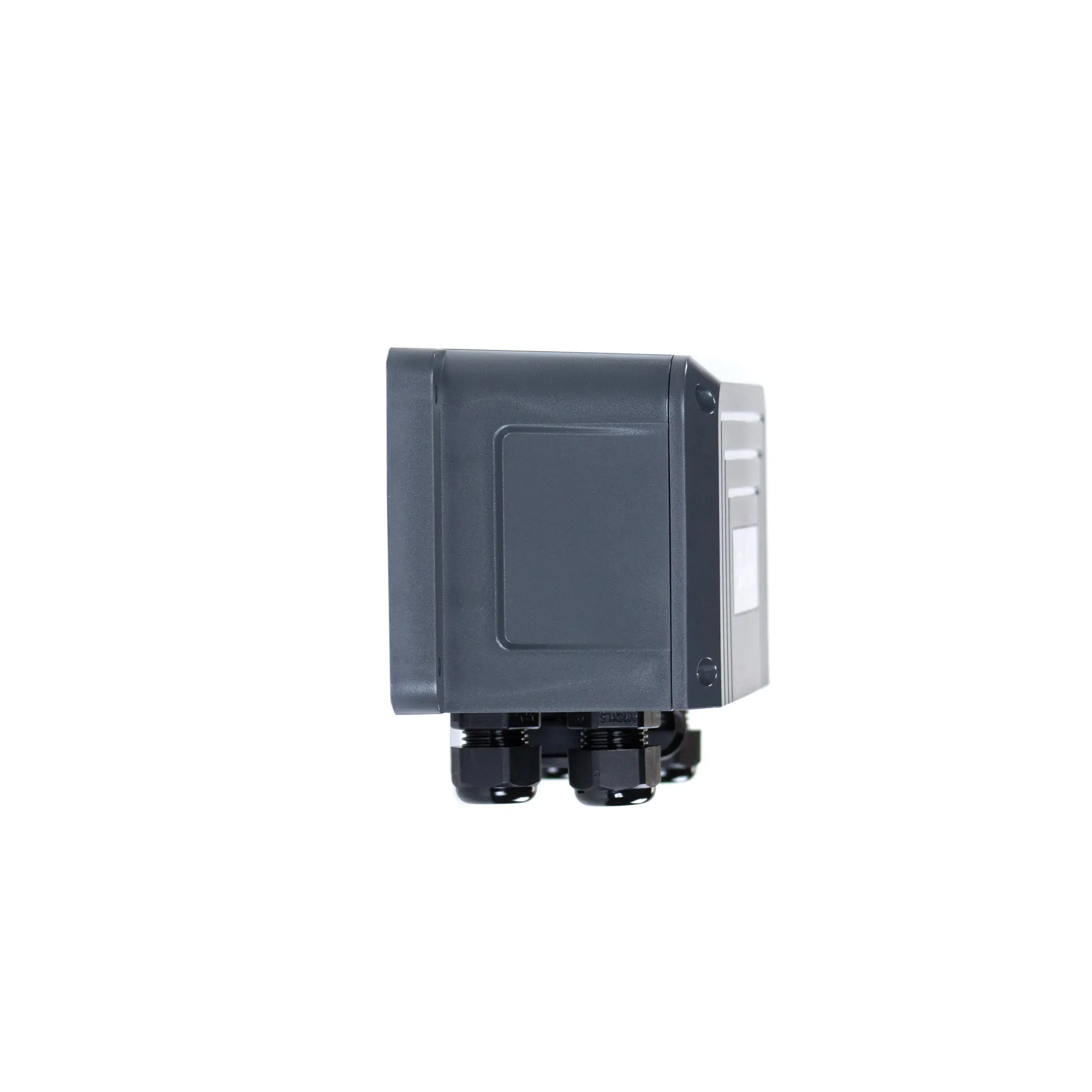

The cMT-XMBS is our Standard Connection Box used with our cMT3106XM to communicate with devices within the Control Cabinet. The Connection Box is mounted outside the control cabinet or on a wall, with all terminal connections routed through the four cable glands on the underside of the connection box.
For use with cMT3106XM
- US-based technical support.
Share the product:
LAN: 1 x 10/100 Base-T
Serial: 1 x COM2 RS-485 2W/4W
Wiring Terminal: 2 x 14 Pin Terminal Block
Cable Connector: 1 x 26 Pin Connector
Weight: Approx: 0.88 lbs [0.4kg]
Rating: IP66, CE, cULus
Operating Temp: 32°F – 131°F [0-55°C]
Mount: Use four M4 or #8 panhead screws, mounting hole size is 4.6mm
For use with cMT3106XM
