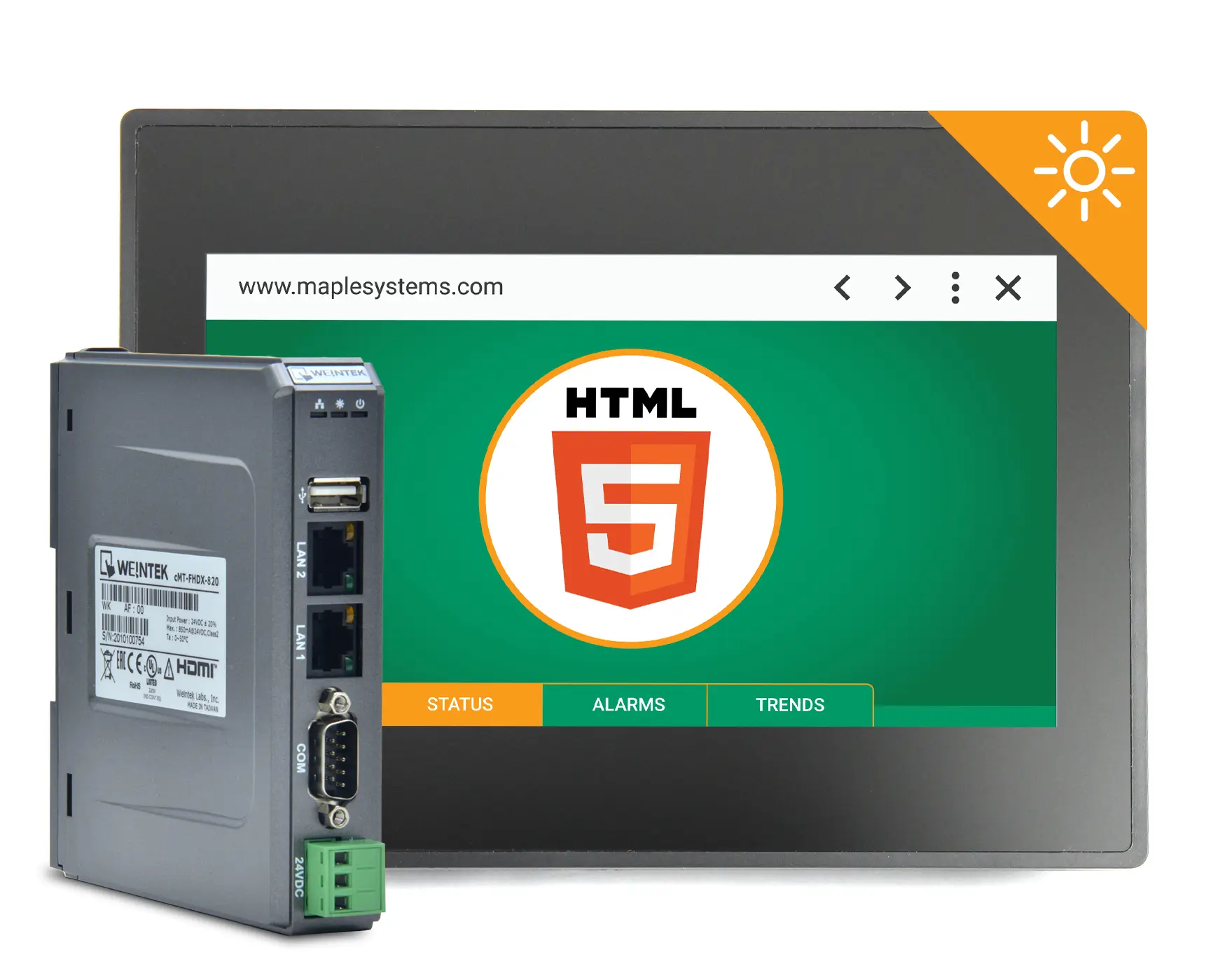

7" High Brightness Web HMI and cMT-SVRX-822 Package
- This bundle lists everything you need to safely and efficiently operate and view your EBPro project from our HTML5 Web HMI.
- Our Advanced Headless HMI can be din rail mounted inside your control panel, connected via Ethernet to our High Brightness, 1000 nit, HTML5 Web HMI.
- Our High Brightness, 1000 nit HTML5 Web HMI touch screen could be mounted to the outside of the panel door giving you full access to control your system locally.
If you’d like to add a protective screen cover, supply power to both the Headless HMI and our High Brightness Touchscreen, and mount your Headless HMI to a din rail, we’ve added links to other accessories you might like.
Bundle Details
High Brightness Web HMI
Our High Brightness 1000 nit WP4070AP is perfect for heavy ambient light, outdoor environments, and bright indoor settings. An easy solution for Healthcare, Banking, Retail, or pharmaceutical indoor settings. Outdoor Oil and Gas settings, Carwash, Water/Waste Water, Golf Courses, Weigh Stations.
- Projected Capacitive Touchscreen
- 1024 x 600 Resolution, 1000 nits High Brightness
- 0~50C Operating Temperature
- Class I, Division 2, IP66 Rated
- High Brightness 7.0″ Web HMI Datasheet
Headless HMI
This headless cMT-SVRX-822 is compact in size but not in functionality. With its robust Quad-Core Processor, 2 Ethernet Ports, USB Port, Serial Port, optional CODESYS, EasyAccess 2.0 license included, and our Free cMT Viewer app, you can securely operate and control complex SCADA systems from virtually anywhere.
- Control & Monitor remotely with cMT Viewer, EasyAccess 2.0, or from any Browser via Webview
- MQTT, OPC-UA Client/Server, SQL Integration
- EasyAccess2.0 license included, CODESYS® Supported
- DIN Rail Mount
- Headless cMT-SVRX-822 Datasheet
