OMI6815B

    • 1024 x 768 Resolution
    • Intel® Pentium® N4200 1.1GHz Quad Core Processor
    • 4GB RAM, 64GB up to 1 TB MLC SSD
    • Microsoft Windows® 10 IoT Ent Embedded 64-bit
    • Additional Storage and Wi-Fi Kit upgrades available
    • Aluminum Enclosure, VESA or Panel Mount
    • Integrate with AVEVA Edge

15.0" Intel® Pentium® Panel PC with Windows®10 IoT OS

OMI6815B

$1,845

Configure your PC

The base options are selected by default. Select the options to get the desired configuration.

Reset Configuration
Current Configuration
Base Price
OMI6815B
$1845.00
Display
Included
Processor
Included
System Memory
Included
Storage
Included
Operating System
Included
Expansion Kit
Included

Part Number:

Buy Now

Industrial grade components, high-quality construction, resistive touchscreen, and a fanless cooling system make the OMI6815B an ideal industrial computer for most industrial applications. As part of our Panel PC Series, this 15”, UL-certified IPC comes standard with a Windows® 10 IoT OS which supports most 3rd party and SCADA software like FactoryTalk® or our Aveva Edge®.

Specifications

System

Memory (RAM)

Onboard DDR3L 4 GB 1600 MHz

System Chipset

SoC

Solid State Drive Type

1 x 2.5” SATA III, MLC

Solid State Drive Capacity

64, 128, 256, 512 GB, 1TB SSD

Input Current

0.86-3.44 A

Capacity (Screens)

500

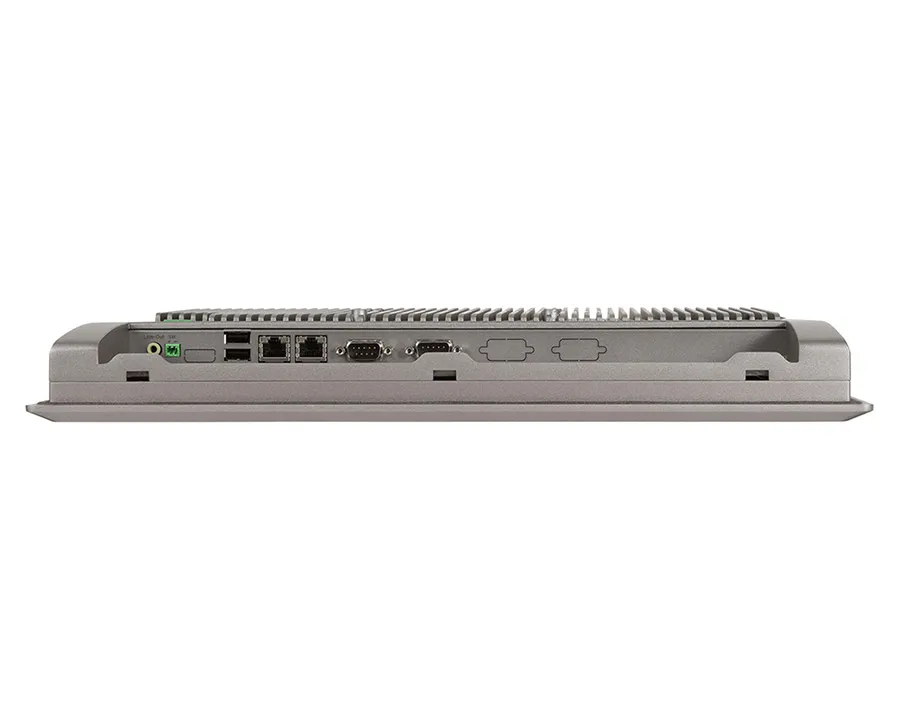

I/O Ports

Serial Ports

2

Ethernet/LAN

2 x GbE RJ-45

Audio Output

1 x 3.5 mm line out

SD Card Slot

1 x internal micro Secure Digital memory card socket, up to 32 GB

Remote Power Switch

2-pin connector header

Power

3-pin connector header, DC power input

USB 3.0 Type A

2

Serial Options

1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 1 x RS-232 DE-9P, COM2

Expansion Option

Optional Wi-Fi kit (IEEE 802.11a/b/g/n/ac card and antenna)

Display

Display Size

15.0” XGA TFT LCD

Resolution

1024 X 768

Luminance (cd/m^2)

300

Contrast Ratio

2000:1

Backlight Lifetime (hrs)

70000

Colors

16.2 M

View Angle (H° V°)

176/176

Touch Screen

Touch Interface

USB

Light Transmission

80+%

Optical Bonding

No

Digital I/O Port

N/A

Touch Screen Type

5-Wire Resistive Touch

Electrical

Input Power

31 W

Input Voltage

9-36 VDC

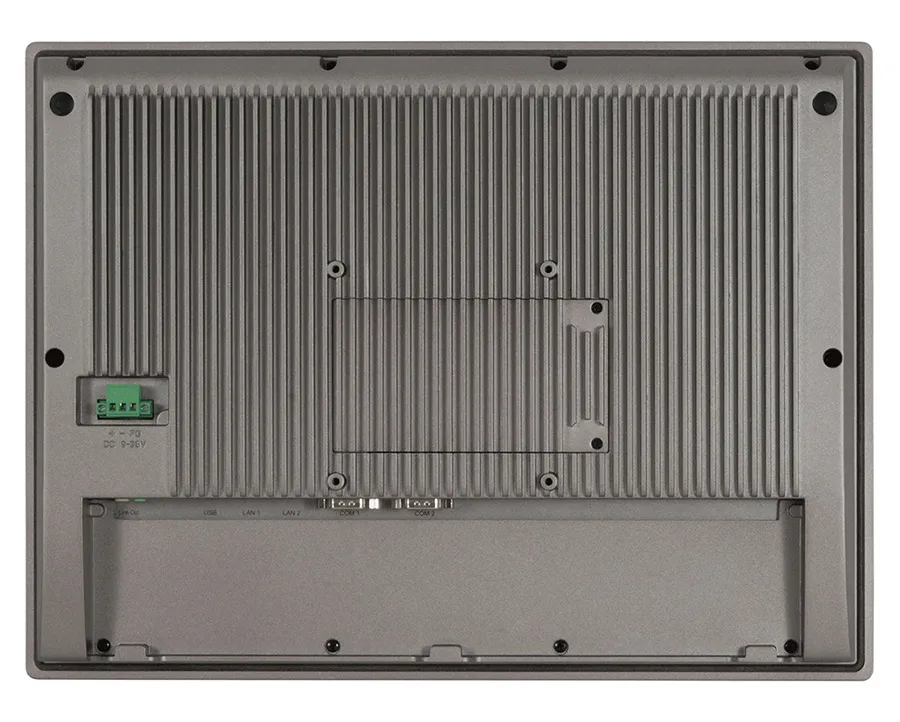

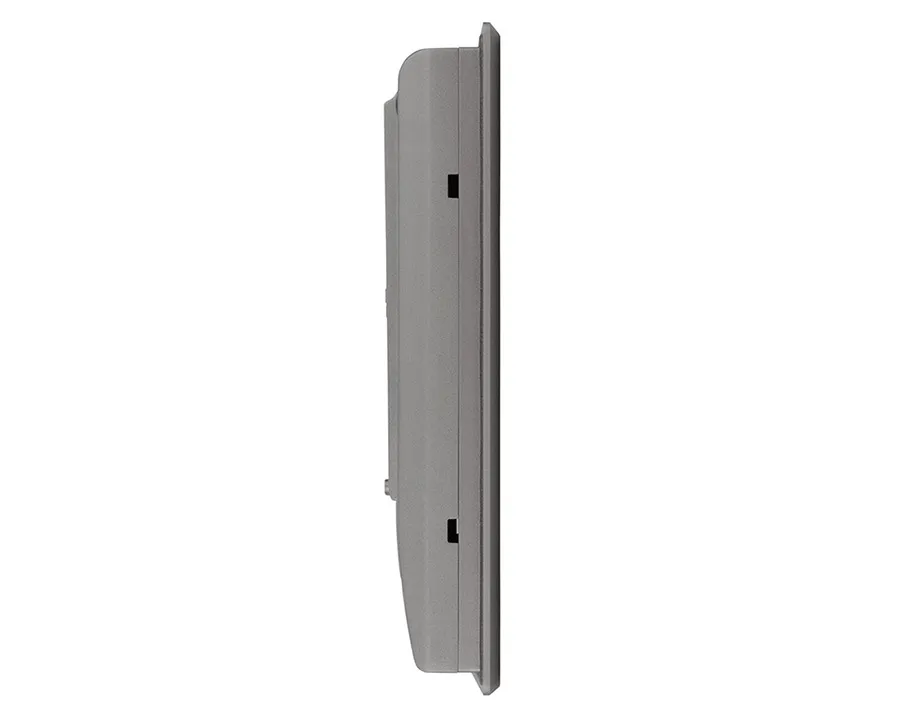

Mechanical

Enclosure Material

Silver aluminum front bezel and chassis

Dimensions WxHxD

16.14 x 12.20 x 2.15” [410 x 310 x 54.67 mm]

Panel Cutout (inches) [mm]

15.43 x 11.50 [392 x 292 ]

Weight

~ 9.7 lbs [4.4 kg]

Mounting

Panel mounting, VESA 100 x 100 mm

Environmental

Storage Temperature

-22~158°F [-30~70°C]

Operating Temperature

32~122°F [0~50°C]

Relative Humidity

10 to 90% @ 40°C, non-condensing

Certification

NEMA Rating

NEMA 4 when panel mounted

IP Rating

IP66

CE

Yes

UL

Yes

ATEX

No

RoHS

Yes

FCC

Yes

Available Software

Documentation & Resources

Need Additional Support?

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

What's Included

When you order the OMI6815B the following items are included in the box:

  • OMI6815B Industrial Panel PC
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • DC Power Connector
  • DC Power Adapter with cord
  • 2-Pin Remote Power Switch connector
  • Mounting Kit (Quantity determined by screen size)
