OIT3160-B00
-

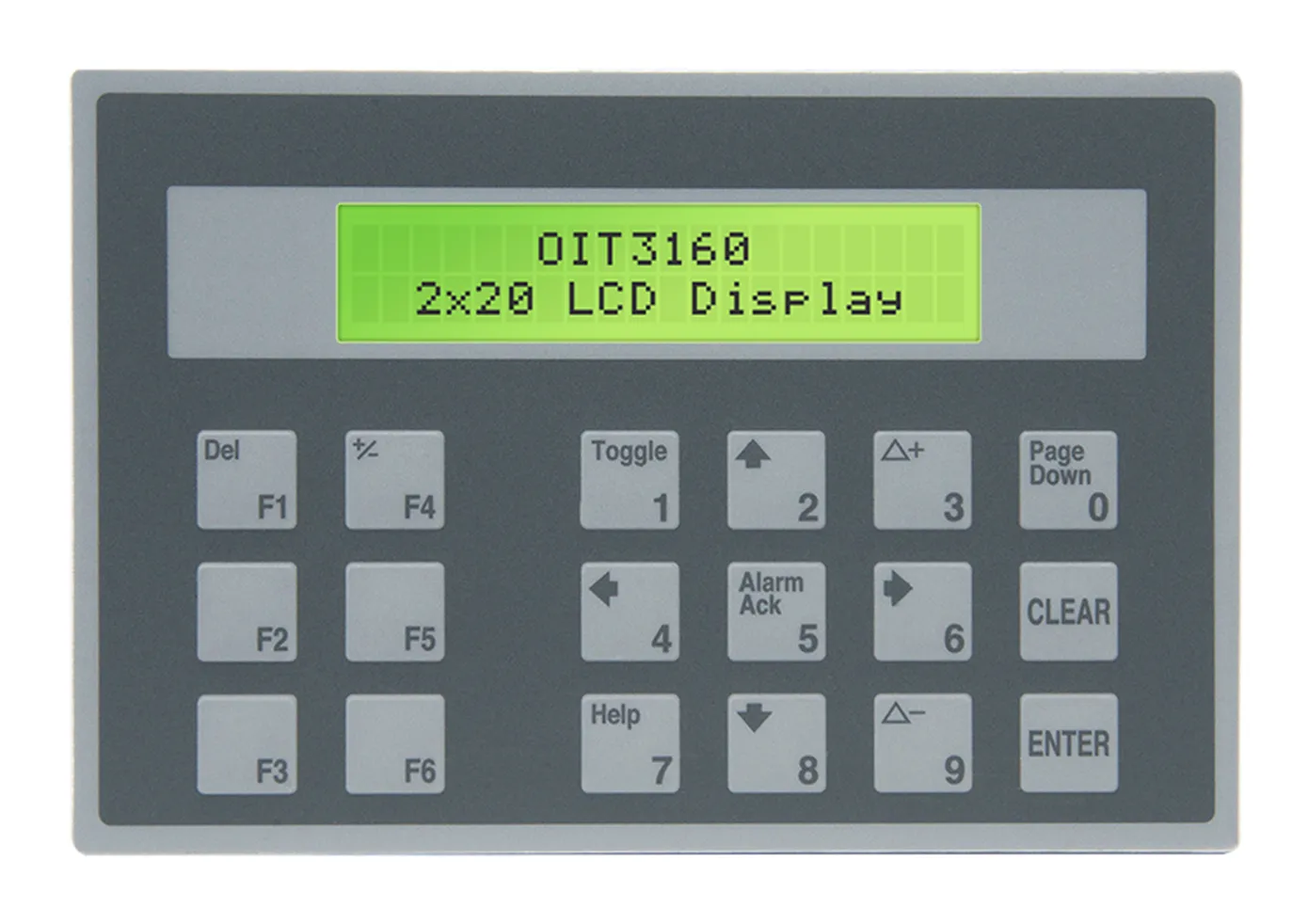

- 2 x 20 Backlit LCD
- 6 Programmable Keys
- Class I, Division 2 Rated
- Support for over 100 protocols
- 2 Year Warranty
- Extended Temperature Range
2 x 20 LCD, Keypad HMI
OIT3160-B00
$445.00
Our Alphanumeric OITs are powerful, affordable operator interface terminals with Class I, Division 2 and Build America Buy America (BABA) certifications. With the ability to communicate with more than 100 brands of PLCs, motion controllers, temperature controllers, and embedded microcontrollers, you can easily create the perfect operator interface terminal for your application.
Looking to add functionality? Need Class I, Div 2? Our HMI+PLC series offer the next step in your control solutions.
- Volume discounts available. Contact sales for more details.
- US Based Technical Support
Share the product:
Review this product
Share your thoughts with other customers about this product
System
| Input Current | 91 mA @ 24 VDC |
| Capacity (Screens) | 500 |
| Audio | Internal audio transducer |
I/O Ports

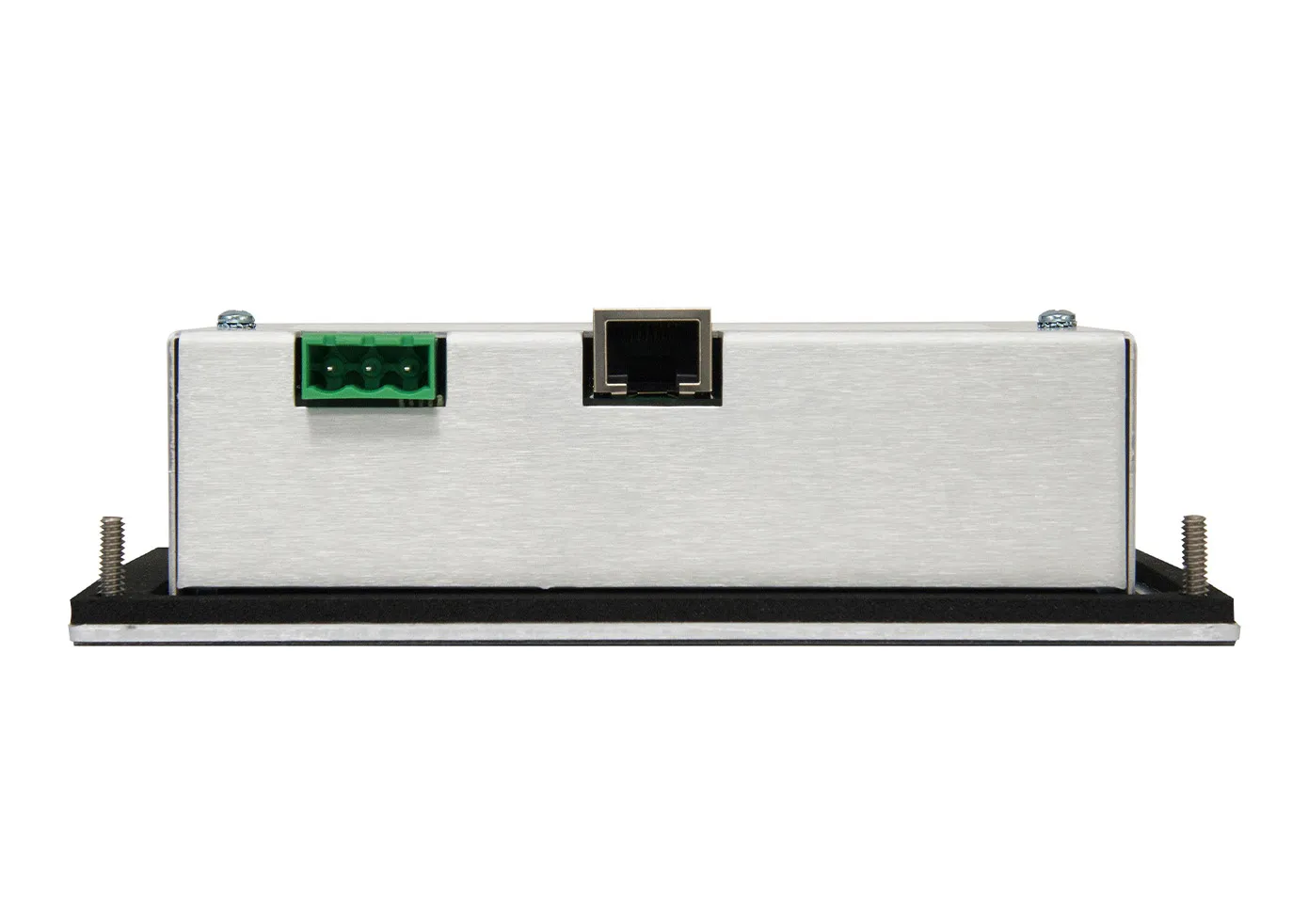

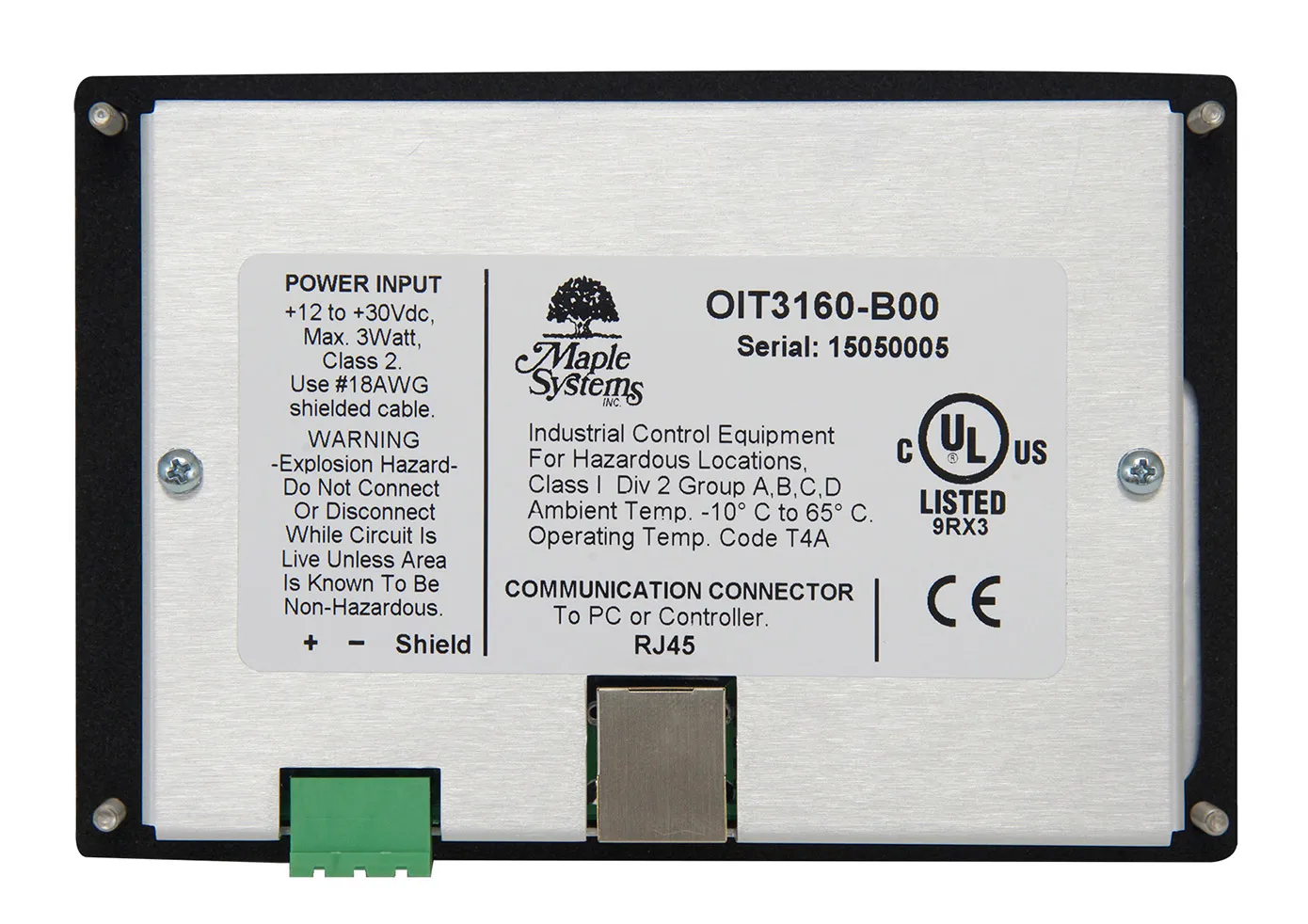

| Power | 3 pins terminal block connector, DC power input |
| Serial | 1 x RJ45 shielded RS-232/422/485 |
Display
| Display Size | 2 line by 20 characters |
| Backlight Lifetime (hrs) | 50,000 |
| View Angle (H° V°) | 35/40/35/35 (T,B,L,R) |
| Type | STN yellow green LCD; 5 x 7 dot matrix |
| Backlight | LED Display |
Keypad
| Type | Tactile dome |
| Material | Polyester |
| Lifespan | 3 million operations |
| Programmable Keys | 6 |
| Customizable Key Legend | No |
Electrical
| Input Power | 2.18 W |
| Input Voltage | 12 ~ 30 VDC |
Mechanical
| Enclosure Material | Aluminum |
| Dimensions WxHxD | 6 x 4 x 1.77 inches [152.4 x 101.6 x 45 mm] |
| Weight | 0.75 lbs [0.34 kg] |
| Mounting | Panel mounting |
Environmental
| Storage Temperature | -22 ~ 176°F (-30 ~ 80°C) |
| Operating Temperature | 14 ~ 149°F (-10 ~ 65°C) |
| Relative Humidity | 5% ~ 95% (non-condensing) |
Certification
| BABA | Yes |
| NEMA Rating | NEMA4X |
| IP Rating | IP65 |
| CE | Yes |
| UL | Yes |
| Class 1 Div 2 | Yes |
Customers who bought this product also bought:
-
Cable, Configuration, RJ45/232/9S, 5′$65.00 -
Power Supply, Single Output, DIN Rail, 24VDC, 2.5A.$50.00 -
Power Supply, Single Output, DIN Rail, 24VDC, 4A.$70.00
When you order the OIT3160-B00 the following items are included in the box:
- 1x OIT316-B00
- 1x Warranty Statement
- 1x Installation Instruction
- 1x Power Connector
- 4x Locking Washer Nut
