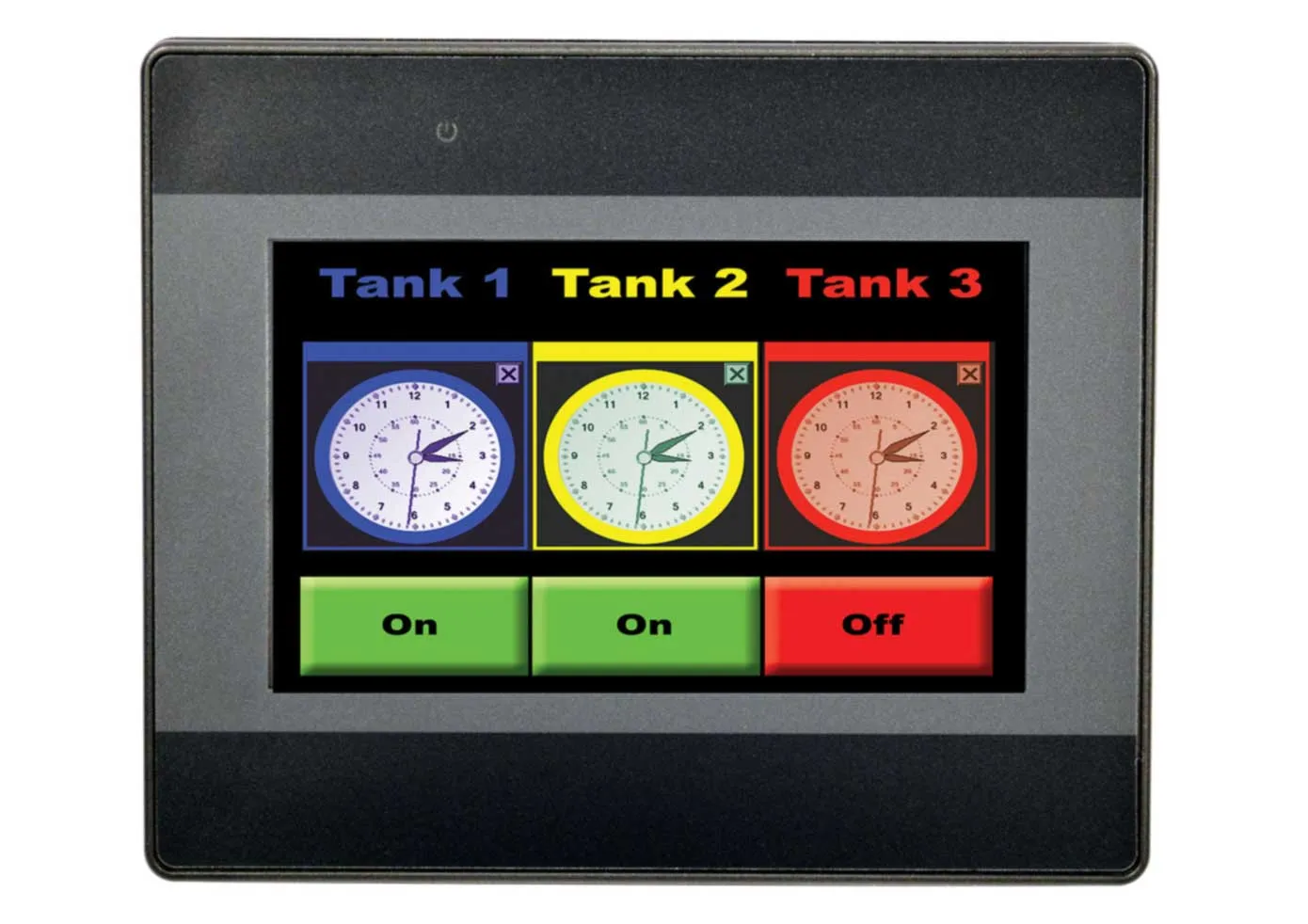

4.3" Standard Touch Panel HMI
$405.00
This 4.3″ Human Machine Interface is perfect for small spaces and can function in portrait or landscape mode. The HMI5043LBv2 powerful features come standard in our free programming software and proves an excellent value for its functionality.
Try Before You Buy: Follow along to learn how EBPro, our 100% free HMI configuration software, allows you to develop and simulate your HMI program entirely free of charge.
- Compare HMI5043LBv2 and other models.
- Volume discounts available.
- Customize product with your company logo. Minimum quantities apply.
- Connect to +400 PLCs and Controllers.
- US-based technical support.
Share the product:
HMI5043LBv2 Highlights
-
- 480 x 272 Resolution Touchscreen
- 1 Ethernet Port, 1 USB Port, 1 Serial Port
- 2 Year Warranty
- Support for over 300 protocols
System
| CPU | Dual-Core RISC |
| Memory (RAM) | 128 MB |
| Memory (Flash) | 128 MB |
| RTC | Built-in |
| Programming Software | EBPro (Latest Version) |

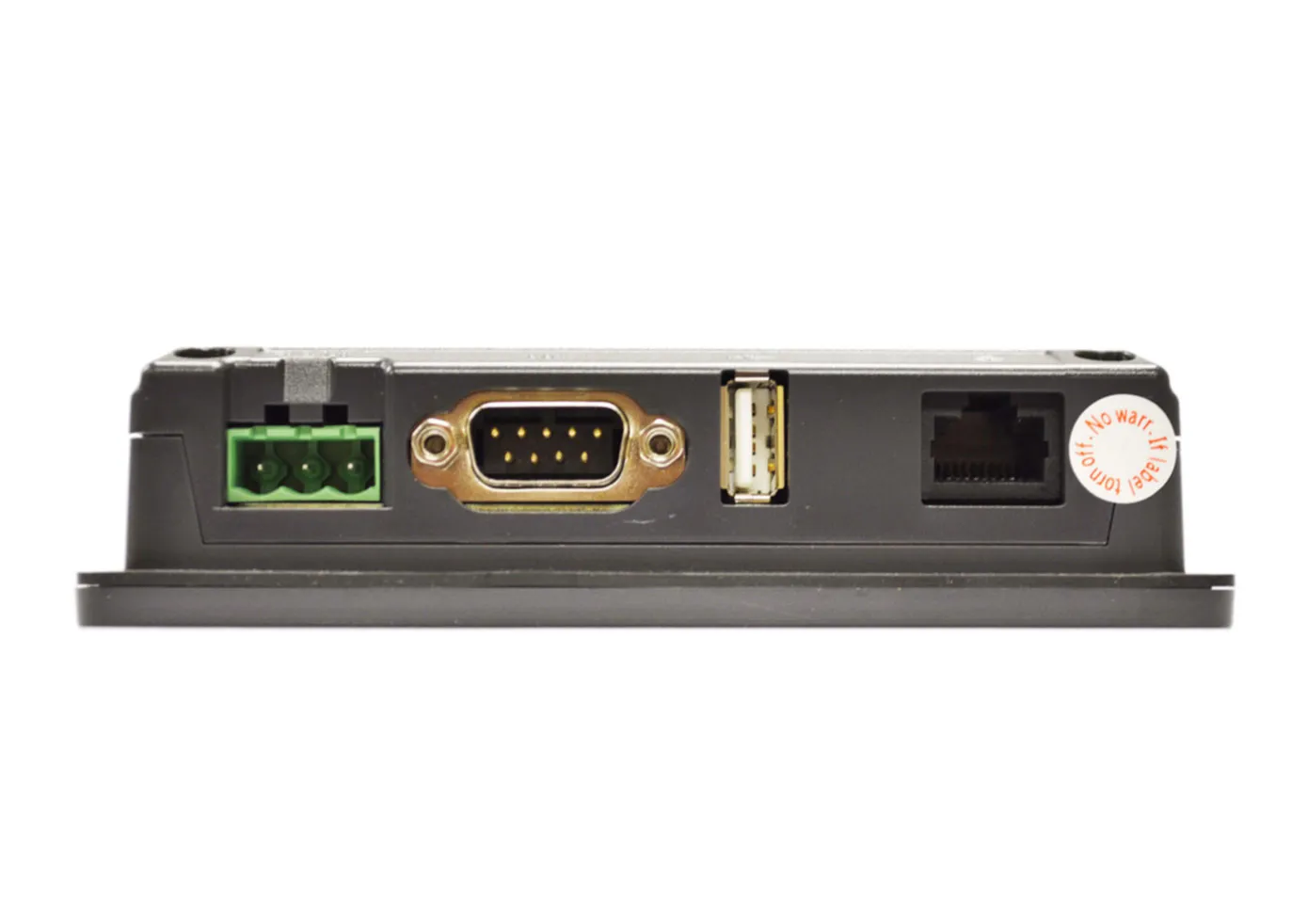

I/O Ports
| Ethernet/LAN | 10/100 Base-T x 1 |
| CANbus | N/A |
| Audio Output | N/A |
| SD Card Slot | N/A |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | N/A |
| Wi-Fi | N/A |
| COM Port | 1 x DE9P COM1: RS-232/RS-485 2 or 4 wire, COM 3: RS-485 2 wires |
| RS-485 Dual Isolation | N/A |
| Local bus | N/A |
| HDMI Port | N/A |
| Video Input | N/A |
| Serial Ports | 1 |
Display
| Display Size | 4.3" TFT |
| Resolution | 480 x 272 |
| Luminance (cd/m^2) | 400 |
| Contrast Ratio | 500:1 |
| Backlight Type | LED |
| Backlight Lifetime (hrs) | 30,000+ |
| Colors | 16.7 M |
| Display Type | 4.3" TFT |
| Viewing Angle (H°/V°) | 140/120 |
| Size (W x H) | 3.70 x 2.10 inches [95 x 54 mm] |
Touch Screen
| Type | 4-wire resistive touch |
| Accuracy | Length (X) ±2%, width (Y) ±2% |
Electrical
| Input Power | 10.8 W |
| Power Isolation | Built-in |
| Power Dissipation | N/A |
| Current for Internal Bus | N/A |
| Current Consumption | N/A |
| Isolation Resistance | Exceed 50 MO – @ 500 VDC |
| Input Voltage | 24 ± 20% VDC |
| Input Current | 450 mA @ 24 VDC |

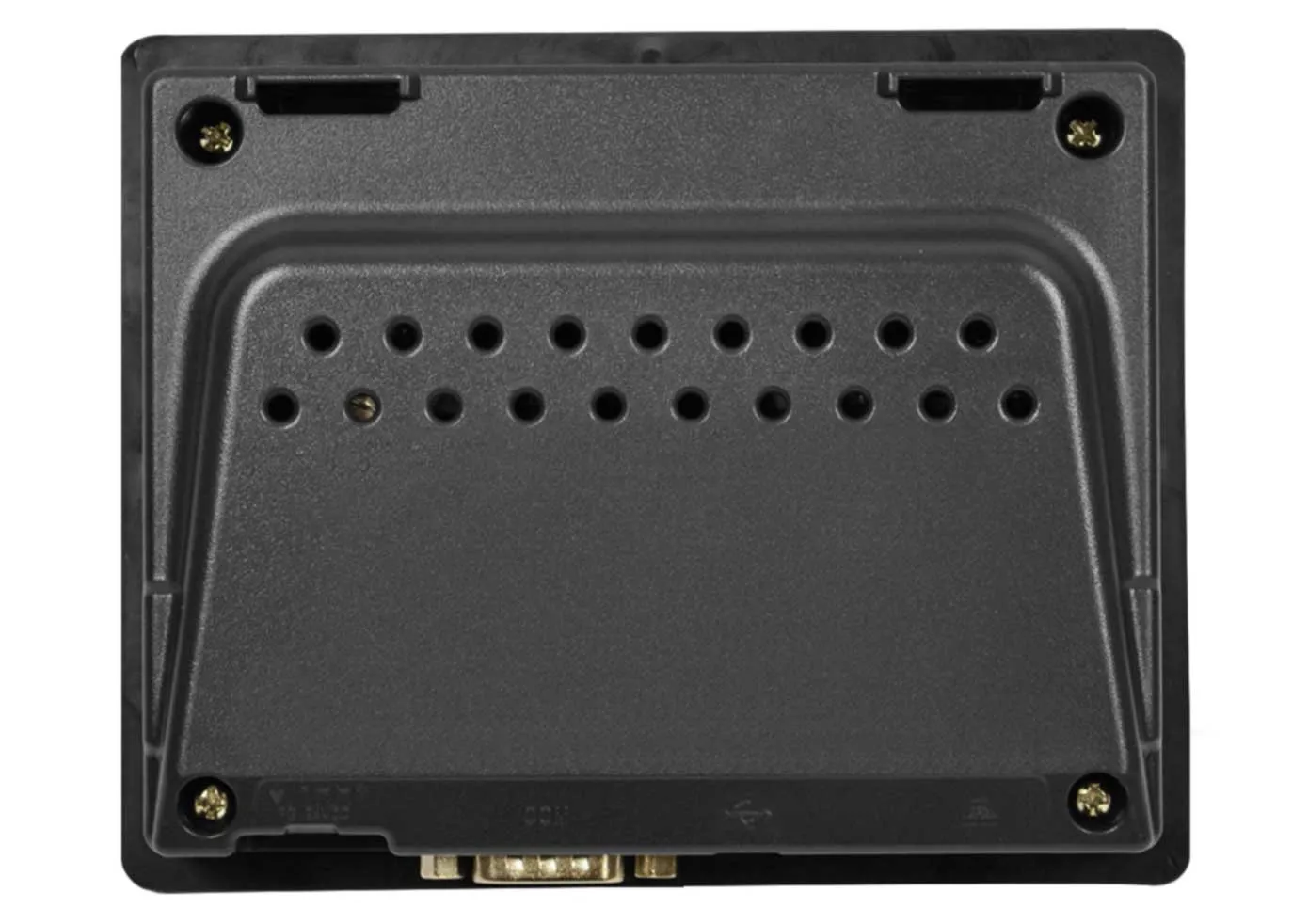

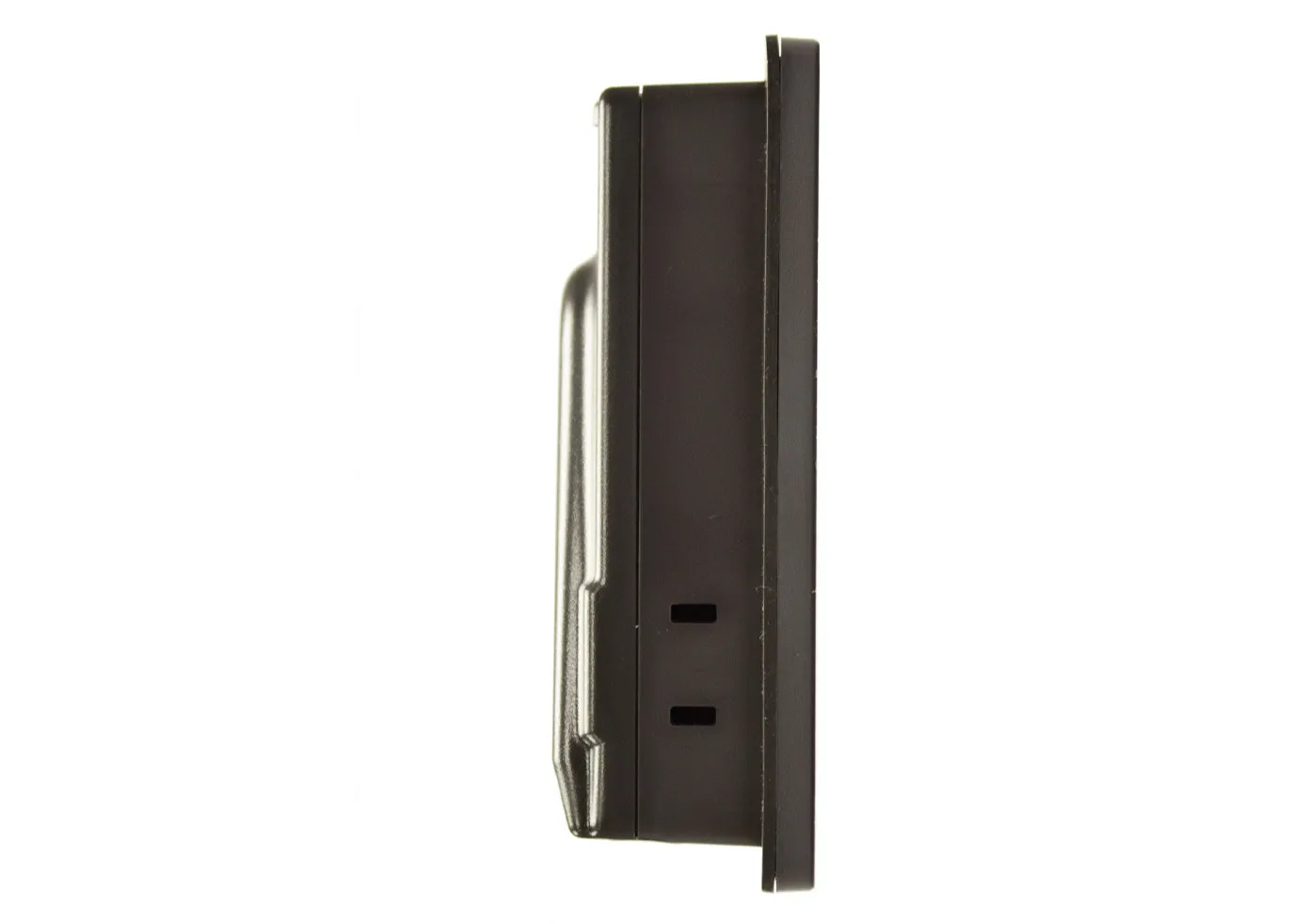

Mechanical
| Vibration Endurance | 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes) |
| Enclosure Material | Plastic, charcoal grey |
| PCB Coating | Yes |
| Dimensions WxHxD | 5.04 x 4.02 x 1.26 inches [128 x 102 x 32 mm] |
| Panel Cutout (inches) [mm] | 4.69 x 3.66 [119 x 93] |
| Weight | Approx. 0.55 lbs. [0.25 Kg] |
| Mounting | Panel mount |
Environmental
| Operating Temperature | 32° ~ 113°F (0° ~ 45°C) |
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| UL Type Rating | UL Type 4X (indoor use only) |
| NEMA Rating | NEMA4 |
| IP Rating | IP65 compliant front panel |
| CE | Yes |
| UL | cULus Listed |
| Class 1 Div 2 | N/A |
| ATEX | N/A |
| RoHS | Yes |
Connect a Maple Systems HMI to a Maple Systems PLC
Whether you are new to Maple Systems or know our HMIs well, pairing one of our powerful HMIs with a low-cost PLC is easy.
EasyAccess2.0 Overview
EasyAccess2.0 Overview
FREE User Friendly HMI Software
Download our free, full-featured HMI configuration software to create custom control applications for your industrial process. EBPro supports over 300 PLC & controller protocols, ensuring seamless integration with new or existing systems. No license or key required.

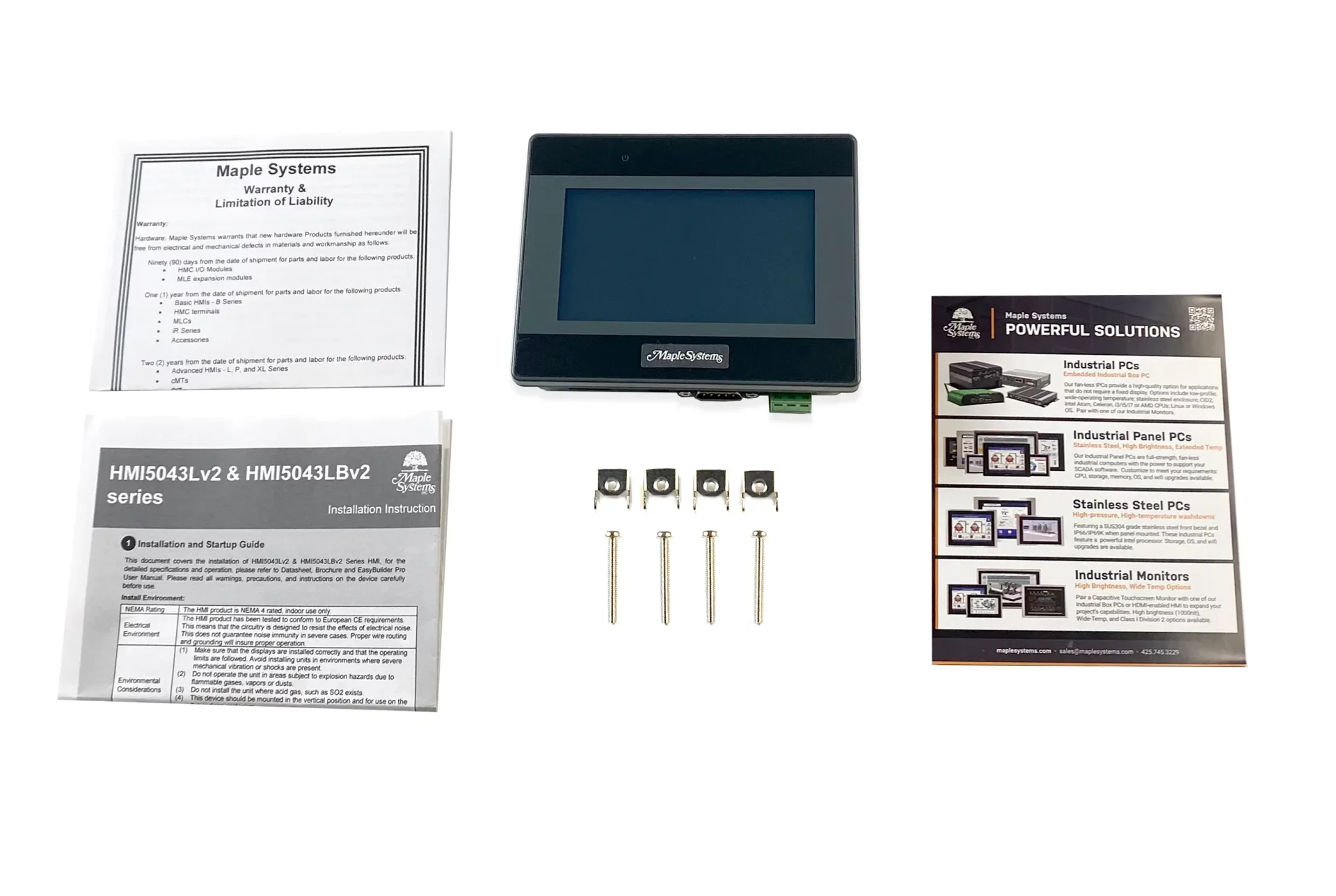

When you order the HMI5043LBv2 the following items are included in the box:
- 1 x HMI5043LBv2
- 1 x Warranty Statement
- 1 x Installation Instruction
- 1 x Product Flyer
- 1 x Power Connector
- 4 x Panel Mounting Clips
