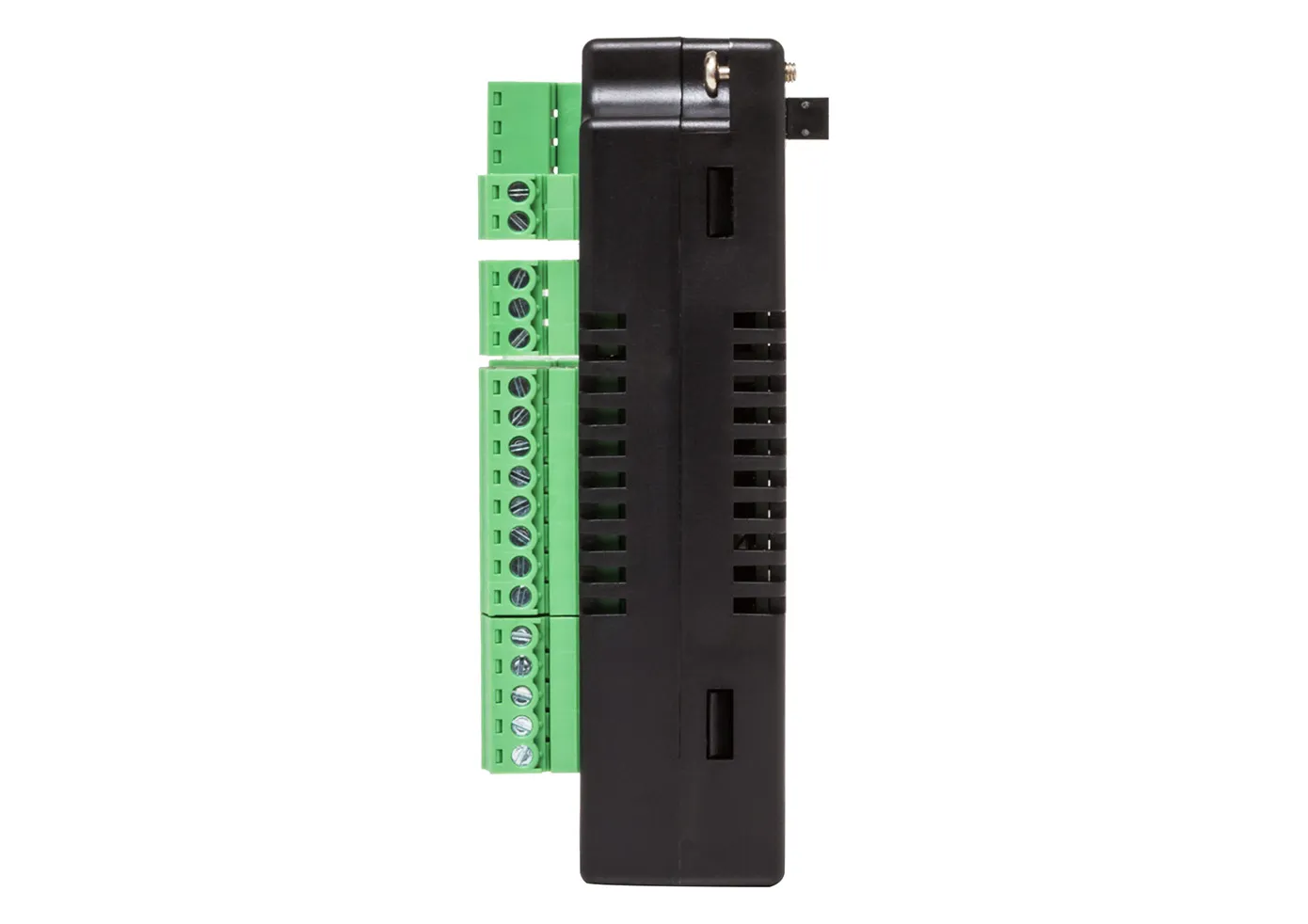

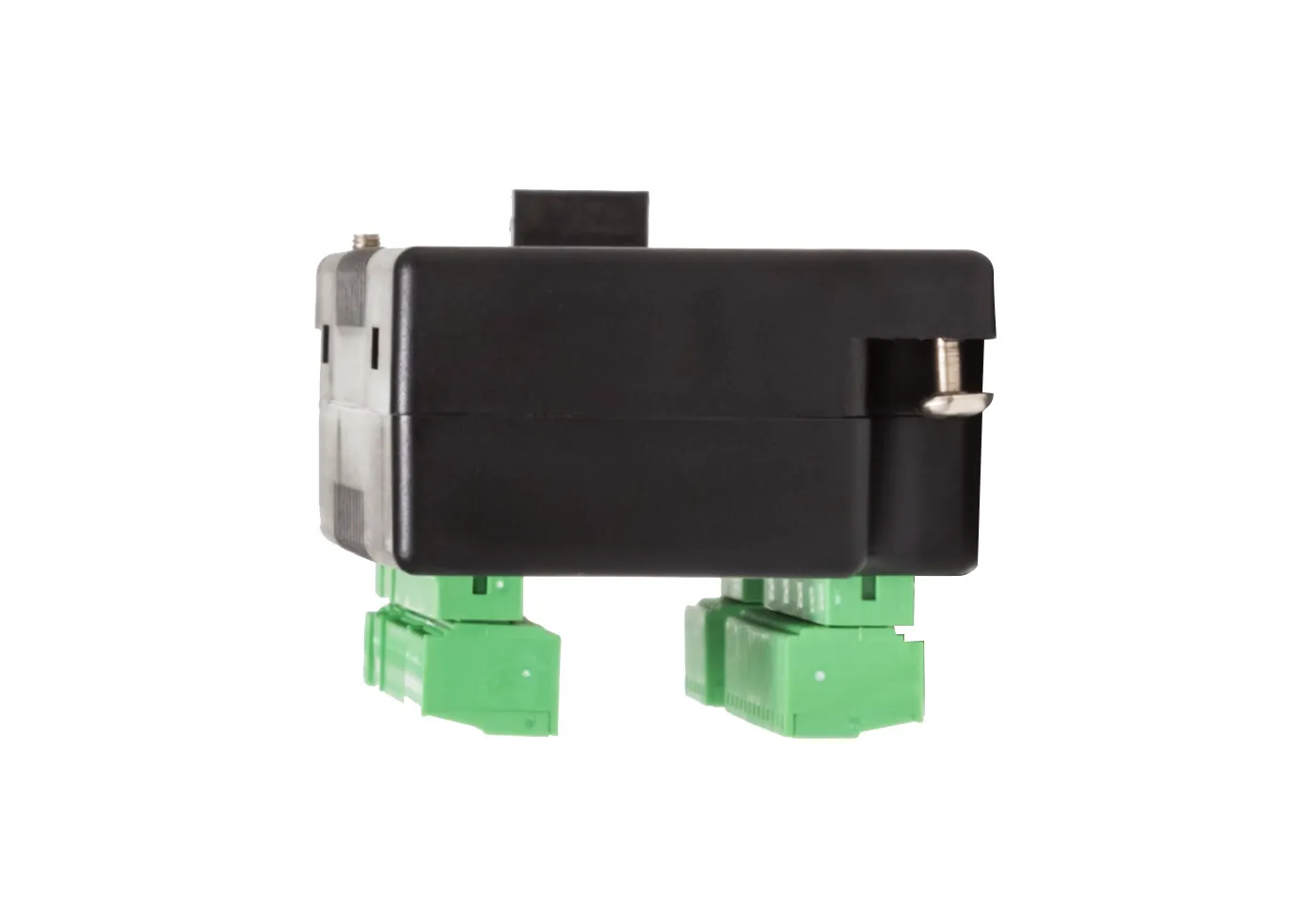

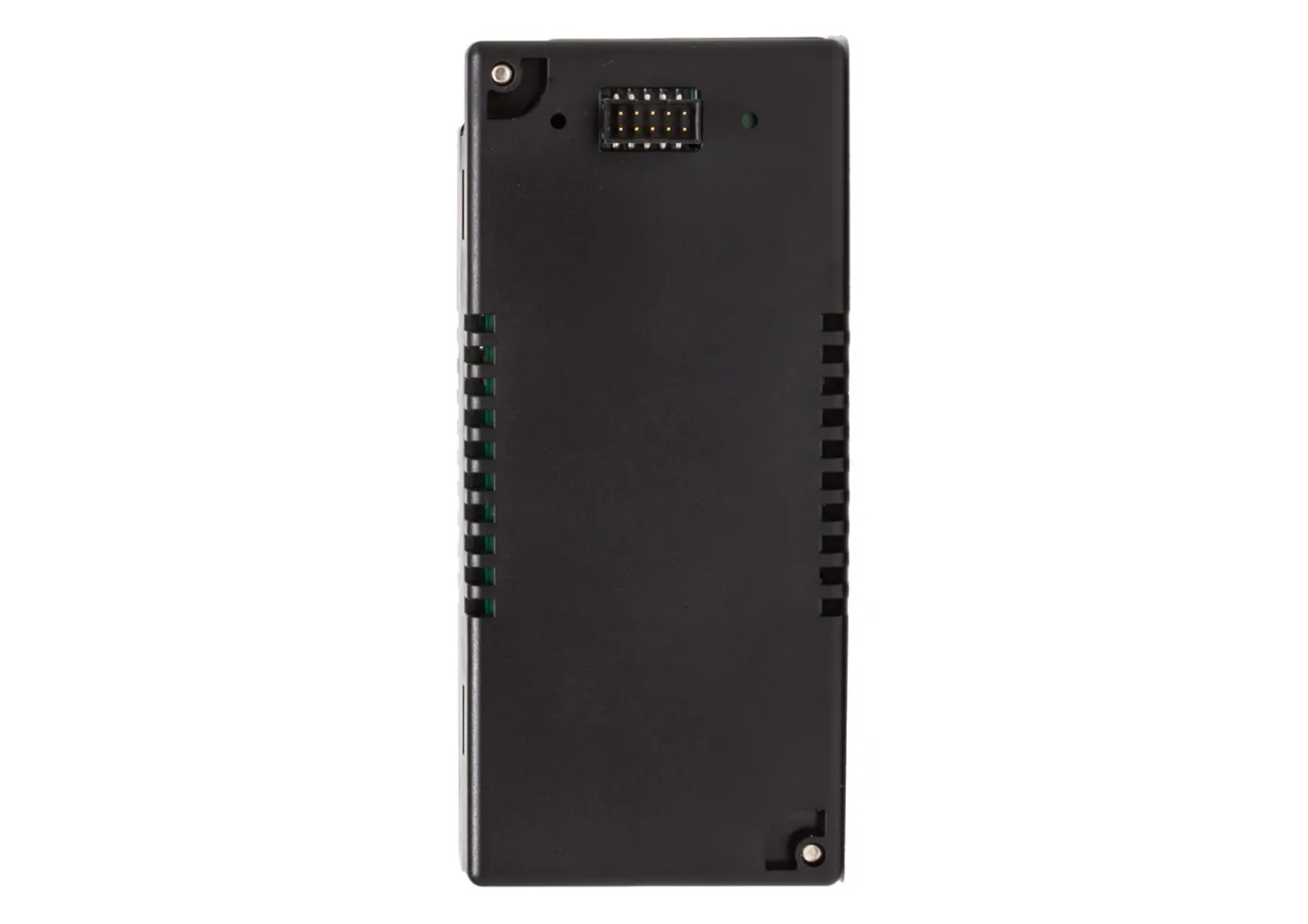

I/O Module | 12 Bi-Directional Digital Inputs, 10 PNP Digital Outputs, 2 Analog Inputs, 1 Analog Output
$180.00
As part of the HMC2000 and HMC4000, this I/O module expands the capabilities of the HMI system for increased PLC functionality. Mix and match additional I/O modules to meet your unique project needs. 12 DI, 10 DO, 2 AI, 1 AO
- HMI+PLC Training videos offering step by step instructions.
- US-based technical support.
Share the product:
Power Supply
| Voltage Rating | 24 VDC (±15%), 12 V from base |
|---|---|
| Power Rating | Input/channel: 24 VDC, 5 mA typical Output/Channel: 250 mA @ 24 VDC |
| Isolation | Optical Isolation for all I/O points. High isolation voltage (BV= Greater than 1.5 kV) |
Digital I/O
| High Speed Inputs (HSC) | 2 pairs |
|---|---|
| Max Input Frequency (HSC) | 200 kHz |
| High Speed Output (PWM) | 1 |
| Max Output Frequency (PWM) | 1 kHz |
| Number of Inputs | 12 Inputs Bi-directional Type |
| Input Design | According to EN 61131-2 Type 1 |
| ON Voltage | Min. 15 VDC, Max. 30 VDC |
| OFF Voltage | Min.: -3 VDC, Max.: 5 VDC |
| Nominal Input Voltage | 24 VDC |
| Nominal Input Current | 5 mA typical |
| Input Response Time | ON: 10 msec, OFF: 10 msec |
| Input Impedance | 4.8 KΩ |
| Number of Outputs | 10 PNP type transistor outputs |
| ON Output Voltage | Min ON: 22 VDC, Max. ON: 30 VDC (Voltage across load) |
| Nominal Output Voltage | 30 VDC |
| Nominal Output Current | 250 mA type/channel |
| Output Response Time | ON: 10 msec, OFF: 10 msec |
Analog I/O
| Analog Input Total Channels | 2 Input channels (16 bit resolution) |
|---|---|
| Input Type | 0-20 mA, 4-20 mA & 0-10 VDC, 0-5 VDC |
| Analog Output Total Channels | 1 Output channels (12 bit resolution) |
| Output Type | 0-20 mA, 4-20 mA and 0-10 VDC, 0-5 VDC |
| Accuracy | ± 0.2% of full scale @ 25° |
Environmental
| Operating Temperature | 0 to 60 °C |
|---|---|
| Storage Temperature | -20 to 85 °C |
| Humidity | 10 to 90% (Non-Condensing) |
| Short Circuit Protection | Yes |
| Product Dimensions | 48 mm x 108 mm x 35.7 mm (W x H x D) |
Certification
| Class 1 Div 2 | Yes |
|---|---|
| Approvals | CE, UL |
Free HMI+PLC Configuration Software
MAPware-7000 is the free configuration software used to program our HMI+PLC combo units using the IEC 61131-3 programming language. One software to program your graphics and system logic, for a complete control solution. No license or software key is needed.

Documents
Manuals
- HMC3-M1210P0201-V2 Quick Start Guide
- MAPware-7000 Programming Manual
- MAPware-7000 Getting Started Guide
- MAPware-7000 IEC61131 Programming Guide
- I/O Module Guide for the HMC2000, HMC3000, HMC4000 Series
- HMC Series Installation Guide
Certifications
- REACH EU Declaration of Conformity
- CE Declaration of Conformity – Web HMI, HMC2X, HMC3x, HMC4x Series
- UL Certification Declaration – HMC2x, HMC3x, HMC4x, HMC7x, MLCx, MLEx, HMI5070L/LB, WP4x
- RoHS Declaration of Conformity (all series)
- Country of Origin Certification
CAD Files
When you order the HMC3-M1210P0201-V2 the following items are included in the box:
- HMC3-M1210P0201-V2
- Warranty Statement
- Installation Instruction
- Product Flyer
- Power Connector
- Screw type terminal blocks
