9.7" High Performance HMI with CODESYS
cMT3092Xv2-CODESYS
$1,255.00
The cMT3092Xv2 with an activated CODESYS license is a high performance touch panel that provides powerful performance for applications requiring our most advanced feature set, remote access, and IIoT functionality. Pair this operator interface with our remote I/O for soft PLC functionality.
Try Before You Buy: Follow along to learn how EBPro, our 100% free HMI configuration software, allows you to develop and simulate your HMI program entirely free of charge.
- Compare cMT3092Xv2-CODESYS and other models.
- Volume discounts available. Contact sales for more details.
- Customize your product with your company logo. Minimum quantities apply.
- Connects to +400 PLCs and Controllers.
- US Based Technical Support
Share the product:
Review this product
Share your thoughts with other customers about this product
cMT3092Xv2-CODESYS Highlights
- 1024 x 768 Resolution, 2 Ethernet Ports, 1 USB Port, 2 Serial Ports
- Activated CODESYS License, add remote I/O for Soft PLC Functionality
- Web Browser, Email, and more
- IIoT, Remote Access, MQTT, OPCUA Client/Server, SQL Database
- UL, CE, RoHS, IP66, NEMA 4
System
| CPU | Quad-Core 32-bit RISC 1.6 GHz |
| Memory (RAM) | 1 GB |
| Memory (Flash) | 4 GB |
| RTC | Built-in |
| Programming Software | EBPro (Latest Version) |

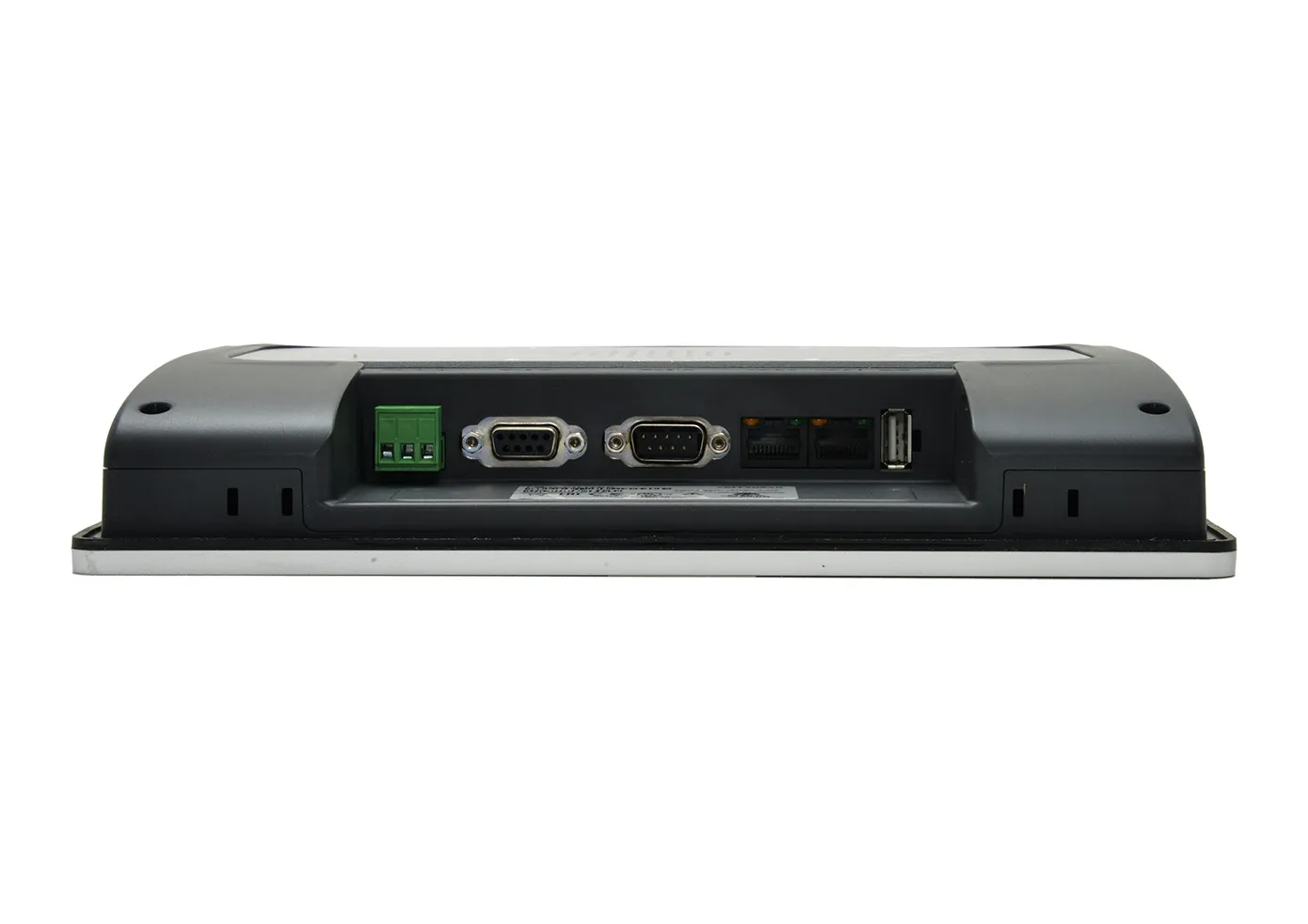

I/O Ports
| Serial Ports | 2 |
| Ethernet/LAN | LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1 |
| CANbus | N/A |
| Audio Output | Built-in Mono Speaker |
| SD Card Slot | N/A |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | N/A |
| Wi-Fi | N/A |
| COM Port | 1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wires 1 x DE9P COM1: RS-232, COM3: RS-232 |
| RS-485 Dual Isolation | N/A |
| Local bus | N/A |
| HDMI Port | N/A |
| Video Input | N/A |
| Siemens MPI | N/A |
Display
| Resolution | 1024 X 768 |
| Luminance (cd/m^2) | 350 |
| Contrast Ratio | 500:1 |
| Backlight Type | LED |
| Backlight Lifetime (hrs) | 30,000+ |
| Colors | 262 K |
| Display Type | 9.7" TFT |
| Viewing Angle (H°/V°) | 140/130 |
| Size (W x H) | 7.78 x 5.84 inches [197.6 x 148.5 mm] |
Touch Screen
| Type | 4-wire resistive touch |
| Accuracy | Length (X) ±2%, width (Y) ±2% |
Electrical
| Input Power | 24 W |
| Power Isolation | Built-in |
| Power Dissipation | N/A |
| Current for Internal Bus | N/A |
| Current Consumption | N/A |
| Isolation Resistance | Exceed 50 MO – @ 500 VDC |
| Input Voltage | 24 ± 20% VDC |
| Input Current | 1 A @ 24 VDC |
Mechanical
| Vibration Endurance | 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes) |
| Enclosure Material | Plastic, charcoal grey |
| PCB Coating | Yes |
| Dimensions WxHxD | 10.26 x 8.00 x 1.75 inches [260.6 x 203.1 x 44.5 mm] |
| Panel Cutout (inches) [mm] | 9.84 x 7.56 [250 x 192] |
| Weight | Approx. 2.2 lbs. [1.0 kg] |
| Mounting | Panel mount, VESA 75 x 75 mm |
Environmental
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Operating Temperature | 32° ~ 122°F (0° ~ 50°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| UL Type Rating | UL Type 4X (indoor use only) |
| NEMA Rating | NEMA4 |
| IP Rating | IP66 Compliant Front Panel |
| CE | Yes |
| UL | cULus Listed |
| Class 1 Div 2 | N/A |
| ATEX | N/A |
| RoHS | Yes |
Unboxing a cMT3092Xv2
Watch as we unbox, show accessories & I/O ports on the HMI, then load a demo project.
FREE User Friendly HMI Software
Download our free, full-featured HMI configuration software to create custom control applications for your industrial process. EBPro supports over 300 PLC & controller protocols, ensuring seamless integration with new or existing systems. No license or key required.
Documents
Manuals
- EBPro Programming Manual
- EBPro Quick Start Guide
- EasyWeb 2.0 Operations Manual
- cMT3092X(v2) Installation Guide
- cMT Quick Start Guide
- cMT MySQL Quick Start Guide
- cMT Microsoft SQL Quick Start Guide
- OPC-UA Set-up Overview
- CODESYS Quick-Start Guide
- Activate CODESYS on cMT Models
Certifications
- CE-CMT3092X, CMT3092Xv2
- UL-cMT Series
- RoHS all series
- REACH Certification
- Trade Agreement Act
- Russian Iron and Steel Declaration
- EU Declaration of Conformity (Battery Regulations)
- Country of Origin Certification
CAD Files
When you order the cMT3092Xv2-CODESYS the following items are included in the box:
- cMT3092Xv2 Touchscreen HMI with CODESYS license
- Warranty Statement
- Installation Instruction
- Product Flyer
- Power Connector
- Mounting Clips
- USB Stick Clamp & Tying Strap
